VEVOR HH7500 Electric Trailer Jack Instruction Manual

1. Sigurnosne informacije

Always read and understand all instructions before installing or operating the VEVOR Electric Trailer Jack. Failure to follow these instructions may result in serious injury or property damage.

• Ensure the trailer is properly chocked and stable before any installation or operation.
• Disconnect the trailer's battery before performing any wiring or electrical connections.
• Nemojte prekoračiti maksimalnu težinu od 7500 lbs.
• Držite ruke i odjeću dalje od pokretnih dijelova tokom rada.
• Use the manual crank only in case of power failure.

2. Sadržaj paketa

Provjerite da li su svi artikli prisutni u paketu:

• 1 x Trailer Jack
• 1 x Hand Crank
• 1 x Waterproof Cover
• 2 x daljinski upravljači
• 1 x Uputstvo za upotrebu

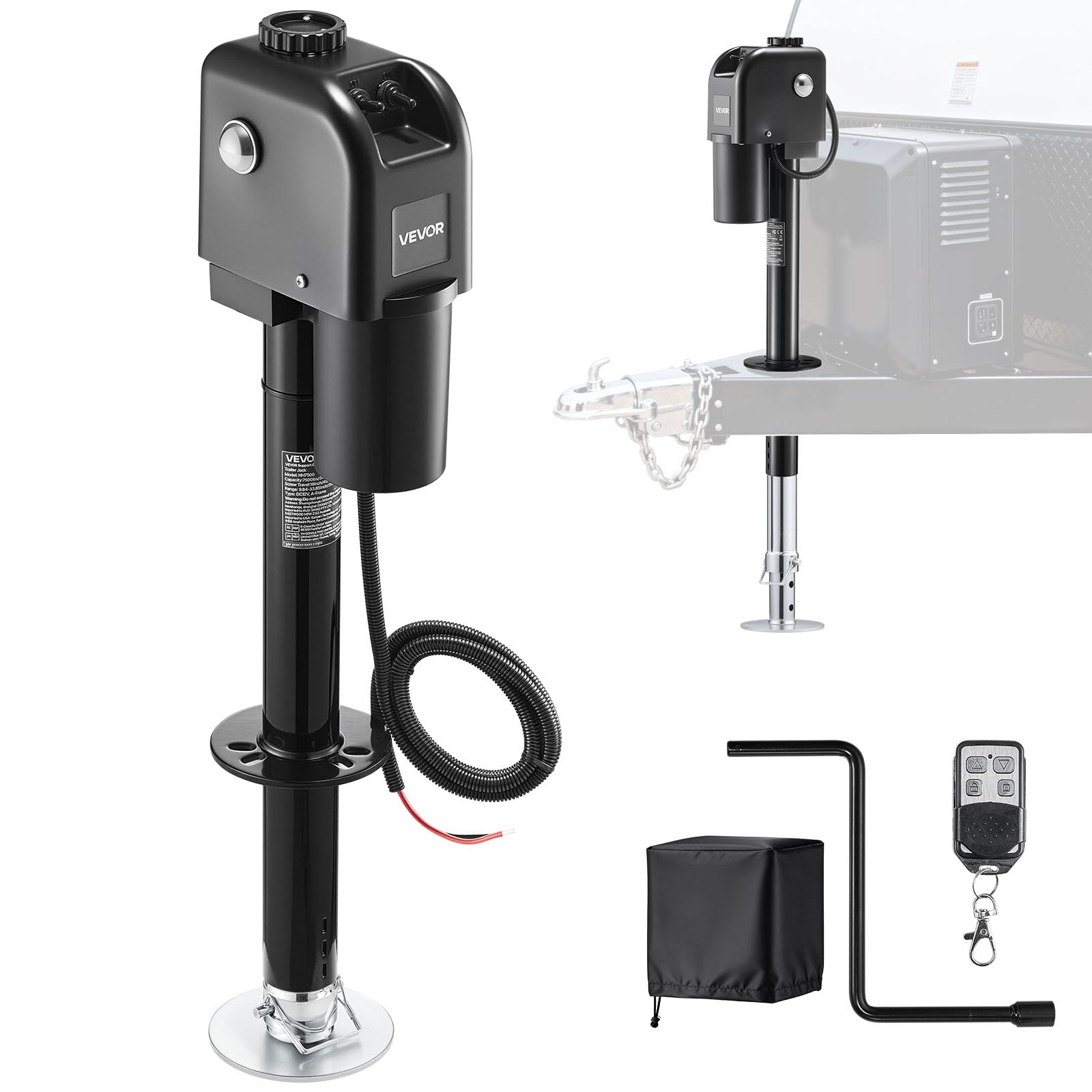

Figure 2.1: VEVOR HH7500 Electric Trailer Jack and included accessories.

3. Proizvod je gotovview

The VEVOR HH7500 Electric Trailer Jack is designed for efficient and effortless lifting of trailers, campers, and RVs. It features a robust carbon steel construction, dual-mode controls, and a wide lifting range.

• Heavy-Duty Confidence: 7,500 lbs (≈3,400 kg) capacity for steady lift.
• Dual-Mode Controls: Rocker switch and handheld remote for convenient operation.
• Širok raspon visina: 9.84-33.85 in (250-860 mm) lift with a 5-position drop leg for varied coupler heights.
• 90° Rotating Base Holes: Allows for tailgate clearance without modifications.
• Sveobuhvatna zaštita: Coated tubes, weather cover, LED work light, and manual crank backup.

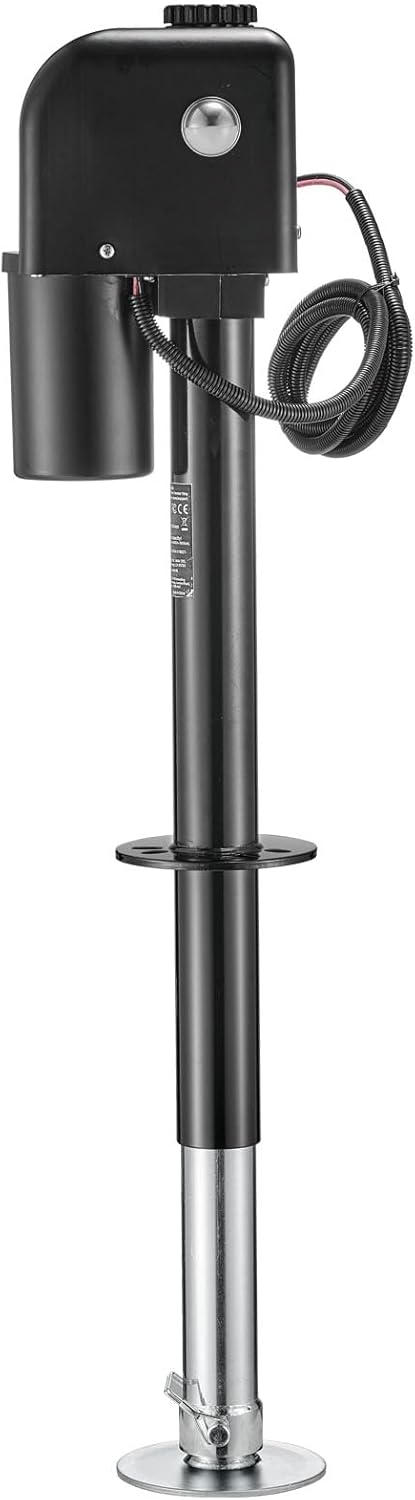

Slika 3.1: Glavni view of the VEVOR HH7500 Electric Trailer Jack.

4. Postavljanje i instalacija

4.1 Priprema

1. Park the trailer on a level surface and chock the wheels to prevent movement.
2. Couple the trailer to the tow vehicle and lift the existing trailer jack until it supports no weight.
3. Disconnect the trailer's 12V battery to prevent electrical hazards.

4.2 Removing the Old Jack

Carefully remove the bolts securing the old trailer jack to the A-frame. Once unbolted, lift the old jack out of its mounting hole.

4.3 Mounting the New Jack

1. Insert the new VEVOR Electric Trailer Jack into the mounting hole on the trailer's A-frame.
2. Align the mounting holes on the jack's base with the holes on the trailer frame.
3. Secure the jack using the provided bolts, washers, and nuts. Tighten securely.
4. The jack features a 90° rotating base to clear the pickup tailgate. Rotate the jack head to the desired position before fully tightening the bolts.

Figure 4.2: VEVOR Electric Trailer Jack installed on a trailer.

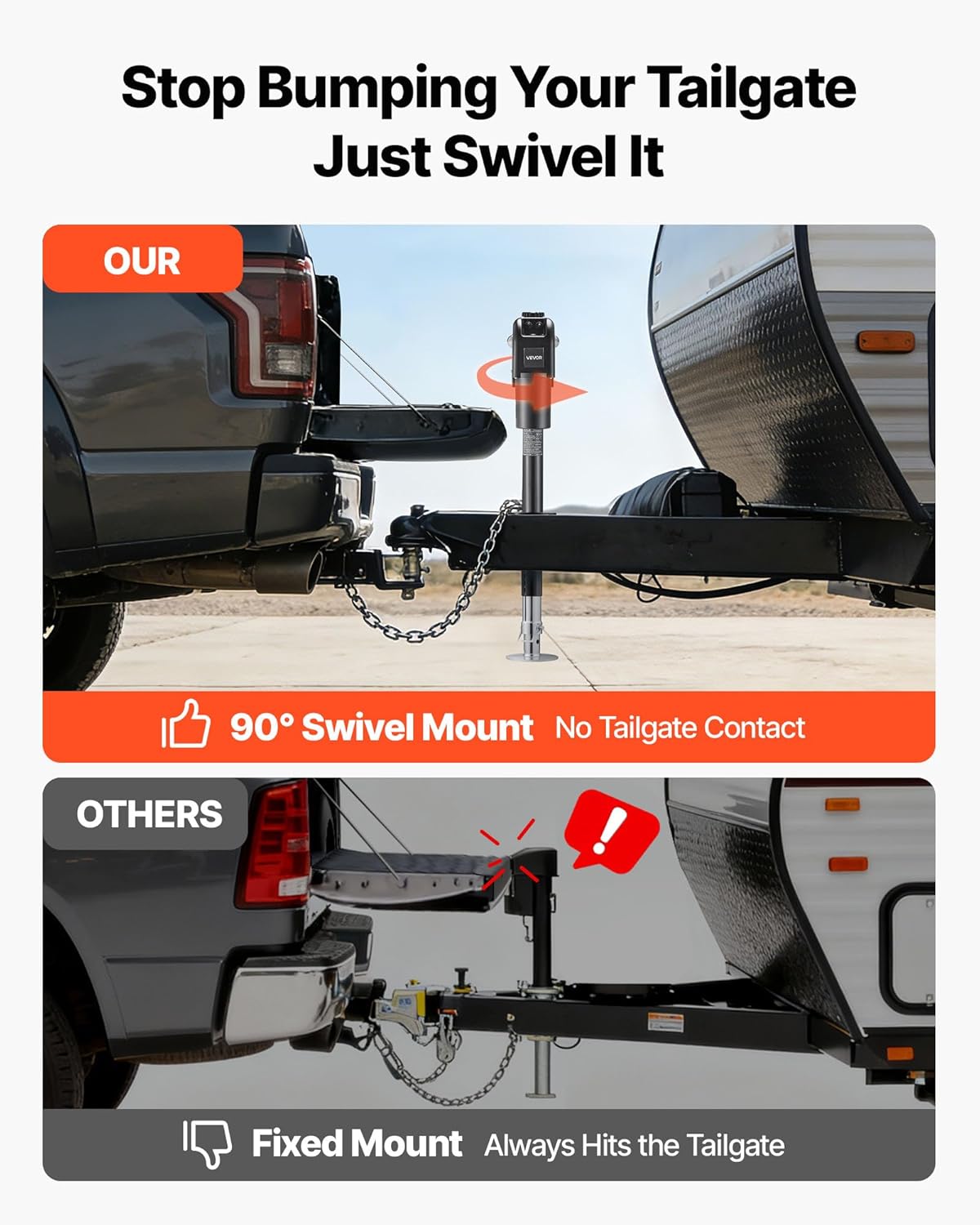

Figure 4.3: 90° Rotating Base for tailgate clearance.

4.4 Ožičenje

Connect the jack's power wires to the trailer's 12V DC battery system. The red wire is positive (+), and the black wire is negative (-). Ensure connections are secure and protected from the elements.

4.5 Adjusting the Drop Leg

The jack includes a 5-position adjustable drop leg. To adjust, pull the pin, slide the leg to the desired height, and reinsert the pin to secure it. This allows for quick height adjustments on uneven terrain.

Figure 4.4: Lift range and 5-position drop leg adjustment.

5. Uputstvo za upotrebu

5.1 Uključivanje/isključivanje napajanja

Ensure the trailer battery is connected. The jack is ready for operation once wired correctly.

5.2 Lifting and Lowering

The jack can be operated using the integrated rocker switch or the provided remote controls:

• Preklopni prekidač: Located on the jack head, push the switch up to raise the jack and down to lower it.
• daljinski upravljač: Use the 'UP' button to raise and the 'DOWN' button to lower the jack. The remote allows for operation from a short distance, reducing the need to bend over.

Figure 5.1: Dual-mode controls: rocker switch and remote.

5.3 LED radno svjetlo

The integrated LED work light provides illumination for tasks in low-light conditions. Activate it using the dedicated light button on the jack head or remote control.

Figure 5.3: LED work light for night visibility.

5.4 Manual Operation (Power Loss Backup)

In the event of power loss, the jack can be operated manually using the provided hand crank. Remove the rubber cap on top of the jack head, insert the hand crank, and turn it clockwise to raise or counter-clockwise to lower the jack.

6. Održavanje

To ensure the longevity and optimal performance of your VEVOR Electric Trailer Jack, follow these maintenance guidelines:

• Waterproof Protective Cover: Always use the provided waterproof cover when the jack is not in use, especially during adverse weather conditions, to protect it from rain, snow, and sun.
• čišćenje: Periodically clean the jack's exterior with a damp tkanina. Izbjegavajte korištenje jakih kemikalija koje mogu oštetiti premaz.
• podmazivanje: Inspect the moving parts and lubricate as necessary to ensure smooth operation.
• Električni priključci: Regularly check all electrical connections for tightness and corrosion.

7. Otkrivanje problema

• Jack ne radi:
  • Provjerite spojeve akumulatora na čvrstoću i koroziju.
  • Ensure the trailer battery is charged.
  • Verify the fuse in the wiring is intact.
  • If power is confirmed, use the manual crank to operate the jack.
• Jack operates slowly or with difficulty:
  • Check for obstructions around the jack leg.
  • Ensure the load does not exceed the jack's capacity.
  • Po potrebi podmažite pokretne dijelove.

8. Specifikacije

9. Garancija i podrška

For warranty information, technical support, or any questions regarding your VEVOR Electric Trailer Jack, please refer to the contact information provided in your product packaging or visit the official VEVOR website. Sačuvajte račun o kupovini za reklamacije.
