Uvod
Thank you for choosing the ZIPRO MODO Exercise Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read it thoroughly before first use and keep it for future reference. The ZIPRO MODO is designed for effective indoor cardio training, featuring adjustable resistance, a quiet mechanical system, and app connectivity for tracking your progress.
Sigurnosne informacije
- Konsultujte se sa ljekarom prije početka bilo kojeg novog programa vježbanja.
- Prije svake upotrebe provjerite jesu li svi vijci i matice sigurno zategnuti.
- Place the exercise bike on a flat, stable surface. Use a mat to protect your floor.
- Držite djecu i kućne ljubimce podalje od opreme tokom rada.
- Nosite odgovarajuću odjeću i obuću za vježbanje. Izbjegavajte široku odjeću koja bi se mogla zaplesti u pokretne dijelove.
- If you experience dizziness, pain, or shortness of breath, stop exercising immediately and consult a physician.
- Maksimalna težina korisnika za ovaj uređaj je 120 kg.
Postavljanje i montaža
The ZIPRO MODO Exercise Bike is designed for straightforward assembly. All necessary tools and instructions are included in the package. Follow the step-by-step guide provided in the box for detailed assembly instructions.
- Raspakivanje: Carefully remove all components from the packaging. Verify that all parts are present according to the parts list in the included manual.
- Sklop baze: Attach the front and rear stabilizers to the main frame. Ensure they are securely fastened.
- Instalacija pedale: Attach the pedals to the crank arms. Note that pedals are typically marked 'L' for left and 'R' for right and thread in opposite directions.
- Ugradnja cijevi sjedišta i cijevi volana: Insert the seat post and handlebar post into their respective slots on the main frame.
- Seat and Handlebar Attachment: Secure the seat to the seat post and the handlebar to the handlebar post.
- Instalacija monitora: Attach the LCD monitor to the handlebar post. The screws for securing the monitor are often pre-attached to the display itself; unscrew them, position the monitor, and then re-fasten. Connect any necessary sensor cables.
- Konačna provjera: Before first use, double-check all connections and ensure all bolts and nuts are tightened to prevent wobbling during exercise.

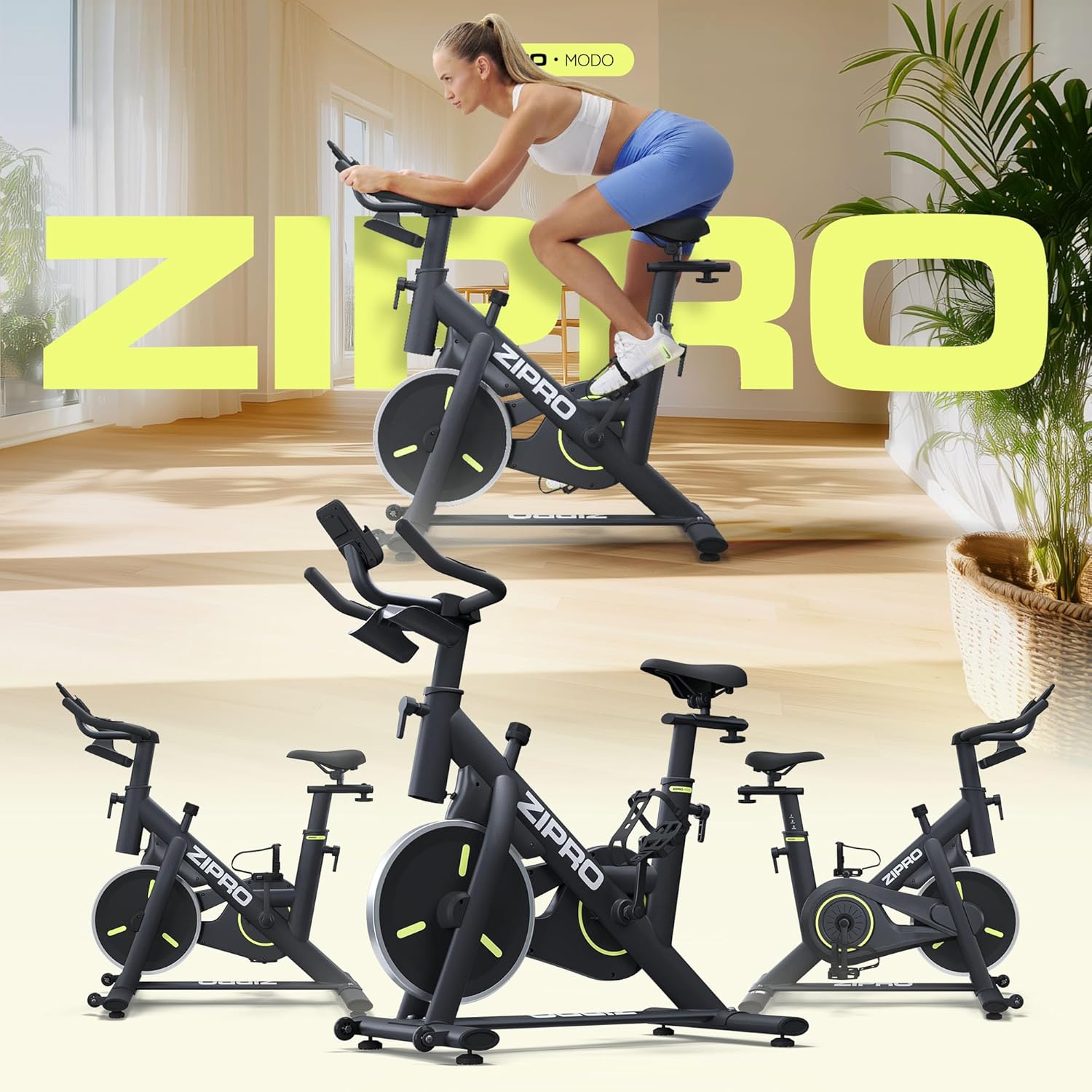

Image: The ZIPRO MODO Exercise Bike fully assembled, showcasing its compact design and robust structure.

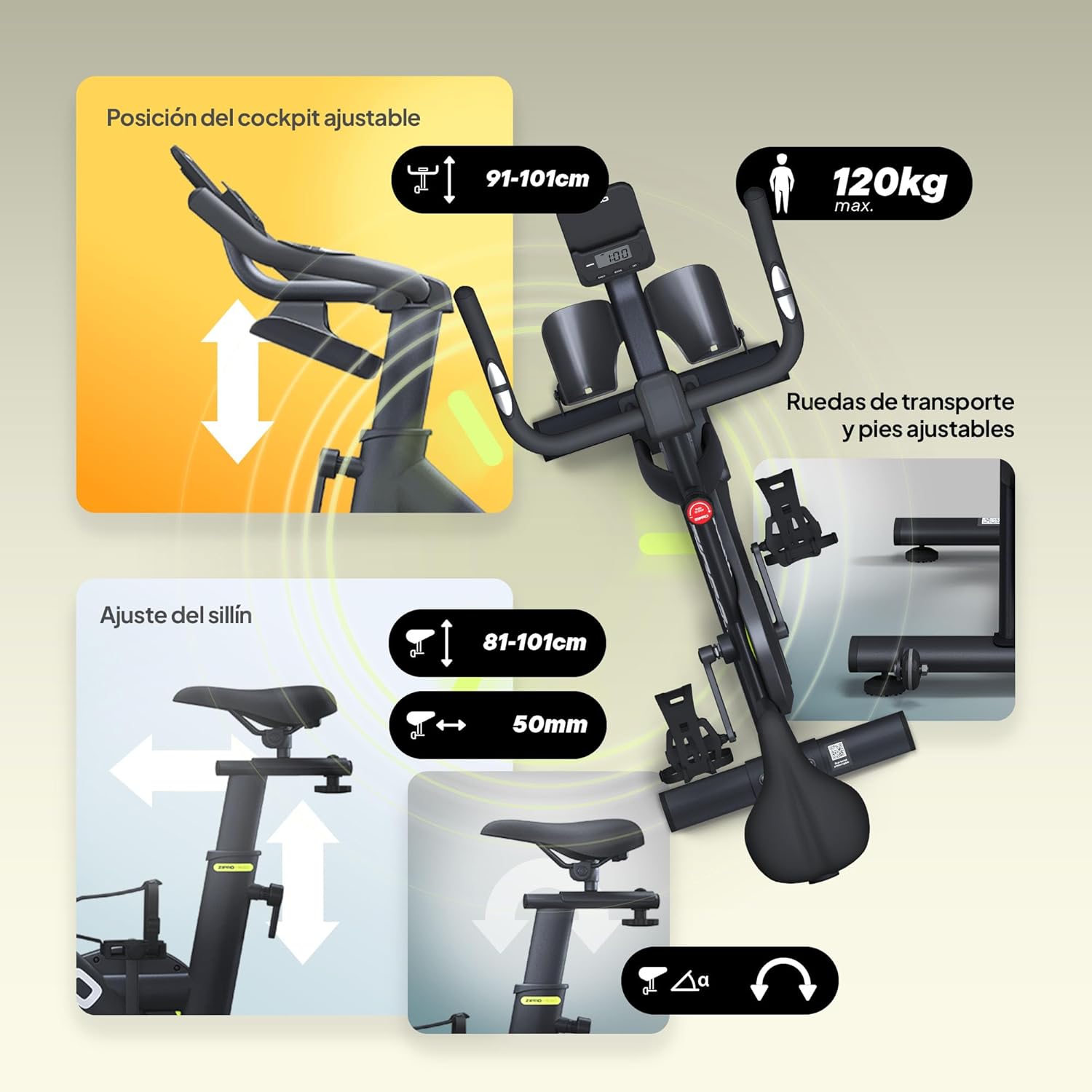

Slika: Detaljna view of the adjustable seat and handlebar mechanisms, allowing users to customize their riding position for optimal comfort and ergonomics.
Image: Close-up of the LCD monitor and integrated tablet/phone holder, providing a convenient space for your device during workouts.
Uputstvo za upotrebu
1. Adjusting Your Riding Position
- Visina sjedala: Loosen the adjustment knob on the seat post, raise or lower the seat until your leg has a slight bend at the knee when the pedal is at its lowest point. Tighten the knob securely.
- Seat Position (Forward/Backward): Loosen the adjustment knob under the seat, slide the seat forward or backward to find a comfortable distance from the handlebars. Tighten the knob securely.
- Visina upravljača: Loosen the adjustment knob on the handlebar post, raise or lower the handlebars to a comfortable height that allows for a relaxed upper body posture. Tighten the knob securely.
Image: Visual guide demonstrating the intuitive adjustments for seat height, forward/backward position, and handlebar height to achieve an ergonomic riding posture.
2. Podešavanje otpora
The ZIPRO MODO features continuous adjustable resistance. To increase resistance, turn the resistance knob clockwise. To decrease resistance, turn it counter-clockwise. For an emergency stop, press the resistance knob down firmly.
Image: Close-up of the resistance adjustment knob, indicating how to increase or decrease resistance and the push-to-stop emergency function.
3. Using the LCD Monitor and App Connectivity
The integrated LCD monitor displays key workout metrics such as time, distance, speed, and calories burned. Use the buttons on the monitor (MODE, SET, RESET) to navigate through display modes and reset values.
For enhanced tracking and interactive workouts, connect your ZIPRO MODO to a compatible fitness app via Bluetooth. Download the recommended app (e.g., FitShow) from your device's app store. Follow the app's instructions to pair your exercise bike and access features like virtual routes, personalized training programs, and detailed statistics.
Image: The LCD monitor displaying workout data, alongside a smartphone showing the FitShow app interface, illustrating the bike's connectivity features.
Održavanje
- čišćenje: Obrišite bicikl oglasomamp krpom nakon svake upotrebe kako biste uklonili znoj i prašinu. Izbjegavajte abrazivna sredstva za čišćenje.
- inspekcija: Redovno provjeravajte sve vijke, matice i pokretne dijelove na zategnutost i istrošenost. Zategnite sve labave pričvršćivače.
- podmazivanje: The mechanical resistance system is designed for low maintenance. Refer to the detailed manual for any specific lubrication requirements, though typically none are needed for the main resistance mechanism.
- Skladištenje: When not in use, store the bike in a dry, clean environment. The integrated transport wheels allow for easy relocation.

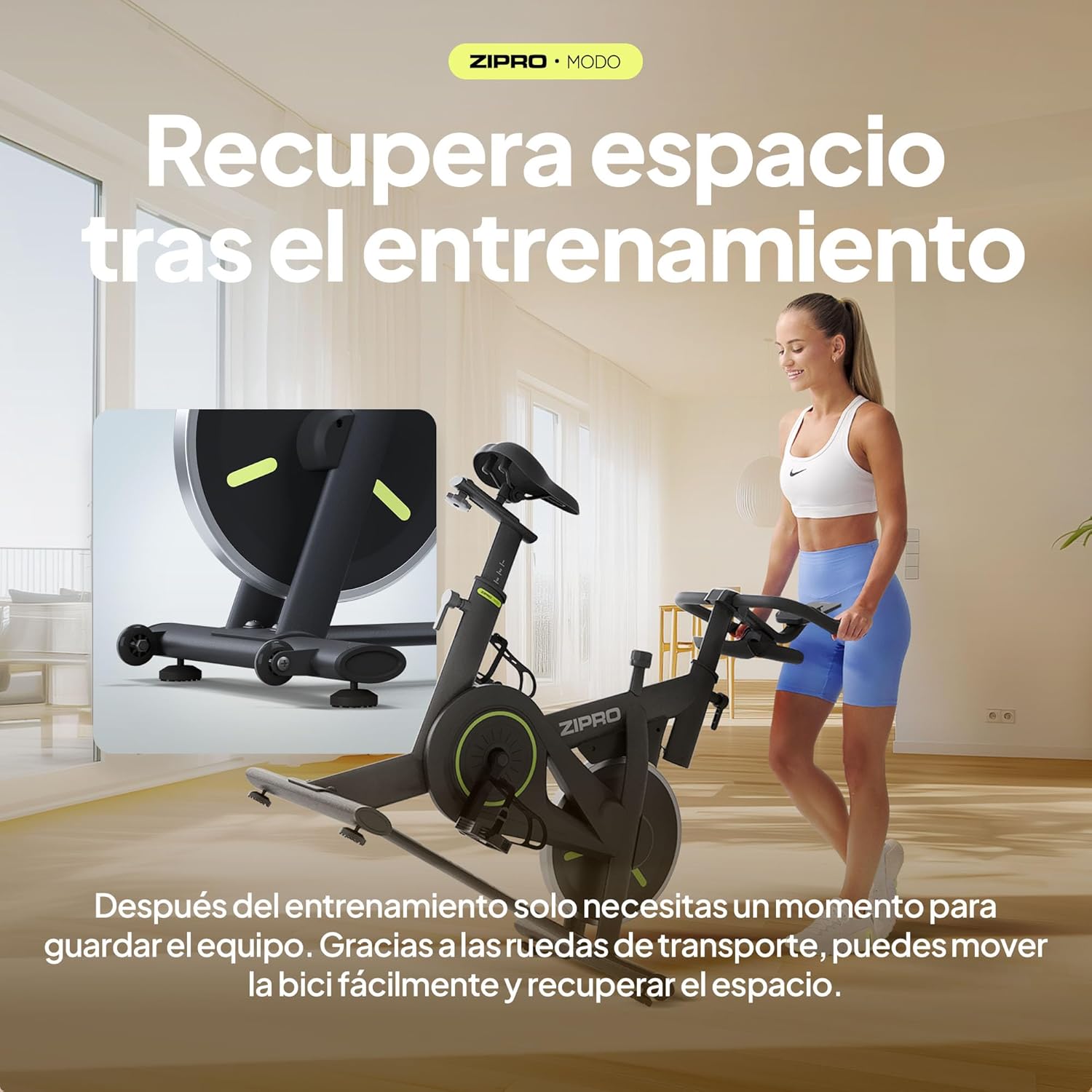

Image: The ZIPRO MODO Exercise Bike being moved using its integrated transport wheels, highlighting its portability for storage.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Bicikl se ljulja tokom upotrebe. | Labavi pričvršćivači; neravna površina. | Ensure all assembly bolts and nuts are securely tightened. Adjust the leveling feet on the stabilizers if the floor is uneven. |
| Resistance is not adjusting correctly. | Resistance knob not fully engaged or mechanism issue. | Turn the resistance knob fully clockwise and counter-clockwise to ensure it engages properly. If the issue persists, contact customer support. |
| LCD monitor ne prikazuje podatke. | Loose cable connection; dead batteries. | Check that all sensor cables are securely connected to the monitor. Replace the batteries in the monitor if necessary. |
| Cannot connect to fitness app via Bluetooth. | Bluetooth not enabled; app pairing issue; interference. | Ensure Bluetooth is enabled on your device. Restart the app and the bike's monitor. Try pairing again. Ensure no other devices are actively connected to the bike's Bluetooth. Refer to the app's specific troubleshooting guide. |
| Saddle or handlebar feels loose after adjustment. | Adjustment knobs not tightened sufficiently. | Ensure the adjustment knobs for the saddle and handlebar are tightened to their maximum secure point after positioning. |
Specifikacije
| Feature | Detalj |
|---|---|
| Broj modela | MODO |
| Dimenzije (D x Š x V) | 104 x 50.5 x 117 cm |
| Težina proizvoda | 29.72 kg |
| Maksimalna težina korisnika | 120 kg |
| Mehanizam otpora | Fluid mechanical resistance with continuous adjustment |
| Materijal | PU Foam (seat), Steel Structure |
| Posebne karakteristike | Fitness app compatibility, Robust construction, Compact design, Silent operation, Adjustable seat and handlebar position, Transport wheels |
| Izvor napajanja (monitor) | Radi na baterije |
Garancija i podrška
For warranty information and customer support, please refer to the documentation included with your product or visit the official ZIPRO webSačuvajte dokaz o kupovini za eventualne reklamacije.
If you require assistance with assembly, operation, or troubleshooting beyond what is covered in this manual, please contact ZIPRO customer service directly. You can often find contact details on the manufacturer's webweb-mjestu ili putem prodavača gdje ste kupili proizvod.
Za više informacija posjetite ZIPRO Store on Amazon.
