Toputure TP6 Sklopiva traka za trčanje - uputstvo za upotrebu

Uvod

Thank you for choosing the Toputure TP6 Folding Treadmill. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new fitness equipment. Please read it thoroughly before initial use and keep it for future reference.

Važna sigurnosna uputstva

To reduce the risk of serious injury, read all instructions before using the Toputure TP6 treadmill. Keep this manual in a safe place for future reference.

• Traku za trčanje uvijek postavite na ravnu površinu.
• Osigurajte dovoljan prostor oko trake za trčanje (najmanje 2 metra iza i 0.6 metara sa svake strane).
• Držite djecu i kućne ljubimce podalje od trake za trčanje tokom rada.
• Do not use the treadmill if you weigh more than 130 KG.
• Uvijek pričvrstite sigurnosnu kopču za ključ na odjeću prije pokretanja trake za trčanje.
• Konsultujte se sa lekarom pre nego što započnete bilo koji program vežbanja.
• Ne koristite traku za trčanje ako je kabel ili utikač oštećen ili ako ne radi ispravno.
• Nosite odgovarajuću sportsku obuću i odjeću.

Postavljanje i montaža

The Toputure TP6 treadmill is designed for easy setup and does not require complex installation. It is ready to use out of the box.

Rasklapanje trake za trčanje

1. Pažljivo izvadite traku za trčanje iz ambalaže.
2. Postavite sklopljenu traku za trčanje na ravnu, stabilnu površinu.
3. Lift the handrail assembly until it locks into the upright position.
4. Secure the handrail assembly using the adjustment knobs.

Slika 1: Unfolding and securing the handrails of the Toputure TP6 treadmill.

Adjusting Handrails and Incline

The telescopic handrails can be adjusted in height from 82 cm to 115 cm and in angle from 95° to 105° to suit various user heights and exercise preferences.

• To adjust height: Loosen the adjustment knobs on the handrails, slide to the desired height, and tighten securely.
• To adjust angle: Use the angle adjustment mechanism at the base of the handrails to select between 95° and 105° positions.

Slika 2: Adjustable handrails for personalized comfort and support.

The treadmill also features three incline levels: 1%, 6%, and 12%. These can be manually adjusted to simulate different terrains and increase workout intensity.

Slika 3: Three incline levels for varied workout intensity.

Uputstvo za upotrebu

Getting Started

1. Uključite kabl za napajanje u uzemljenu električnu utičnicu.
2. Attach the safety key to the designated area on the console and clip the other end to your clothing. The treadmill will not operate without the safety key in place.
3. Step onto the treadmill belt, holding onto the handrails for balance.
4. Press the START button on the console or remote control to begin your workout.

Slika 4: LED display and magnetic remote control for easy operation.

Adjusting Speed and Monitoring Progress

The treadmill offers a speed range of 1 to 12 KM/H. You can adjust the speed using the '+' and '-' buttons on the console or the remote control.

The multifunction LED display shows real-time data including time, calories burned, speed, and distance. This allows you to monitor your exercise status at a glance.

Smart APP Integration

Connect your treadmill to the sports APP via Bluetooth. The intelligent APP control allows you to record all your exercise data and share it. The enhanced device holder securely holds your phone or tablet, allowing you to enjoy media during your workout.

Načini vježbanja

The 6-in-1 folding treadmill supports various scenarios:

• Način hodanja: Ideal for light exercise or warm-ups.
• Fat Burning Mode: Optimized for calorie expenditure.
• Office Work Mode: Use with a standing desk for active work.
• Pet Training Mode: Suitable for exercising pets.
• Način rada: For moderate to intense cardio workouts.
• Rehabilitation Mode: Gentle exercise for recovery.

Slika 5: Versatile 6-in-1 functionality for various exercise needs.

Stopping the Treadmill

To stop the treadmill, press the STOP button on the console or remote control. If the safety key is removed, the treadmill will stop immediately.

Održavanje

Regular maintenance ensures the longevity and optimal performance of your Toputure TP6 treadmill.

Čišćenje

• Obrišite traku za trčanje nakon svake upotrebe sredstvom za čišćenjeamp krpom za uklanjanje znoja i prašine.
• Nemojte koristiti abrazivna sredstva za čišćenje ili rastvarače.

Podmazivanje

The treadmill features lubrication holes for easy maintenance. Regular lubrication of the running belt is crucial for smooth operation and to prevent wear.

• Refer to the specific lubrication instructions provided with your treadmill for the correct type and amount of lubricant, and frequency of application.
• The unique design of the lubrication holes allows for easy identification of the lubrication position.

Slika 6: Lubrication holes for simplified maintenance of the running belt.

Podešavanje pojasa

If the running belt becomes misaligned or too loose/tight, it may need adjustment. Consult the detailed instructions in the full user manual for proper belt tensioning and centering procedures.

Rješavanje problema

This section addresses common issues you might encounter with your Toputure TP6 treadmill.

For issues not listed here or if solutions do not resolve the problem, please contact Toputure customer support.

Specifikacije

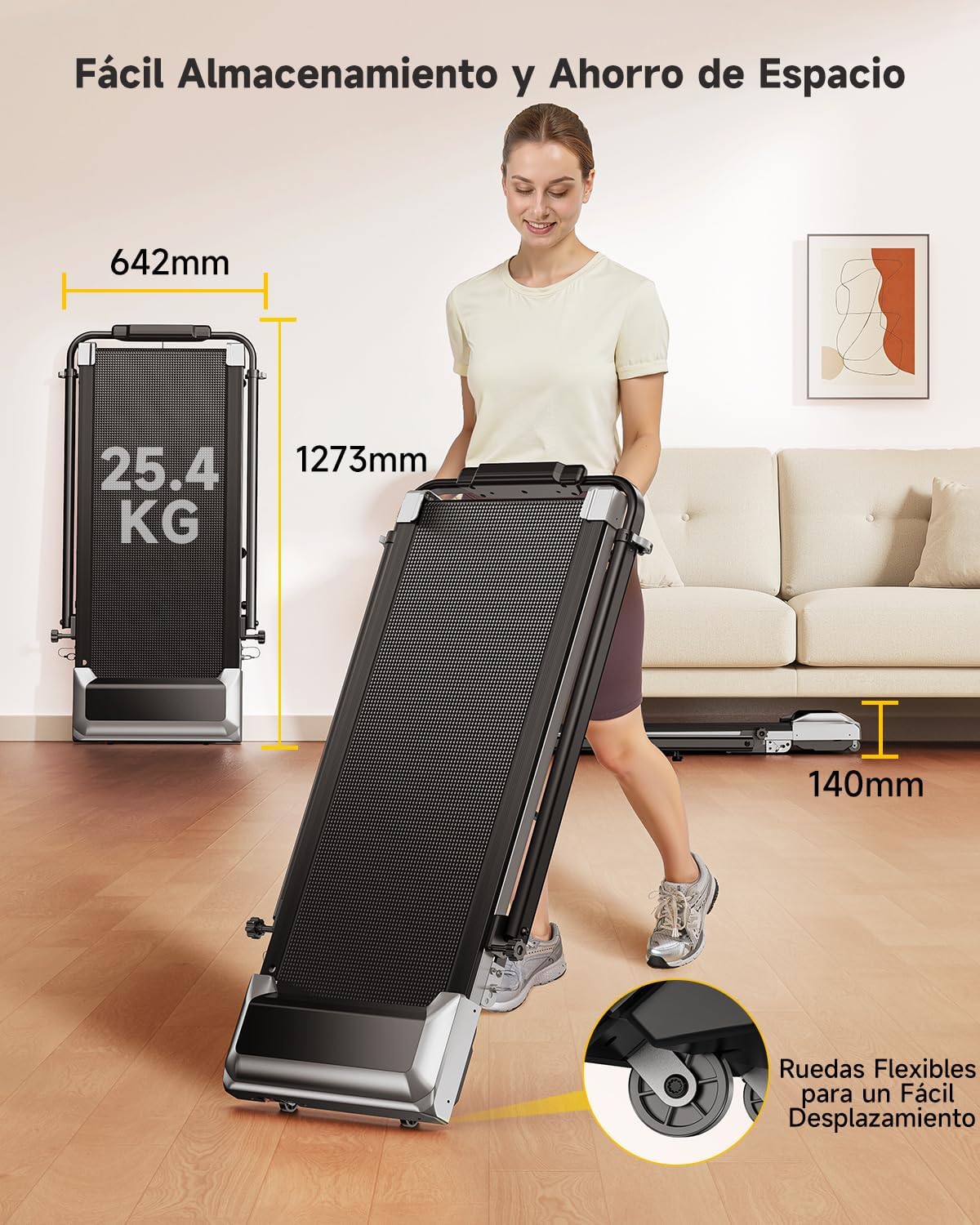

Slika 7: Compact design and transport wheels for easy storage and movement.

Video snimci proizvoda

Garancija i podrška

For warranty information, product support, or to purchase replacement parts, please contact Toputure customer service. Keep your purchase receipt and model number (TP6) handy when contacting support.

The product includes a user manual in the box. Additional warranty information may be available upon product registration with the manufacturer.
