Crosley CR3505A-LN Cruiser Portable CD Player: User Manual

Uvod

This manual provides comprehensive instructions for the safe and efficient operation of your Crosley CR3505A-LN Cruiser Portable CD Player. Please read this manual thoroughly before using the device and retain it for future reference. This portable audio player combines classic design with modern functionality, offering CD playback, Bluetooth connectivity, FM radio, and auxiliary input.

Šta je u kutiji

Prilikom raspakivanja provjerite da li su svi artikli prisutni:

• Crosley CR3505A-LN Portable CD Player
• USB-C kabl

Karakteristike proizvoda

• Prenosni muzički plejer: Equipped with a rechargeable lithium battery, providing up to 4 hours of playback at 50% volume after a 3.5-hour charge.
• Versatile Audio Options: Features built-in stereo speakers and a headphone jack. Supports CD playback, Bluetooth streaming to wireless headphones/speakers, and auxiliary input for other devices.
• Retro Style, Modern Function: Blends nostalgic aesthetics with contemporary features, including a tonearm-inspired power switch and a built-in FM radio.
• Designed for Portability: Lightweight construction with a magnetic lid closure for easy transport.

Identifikacija komponente

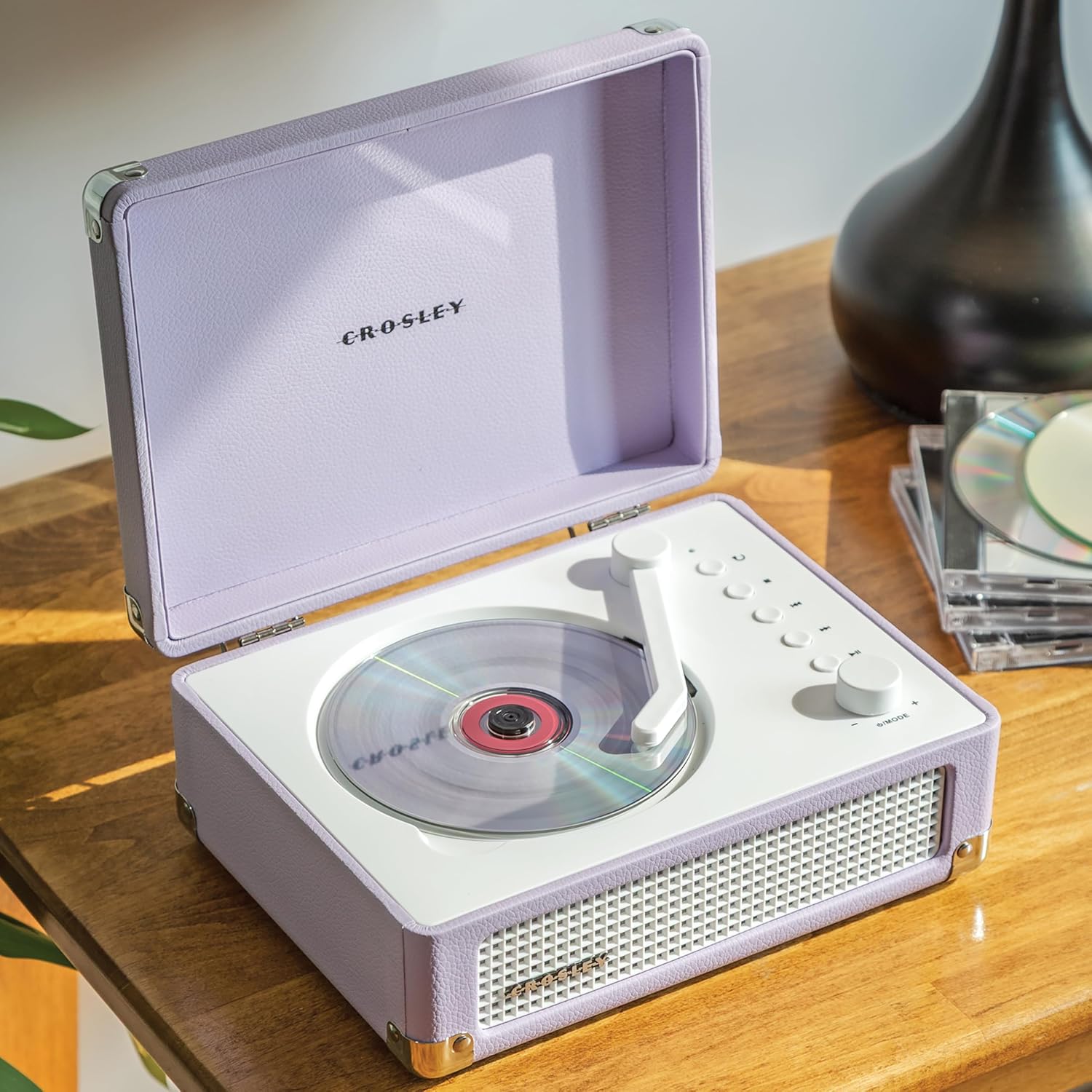

Slika 1: Vrh view of the Crosley CR3505A-LN with lid open, highlighting the CD compartment and control panel.

Slika 2: Pozadi view of the unit, displaying the headphone jack, AUX In port, and USB-C charging port.

Kontrolna tabla završenaview

1. Tonearm-inspired Power Switch: Activates/deactivates the unit and initiates CD playback.
2. Mode/Power Dial: Rotates to adjust volume. Press to cycle through modes (CD, Bluetooth, FM, AUX).
3. Dugme za ponavljanje: Repeats current track or album.
4. Dugme za zaustavljanje: Zaustavlja reprodukciju CD-a.
5. Dugme za prethodnu pjesmu/premotavanje unazad: Preskače na prethodnu pjesmu ili premotava unazad tokom reprodukcije.
6. Dugme za sljedeću pjesmu/brzo premotavanje unaprijed: Preskače na sljedeću pjesmu ili premotava unaprijed tokom reprodukcije.
7. Dugme za reprodukciju/pauzu: Controls playback for CD and Bluetooth.
8. Bluetooth/FM Indicator Light: Indicates current mode and pairing status.

Setup

Punjenje baterije

1. Connect the supplied USB-C cable to the DC 5V port on the rear of the unit (Figure 2).
2. Drugi kraj USB-C kabla priključite na kompatibilni USB adapter za napajanje (nije uključen).
3. Indikatorska lampica će prikazivati ​​status punjenja. Potpuno punjenje traje otprilike 3.5 sata.

Uključivanje/isključivanje

To power on the unit, move the tonearm-inspired switch over the CD spindle. To power off, move the switch back to its resting position.

Uputstvo za upotrebu

CD reprodukcija

1. Open the lid of the CD player.
2. Carefully place a CD onto the spindle in the CD compartment, label side up.
3. Zatvorite poklopac.
4. Move the tonearm-inspired switch over the CD spindle to power on and initiate playback.
5. Use the Play/Pause, Stop, Previous Track/Rewind, and Next Track/Fast Forward buttons to control playback.
6. Press the Repeat button to cycle through repeat modes (repeat one track, repeat all tracks, random play).

Bluetooth uparivanje

1. Uključite jedinicu.
2. Press the Mode/Power dial repeatedly until the Bluetooth indicator light flashes blue, indicating pairing mode.
3. On your Bluetooth-enabled device (e.g., smartphone, tablet), search for "Crosley CR3505A-LN" in the Bluetooth settings.
4. Select the device to pair. Once connected, the Bluetooth indicator light will turn solid blue.
5. You can now stream audio from your device to the CD player.

FM Radio

1. Uključite jedinicu.
2. Press the Mode/Power dial repeatedly until the FM indicator light illuminates.
3. Use the Previous Track/Rewind and Next Track/Fast Forward buttons to tune to desired FM stations.

Pomoćni ulaz

1. Uključite jedinicu.
2. Press the Mode/Power dial repeatedly until the AUX indicator light illuminates.
3. Connect an external audio device (e.g., MP3 player) to the AUX In port on the rear of the unit (Figure 2) using a 3.5mm audio cable (not included).
4. Audio from the external device will now play through the CD player's speakers.

Kontrola jačine zvuka

Rotate the Mode/Power dial clockwise to increase volume and counter-clockwise to decrease volume.

Održavanje

Čišćenje

• Uvijek isključite jedinicu iz izvora napajanja prije čišćenja.
• Za brisanje vanjskih površina koristite meku, suhu krpu. Ne koristite abrazivna sredstva za čišćenje, voskove ili rastvarače.
• For the CD lens, use a specialized CD lens cleaner. Avoid touching the lens directly.

Battery Care

• Da biste produžili vijek trajanja baterije, izbjegavajte često potpuno pražnjenje baterije.
• Ako uređaj skladištite duži period, punite bateriju do otprilike 50% svakih nekoliko mjeseci.

Rješavanje problema

Specifikacije

• Dimenzije proizvoda: 6.75 x 8.75 x 3.75 inča
• Težina artikla: 2.54 funte
• Broj modela stavke: CR3505A-LN
• Brand: Crosley
• Boja: Lavanda
• Tehnologija povezivanja: Bluetooth
• Broj diskova: 1

Sigurnosne informacije

• Ne izlažite uređaj ekstremnim temperaturama, vlazi ili direktnoj sunčevoj svjetlosti.
• Izbjegavajte postavljanje uređaja u blizini izvora topline ili u prostorima sa slabom ventilacijom.
• Ne rastavljajte niti pokušavajte sami popraviti uređaj. Sve servisne radove prepustite kvalifikovanom osoblju.
• Držite uređaj dalje od vode ili drugih tekućina.
• Koristite samo navedeni kabel za punjenje.

Garancija i podrška

Crosley products are designed in the USA and come with USA-based customer support. For warranty information or technical assistance, please refer to the official Crosley webweb-mjesto ili direktno kontaktirajte njihovu korisničku službu. Sačuvajte račun kao dokaz o kupovini za reklamacije u slučaju garancije.
