VEVOR Outdoor Kitchen Trash Drawer (Model KM-CTG-2302-SKU9) Instruction Manual

1. Uvod

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your VEVOR Outdoor Kitchen Trash Drawer. Please read this manual thoroughly before installation and retain it for future reference.

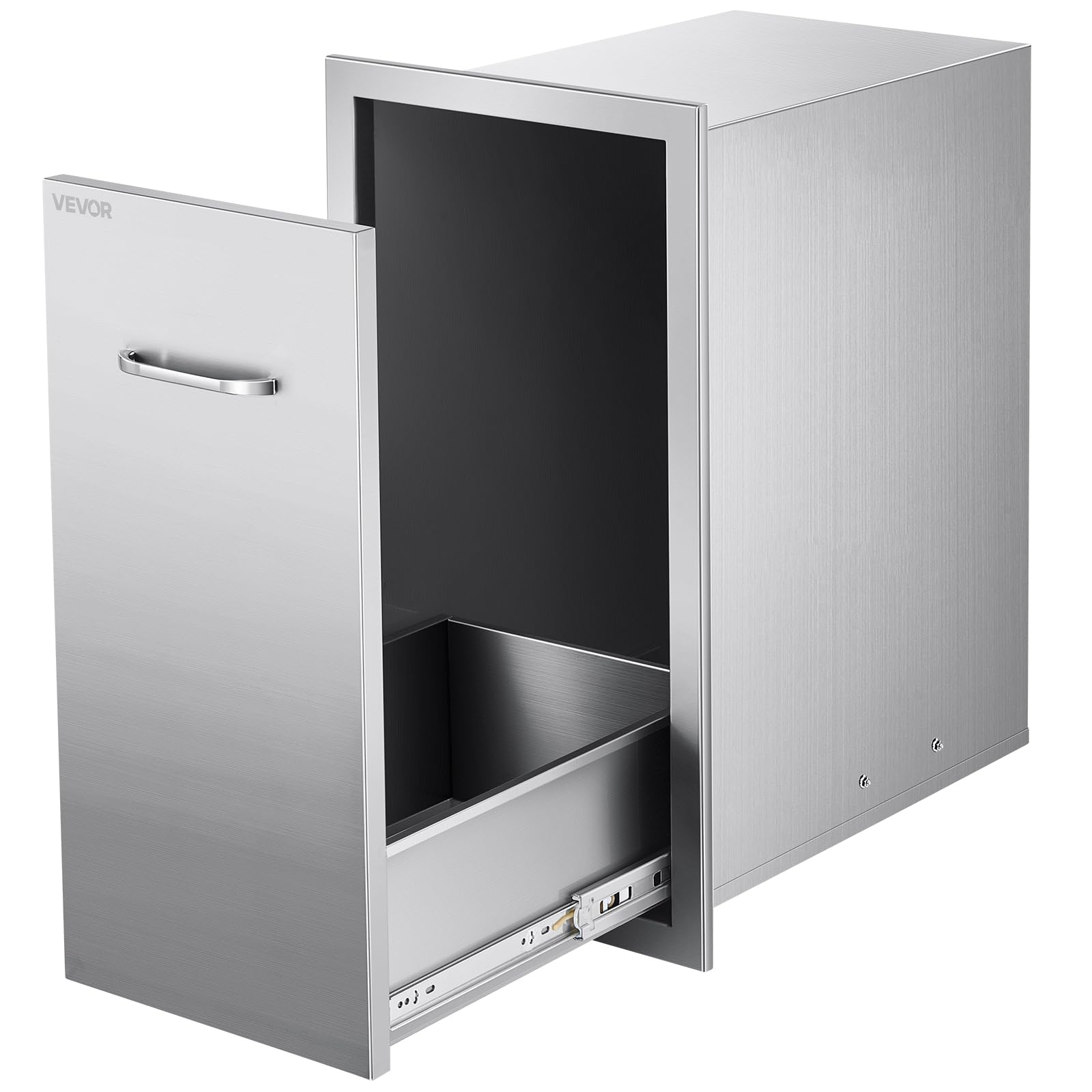

The VEVOR Outdoor Kitchen Trash Drawer seamlessly integrated into an outdoor kitchen island, showcasing svojim elegantnim dizajnom od nehrđajućeg čelika.

2. Sigurnosne informacije

• Always ensure that the weight of the items placed inside does not exceed the maximum capacity of 55 lbs per tier.
• Use both hands when opening and closing the drawer to prevent injury.
• Keep the cabinet away from heat sources and open flames to prevent fire hazards.
• Always follow the manufacturer's instructions for proper installation and maintenance.

3. Postavljanje i instalacija

Proper installation is crucial for the functionality and longevity of your outdoor kitchen trash drawer. Follow these steps carefully.

3.1. Dimensions and Cutout Requirements

Before installation, ensure your outdoor kitchen island has the correct cutout dimensions to accommodate the trash drawer.

An illustration showing the overall dimensions of the VEVOR Outdoor Kitchen Trash Drawer, including width, depth, and height, along with internal storage measurements.

A visual guide indicating the precise cutout dimensions (width: 12.6 in / 320 mm, height: 24.2 in / 615 mm, depth: 19.7 in / 500 mm) needed for flush-mount installation of the VEVOR Outdoor Kitchen Trash Drawer into an outdoor kitchen structure.

3.2. Koraci instalacije

1. Pripremite otvaranje: Ensure the cutout in your outdoor kitchen island matches the specified dimensions.
2. Uklonite ladicu: For easier installation, the drawer can be removed from its frame. Refer to the video below for guidance on detaching the drawer.
3. Insert the Frame: Slide the drawer frame into the prepared opening.
4. Osigurajte okvir: Use appropriate fasteners (not included) to secure the frame to the surrounding structure through the pre-drilled holes.
5. Ponovo instalirajte ladicu: Slide the drawer back into the installed frame, ensuring it glides smoothly on the ball-bearing slides.

4. Uputstvo za upotrebu

The VEVOR Outdoor Kitchen Trash Drawer is designed for ease of use and durability.

4.1. Opening and Closing the Drawer

The drawer is equipped with 3-section ball-bearing slides for smooth and quiet operation. Gently pull the streamlined handle to open and push to close. The self-locking design ensures the drawer stays securely closed.

A hand effortlessly opening the VEVOR Outdoor Kitchen Trash Drawer, illustrating the smooth operation of its 3-section ball-bearing slides and its robust 55 lbs weight capacity.

4.2. Kapacitet skladišta

The interior storage measures 11.81" W x 19.6" D x 23.62" H, suitable for trash bins or propane tanks (max W < 10.24 in; D < 16.14 in; H < 22.44 in). Each tier has a maximum capacity of 55 lbs.

The VEVOR Outdoor Kitchen Trash Drawer demonstrating its versatility by accommodating both a standard trash bin and a propane tank, highlighting its interior capacity.

5. Održavanje

To ensure your VEVOR Outdoor Kitchen Trash Drawer remains in optimal condition, regular maintenance is recommended.

5.1. Čišćenje

The stainless steel material is designed for easy cleaning. Wipe the surfaces with a soft cloth and a mild detergent. Avoid abrasive cleaners or scouring pads that could scratch the finish.

A hand wiping the stainless steel surface of the VEVOR Outdoor Kitchen Trash Drawer, demonstrating its easy-to-clean, brushed finish.

5.2. Otpornost na vremenske uvjete

The drawer is constructed from waterproof stainless steel, designed to withstand various weather conditions. The seamless construction helps keep the interior dry and secure.

6. Otkrivanje problema

If you encounter any issues with your trash drawer, refer to the following common troubleshooting tips:

• Fioka ne klizi glatko: Check the ball-bearing slides for any obstructions or debris. Clean the tracks if necessary. Ensure the drawer is properly aligned within the frame.
• Ladica se ne zatvara u potpunosti: Verify that nothing is obstructing the drawer's path or the magnetic closure system. Adjust the alignment if needed.
• Rust spots on stainless steel: While stainless steel is corrosion-resistant, it is not rust-proof. Clean any rust spots immediately with a stainless steel cleaner and a soft cloth. Avoid prolonged contact with corrosive materials.

7. Specifikacije

8. Garancija i podrška

VEVOR proizvodi su dizajnirani za izdržljivost i performanse. Za informacije o garanciji ili tehničku podršku, molimo vas da se obratite službenom VEVOR-u. webweb-mjesto ili direktno kontaktirajte njihovu korisničku službu. Sačuvajte račun kao dokaz o kupovini.

Za dalju pomoć posjetite VEVOR trgovina na Amazonu.
