AECOJOY 10' x 10' Outdoor Wood Cedar Gazebo Instruction Manual

Važne informacije o sigurnosti

Always follow the provided installation guide and secure the gazebo to a stable foundation to prevent it from tipping over in strong winds. Clear snow promptly to prevent excessive accumulation. Do not attempt to assemble or disassemble the gazebo in windy or wet conditions. Always use appropriate safety gear when handling the product's components.

Product Overview

The AECOJOY 10' x 10' Outdoor Wood Cedar Gazebo is designed to enhance your outdoor living space, offering robust protection and a stylish aesthetic. This lean-to hardtop gazebo can be set up freestanding or wall-mounted, providing versatility for various patio, deck, or backyard configurations.

• Stabilnost: Engineered to withstand winds of up to 70 mph, whether freestanding or wall-mounted.
• 20” Snow Load Capacity: Designed to handle approximately 20 inches of accumulated snow, though timely clearing is recommended.
• Vodootporne performanse: Features high-side bottom crossbeam reinforcement, seamless wall fit, and a sloped design for exceptional waterproofing.
• Sveobuhvatna zaštita: The awning covers 100 sq. ft., providing full UV protection and ample shade.

Image: AECOJOY 10' x 10' Wood Cedar Gazebo providing shade in a spacious backyard.

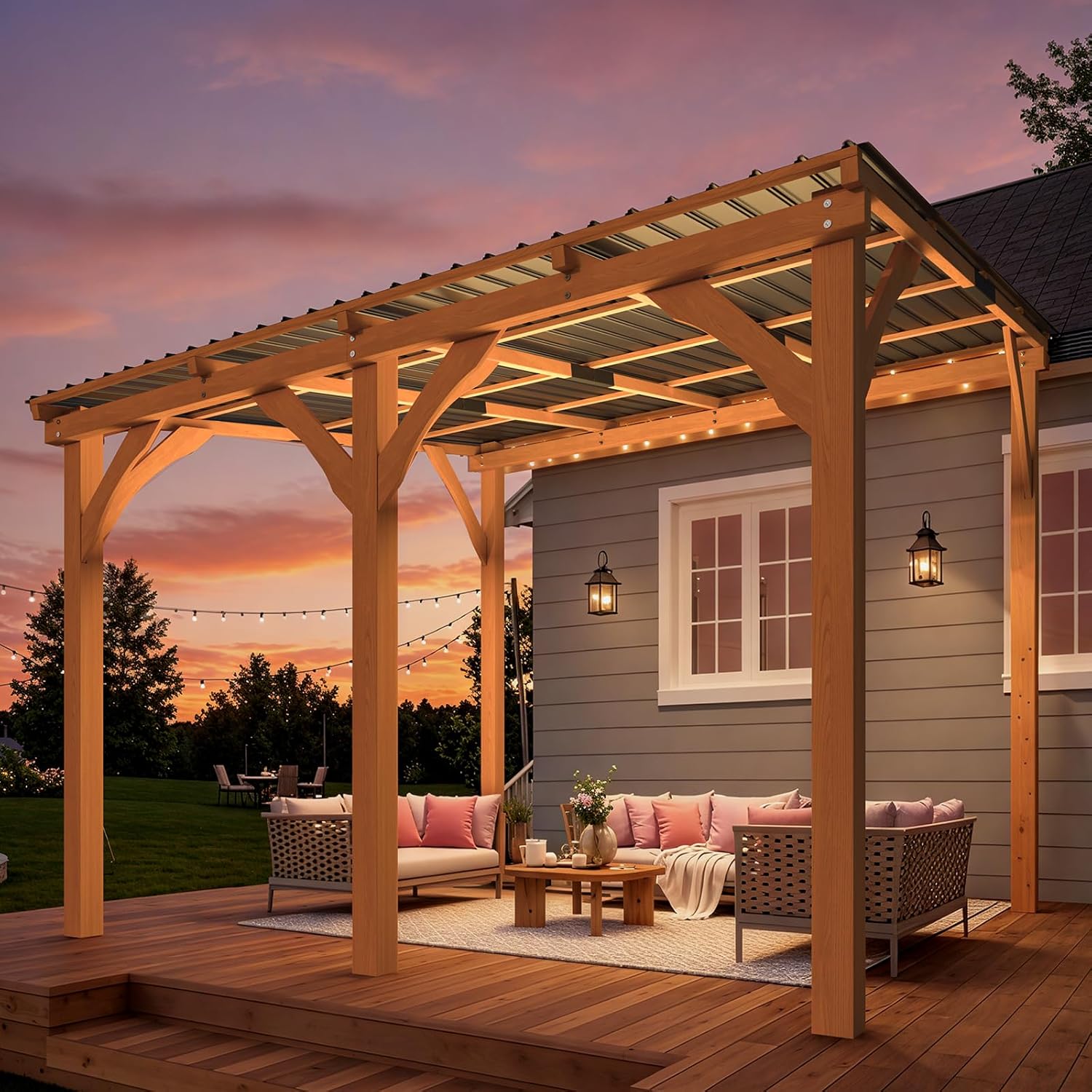

Image: The gazebo configured as a wall-mounted lean-to, extending living space from a home.

Image: Visual comparison of the gazebo in a wall-mounted lean-to configuration and a freestanding setup.

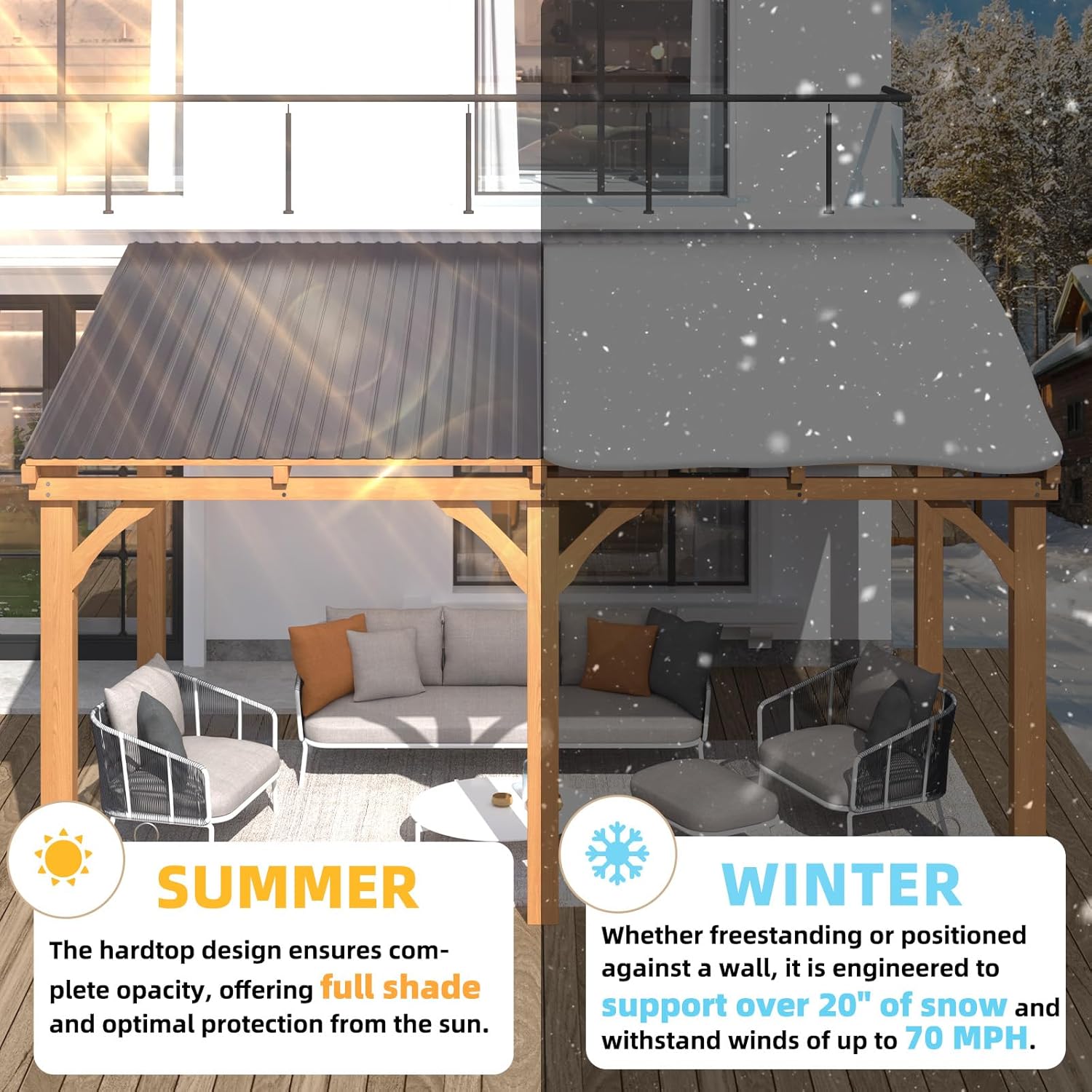

Image: Depiction of the gazebo's hardtop design providing full shade in summer and supporting snow in winter.

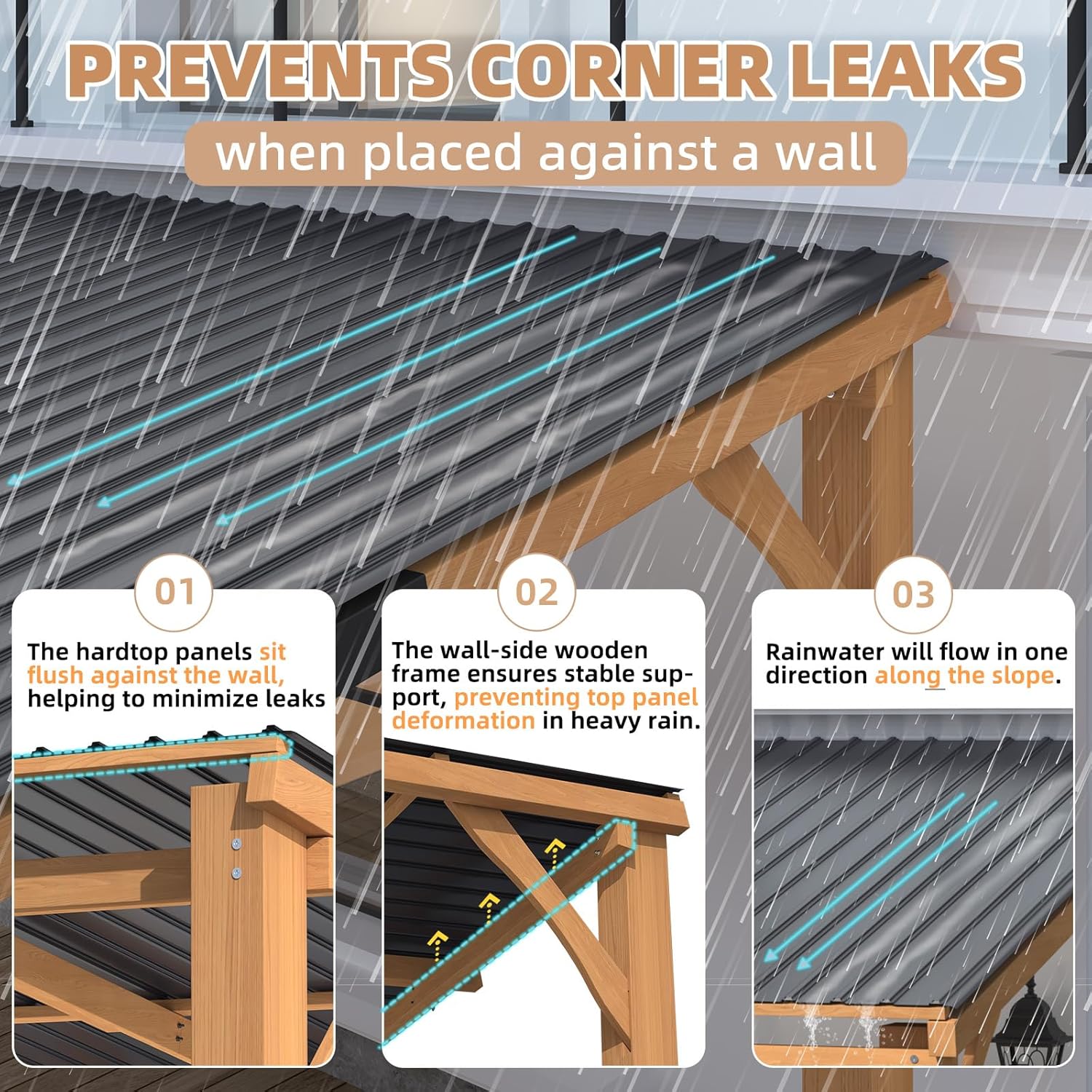

Image: Illustration detailing the design features that prevent corner leaks and ensure effective rainwater drainage.

Specifikacije

Image: Detailed diagram showing the length, width, and height dimensions of the gazebo.

Upute za postavljanje i montažu

This gazebo is designed for effortless installation with a detailed manual. For visual guidance, please refer to the assembly video below. It is recommended to have at least two people for assembly.

1. Raspakujte i organizujte: Carefully unpack all components and verify against the parts list in your physical manual. Organize parts by their labels (e.g., wood beams, metal connectors, screws).
2. Assemble Base Posts: Attach the base plates and decorative covers to the bottom of each wooden post as shown in the assembly video.
3. Connect Upper Posts: For models requiring extended posts, connect the upper sections using the provided metal plates and fasteners.
4. Construct Main Frame: Assemble the horizontal beams that connect the posts, ensuring all connections are secure but not fully tightened until the frame is upright.
5. Ugradnja krovnih potpornih greda: Attach the steel roof support beams to the main frame. These provide the structure for the hardtop panels.
6. Place Roof Panels: Carefully slide and secure the hardtop roof panels onto the support structure. Ensure proper overlap and sealing to maintain waterproofing.
7. Add Corner Braces: Install the wooden corner braces to enhance stability and structural integrity.
8. Attach Side Shelves (if applicable): If your model includes side shelves or bars, attach them to the designated posts using the provided hardware.
9. Pričvršćivanje za uzemljenje: Depending on your surface (soft ground or hard ground/concrete), use the appropriate anchors (stakes for soft ground, expansion bolts for hard ground) to firmly secure the gazebo posts.
10. Završno zatezanje: Once the entire structure is assembled and positioned correctly, go back and fully tighten all screws and bolts.

Uputstvo za upotrebu

Your AECOJOY Wood Cedar Gazebo provides a versatile outdoor space. It is designed to offer shade from the sun and protection from rain, allowing you to enjoy your patio or deck in various weather conditions.

• Zaštita od sjene i UV zračenja: The hardtop roof provides complete opacity, offering full shade and optimal protection from harmful UV rays during sunny days.
• Zaštita od kiše: The sloped design and waterproof roof panels ensure efficient drainage of rainwater, keeping the area underneath dry.
• Otpornost na vjetar: The sturdy construction is designed to withstand winds up to 70 mph. However, in extreme weather conditions, it is advisable to take precautions and secure any loose items within the gazebo.

Održavanje

Redovno održavanje osigurat će dugotrajnost i optimalne performanse vaše sjenice.

• čišćenje: Clean the roof panels and wooden frame periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the materials.
• Čišćenje snijega: While the gazebo can handle up to 20 inches of snow, it is highly recommended to clear accumulated snow promptly to prevent excessive load and potential damage.
• Provjera hardvera: Periodically inspect all screws, bolts, and connections to ensure they remain tight. Tighten any loose hardware as needed.
• Njega drva: The cedar wood is naturally resistant to rot and insects, but applying a wood sealant or stain every few years can help maintain its appearance and further protect it from the elements.

Rješavanje problema

If you encounter any issues with your gazebo, consider the following common solutions:

• Curenje vode: Check the roof panel overlaps and ensure all screws securing the panels are tight. Verify that the wall-side fit is seamless if wall-mounted.
• Nestabilnost/Klimanje: Ensure all posts are securely anchored to the ground or foundation. Re-tighten all frame connections.
• Poteškoće tokom montaže: Refer to the detailed instruction manual and assembly video. Ensure all parts are correctly oriented and aligned before tightening. Do not force parts together.
• dijelovi koji nedostaju: If any parts are missing upon arrival, contact AECOJOY customer support immediately.

Garancija i podrška

AECOJOY stands behind the quality of this gazebo. We offer maintenance and replacement services. Our professional support team is available 24/7 to assist with installation, usage, and any other concerns you may have.

For assistance, please contact AECOJOY customer support through the retailer where you purchased the product or visit the official AECOJOY webstranica za kontakt informacije.
