SHARDOR Električni mlinac za kafu CG836B Uputstvo za upotrebu

1. Uvod

Thank you for choosing the SHARDOR Electric Burr Coffee Grinder. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new coffee grinder. Please read all instructions carefully before first use and retain for future reference.

This electric burr coffee grinder is designed for home use, offering 32 precise grind settings and an adjustable timer to achieve the ideal texture for various brewing methods, from fine espresso to coarse French press.

2. Sigurnosne informacije

• Pročitajte sve upute prije rukovanja uređajem.
• Ovaj aparat je samo za upotrebu u domaćinstvu. Ne koristiti na otvorenom.
• Držite uređaj i njegov kabel van domašaja djece.
• Always unplug the grinder from the power outlet when not in use, before cleaning, or when assembling/disassembling parts.
• Ne uranjajte bazu motora u vodu ili bilo koju drugu tečnost.
• To protect the motor, avoid grinding too much coffee at once. The grinder has a built-in safety program allowing up to 120 seconds of continuous grinding, followed by a short cooldown period. For best performance, grind in smaller batches.
• Prije upotrebe brusilice provjerite jesu li svi dijelovi pravilno sastavljeni.

3. Proizvod je gotovview

Familiarize yourself with the components of your SHARDOR Electric Burr Coffee Grinder:

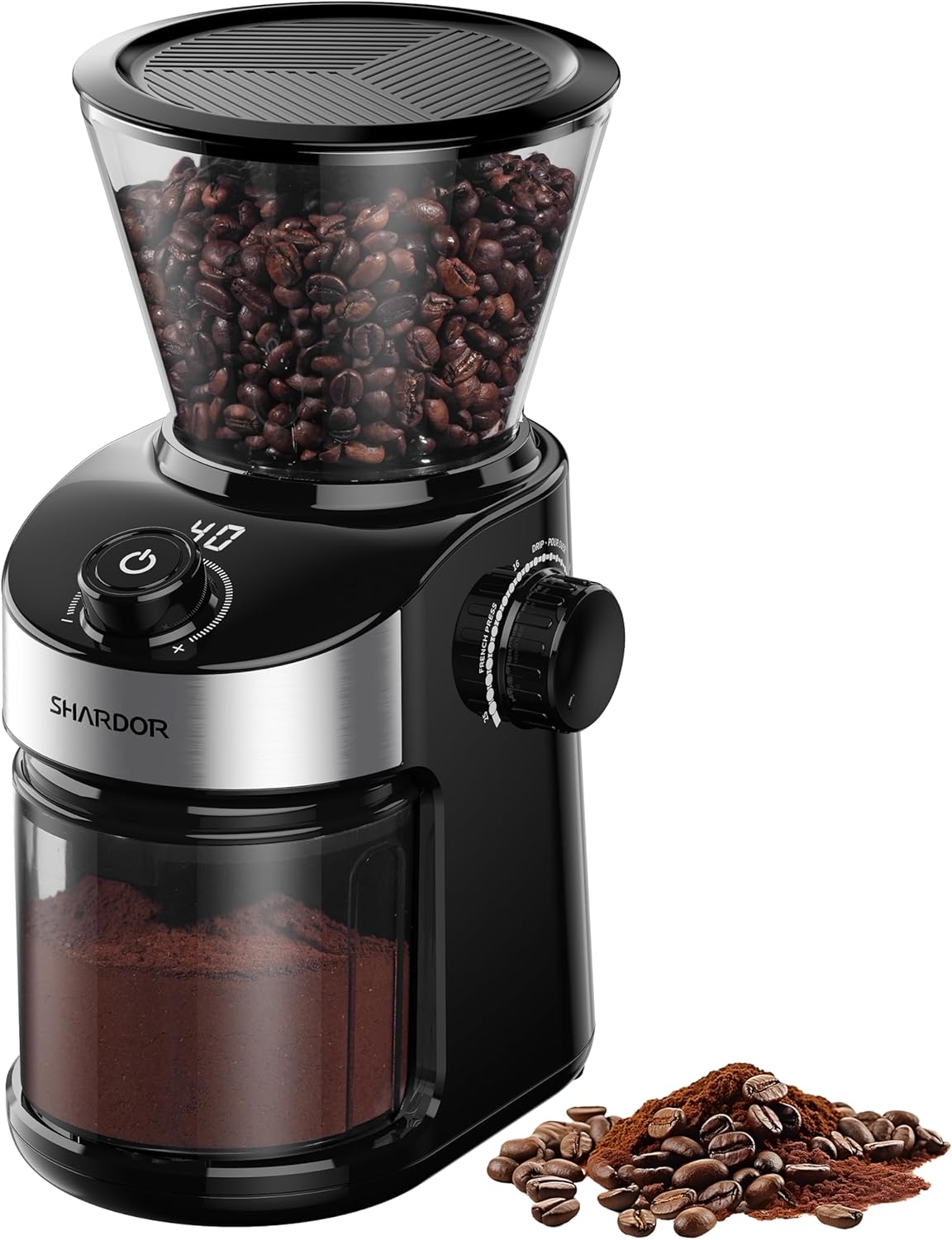

Slika 1: Sveukupno view of the SHARDOR Electric Burr Coffee Grinder CG836B.

• Hopper za pasulj: Holds whole coffee beans for grinding.
• Gornji Burr: The removable top burr for grinding.
• Birač veličine mljevenja: Adjustable dial to choose desired grind fineness (1-32).
• Kontrolna tabla: Features digital timer display, time adjustment buttons (+/-), and Start/Stop button.
• Kontejner za talog: Collects the freshly ground coffee.
• Četka za čišćenje: For easy maintenance of the burrs and chamber.

Figure 2: Premium metal flat burr mechanism ensures uniform grinding.

4. Podešavanje

1. Raspakirajte: Pažljivo izvadite sve komponente iz pakovanja.
2. plasman: Place the grinder on a clean, dry, and stable surface.
3. Sastavite lijevak: Align the arrow symbol on the bean hopper with the lock symbol on the grinder base. Twist clockwise until it locks into place.


Figure 3: Ensure proper alignment of the bean hopper for secure operation.

4. Insert Grounds Container: Slide the grounds container into its designated slot at the front of the grinder.

Video 1: Demonstrates the setup and basic operation of the SHARDOR Burr Coffee Grinder.

5. Uputstvo za upotrebu

1. Dodajte zrna kafe: Open the lid of the bean hopper and pour in your desired amount of whole coffee beans. Close the lid securely.


Figure 4: Ensure coffee beans are dry before adding to the hopper.

2. Odaberite veličinu mljevenja: Rotate the grind size selector dial to choose your preferred fineness. The settings range from 1 (finest, for espresso) to 32 (coarsest, for French press). Refer to the markings for Drip, Pour Over, and French Press.


Figure 5: The grind size selector offers 32 options for various brewing methods.

3. Set Grind Time: Use the '+' and '-' buttons on the control panel to adjust the grinding time. The digital timer allows for precise control up to 40 seconds.

Figure 6: The digital timer allows for precise control over grinding duration.
4. Započni mljevenje: Press the Start/Stop button to begin grinding. The grinder will automatically stop once the set time is reached. You can also press the button again to stop grinding manually at any time.


Figure 7: One-touch operation for convenience.

5. Remove Grounds: Once grinding is complete, carefully remove the grounds container from the grinder.

6. Održavanje i čišćenje

Regular cleaning ensures optimal performance and extends the lifespan of your grinder.

1. Isključite: Uvijek isključite brusilicu iz utičnice prije čišćenja.
2. Uklonite dijelove: Remove the bean hopper and grounds container. The upper burr can be removed by twisting it counter-clockwise after unlocking the hopper.


Figure 8: Use the cleaning brush to remove residual coffee grounds from the burrs.

3. Čisti neravnine: Use the included cleaning brush to remove any residual coffee grounds from the upper and lower burrs.
4. Clean Containers: Wash the bean hopper and grounds container with warm, soapy water. Rinse thoroughly and dry completely before reassembling. Do not wash the main motor unit.
5. Baza za brisanje: Obrišite vanjski dio baze motora oglasnim materijalomamp tkanina.
6. ponovo sastaviti: Reassemble all parts, ensuring the bean hopper is locked securely in place.

7. Otkrivanje problema

• Grinder does not turn on: Ensure the power cord is securely plugged into a working outlet. Check that the bean hopper is correctly locked into position.
• Brusilica se neočekivano zaustavlja: The grinder has a safety feature that limits continuous operation to 120 seconds. Allow it to cool down before resuming. Ensure the bean hopper is not empty.
• Nedosljedno mljevenje: Check that the burrs are clean and free of obstructions. Adjust the grind setting to a different level to see if consistency improves.
• Coffee grounds sticking to container: This grinder features anti-static technology to minimize this issue. If grounds still stick, gently tap the container or use the cleaning brush.

8. Specifikacije

9. Garancija i podrška

Your SHARDOR Electric Burr Coffee Grinder is covered by a manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions.

For product support, troubleshooting assistance, or to inquire about replacement parts, please contact SHARDOR customer service through the contact information provided on your warranty card or the official SHARDOR website.
