Uvod
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your INTERGREAT 36-inch Metal Storage Cabinet. Please read this manual thoroughly before assembly and use to ensure safe and efficient operation.
Važne informacije o sigurnosti
- Ograničenje težine: Do not exceed the maximum weight limit of 180 LBS (81.65 kg) per shelf. Overloading can cause structural damage or collapse.
- Instalacija: Ensure proper installation to prevent tipping. Wall mounting is recommended for enhanced stability, especially in areas with children or pets.
- sigurnost: Keep drawers and doors locked when not in use to prevent unauthorized access, particularly for valuable or hazardous contents.
- Montaža: Follow all assembly instructions carefully. It is recommended to have two people for assembly to ensure safety and ease.
- Rukovanje materijalom: Wear appropriate protective gear, such as gloves, during assembly to prevent cuts or pinches from metal edges.
Sadržaj paketa
Prije početka montaže provjerite da li su sve komponente prisutne. Ako bilo koji dijelovi nedostaju ili su oštećeni, obratite se službi za korisnike.
- Cabinet Panels (various)
- 2 Locking Keys
- Adjustable Shelves (quantity may vary based on model)
- Pribor za montažu (vijci, šrafovi itd.)
- Uputstvo za upotrebu
Alati potrebni za montažu (nisu uključeni): Screwdriver, Power Drill (optional, for wall mounting), Gloves.

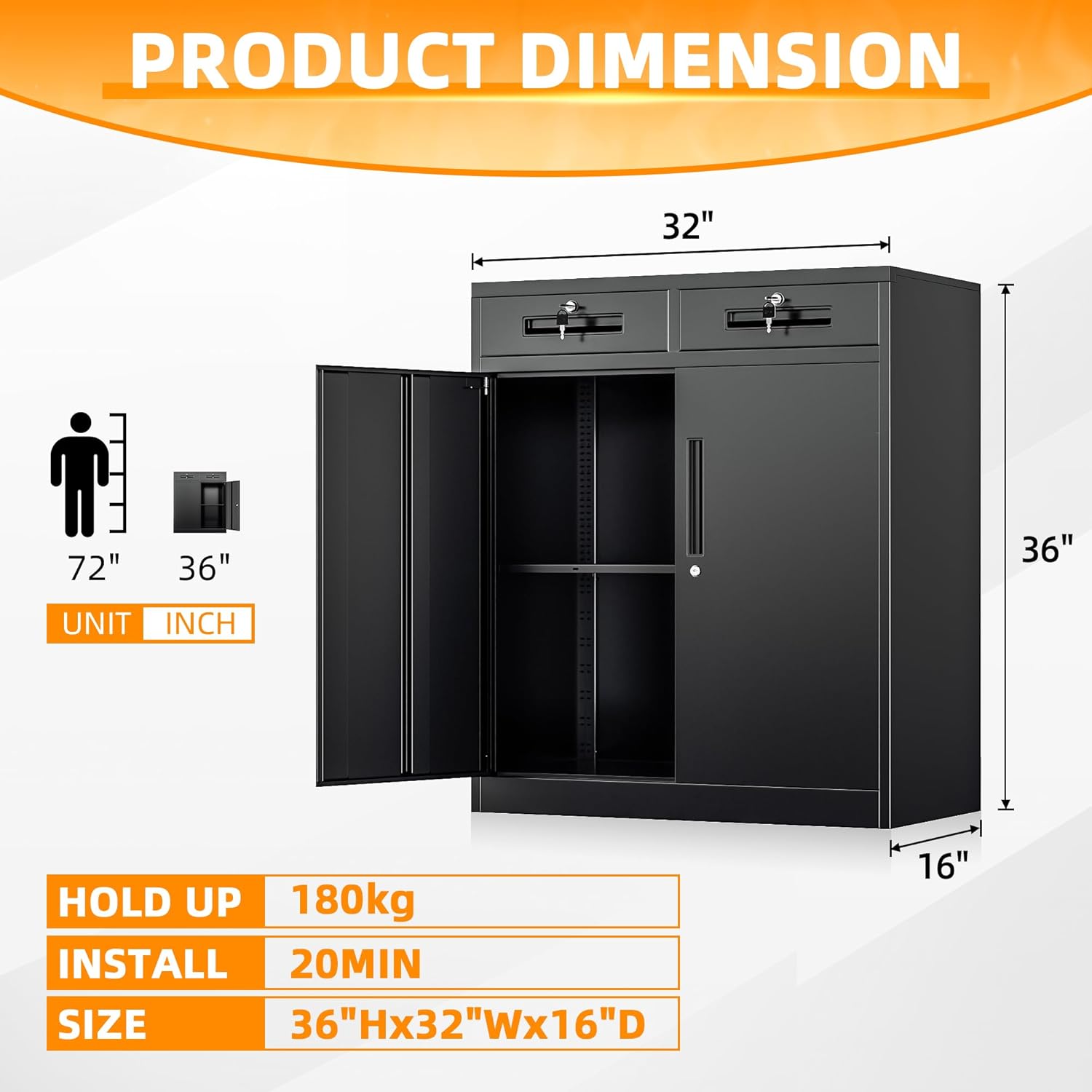

Specifikacije proizvoda
| Feature | Detalj |
|---|---|
| Brand | INTERGREAT |
| Model | B0FJXSZR86 |
| Boja | Crna |
| Dimenzije proizvoda (D x Š x V) | 16" x 32" x 36" |
| Materijal | Alloy Steel (0.8mm thickness) |
| Ograničenje težine po polici | 180 funti (81.65 kg) |
| Broj polica | 3 (podesivo) |
| Tip brave | 3-Point Key Lock System |
| Tip završetka | Powder Coated (Dustproof) |
| Vrsta montaže | Montaža na pod, na zid |
| Obavezna montaža | Da |
Uputstva za sastavljanje
Assembly typically takes approximately 20 minutes with two people. Please follow these steps carefully.
- Raspakujte i provjerite: Carefully unpack all components and compare them against the package contents list. Ensure no parts are missing or damaged.
- Pripremite radni prostor: Choose a clean, flat, and spacious area for assembly. Lay down a blanket or cardboard to protect the cabinet panels and your floor.
- Sastavite okvir: Connect the side panels to the back panel using the provided hardware. Ensure all connections are secure but do not fully tighten screws until the entire frame is assembled.
- Install Base and Top: Attach the base and top panels to the assembled frame.
- Ugradnja ladica: Follow specific instructions for installing the two drawers. Ensure they slide smoothly.
- Ugradite vrata: Attach the cabinet doors to the frame. Ensure they open and close freely and align correctly.
- Umetnite police: Place the adjustable shelves at your desired height. The shelves can be repositioned later as needed.
- Mehanizam sigurnog zaključavanja: Ensure the 3-point locking system is correctly installed and functional. Test with the provided keys.
- Završno zatezanje: Kada su sve komponente na svom mjestu i poravnate, potpuno zategnite sve vijke i šrafove.
- Montaža na zid (opciono): For added stability, especially in high-traffic areas or with heavy contents, secure the cabinet to a wall using appropriate wall anchors and screws (expansion screws are included).
Uputstvo za upotrebu

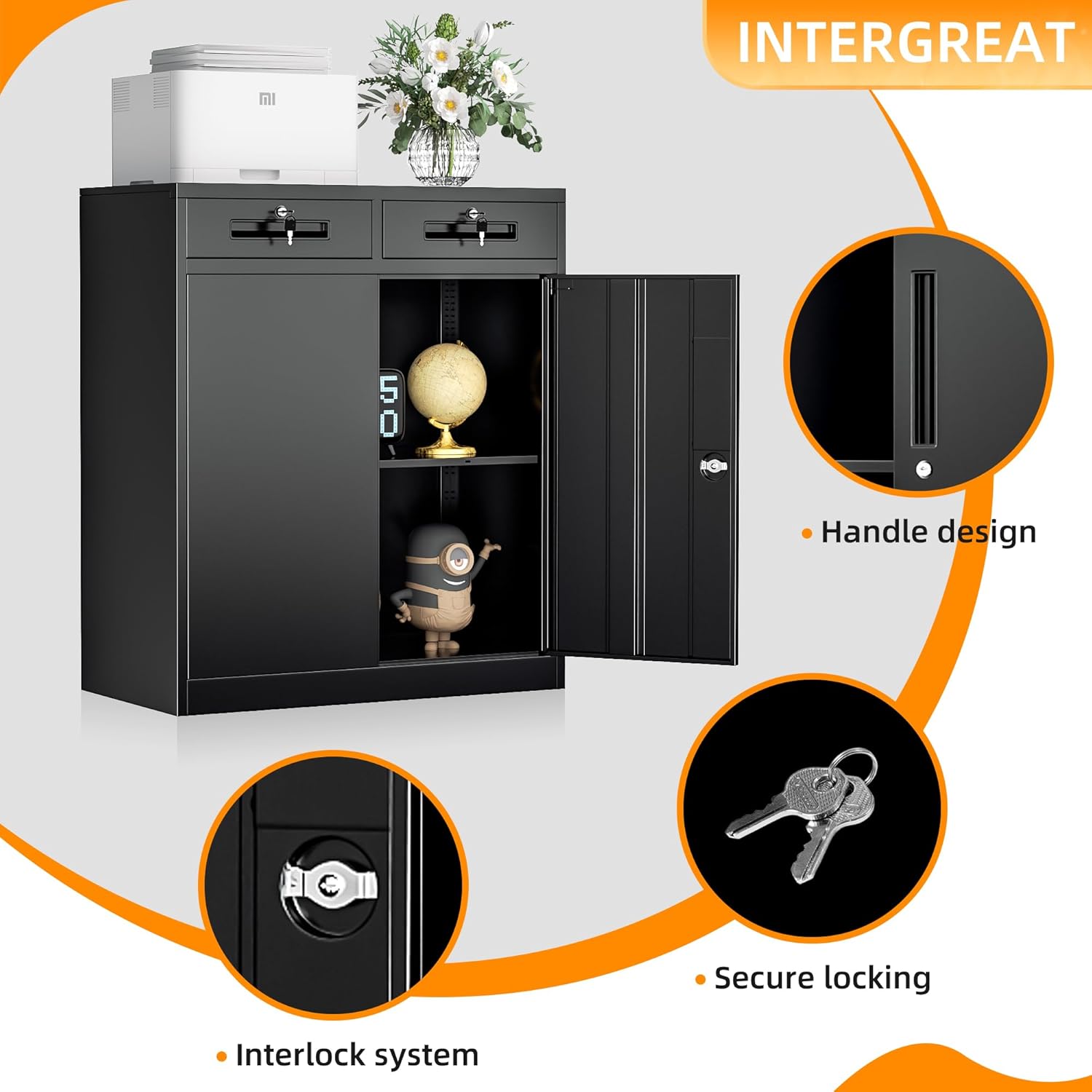

Locking and Unlocking the Cabinet
- Zaključati: Close both cabinet doors and drawers completely. Insert one of the provided keys into the lock cylinder on the main door and turn it clockwise until the locking mechanism engages. Remove the key.
- Za otključavanje: Insert the key into the lock cylinder and turn it counter-clockwise until the mechanism disengages. The doors and drawers can now be opened.
Podešavanje polica
- The cabinet features adjustable shelves to accommodate items of various heights.
- To adjust a shelf, first remove all items from the shelf.
- Carefully lift the shelf and disengage it from the support clips on the side panels.
- Reposition the support clips to the desired height. Ensure they are level and securely inserted into the designated slots.
- Place the shelf back onto the support clips, ensuring it is stable before placing items on it.
Održavanje i njega
- čišćenje: Obrišite površine ormarića mekom,amp cloth. For stubborn stains, a mild soap solution can be used. Avoid abrasive cleaners or harsh chemicals, as these can damage the powder-coated finish.
- Prevencija hrđe: The cabinet features a dustproof coating for enhanced durability and rust resistance. However, avoid prolonged exposure to excessive moisture to maintain its condition.
- Održavanje brave: Periodically check the locking mechanism for smooth operation. If the lock becomes stiff, a small amount of graphite lubricant can be applied to the keyhole.
- inspekcija: Redovno provjeravajte sve vijke i spojeve kako biste bili sigurni da su čvrsto zategnuti. Po potrebi ih ponovo zategnite.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Ormarić je klimav ili nestabilan. | Screws are not fully tightened; uneven floor; not wall-mounted. | Ensure all assembly screws are fully tightened. Place the cabinet on a level surface. Consider wall-mounting for increased stability. |
| Doors or drawers do not close properly. | Misaligned during assembly; obstruction. | Check for any obstructions. Re-check door/drawer alignment and adjust hinges/slides if necessary. Ensure the cabinet frame is square. |
| Mehanizam za zaključavanje je krut ili se ne zaključava. | Dust or debris in lock; mechanism misalignment. | Apply a small amount of graphite lubricant to the keyhole. Ensure doors and drawers are fully closed before attempting to lock. |
| Shelf sags or is unstable. | Overloaded; support clips not properly seated. | Reduce the weight on the shelf, ensuring it does not exceed 180 LBS. Verify that the shelf support clips are securely seated in the correct slots. |
Korisnički servis i podrška
For any questions, missing parts, or assistance with assembly, please contact INTERGREAT customer service. We are committed to ensuring your satisfaction.
- Online resursi: Visit the official INTERGREAT store on Amazon for additional product information and support. INTERGREAT Store
- Video tutorijali: Video tutorials are available to assist with assembly and usage. Please refer to the product page or contact customer service for links.
- Informacije o garanciji: While specific warranty details are not provided in this manual, INTERGREAT stands by the quality of its products. Please retain your proof of purchase for any warranty claims.
