1. Uvod
The Huepar SW-T120 is a versatile 3-in-1 measurement tool designed for various applications in construction, home improvement, and DIY projects. It integrates a laser distance meter, a green cross-line laser level, and a traditional 6.5ft tape measure into a single compact device. This manual provides detailed instructions for safe and effective operation of your device.

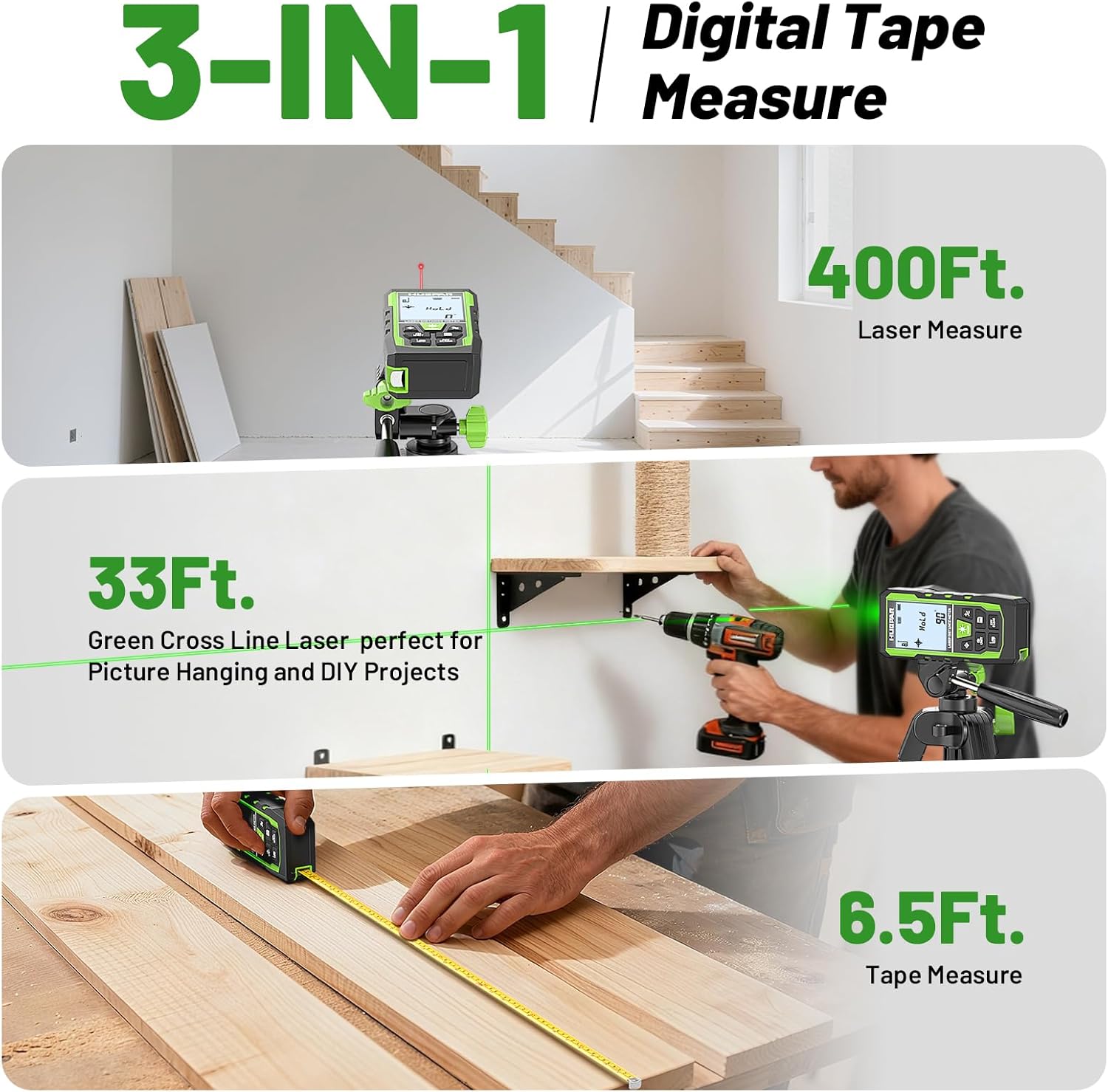

Image 1.1: The Huepar SW-T120 device demonstrating its three core functionalities: laser distance measurement, green cross-line laser leveling, and a built-in tape measure.
2. Šta se nalazi u kutiji
Provjerite da li su sve komponente prisutne nakon raspakivanja:
- 1x Huepar SW-T120 3-in-1 Laser Measuring Tool (400ft/120M)
- 1x Auxiliary Measuring Target Plate
- 1x Type-C kabel za punjenje
- 1x Prijenosna torba za nošenje
- 1x Remen za ruku
- 1x uputstvo za upotrebu
- 1x Paper Color Box

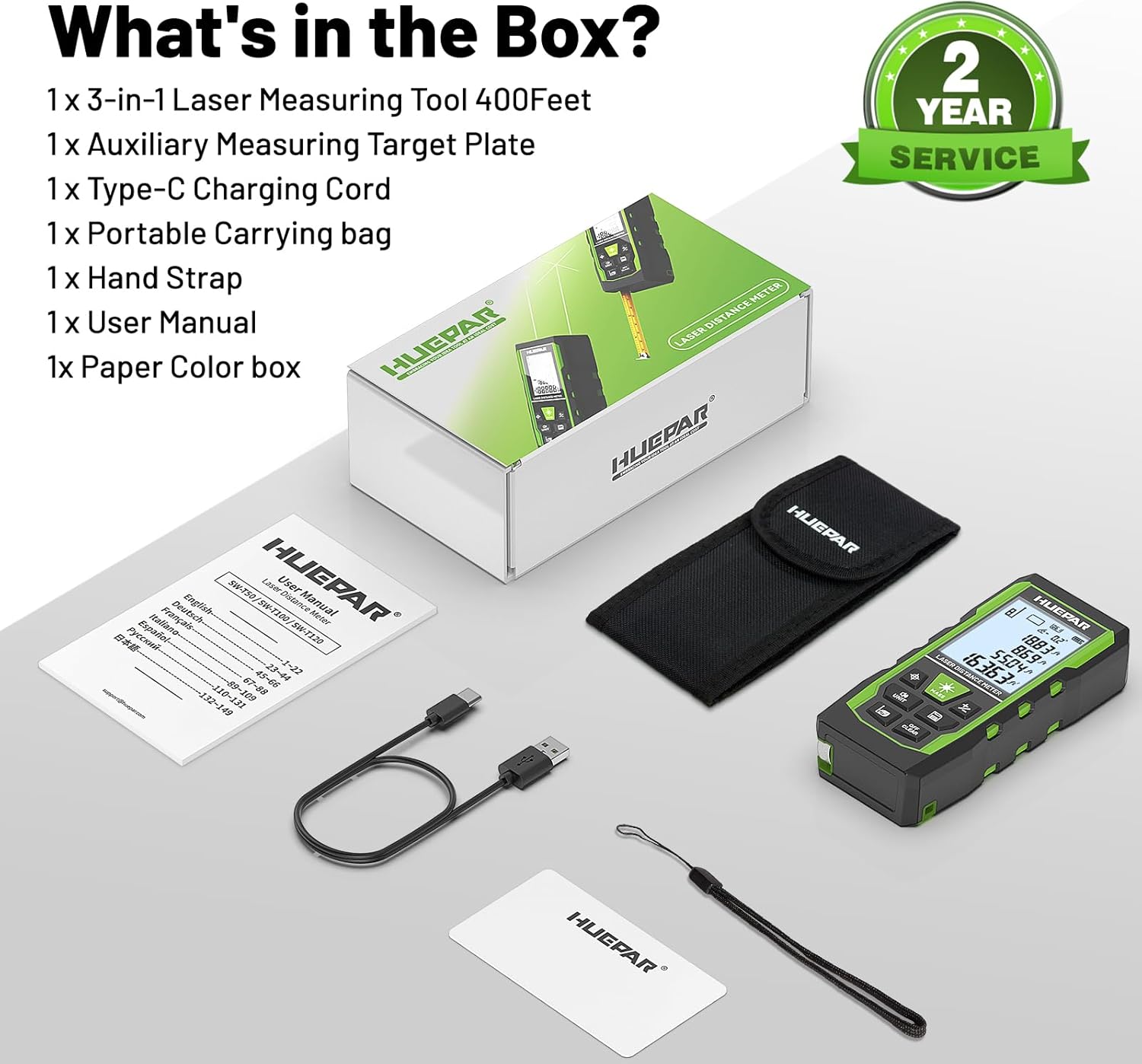

Image 2.1: All items included in the Huepar SW-T120 product package.
3. Podešavanje i punjenje
Before initial use, ensure the device is fully charged. The SW-T120 features a built-in 3.7V / 600mAh Lithium-Ion battery.
- Punjenje: Connect the provided Type-C charging cable to the device's charging port and a suitable USB power source. The battery indicator on the display will show charging status.
- Uključivanje/isključivanje: Pritisnite i držite Power ON/Measure dugme za uključivanje ili isključivanje uređaja.
Image 3.1: The Type-C charging port and hand strap attachment point on the device.
4. Uputstvo za upotrebu
4.1 Mjerenje udaljenosti laserom
This mode allows for precise distance measurements up to 400ft (120m) with an accuracy of ±1/16 inch.
- Aktiviraj: Pritisnite Power ON/Measure dugme za aktiviranje lasera.
- Mjera: Aim the laser at the target point and press the Power ON/Measure button again to take a measurement. The result will be displayed on the screen.
- Reference Points: The device supports measurements from three reference points: front, rear, or screw-hole. Use the Benchmark/Mode switch dugme za ciklično prelaženje kroz ove opcije.
Image 4.1: Understanding the different measurement reference points for accurate readings.
4.2 Green Cross Line Laser Level Mode
The integrated green cross-line laser provides horizontal and vertical lines for leveling and alignment tasks, with a working distance of up to 33ft (10m) and an angle accuracy of ±1°.
- Aktiviraj: Pritisnite Laser Level Mode button to project the green cross lines.
- Niveliranje: Place the device on a stable surface. The screen displays angles from -90° to +90° horizontally. If the angle exceeds ±4°, the 'Out' icon will flash, and the laser line will flash rapidly, indicating it is out of level.
- Montaža za stativ: For enhanced stability and precise positioning, the device features a 1/4"-20 tripod mount.
Image 4.2: Using the green cross line laser level for precise alignment.
4.3 mjerna traka
A traditional 6.5ft (2m) physical tape measure is integrated for short-distance measurements or when a laser is not suitable.
- Upotreba: Pull out the tape measure from the side of the device. Ensure it retracts smoothly after use.
4.4 Measurement Modes and Functions
The SW-T120 supports various measurement calculations:
- Mjerenje udaljenosti: Single distance measurement.
- Mjerenje površine: Izračunava površinu površine.
- Mjerenje zapremine: Izračunava zapreminu prostora.
- Indirektna visina (Pitagora): Calculates height using two or three measurements.
- Kontinuirano mjerenje: Pruža ažuriranja udaljenosti u stvarnom vremenu dok se uređaj pomiče.
- Sabiranje/Oduzimanje: Allows for adding or subtracting measurements.
Slika 4.3: Gotovoview of the multiple measurement modes available on the device.
4.5 Glasovno emitiranje
The device features real-time voice feedback for measurements, enhancing readability and efficiency, especially in challenging conditions or for users with limited vision.
- Aktivacija: Dugo pritisnite JEDINICA button to switch between English voice, Chinese voice, or to turn off the sound.
- Napomena: Voice broadcast is not active while the device is charging.
Image 4.4: The voice broadcast feature provides audible measurement readings.
4.6 Data Memory and Units
The device can store up to 100 sets of measurement data, allowing for easy recall without manual notes. It also supports multiple measurement units.
- Ušteda podataka: Valid measurements are automatically saved. The top of the screen indicates how many groups are saved.
- Zamjena jedinica: Pritisnite JEDINICA button (short press) to cycle through available units: inches (in), feet (ft), meters (m), feet and inches (ft'in"), feet and fractions (ft'in 1/X"), and meters with decimals (m.mm).
Image 4.5: Data memory and unit selection on the device display.
5. Održavanje i njega
- čišćenje: Koristite meku, damp krpu za čišćenje uređaja. Ne koristite abrazivna sredstva za čišćenje ili rastvarače.
- Skladištenje: Store the device in its portable carrying bag in a dry, cool place when not in use.
- Trajnost: The rugged TPE housing provides resistance against drops, dust, and light water spray (IP54 rated). However, avoid submerging the device in water.
Image 5.1: The device's robust design and accessories for protection and portability.
6. Otkrivanje problema
- Netačna očitavanja: Ensure the laser target is clear and unobstructed. Verify the correct reference point (front, rear, screw-hole) is selected. For long distances, use the auxiliary measuring target plate to enhance laser visibility and accuracy.
- Uređaj se neočekivano isključuje: The device has an auto shut-off feature that activates after 150 seconds of inactivity to conserve battery. This setting cannot be changed. Ensure you are actively using the device or restart it if needed.
- Laser nije vidljiv: In bright light conditions, the green laser line may be less visible. Use the auxiliary measuring target plate to help locate the laser spot.
Image 6.1: The auxiliary target plate helps improve laser visibility and measurement accuracy.
7. Specifikacije
| Feature | Specifikacija |
|---|---|
| Model | SW-T120 |
| Raspon laserskog mjerenja udaljenosti | 400ft / 120m |
| Tačnost laserske udaljenosti | ±1/16 inča |
| Green Cross Line Laser Working Distance | 33ft / 10m |
| Angle Accuracy | ±1° |
| Dužina mjerne trake | 6.5ft / 2m |
| Laser Class | Klasa 2, <1mW |
| Laser Type | 490-560nm |
| Vrsta baterije | Lithium-Ion, 3.7V, 600mAh |
| Display | 2.2" Backlit LCD |
| Skladištenje podataka | Do 100 očitavanja |
| Automatsko isključivanje | 150 sekundi |
| Materijal | Acrylonitrile Butadiene Styrene, TPE |
| IP Rating | IP54 (Water Resistant, Dustproof) |
| Težina artikla | 200 g |
8. Garancija i podrška
The Huepar SW-T120 laser measuring tool comes with a 2-year quality assurance. Free repair or replacement is provided if the product is found to be faulty under normal use conditions.
For technical support, service inquiries, or warranty claims, please refer to the contact information provided in the product packaging or visit the official Huepar website. Huepar is committed to providing responsive customer service and lifetime technical support.
Image 8.1: Huepar's 2-year quality assurance and service commitment.
9. Video demonstracije proizvoda
Video 9.1: A brief demonstration of the Huepar SW-T120's 3-in-1 functionality, including laser distance measurement, green cross-line laser, and tape measure. This video highlights the voice broadcast feature and various applications.
