Cecotec Pizza&Fry 7000 Electric Pizza Oven User Manual

1. Uvod i sigurnosne informacije

Hvala na kupoviniasing the Cecotec Pizza&Fry 7000 Electric Pizza Oven. This manual provides essential instructions for safe operation, maintenance, and troubleshooting. Please read it thoroughly before first use and keep it for future reference.

Važna sigurnosna uputstva

• Always ensure the appliance is placed on a stable, heat-resistant surface, away from walls and flammable materials.
• Ne uranjajte uređaj, kabel ili utikač u vodu ili bilo koju drugu tekućinu.
• Držite djecu i kućne ljubimce podalje od uređaja tokom rada.
• Uvijek isključite uređaj iz električne utičnice kada ga ne koristite i prije čišćenja.
• Ne koristite uređaj ako je kabel ili utikač oštećen, ili ako uređaj ne radi ispravno ili je na bilo koji način oštećen.
• Use oven mitts when handling hot parts, especially the pizza stone and cooking drawer.
• Osigurajte odgovarajuću ventilaciju oko uređaja tokom upotrebe.
• The appliance features overheating protection and automatic shut-off when the outer pot is removed for maximum safety.

2. Proizvod je gotovview

Komponente

• Cecotec Pizza&Fry 7000 Electric Pizza Oven
• Removable Cooking Drawer with Basket
• Stone Pizza
• Uputstvo za upotrebu

Ključne karakteristike

• Kapacitet: 7-liter electric oven, suitable for pizzas up to 13 inches.
• Snaga: 2200W total (1350W upper heating element, 900W lower heating element) for rapid and uniform heating.
• Kontrola: Digital touchscreen with intelligent control.
• Programi: 8 pre-set air fryer programs and 2 dedicated pizza programs (Frozen Pizza, Fresh Pizza).
• Raspon temperature: Adjustable thermostat from 40°C to 230°C.
• kuhanje: Included pizza stone for authentic and crispy results, dynamic airflow for enveloping heat.
• sigurnost: Overheating protection and automatic shut-off when the cooking drawer is removed.
• Vidljivost: Transparent viewprozorčić za praćenje napretka kuhanja.

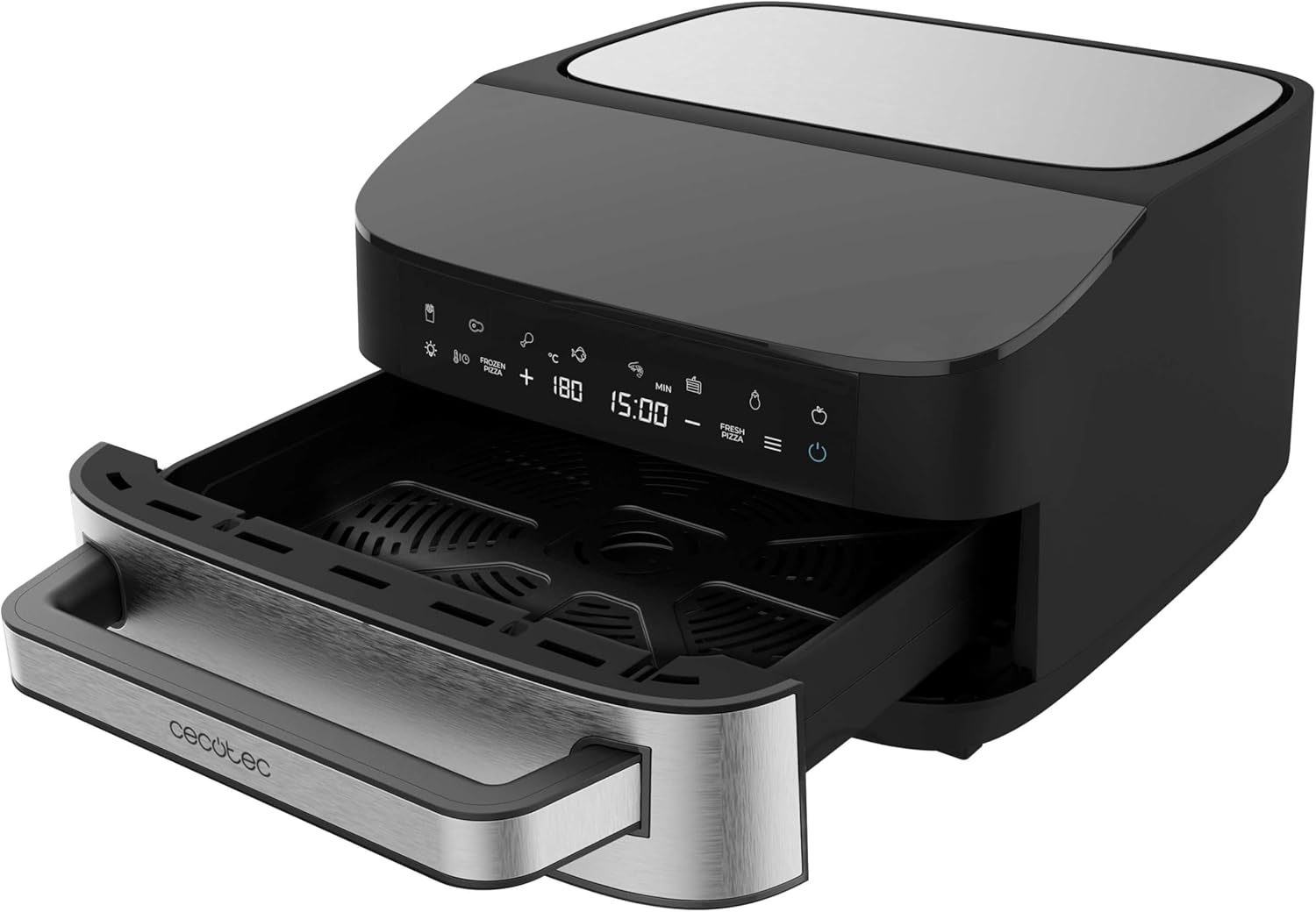

This image displays the Cecotec Pizza&Fry 7000 electric pizza oven from a three-quarter angle, with its cooking drawer partially open, showcasing the internal basket. The digital control panel is visible above the drawer.

3. Postavljanje i prva upotreba

3.1 Raspakivanje

• Pažljivo izvadite uređaj i sav pribor iz ambalaže.
• Uklonite sve zaštitne folije, naljepnice ili materijale za pakiranje s uređaja.
• Sačuvajte originalnu ambalažu za buduće skladištenje ili transport.

3.2 Postavljanje

• Postavite pećnicu na ravnu, stabilnu i toplotno otpornu površinu.
• Ensure there is adequate space (at least 10 cm) around the appliance for proper ventilation.
• Do not place the oven near heat sources, flammable materials, or under wall cabinets that are not heat-resistant.

3.3 Početno čišćenje

• Obrišite vanjski dio pećnice s oglasomamp tkanina.
• Wash the cooking drawer, basket, and pizza stone with warm, soapy water. Rinse thoroughly and dry completely.
• Nemojte koristiti abrazivna sredstva za čišćenje ili jastučiće za ribanje.

3.4 First Use (Burn-off Cycle)

• After cleaning, insert the empty cooking drawer and pizza stone into the oven.
• Uključite uređaj u uzemljenu utičnicu.
• Turn on the oven and set it to the highest temperature (230°C) for approximately 10-15 minutes.
• This process helps to burn off any manufacturing residues and odors. A slight smoke or odor is normal during this initial use. Ensure the area is well-ventilated.
• Allow the oven to cool completely before its first actual cooking use.

4. Uputstvo za upotrebu

4.1 Kontrolna tabla prekoview

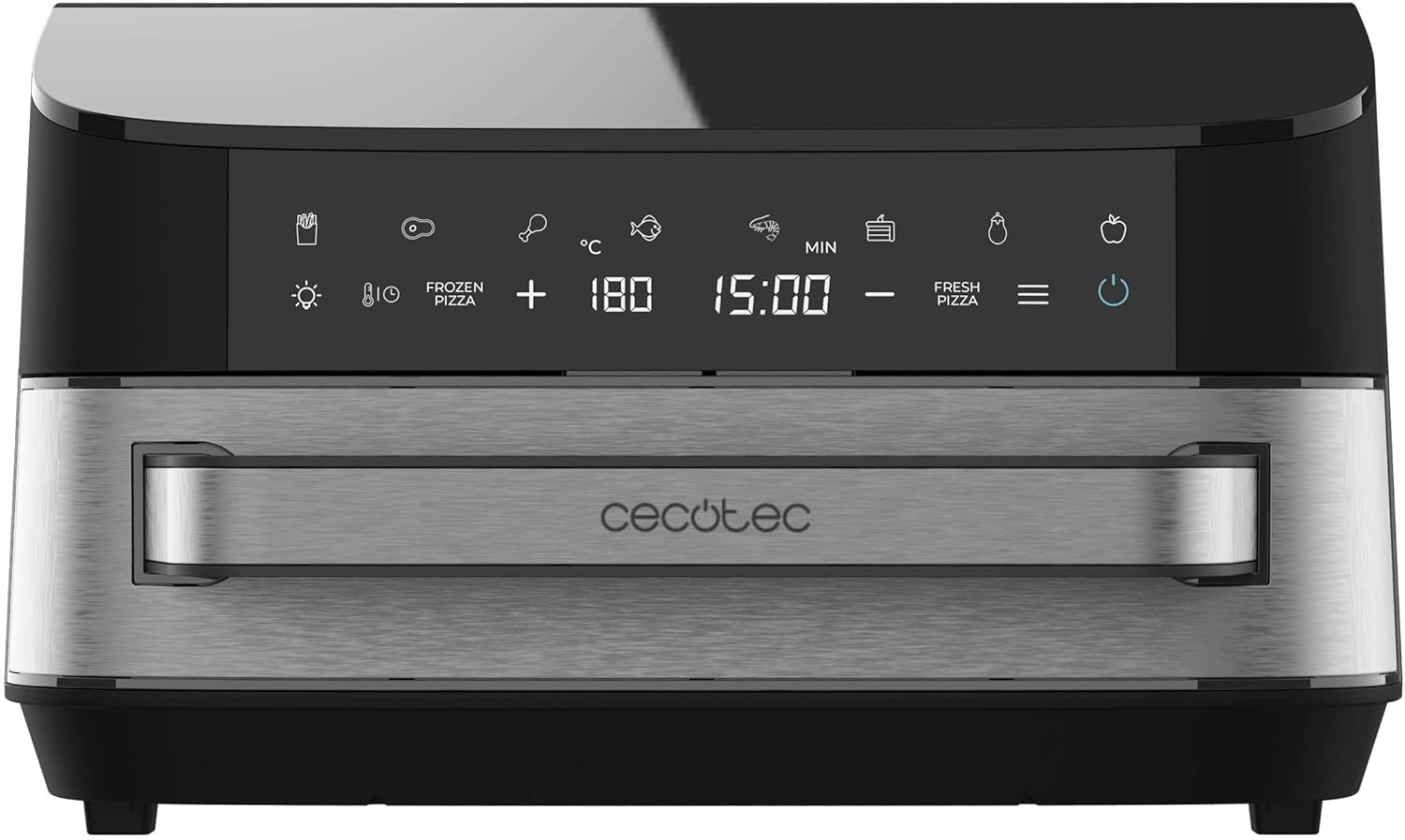

Direktan front view of the Cecotec Pizza&Fry 7000 electric pizza oven, highlighting the sleek digital touchscreen control panel with various cooking icons, temperature, and time display.

The Cecotec Pizza&Fry 7000 features an intuitive digital touchscreen control panel. Icons represent different functions and pre-set programs. The display shows temperature and time settings.

A close-up image of a hand touching the digital control panel of the Cecotec Pizza&Fry 7000 electric pizza oven, demonstrating the interactive touchscreen interface for setting cooking parameters.

4.2 Osnovni rad

1. Uključeno: Plug the oven into a suitable power outlet. The display will illuminate.
2. Odaberite program: Use the program icons on the touchscreen to select your desired cooking mode. There are 8 air fryer programs and 2 pizza programs (Frozen Pizza, Fresh Pizza).
3. Podesite temperaturu/vrijeme: After selecting a program, you can typically adjust the temperature (40-230°C) and cooking time using the '+' and '-' buttons.
4. Predgrijavanje: For best results, preheat the oven with the pizza stone inside before adding food, especially for pizzas.
5. Ubacite hranu: Carefully pull out the cooking drawer. Place your food (e.g., pizza on the pizza stone) into the basket. Push the drawer back in until it clicks securely.
6. Počnite kuhati: Pritisnite dugme Start/Pauza da započnete ciklus kuvanja.
7. Monitor kuhanja: Use the transparent viewing window to monitor your food without opening the drawer.
8. Uklonite hranu: Once cooking is complete, the oven will beep. Carefully pull out the drawer using oven mitts and remove your food.
9. Iskljuciti: Isključite uređaj iz struje kada ga ne koristite.

A user is shown carefully pulling out the cooking drawer of the Cecotec Pizza&Fry 7000 electric pizza oven, revealing a perfectly cooked pizza on the pizza stone inside. This demonstrates the easy access to food.

Ova slika pruža krupni plan view of a pizza cooking inside the Cecotec Pizza&Fry 7000 electric pizza oven, seen through the front viewing window. The glowing heating elements are visible, indicating active cooking.

Odozgo prema dolje view of the Cecotec Pizza&Fry 7000 electric pizza oven, showing two steaks cooking inside, visible through the transparent top window. This illustrates the oven's versatility beyond just pizza.

5. Čišćenje i održavanje

5.1 Čišćenje

• Uvijek isključite pećnicu iz struje i ostavite je da se potpuno ohladi prije čišćenja.
• Eksterijer: Obrišite spoljašnjost mekom krpom, damp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje ili jake hemikalije.
• Cooking Drawer and Basket: Remove the drawer and basket. Wash them with warm, soapy water. For stubborn food residue, soak them before cleaning. Rinse and dry thoroughly. These parts may be dishwasher safe, refer to specific product details if available.
• Pizza Stone: Allow the pizza stone to cool completely. Scrape off any baked-on food residue with a plastic scraper. For best results, avoid using soap on the pizza stone as it can absorb flavors. Rinse with warm water and air dry completely. Do not put a hot pizza stone directly into cold water as it may crack.
• unutrašnjost: Gently wipe the interior surfaces with a damp cloth. Avoid getting water into electrical components.

5.2 Skladištenje

• Ensure the oven is clean and completely dry before storing.
• Uređaj čuvajte na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti i vlage.
• If storing for an extended period, it is recommended to use the original packaging.

6. Otkrivanje problema

If you encounter any issues with your Cecotec Pizza&Fry 7000, please refer to the table below for common problems and solutions.

7. Tehničke specifikacije

8. Garancija i korisnička podrška

Informacije o garanciji

This product is covered by the standard manufacturer's warranty, as per local consumer protection laws. Please retain your proof of purchase for any warranty claims. The warranty typically covers defects in materials and workmanship under normal use.

Korisnička podrška

For technical assistance, spare parts, or any questions regarding your Cecotec Pizza&Fry 7000 Electric Pizza Oven, please contact Cecotec customer support. Refer to the official Cecotec webweb-stranicu ili dokumentaciju o kupovini za kontakt podatke specifične za vašu regiju.
