SmallRig MD5424 Quick Release Mount Plate for AirTag (Canon EOS R Series) Instruction Manual

Uvod

The SmallRig MD5424 Quick Release Mount Plate is designed to enhance the functionality and security of your Canon EOS R series camera. This innovative baseplate features a hidden compartment for an Apple AirTag, allowing for discreet tracking of your valuable equipment. It integrates seamlessly with Arca-Swiss compatible systems, providing quick transitions between various shooting setups.

This manual provides detailed instructions for the proper installation, operation, and maintenance of your SmallRig MD5424 Mount Plate.

Karakteristike proizvoda

• Integrated AirTag Odeljak: Securely holds an Apple AirTag within a hidden slot, enabling discreet tracking of your camera equipment.
• Arca-Swiss brzo otpuštanje: Allows for direct and rapid attachment to Arca-Swiss compatible tripods and gimbals without the need for additional adapters.
• Poboljšana stabilnost: Features anti-twist tabs and non-slip rubber pads to ensure a secure and stable connection to your camera, preventing unwanted movement during use.

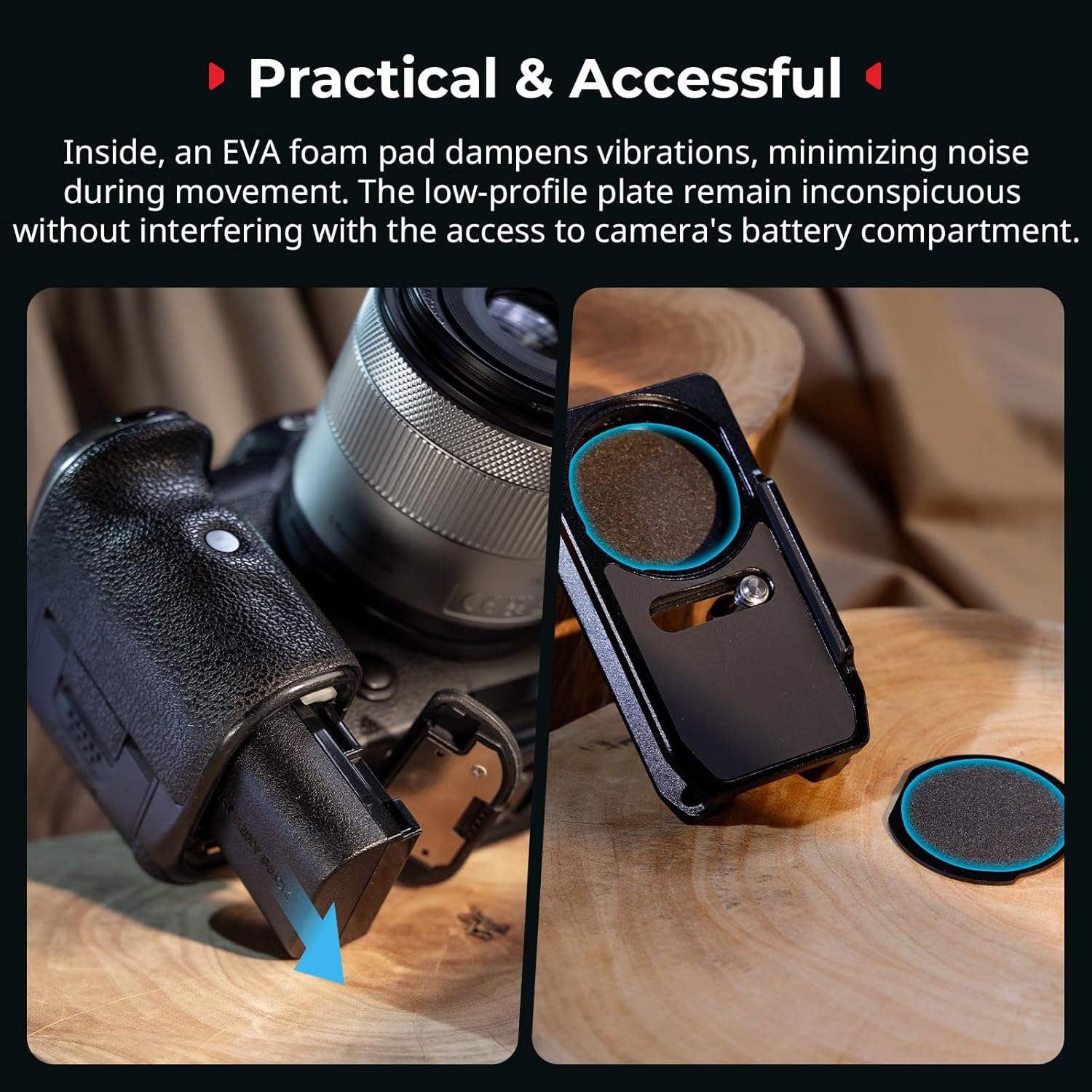

• Vibracije Damping: Built-in EVA foam padding minimizes vibrations and reduces noise, contributing to smoother operation and improved audio quality.
• Versatile Expansion: Equipped with multiple 1/4"-20 threaded holes for attaching various accessories such as magic arms, mini tripods, and other expansion gear.

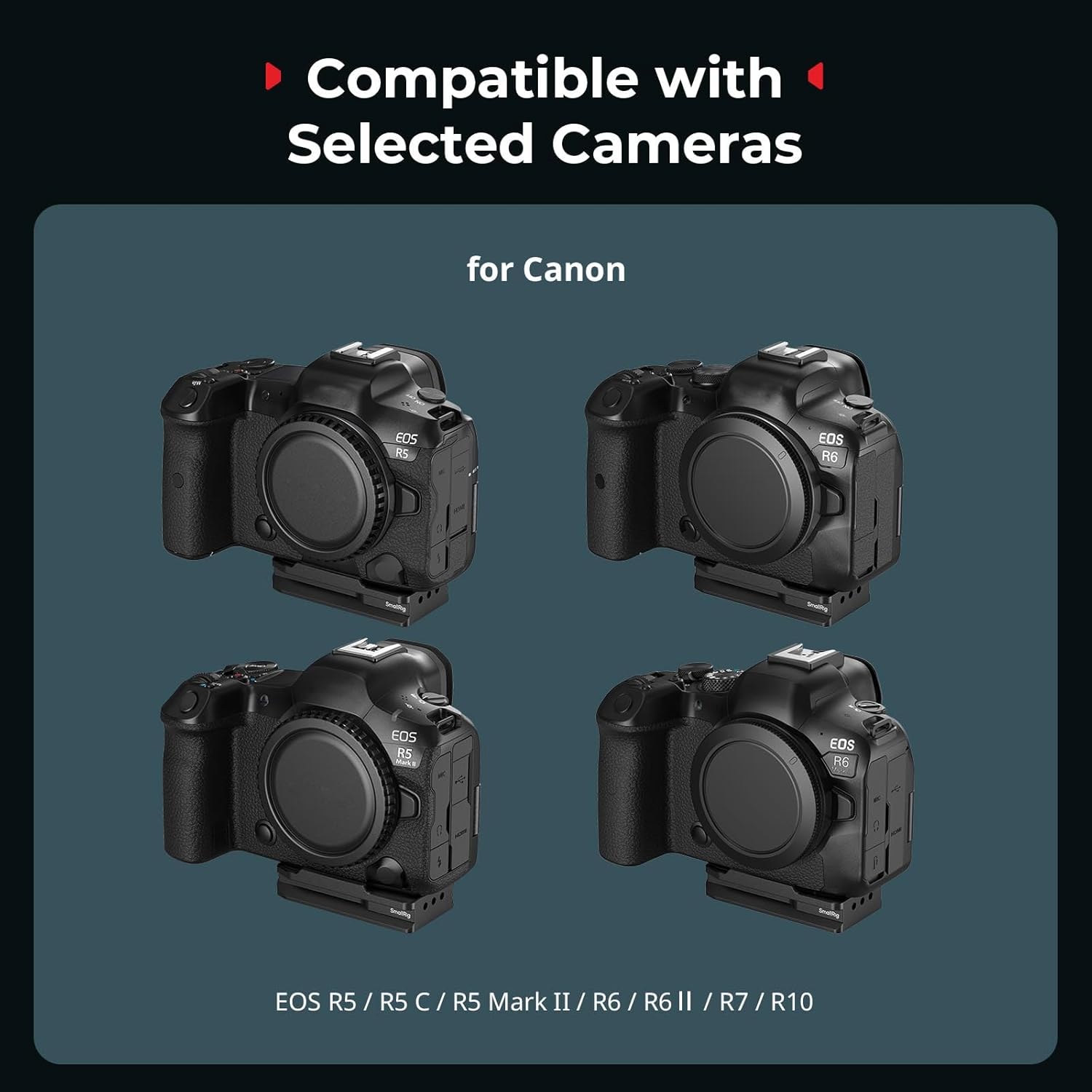

• Kompatibilnost kamere: Specifically designed for Canon EOS R5, R5 C, R5 Mark II, R6, R7, and R10 cameras.

Sadržaj paketa

Provjerite da li se sve stavke nalaze u vašem paketu:

• Quick Release Mount Plate x 1
• Torx ključ x 1

Postavljanje i instalacija

1. Installing the AirTag

1. Locate the circular cover on the mount plate.
2. Gently remove the circular cover to reveal the AirTag kupe.
3. Insert your Apple AirTag into the compartment. Ensure it sits flush with the EVA foam padding.
4. Replace the circular cover, ensuring it snaps securely into place.

2. Pričvršćivanje na kameru

1. Align the 1/4"-20 screw on the mount plate with the tripod socket on the bottom of your Canon EOS R series camera.
2. Ensure the anti-twist tabs on the plate engage with the corresponding slots on your camera body for a secure fit.
3. Use the provided Torx wrench to tighten the 1/4"-20 screw until the plate is firmly attached to the camera. Do not overtighten.

3. Using with Arca-Swiss Systems

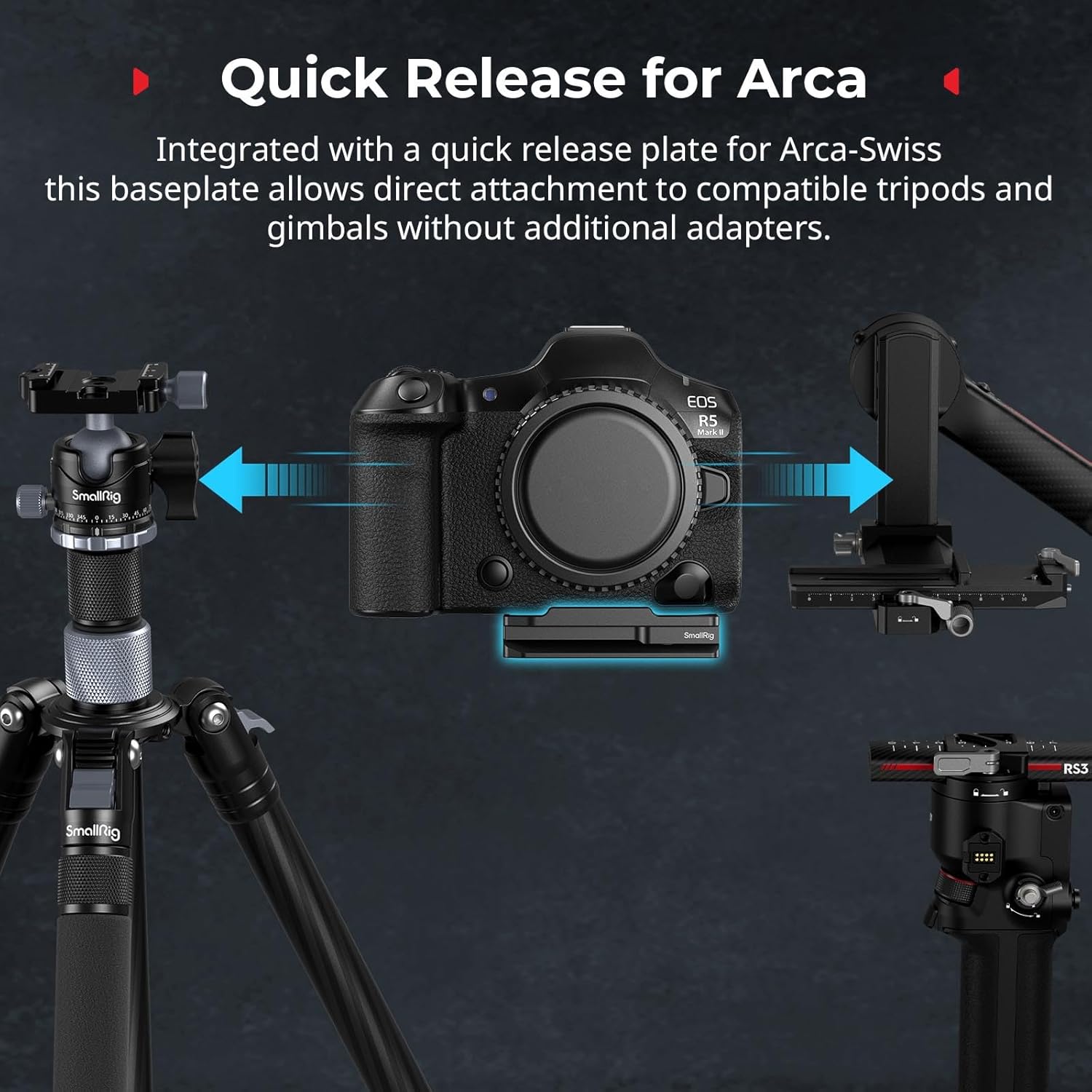

The integrated Arca-Swiss quick release plate allows for direct mounting onto compatible tripods and gimbals. Simply slide the camera with the attached MD5424 plate into the Arca-Swiss clamp until it locks securely.

Uputstvo za upotrebu

Quick Transitions

The integrated quick release plate facilitates rapid transitions between handheld shooting, tripod mounting, and gimbal setups. This allows for flexibility in various photographic and videographic scenarios.

Dodatna ekspanzija

Utilize the multiple 1/4"-20 threaded holes on the mount plate to attach additional accessories. These can include external monitors, microphones, LED lights, or other rigging components via magic arms or mini tripods.

VazduhTag Tracking Functionality

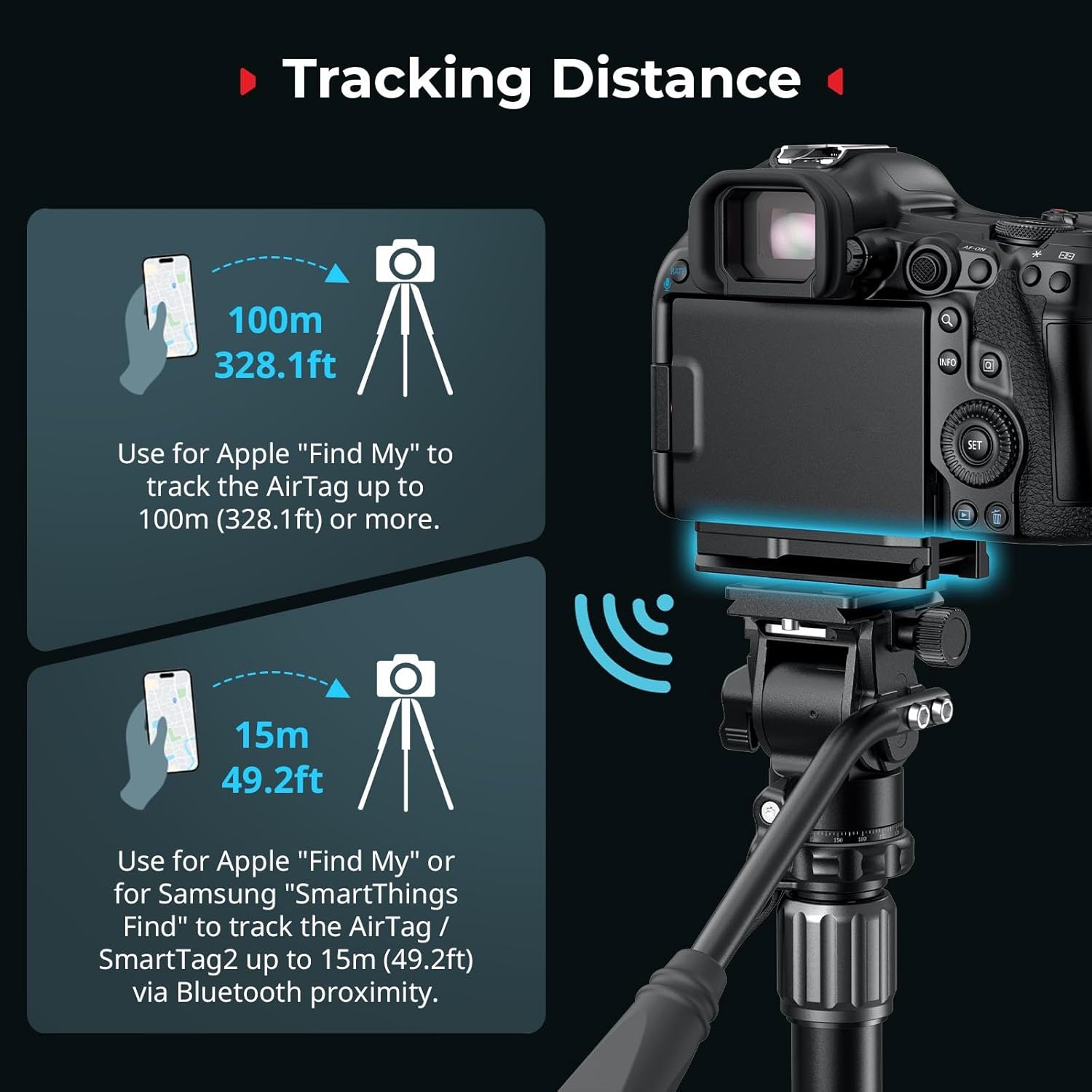

Once an Apple AirTag is installed, you can use the Apple "Find My" network to track your camera. Tracking distance varies:

• Up to 15m (49.2ft) via Bluetooth proximity for nearby tracking.
• Up to 100m (328.1ft) or more using the broader Apple "Find My" network.

Održavanje

• čišćenje: Wipe the mount plate with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive materials.
• Zategnutost vijaka: Periodically check the tightness of the 1/4"-20 screw connecting the plate to your camera. Retighten with the Torx wrench if necessary to ensure stability.
• EVA Pad Inspection: Ensure the EVA foam padding inside the AirTag compartment remains intact and free from damage to maintain vibration damping and secure AirTag plasman.

Rješavanje problema

• Plate feels loose on camera: Ensure the 1/4"-20 screw is fully tightened using the provided Torx wrench. Verify that the anti-twist tabs are correctly engaged with the camera body.
• VazduhTag cover pops off: Ensure the AirTag is correctly seated within the compartment and the cover is snapped firmly into place. The cover is designed to be secured once the plate is attached to the camera.
• Difficulty attaching to Arca-Swiss clamp: Confirm that your tripod or gimbal head is Arca-Swiss compatible. Ensure the clamp is fully open before attempting to slide the plate in.
• Interference with camera cage: This mount plate is designed for direct attachment to the camera body. If using a camera cage, ensure it does not obstruct the mounting points or the AirTag compartment. Some cages may not be compatible.

Specifikacije

Zvanični video proizvoda

Garancija i podrška

SmallRig products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please visit the official SmallRig webweb-mjesto ili kontaktirajte njihovu službu za korisnike. Sačuvajte račun za kupovinu u slučaju reklamacije.

Za dodatnu pomoć, možete se obratiti i SmallRig trgovina na Amazonu.
