1. Uvod
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Cecotec Conga M70 Robot Vacuum and Mop. Please read this manual thoroughly before using the device and retain it for future reference.
Image 1.1: The Cecotec Conga M70 Robot Vacuum and Mop, a versatile cleaning device.
2. Sigurnosna uputstva
Uvijek se pridržavajte osnovnih sigurnosnih mjera opreza prilikom korištenja električnih uređaja kako biste smanjili rizik od požara, strujnog udara i tjelesnih ozljeda.
- Prije upotrebe pročitajte sva uputstva.
- Ne koristite robota u vlažnim okruženjima ili u blizini vode.
- Držite kosu, široku odjeću, prste i sve dijelove tijela dalje od otvora i pokretnih dijelova.
- Ne koristite robota za usisavanje velikih predmeta, oštrih predmeta ili zapaljenih/dimećih materijala.
- Osigurajte da je baza za punjenje postavljena uz zid na ravnoj površini.
- Nadgledajte djecu i pazite da se ne igraju s uređajem.
- Only use the original power adapter and charging base provided by Cecotec.
3. Sadržaj paketa
Provjerite da li su sve komponente prisutne u paketu:
- Cecotec Conga M70 Robot Vacuum and Mop
- Mop Cloth
- Baza za punjenje
- Adapter za napajanje
- Side Brushes (pre-installed or spare)
- High-Efficiency Filter (HEPA type)
- Alat za čišćenje
- Uputstvo za upotrebu
4. Proizvod je gotovview
Familiarize yourself with the main components of your Conga M70 robot.
Top View
The top panel features control buttons and the laser navigation sensor. The laser sensor allows the robot to create an interactive map of your home for precise and customized cleaning.
Image 4.1: The Conga M70 utilizing its laser navigation system to map and clean with precision.
Dno View
The underside includes the main brush, side brushes, driving wheels, and the water/dust tanks. The anti-tangle silicone brush is designed for effective cleaning, especially in homes with pets.
Image 4.2: Underside components of the Conga M70, including the main brush and side brushes.
5. Podešavanje
5.1 Postavljanje baze za punjenje
Place the charging base against a wall in an open area, ensuring there are no obstacles within 1 meter to the sides and 2 meters in front. Connect the power adapter to the charging base and plug it into a power outlet.
5.2 Početno punjenje
Place the robot on the charging base. Ensure the charging contacts on the robot align with those on the base. The robot will automatically begin charging. For first-time use, charge the robot completely (approximately 4-5 hours) before operation.
Image 5.1: The robot automatically returning to its charging base to ensure continuous operation.
5.3 App Connection (Cecotec App 3.0)
- Download the 'Cecotec' app from your smartphone's app store.
- Registrirajte račun i prijavite se.
- Follow the in-app instructions to add your Conga M70 robot. The robot supports both 2.4 GHz and 5 GHz Wi-Fi networks, and Bluetooth for quick pairing.
- Once connected, you can define, plan, and schedule cleaning tasks.
Image 5.2: The Conga M70 offers easy and fast pairing via Bluetooth and supports both 2.4 GHz and 5 GHz Wi-Fi networks.
6. Uputstvo za upotrebu
6.1 Režimi čišćenja
The Conga M70 offers multiple cleaning modes, including vacuuming, sweeping, mopping, and scrubbing, which can be combined for comprehensive cleaning.
Image 6.1: The Conga M70 performing a complete cleaning pass, combining vacuuming, sweeping, mopping, and scrubbing.
6.2 Usisna snaga
Equipped with an Ungravity motor, the robot delivers 20000 Pa of suction power, effectively removing dirt from various surfaces, including high-pile carpets.
Image 6.2: Visual representation of the Conga M70's 20000 Pa suction power, capable of lifting heavy debris.
6.3 Funkcija brisanja
The robot features a mopping function with three adjustable water flow levels, allowing for customized cleaning based on floor type and dirt level.
Image 6.3: The Conga M70's mopping system, illustrating three customizable water flow levels for different floor types.
6.4 Kontrola i zakazivanje aplikacija
Use the Cecotec App 3.0 to control the robot remotely, define cleaning zones, set no-go areas, and schedule cleaning times. The app provides an interactive map of your home for precise control.
Image 6.4: Controlling the Conga M70 via the Cecotec App 3.0, allowing users to define, plan, and schedule cleaning by zones.
6.5 Coverage and Battery
The 4500 mAh battery allows the robot to clean areas up to 180 m² without interruption. The Total Surface 3.0 technology ensures the robot completes its cleaning plan by returning to the charging base when needed and resuming cleaning.

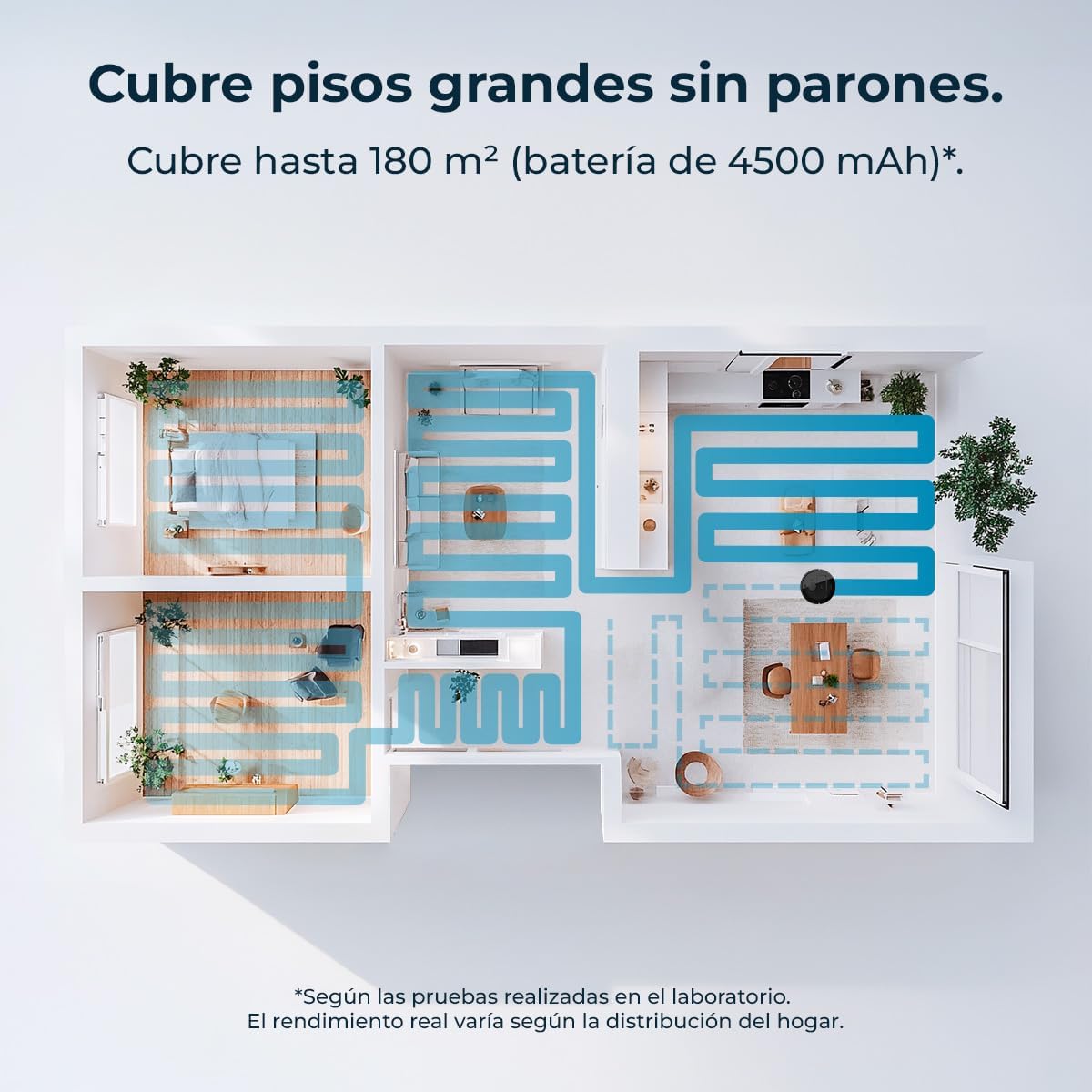

Image 6.5: An illustration of the Conga M70's cleaning coverage, capable of cleaning large areas up to 180 m².
7. Održavanje
Redovno održavanje osigurava optimalne performanse i produžava vijek trajanja vašeg robota.
7.1 Dust and Water Tanks
The robot features dual tanks: a 400 ml dust tank and a 420 ml water tank. Empty the dust tank after each use and refill the water tank as needed for mopping. Clean both tanks regularly to prevent blockages and odors.
Image 7.1: The Conga M70's dual tanks for continuous cleaning without frequent emptying or refilling.
7.2 Glavna četka i bočne četke
Remove and clean the main anti-tangle silicone brush regularly, especially if you have pets. Use the provided cleaning tool to remove hair and debris. Inspect side brushes for wear and replace them if damaged.
Image 7.2: The anti-tangle silicone brush of the Conga M70, designed for effective cleaning in homes with pets.
7.3 Filteri
Tap the HEPA filter to remove dust and debris. Do not wash the HEPA filter with water. Replace the filter every 3-6 months, depending on usage.
7.4 Senzori i kontakti za punjenje
Wipe all sensors and charging contacts on the robot and charging base with a dry cloth to ensure proper function and charging.
8. Otkrivanje problema
If you encounter issues with your Conga M70, refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Robot se ne uključuje | Slaba baterija; Dugme za napajanje nije pritisnuto | Napunite robota; Pritisnite i držite dugme za napajanje. |
| Robot se ne puni | Kontakti za punjenje prljavi; Baza za punjenje nije uključena | Očistite kontakte za punjenje; Provjerite je li baza za punjenje priključena na utičnicu. |
| Loše performanse čišćenja | Dust tank full; Brushes tangled; Filter clogged | Empty dust tank; Clean brushes; Clean/replace filter. |
| Robot se često zaglavi | Prepreke na podu; Prljavi senzori | Clear floor of cables/small objects; Clean sensors. |
| Problemi sa povezivanjem aplikacija | Netačna lozinka za Wi-Fi; Problemi s ruterom; Robot previše udaljen od rutera | Provjerite Wi-Fi pristupne podatke; Ponovo pokrenite ruter; Približite robota ruteru. |
9. Specifikacije
| Feature | Specifikacija |
|---|---|
| Brand | Cecotec |
| Naziv modela | Conga M70 |
| Broj modela | A01_EU01_114518 |
| Vrsta navigacije | Laserska navigacija |
| Snaga usisavanja | 20000 Pa |
| Kapacitet baterije | 4500 mAh |
| Područje pokrivenosti | Do 180 m² |
| Kapacitet spremnika za prašinu | 400 ml |
| Kapacitet rezervoara za vodu | 420 ml |
| Posebne karakteristike | Automatic Mopping, Anti-tangle Silicone Brush, App Control |
| Povezivanje | Bluetooth, Wi-Fi (2.4 + 5 GHz) |
| Voltage | 220 Volts |
| Filter Type | HEPA |
| Dimenzije proizvoda | 32l x 32w x 10h cm |
| Težina proizvoda | 2.11 kg |
10. Garancija i podrška
Your Cecotec Conga M70 Robot Vacuum and Mop comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included in your package or visit the official Cecotec website.
For technical support, spare parts, or service inquiries, please contact Cecotec customer service through their official channels. Keep your purchase receipt and product model number (Conga M70, A01_EU01_114518) handy when contacting support.
