Uvod
Thank you for choosing the VINGLI 4-Tier Metal Storage Shelves. This manual provides essential information for the safe assembly, operation, and maintenance of your new storage unit. Please read these instructions carefully before beginning assembly and retain them for future reference. This heavy-duty shelving unit is designed for versatile storage in various environments, including kitchens, garages, pantries, offices, and more.
Image: The VINGLI 4-Tier Metal Storage Shelves, showcasing its capacity and design in a storage room setting.
Sigurnosne informacije
- Always ensure all components are securely fastened before placing items on the shelves.
- Do not exceed the maximum weight capacity: 799 lbs (stationary with leveling feet) or 399 lbs (with wheels, not in motion).
- Ravnomjerno rasporedite težinu po policama kako biste spriječili prevrtanje.
- Use the included wall-fixing kit for added stability, especially in areas prone to movement or with heavy loads.
- Keep children and pets away from the unit during assembly.
- Avoid climbing on the shelving unit.
- Do not use the unit if any parts are damaged or missing. Contact customer support for replacement parts.
Sadržaj paketa
Please verify that all parts are present before beginning assembly. If any parts are missing or damaged, do not proceed with assembly. Contact VINGLI customer support.
| dio | Opis | Količina |
|---|---|---|
| A | Police | 4 |
| B | Gornji Polovi | 4 |
| C | Lower Poles | 4 |
| D | Plastične kopče | 32 (+ spares) |
| E | Niveliranje stopala | 4 |
| F | Wheels (2 with brakes, 2 without) | 4 |
| G | Wall-Fixing Kit | 1 set |
Uputstva za postavljanje
Assembly is designed to be tool-free and typically takes about 10 minutes with two people. It is recommended that two people work together for easier assembly.
Step 1: Attach Leveling Feet or Wheels
Decide whether you want to use the leveling feet for stationary use or the wheels for mobility. Screw the chosen components into the bottom of the lower poles (Part C). If using wheels, ensure the two wheels with brakes are installed on the same side for easier locking.
Korak 2: Sastavite stubove
Connect the Upper Poles (Part B) to the Lower Poles (Part C) by screwing them together. Ensure they are tightly secured to form four complete vertical poles.
Step 3: Install Plastic Clips
Snap two plastic clips (Part D) around each pole at the desired height for the bottom shelf. Ensure the arrow on each clip points upwards and that the clips on all four poles are at the same height to ensure a level shelf. The grooves on the poles indicate adjustable height increments.
Image: Step-by-step visual guide for attaching plastic clips and positioning the shelf onto the poles.
Step 4: Place the First Shelf
Slide a Shelf Panel (Part A) down over the poles until it rests firmly on the plastic clips. Gently press down on the shelf corners to ensure it is securely seated over the clips.
Step 5: Install Remaining Shelves
Repeat Step 3 and Step 4 for the remaining three shelves, adjusting the height of the plastic clips as desired for each shelf. Ensure all clips are at the same level for each shelf before placing the shelf panel.
Slika: Krupni plan view illustrating the adjustable nature of the shelves, allowing users to customize spacing.
Step 6: Secure with Wall-Fixing Kit (Optional but Recommended)
For enhanced stability, especially with heavy loads or in active environments, use the provided wall-fixing kit to anchor the shelving unit to a wall. Follow the instructions included with the wall-fixing kit for proper installation.
Uputstvo za upotrebu
Podešavanje visine police
To adjust the height of a shelf, first remove all items from that shelf. Lift the shelf panel off the plastic clips. Remove the plastic clips from the poles, reposition them to the desired height, ensuring they are level on all four poles, and then place the shelf panel back onto the clips.
Moving the Shelving Unit (with Wheels)
If your unit is equipped with wheels, ensure all items are securely placed on the shelves before moving. Unlock the brakes on the two braked wheels. Carefully push the unit to its new location. Once in position, engage the brakes on the wheels to prevent unintended movement.
Slika: pramples of the VINGLI shelving unit in different environments, demonstrating its versatility for home and commercial use.
Održavanje
- čišćenje: Wipe down the shelves and poles with a damp cloth. For stubborn dirt, a mild soap solution can be used. Avoid abrasive cleaners or harsh chemicals that could damage the anti-rust powder coating.
- inspekcija: Povremeno provjeravajte sve spojeve i pričvršćivače kako biste bili sigurni da su čvrsti i sigurni.
- Prevencija hrđe: The unit features an anti-rust powder coating. While durable, avoid prolonged exposure to excessive moisture or corrosive substances to maintain its finish.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Shelf is wobbly or unstable | Plastic clips not properly seated or not at the same height; uneven floor; overloaded shelf. | Ensure all plastic clips are securely snapped into the pole grooves and are level. Adjust leveling feet for uneven floors. Redistribute weight or reduce load. |
| Difficulty assembling shelves | Clips not aligned correctly; poles not fully screwed together. | Verify arrows on clips point up and clips are fully closed around the poles. Ensure upper and lower poles are tightly connected. |
| Točkovi se ne kotrljaju glatko | Brakes engaged; debris in wheels; wheels not fully tightened. | Disengage wheel brakes. Clean any debris from wheels. Ensure wheels are securely screwed into the poles. |
Specifikacije
| Feature | Detalj |
|---|---|
| Broj modela | DS-G52007953 |
| Dimenzije (D x Š x V) | 17.7" x 59" x 66.5" (45 cm x 150 cm x 169 cm) |
| Broj polica | 4 |
| Materijal | Industrial-grade Metal with Anti-rust Powder Coating |
| Weight Capacity (Stationary) | 799 lbs (362 kg) |
| Weight Capacity (Dynamic, with wheels) | 399 lbs (181 kg) |
| Vrijeme montaže (približno) | 10 minutes (with 2 people) |
| Posebne karakteristike | Adjustable shelf height, Leveling feet, Lockable wheels, Wall-fixing kit included |
Slika: Dimenzionalno prekoview of the VINGLI 4-Tier Metal Storage Shelves, indicating height, width, and depth.

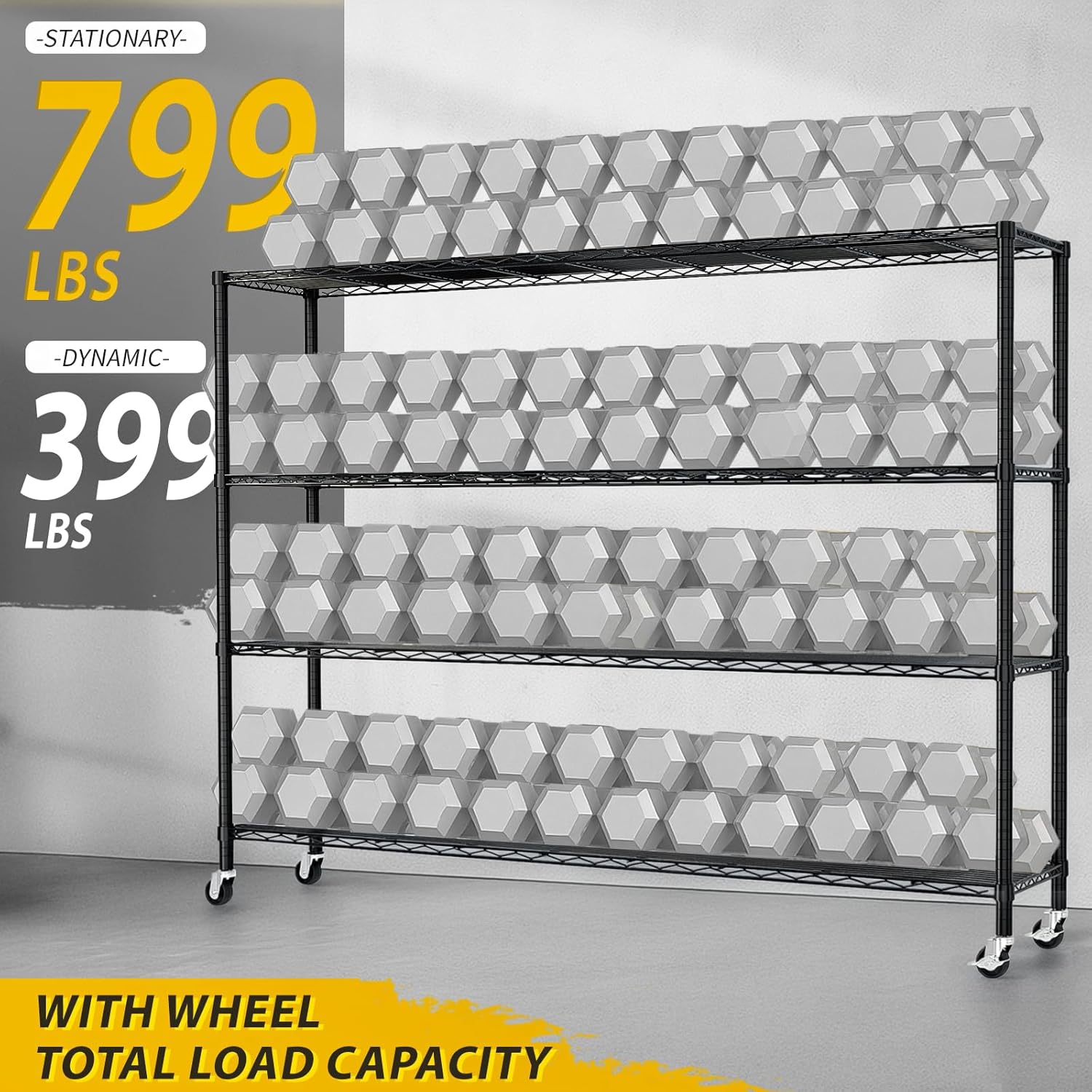

Image: Visual representation of the maximum weight capacities for both stationary and dynamic use of the shelving unit.
Informacije o garanciji
VINGLI products are manufactured to high-quality standards. For specific warranty details regarding your VINGLI 4-Tier Metal Storage Shelves, please refer to the warranty card included in your product packaging or visit the official VINGLI webMolimo sačuvajte dokaz o kupovini za bilo kakve reklamacije u vezi s garancijom.
Korisnička podrška
If you have any questions, require assistance with assembly, or need replacement parts, please contact VINGLI customer support through the following channels:
- Online: Posjetite službeni VINGLI webstranica za resurse podrške i kontakt obrasce.
- Email: Refer to your product packaging for the customer service email address.
- Telefon: Broj telefona korisničke službe potražite na pakovanju proizvoda.
Please have your model number (DS-G52007953) and purchase date ready when contacting support.
