1. Uvod
Thank you for choosing the FLARING FC650D PLUS Plasma Cutter. This advanced 65 AMP plasma cutting machine is designed for efficient and precise cutting of various metals. Featuring dual voltage compatibility (120V/240V), a high-frequency IGBT inverter, and a large digital display, it offers powerful performance and ease of use for both professionals and enthusiasts. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.

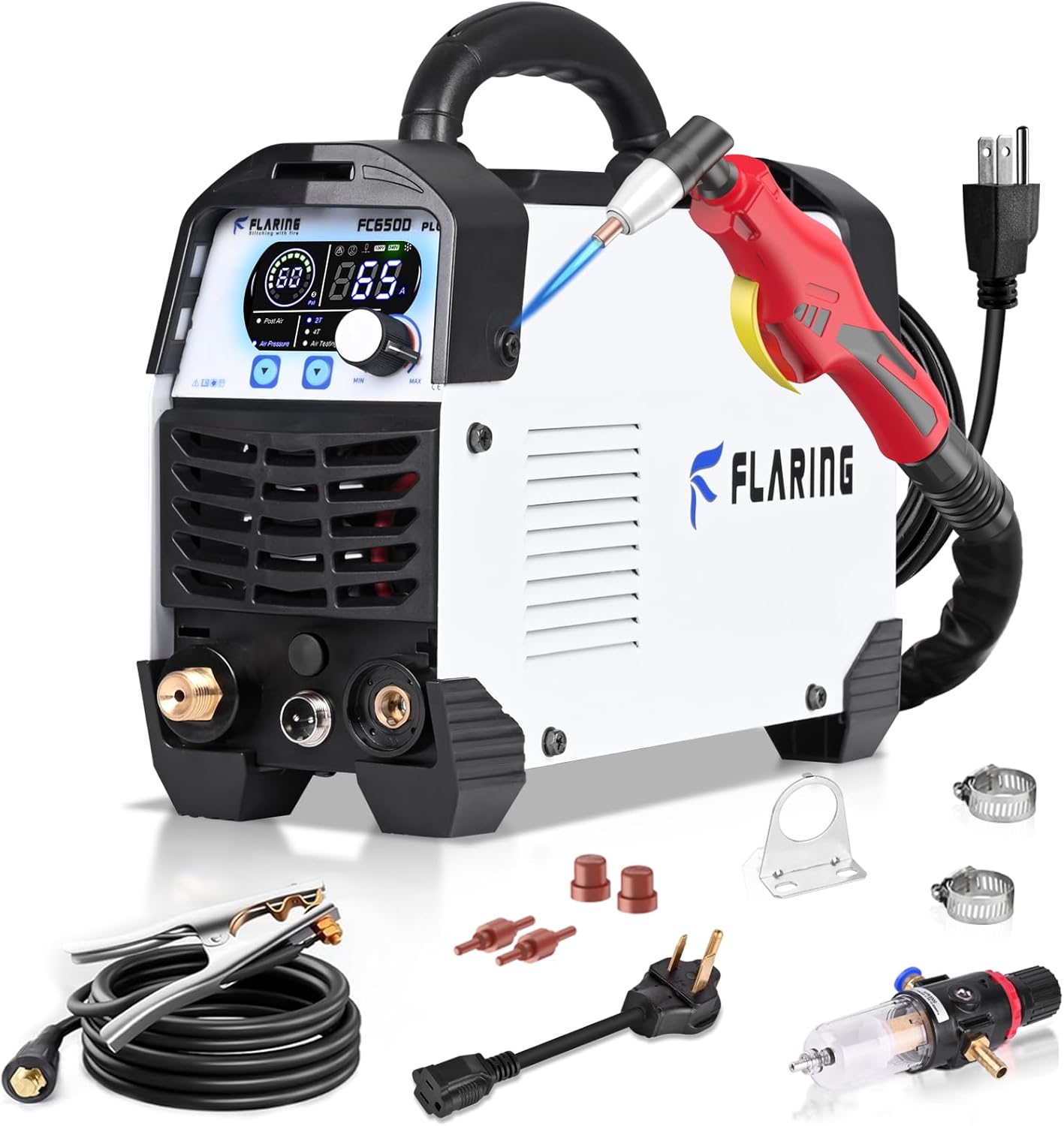

Figure 1.1: FLARING FC650D PLUS Plasma Cutter and included accessories.
2. Sigurnosne informacije
Uvijek dajte prioritet sigurnosti prilikom rukovanja plazma rezačem. Nepoštivanje sigurnosnih smjernica može dovesti do ozbiljnih povreda ili oštećenja opreme.
- Električni šok: Plazma rezanje uključuje visoku zapreminutage. Ensure proper grounding. Do not operate in wet conditions. Wear dry gloves.
- Isparenja i gasovi: Cutting metals produces fumes and gases that can be hazardous. Work in a well-ventilated area or use local exhaust ventilation.
- lučni zraci: The plasma arc produces intense visible and invisible (UV and IR) rays that can burn eyes and skin. Always wear appropriate welding helmet with a suitable shade filter, protective clothing, and gloves.
- Požar i eksplozija: Sparks and hot metal can cause fires. Keep flammable materials away from the cutting area. Do not cut containers that have held combustible materials.
- buka: Plasma cutting can be noisy. Wear hearing protection.
- Vrući dijelovi: The torch and workpiece will become hot. Allow them to cool before handling or wear heat-resistant gloves.
- Komprimirani zrak: Ensure air compressor is properly maintained and regulated to the specified PSI.
- Lična zaštitna oprema (PPE): Always wear appropriate PPE, including a welding helmet, flame-resistant clothing, heavy-duty gloves, and safety footwear.
3. Sadržaj paketa
Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke. Ako neke stavke nedostaju ili su oštećene, obratite se korisničkoj podršci.
- FLARING FC650D PLUS Plasma Cutter Unit
- PT31 Plasma Cutting Torch (4M)
- Prizemlje Clamp sa kablom (3M)
- Air Filter Regulator (Pre-installed)
- Additional Consumables (4 PCS)
- Power Adapter (for 120V connection)
- Uputstvo za upotrebu

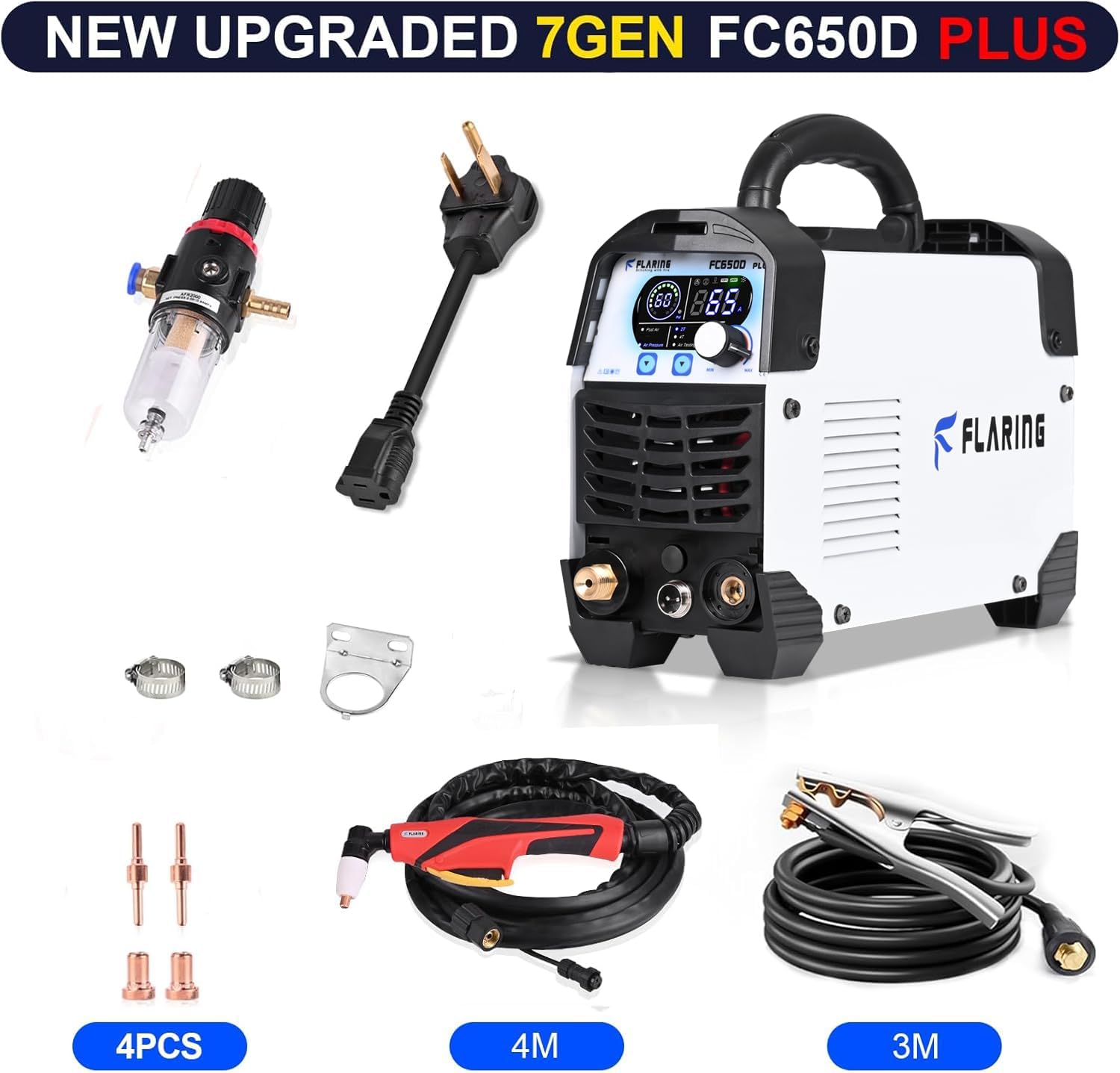

Figure 3.1: All components included with the FC650D PLUS Plasma Cutter.
4. Proizvod je gotovview i specifikacije
4.1. Ključne karakteristike
- 7th Generation 65A Touch Arc Plasma Cutter: High-frequency touch arc starting for efficient cutting.
- Dual Voltage (120V/240V): Automatic voltage adaptation for versatile use.
- IGBT inverterska tehnologija: Provides stable and powerful cutting performance.
- Veliki digitalni displej: Real-time display of air pressure, voltage i struja.
- PA/2T/4T Functions: Offers control modes for various cutting needs.
- Prijenosni i kompaktni: Lightweight design with a handle for easy transport.
4.2. Tehničke specifikacije
| Specifikacija | Vrijednost |
|---|---|
| Model | FC650D PLUS |
| Ulazni voltage | 120V/240V Dual Voltage |
| Max Current (120V) | 35A |
| Max Current (240V) | 65A |
| Debljina čistog reza (120V) | 1/2" (12mm) at 35A, 50 PSI |
| Debljina reza pri odvajanju (240V) | 5/8" (16mm) at 60A, 60 PSI |
| Recommended Breaker Size (240V) | 40A |
| Recommended Breaker Size (120V) | 55A |
| Required Air Compressor | 90 PSI, 60 L/min or above |
| Težina artikla | 14.92 funte |
| Dimenzije paketa | 17.5 x 11 x 9.7 inča |
| Izvor napajanja | AC |
Figure 4.1: Compact and lightweight design of the FC650D PLUS.
5. Upute za postavljanje
5.1. Priključak za napajanje
The FC650D PLUS supports dual voltage input (120V/240V).
- For 240V operation, connect the main power cord directly to a compatible 240V outlet. Ensure the circuit breaker is rated for at least 40A.
- For 120V operation, use the provided power adapter to connect the main power cord to a 120V outlet. Ensure the circuit breaker is rated for at least 55A.
- Always ensure the power source is stable and properly grounded.
5.2. Priključak zračnog kompresora
A clean, dry air supply is crucial for optimal plasma cutting performance.
- Connect your air compressor to the air inlet on the back of the plasma cutter.
- The FC650D PLUS features a pre-installed air filter regulator. This regulator automatically senses and displays the air pressure on the digital screen, eliminating the need for an external gauge.
- Ensure your air compressor can provide a minimum of 90 PSI and 60 L/min airflow.
Figure 5.1: The pre-installed air regulator simplifies setup and displays pressure digitally.
5.3. Plamenik i uzemljenjeamp Veza
- Connect the PT31 plasma cutting torch cable to the designated port on the front panel of the machine. Ensure it is securely fastened.
- Spojiti uzemljenje clamp cable to the ground terminal on the front panel.
- Pričvrstite uzemljenje clamp firmly to the workpiece or a clean, bare metal surface that is electrically connected to the workpiece. A good ground connection is essential for safe and effective cutting.
6. Uputstvo za upotrebu
6.1. Powering On and Digital Display

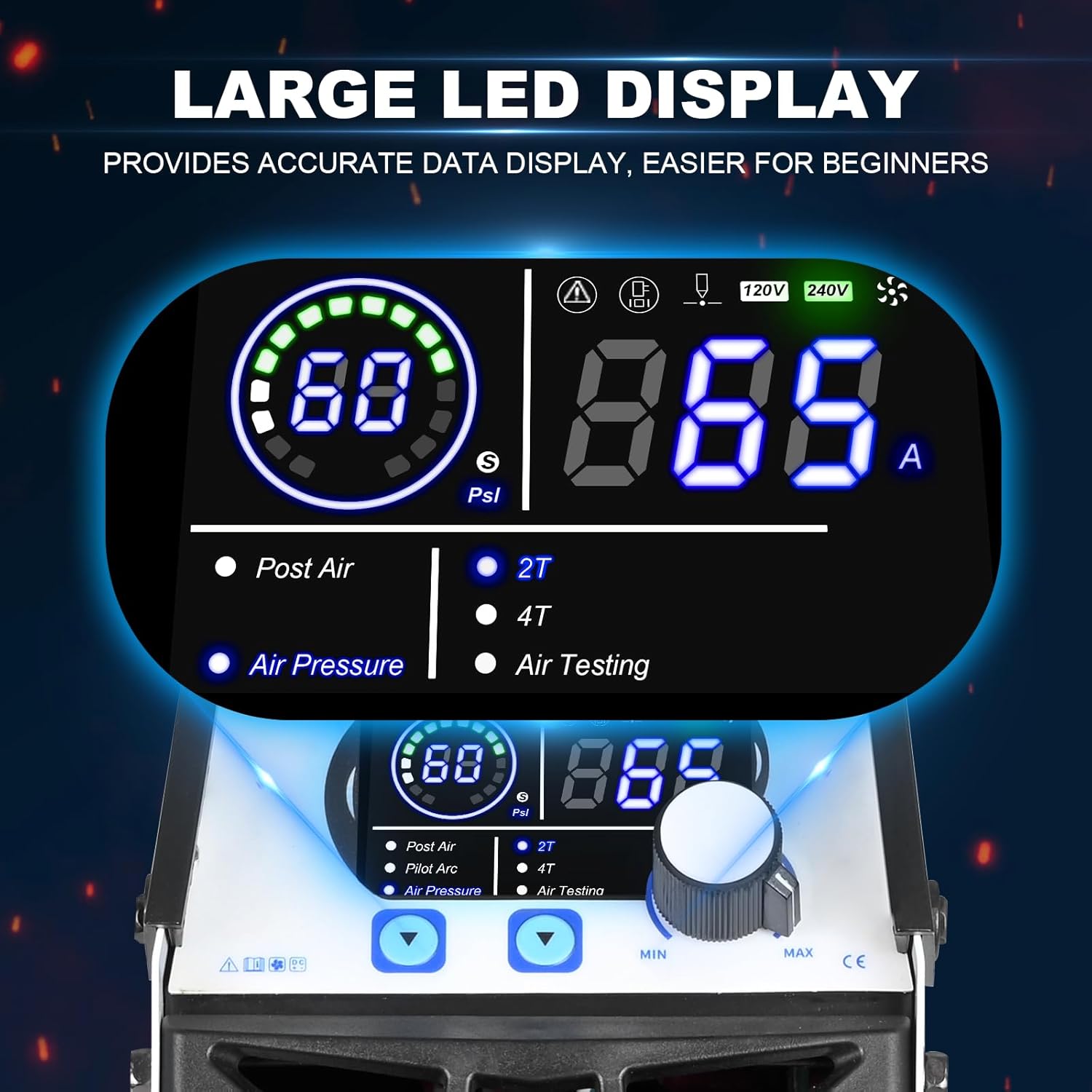

Turn on the power switch located on the back of the unit. The large digital display will illuminate, showing real-time parameters.
Figure 6.1: The digital display provides real-time operational data.
- The display shows air pressure (PSI), output current (Amps), i volumentage.
- Indicators for Post Air, Pilot Arc, Air Pressure, Air Testing, 2T, and 4T functions are also present.
- Adjust the current using the control knob on the front panel to match your cutting requirements.
6.2. Understanding PA/2T/4T Functions
- PA (Post Air) Time: This function allows adjustment of the post-flow air time after the arc is extinguished. Proper post-air time helps cool the torch consumables, extending their lifespan.
- 2T (Two-Touch) Control: This is a semi-automatic cutting control mode. Press and hold the torch trigger to start the arc and cut. Release the trigger to stop. Ideal for short, quick cuts.
- 4T (Four-Touch) Control: This is an automatic cutting control mode. Press and release the torch trigger to start the arc and cut continuously. Press and release the trigger again to stop. This mode is suitable for long, continuous cuts, reducing operator fatigue and potentially leading to higher cutting quality with lower consumable wear.
6.3. Cutting Performance and Material Compatibility
The FC650D PLUS is capable of cutting various types of metal with precision.
Figure 6.2: Demonstrating clean cut and severance cut capabilities.
- Čist rez: Up to 1/2 inch (12mm) at 35A (120V, 50 PSI). This refers to a cut with minimal dross and a smooth edge.
- Severance Cut: Up to 5/8 inch (16mm) at 60A (240V, 60 PSI). This refers to the maximum thickness the machine can cut, though the quality of the cut may be reduced.
- The machine effortlessly cuts through rough, painted, and rusty surfaces while generating minimal slag.
Kompatibilni materijali:
- Metal
- Steels
- Aluminijumska ploča
- Iron
- Nerđajući čelik
- Legirani čelik
- Blagi čelik
- Bakar
Figure 6.3: The FC650D PLUS is suitable for a wide range of metal cutting applications.
7. Održavanje
Regular maintenance ensures the longevity and optimal performance of your plasma cutter. Always disconnect the power before performing any maintenance.
- Inspekcija potrošnog materijala: Regularly inspect the torch consumables (electrode, nozzle, swirl ring, shield cup) for wear. Replace them when they show signs of degradation to maintain cut quality and prevent damage to the torch.
- Regulator filtera zraka: Periodically check the water trap on the air filter regulator. Drain any accumulated moisture to ensure a dry air supply. Clean or replace the filter element if it becomes clogged.
- Sistem hlađenja: Ensure the cooling vents on the machine are clear of dust and debris to prevent overheating. Use compressed air to blow out dust from inside the machine if necessary (do this in a well-ventilated area).
- Kablovi i priključci: Inspect all cables (power, torch, ground) for damage, cuts, or frayed insulation. Ensure all connections are tight and secure.
- Generalno čišćenje: Keep the exterior of the machine clean. Wipe down with a dry cloth. Avoid using solvents that could damage the casing.
8. Otkrivanje problema
Ovaj odjeljak se bavi uobičajenim problemima na koje možete naići. Za probleme koji nisu ovdje navedeni, obratite se korisničkoj podršci.
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Mašina se ne uključuje. | Nema napajanja; isključen prekidač; neispravan kabel za napajanje. | Check power connection, wall outlet, and circuit breaker. Ensure power cord is undamaged. |
| Nema luka ili slab luk. | Nedovoljan pritisak vazduha; istrošeni potrošni materijali; loša veza sa uzemljenjem; nepravilno podešavanje struje. | Verify air pressure (min 90 PSI); replace worn torch consumables; ensure ground clamp has good contact; adjust current setting. |
| Poor cut quality (excessive dross, rough cut). | Worn consumables; incorrect cutting speed; incorrect current/air pressure; torch too far from workpiece. | Replace consumables; adjust cutting speed; optimize current and air pressure settings; maintain proper torch standoff distance. |
| Zrak struji, ali nema luka. | Torch trigger issue; internal fault; consumables not seated correctly. | Check torch trigger; reseat consumables; if problem persists, contact support. |
| Overheat indicator on. | Machine has exceeded duty cycle; blocked cooling vents. | Allow machine to cool down; ensure cooling vents are clear. Reduce continuous cutting time. |
9. Garancija i podrška
FLARING products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or to purchase replacement parts and consumables, please refer to the warranty card included with your product or visit the official FLARING website.
Također možete posjetiti FLARING Store on Amazon za informacije o proizvodu i podršku.
