1. Uvod

This manual provides essential information for setting up, operating, and maintaining your PELADN Mini PC HA-4 Ryzen 7 7840HS. Please read it thoroughly to ensure proper usage and to maximize the performance and longevity of your device.

Figure 1: The PELADN Mini PC HA-4 Ryzen 7 7840HS, showcasing its compact design and RGB lighting.

2. Sadržaj paketa

Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke:

• PELADN HA-4 7840HS Mini PC
• HDMI kabl
• Adapter za napajanje
• Korisnički priručnik (ovaj dokument)
• Montažni nosač

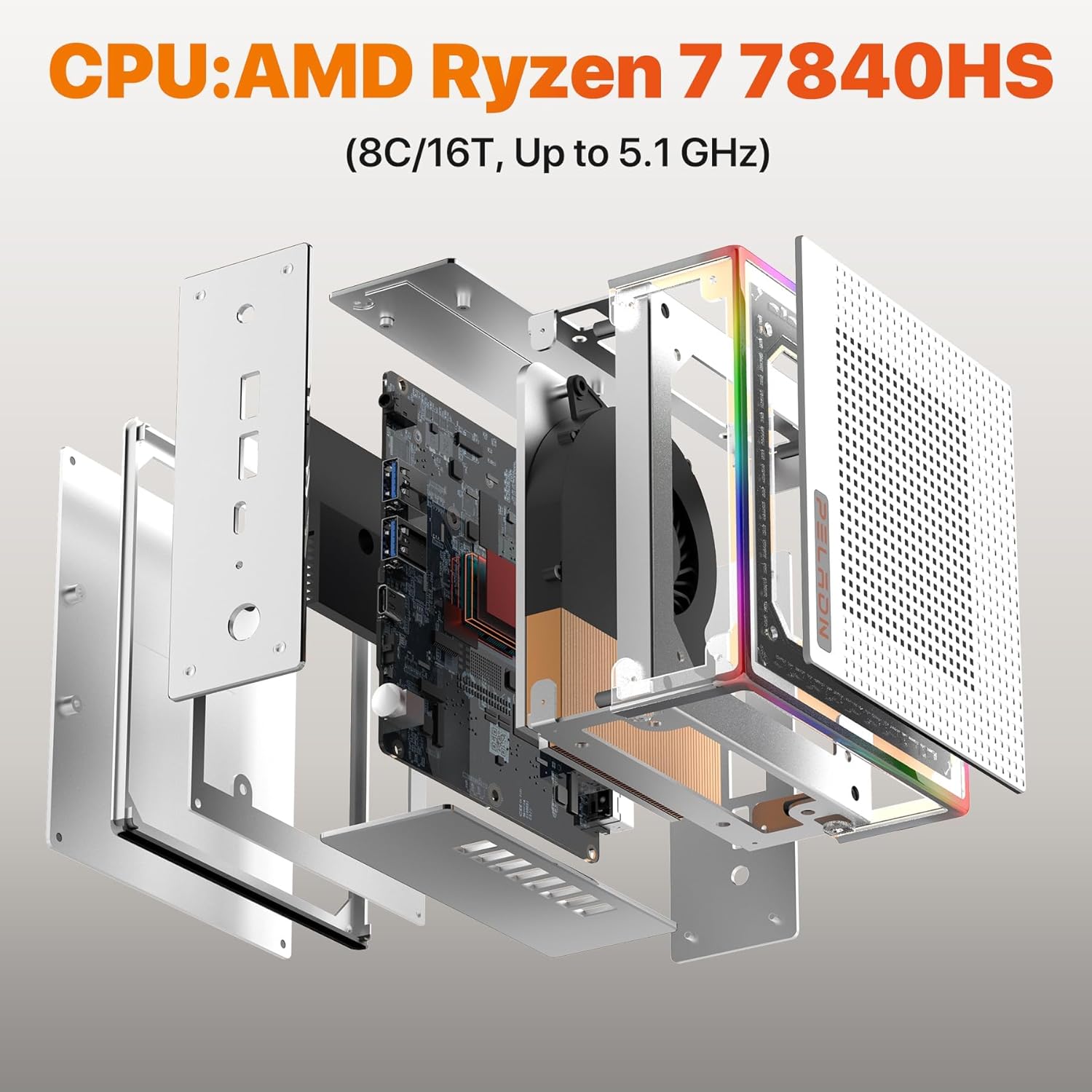

Slika 2: Eksplodirao view of the PELADN Mini PC, illustrating its internal components and compact assembly.

3. Proizvod je gotovview

3.1. External Features and Ports

The PELADN Mini PC HA-4 is designed for efficiency and connectivity. It features a compact form factor measuring approximately 5.3 x 5.0 x 2.0 inches.

Slika 3: Detaljno view of the PELADN Mini PC's front and rear ports, including USB, HDMI, and LAN connections.

• Prednji portovi: USB 3.0 ports, USB 4 (Type-C) ports, 3.5mm Audio Jack, Power Button.
• Stražnji portovi: 2x HDMI 2.0, 1x USB 4 (Type-C), 1x USB 3.0, 1x USB 2.0, 1x RJ45 LAN (1000Mbps), DC-IN.
• hlađenje: Enhanced fan brackets improve heat dissipation by 19%.
• RGB rasvjeta: The shell features a 64-color RGB light strip. A button at the rear allows toggling between breathing, single-color constant light, and off modes.

4. Vodič za postavljanje

4.1. Početno podešavanje

Follow these steps to prepare your Mini PC for first use:

1. Povežite se na napajanje: Plug the power adapter into the DC-IN port on the Mini PC and then into a power outlet.
2. Poveži se sa ekranom: Use the provided HDMI cable to connect your Mini PC to a monitor or TV. For multi-display setups, use additional HDMI or USB-C 4.0 cables.
3. Povežite periferne uređaje: Povežite tastaturu i miš na dostupne USB portove.
4. Uključeno: Pritisnite dugme za napajanje koje se nalazi na prednjoj strani Mini PC-a.

The device comes pre-installed with Windows 11 Pro. Upon first boot, you will be guided through the Windows setup process. Follow the on-screen instructions to configure your language, region, and user account. Ensure you have an internet connection available during this process for updates.

5. Uputstvo za upotrebu

5.1. Podešavanje više ekrana

The PELADN Mini PC supports up to three 4K displays simultaneously, enhancing productivity and visual experience. Connect your displays using the available 2x HDMI ports and 1x USB-C 4.0 port. Windows will automatically detect the displays, allowing you to configure their arrangement and resolution through Display Settings.

Figure 4: The PELADN Mini PC connected to a triple display setup, demonstrating its multi-tasking capabilities.

5.2. Kontrola RGB osvjetljenja

Your Mini PC features an integrated 64-color RGB light strip. A dedicated button on the rear of the device allows you to cycle through three lighting modes:

• Način disanja: Lights gently fade in and out.
• Single-Color Constant Light: Prikazuje statičnu boju.
• Isključeno: Turns off the RGB lighting.

Figure 5: Visual representation of the PELADN Mini PC's RGB lighting options, including various colors and effects.

6. Performanse iznadview

The PELADN Mini PC HA-4 is equipped with powerful components for a wide range of tasks:

• procesor: AMD Ryzen 7 7840HS (8 cores, 16 threads, up to 5.1GHz, 54W TDP) for high-performance computing.
• Grafika: Integrated Radeon 780M (12-core GPU, 2200MHz) capable of 4K HD video playback and light 3D rendering/gaming.
• Memorija: 32GB DDR5 RAM at 5600MHz, expandable up to 64GB.
• Skladištenje: 1TB M.2 2280 NVMe SSD with PCIe Gen 4.0 for fast boot times and application loading.
• mreža: WiFi 6 and Bluetooth 5.2 for strong wireless connectivity, alongside a 1000Mbps RJ45 LAN port for stable wired connections. Dual USB 4 ports offer up to 40 Gbps transfer speeds.

7. Održavanje

7.1. Cooling and Ventilation

The Mini PC features an optimized cooling system with new fan brackets, improving heat dissipation by 19%. To ensure optimal performance and longevity, keep the ventilation areas clear of obstructions. Avoid placing the device in enclosed spaces that restrict airflow.

7.2. Upgrading RAM and SSD

The device's RAM is upgradeable to a maximum of 64GB (2 x 32GB DDR5). The 1TB M.2 2280 NVMe SSD can also be replaced or upgraded. Refer to the detailed instructions in the full user manual for safe component replacement procedures.

8. Otkrivanje problema

8.1. Uobičajeni problemi

• Initial Language Setup: If the default language is not English, navigate through the Windows setup to select your preferred language. A full reformat may be required if the OS is already fully installed in an undesired language.
• Wi-Fi povezivanje: If Wi-Fi issues occur (e.g., not working on certain websites), ensure drivers are updated and the operating system is current. Rebooting the device may resolve temporary issues. Consider using an external Wi-Fi adapter if problems persist.
• Kašnjenja u performansama: For intensive tasks or gaming, ensure the device has adequate ventilation. Close unnecessary background applications. If using multiple USB devices, consider a powered USB hub to prevent performance degradation. Adjust display refresh rates in Windows settings and game settings for smoother performance.
• Buka ventilatora: While designed for quiet operation, the fan speed may increase under heavy load. This is normal. Ensure ventilation is not obstructed.

8.2. Tehnička podrška

For any technical issues not covered in this manual, please contact PELADN customer support. The product includes a 1-year free warranty and 24/7 customer support for your peace of mind.

9. Specifikacije

10. Garancija i podrška

The PELADN Mini PC HA-4 comes with a 1-year free warranty. For any inquiries, technical assistance, or warranty claims, please contact PELADN customer support. Our support team is available 24/7 to provide assistance.
