Gevi 10-Cup Drip Coffee Maker with Built-in Burr Grinder (Model DCMB0-BK0A1) - User Manual

1. Uvod

This manual provides essential instructions for the safe and efficient operation of your Gevi 10-Cup Drip Coffee Maker with Built-in Burr Grinder. Please read all instructions carefully before first use and retain for future reference.

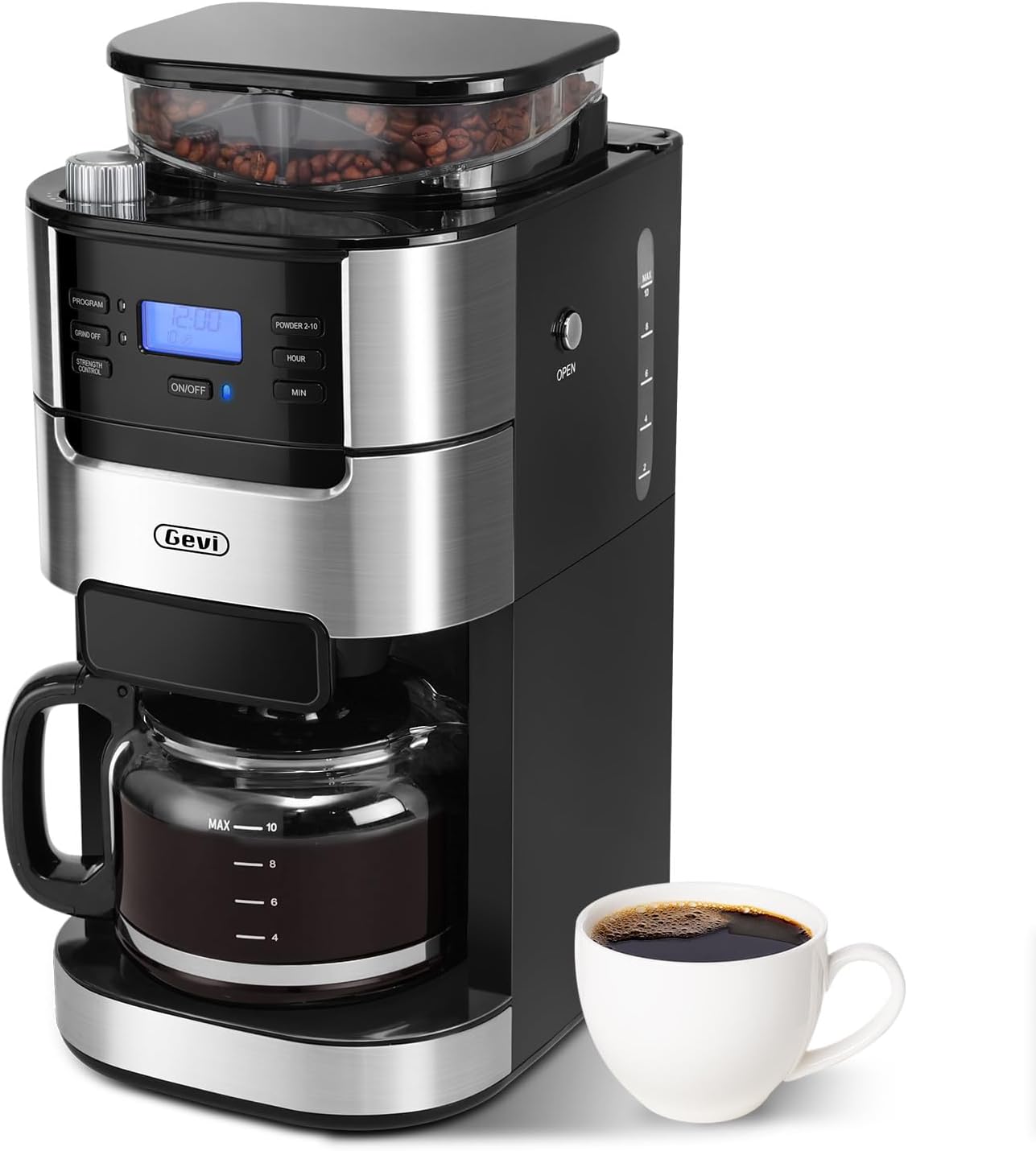

Image 1: Gevi 10-Cup Drip Coffee Maker, front view with a cup of coffee.

2. Važna sigurnosna uputstva

Prilikom korištenja električnih uređaja uvijek se treba pridržavati osnovnih sigurnosnih mjera opreza kako bi se smanjio rizik od požara, električnog udara i/ili ozljeda osoba, uključujući sljedeće:

• Pročitajte sva uputstva.
• Ne dodirujte vruće površine. Koristite ručke ili dugmad.
• Da biste zaštitili od požara, strujnog udara i ozljeda osoba, ne uranjajte kabel, utikače ili uređaj u vodu ili drugu tekućinu.
• Neophodan je strogi nadzor kada bilo koji uređaj koriste djeca ili u blizini djece.
• Isključite iz utičnice kada nije u upotrebi i prije čišćenja. Ostavite da se ohladi prije stavljanja ili skidanja dijelova i prije čišćenja uređaja.
• Nemojte koristiti uređaj s oštećenim kablom ili utikačem ili nakon što uređaj pokvari rad ili je na bilo koji način oštećen. Vratite uređaj u najbliži ovlašteni servis radi pregleda, popravke ili podešavanja.
• Upotreba dodataka koje nije preporučio proizvođač uređaja može dovesti do požara, strujnog udara ili ozljeda osoba.
• Ne koristiti na otvorenom.
• Nemojte dozvoliti da kabl visi preko ivice stola ili pulta, niti da dodiruje vruće površine.
• Ne stavljajte na ili blizu vrućeg plinskog ili električnog gorionika, ili u zagrijanu pećnicu.
• Uvijek prvo priključite utikač na uređaj, a zatim uključite kabel u zidnu utičnicu. Da biste isključili uređaj, isključite bilo koju kontrolu, a zatim izvucite utikač iz zidne utičnice.
• Nemojte koristiti uređaj za drugu upotrebu osim za predviđenu.
• Može doći do opekotina ako se poklopac ukloni tokom ciklusa kuvanja.
• Bokal je dizajniran za korištenje s ovim uređajem. Nikada se ne smije koristiti na vrhu raspona.
• Ne stavljajte vruću karafu na hladnu ili mokru površinu.
• Nemojte koristiti napuknuti bokal ili bokal sa labavom ili oslabljenom drškom.
• Ne čistite posudu za čišćenje sredstvima za čišćenje, jastučićima od čelične vune ili drugim abrazivnim materijalom.
• Ensure the water tank is filled with purified water and boiled at least one cycle before brewing coffee for the first time.
• To avoid damage to the grinder, no coffee powder or any liquid is allowed in the bean box.
• When the machine is finished making coffee, the coffee residue in the funnel and filter should be removed to avoid accumulation of coffee powder and clogging the grinding bean cavity.

3. Komponente proizvoda

Familiarize yourself with the parts of your Gevi coffee maker:

• Glavna jedinica sa kontrolnom pločom
• Built-in Burr Grinder (Bean Box)
• 1.5L Water Tank (with MAX 10-cup indicator)
• Glass Coffee Pot (Carafe)
• Trajni filter
• Filter Insert with Drip Stop
• Scoop
• Četka za čišćenje
• Filter Ring

Image 2: Included accessories: Permanent Filter, Filter Insert with Drip Stop, Glass Coffee Pot, Scoop, Filter Ring.

4. Setup and First-Time Use

4.1 Raspakivanje i postavljanje

1. Carefully remove all packaging materials and the coffee maker from the box.
2. Place the coffee maker on a stable, flat, and spacious surface. Ensure adequate clearance around the unit for proper ventilation.
3. Obrišite spoljašnjost aparata za kafu oglasomamp tkanina.

Image 3: The coffee maker's compact design fits well on countertops. Dimensions: 12.36" (D) × 8.38" (W) × 16.93" (H).

4.2 Početni ciklus čišćenja

Before brewing coffee for the first time, it is recommended to run at least one full cycle with clean water to remove any manufacturing residues.

1. Fill the glass carafe with clean water up to the "MAX 10" line.
2. Open the water tank lid and carefully pour the water from the carafe into the water tank. Close the lid securely.
3. Ensure the permanent filter is correctly placed in the filter basket.
4. Stavite praznu staklenu karafu na ploču za zagrijavanje.
5. Uključite kabl za napajanje u uzemljenu električnu utičnicu. Ekran će se upaliti.
6. Press the "ON/OFF" button to start the brewing cycle. The machine will run a full cycle, heating and dispensing all the water.
7. Kada se ciklus završi, ispustite vodu iz posude. Vaš aparat za kafu je sada spreman za upotrebu.

5. Uputstvo za upotrebu

5.1 Adding Water and Coffee

1. Fill the glass carafe with fresh, cold water to your desired number of cups (2-10).
2. Open the water tank lid and pour the water into the tank. Ensure the water level does not exceed the "MAX 10" line.
3. For whole beans: Open the bean box lid and add fresh coffee beans. Close the lid securely.
4. For pre-ground coffee: Press the "GRIND OFF" button to disable the grinder. Open the filter basket and add your desired amount of pre-ground coffee into the permanent filter. Close the filter basket.

Image 4: Illustration of adding whole coffee beans to the grinder or pre-ground coffee to the filter basket.

5.2 Setting Grind Level and Coffee Strength

1. Rotate the grind regulator knob on top of the machine to select your desired coffee grind size (8 settings from fine to coarse).
2. Press the "STRENGTH CONTROL" button to cycle through the available coffee strength options (Mild, Medium, Strong).
3. Press the "POWDER 2-10" button to select the number of cups you wish to brew.

Image 5: Close-up of the grind setting knob, indicating 8 selectable grind settings.

Image 6: The control panel highlighting the "STRENGTH CONTROL" button and the three brew strength options.

5.3 Programiranje tajmera

The coffee maker features a 24-hour programmable timer for automatic brewing.

1. Set the current time using the "HOUR" and "MIN" buttons.
2. Press the "PROGRAM" button. The display will show "PROGRAM" and the time will flash.
3. Use the "HOUR" and "MIN" buttons to set your desired brew start time.
4. Press the "PROGRAM" button again to confirm. The display will show the current time, and the program indicator will remain lit.
5. Aparat za kafu će automatski početi sa kuvanjem u podešeno vrijeme.

Image 7: Visual representation of setting the 24-hour programmable timer for automatic morning coffee.

5.4 Starting the Brew Cycle

After setting your preferences, press the "ON/OFF" button to start brewing immediately or to activate the programmed brew cycle.

Image 8: Step-by-step visual guide for one-touch brewing, from adding water to enjoying coffee.

5.5 Keep-Warm Function

The coffee maker automatically keeps coffee warm at 167°F+ for up to 2 hours after brewing. You can adjust the warming time from 0-120 minutes in 15-minute intervals.

Image 9: The coffee maker's warming plate maintaining the temperature of brewed coffee.

6. Održavanje i čišćenje

Redovno čišćenje osigurava optimalne performanse i dugotrajnost vašeg aparata za kafu.

6.1 Dnevno čišćenje

1. After each use, press the "OPEN" button to remove the filter basket.
2. Discard used coffee grounds from the permanent filter.
3. Rinse the permanent filter and filter ring under running water. Use the provided cleaning brush to remove any stubborn coffee residue.
4. Obrišite spoljašnjost mašine sa oglasomamp krpom. Prije ponovnog sastavljanja provjerite jesu li svi dijelovi suhi.

6.2 Grinder Maintenance

To prevent clogging and maintain grinder efficiency, especially if not using the machine for several days:

1. Remove the bean box lid.
2. Carefully remove any remaining coffee beans from the bean box using the scoop or a spoon.
3. Zatvorite poklopac kutije za pasulj.
4. Set the "POWDER 2-10" function to 10 cups.
5. Press the "ON/OFF" button to run the grinder until it sounds empty, ensuring all residual grounds are cleared.
6. Always ensure the bean box lid is securely closed to protect beans from ambient air and prevent water from entering the grinder during water tank refills.
7. Do not adjust the grind size selector while the grinder is operating to prevent damage.

7. Otkrivanje problema

8. Specifikacije

• Marka: Gevi
• Model Name: Drip Coffee Machine
• Item Model Number: DCMB0-BK0A1
• Capacity: 10-Cup (1.5L Water Tank)
• Boja: crna
• Dimenzije proizvoda: 12.36 cm D x 8.38 cm Š x 16.93 cm V
• Special Feature: Adjustable Brew Strength, Built-in Burr Grinder, Programmable Timer, Auto Keep-Warm
• Coffee Maker Type: Drip Coffee Machine
• Operation Mode: Fully Automatic
• Voltage: 120 volti
• Human Interface Input: Buttons
• Coffee Input Type: Whole Bean
• Težina artikla: 9.92 funti
• UPC: 767791886977, 767791888223

9. Garancija i podrška

Your Gevi coffee maker comes with a 12-month warranty. For product support, troubleshooting assistance, or warranty claims, please contact Gevi customer service.

Refer to the official Gevi webweb-mjesto ili vašu dokumentaciju o kupovini za kontakt podatke.

Image 10: Gevi's commitment to customer satisfaction, including a 12-month warranty and friendly services.
