SunSun CWF-400 Waterfall Filter Instruction Manual

Uvod

The SunSun CWF-400 waterfall filter is designed to combine effective water filtration with aesthetic pond decoration. This versatile pond filter creates a wide, even waterfall while purifying pond water, contributing to a healthy and clear pond environment. It is suitable for garden ponds and stream systems, enhancing both water quality and visual appeal.

Key features include a 400 mm drainage width for natural water flow, integrated filter elements for removing suspended dirt particles, and compatibility with pond pumps up to 14,000 liters per hour. The robust plastic housing ensures durability in various weather conditions.

Components Overview

Familiarize yourself with the components of your SunSun CWF-400 Waterfall Filter before installation.

Slika 1: Eksplodirao View i Listu dijelova
This diagram illustrates the individual components of the CWF-400 filter.

• 1. Filter Sponge: Primary mechanical filtration.
• 2. Support Grid: Holds filter media in place.
• 3. Japan Mats: Biological filtration media.
• 4. Container: Main housing for the filter.
• 5. Filter Media: Additional biological or chemical filtration media.
• 6. Fastening Nut: Secures connections.
• 7. Seal: Ensures watertight connections.
• 8. Inlet: Point where water enters the filter.

Postavljanje i instalacija

The SunSun CWF-400 is designed for easy installation in garden ponds, stream walks, and landscape projects. Follow these steps for proper setup:

1. plasman: Position the waterfall filter at the desired location, typically at the edge of the pond or at the start of a stream, ensuring it is stable and level. The filter should be placed so that the water flows naturally into the pond.
2. Priključak crijeva: Connect your pond pump's outlet hose to the filter's inlet (8). The filter supports various hose connections: 20 mm, 25 mm, 32 mm, and 38 mm. Select the appropriate connection size for your pump. Ensure a secure and watertight connection using the fastening nut (6) and seal (7).
3. Ugradnja filter medija: Place the filter sponge (1), support grid (2), Japan mats (3), and any additional filter media (5) into the container (4) as shown in the components diagram. Ensure they are correctly seated for optimal filtration.
4. Priključak pumpe: Connect your pond pump to a suitable power source. Ensure all electrical connections are safe and comply with local regulations.
5. Početna operacija: Once all connections are secure, switch on your pond pump. Water should begin to flow into the filter and then cascade over the 400 mm wide overflow into your pond. Check for any leaks and ensure proper water flow.

Figure 2: Product Dimensions and Hose Connections
This image provides the physical dimensions of the CWF-400 filter (481 mm length, 443 mm width, 280 mm height) and illustrates the various hose connection diameters (20, 25, 32, 38 mm) for flexible integration with different pond pump systems.

Figure 3: Waterfall Overflow for Garden Cascades
The filter is designed to create a natural waterfall effect, ideal for integrating with aquatic plants and enhancing the garden landscape.

Figure 4: Wide Waterfall Overflow

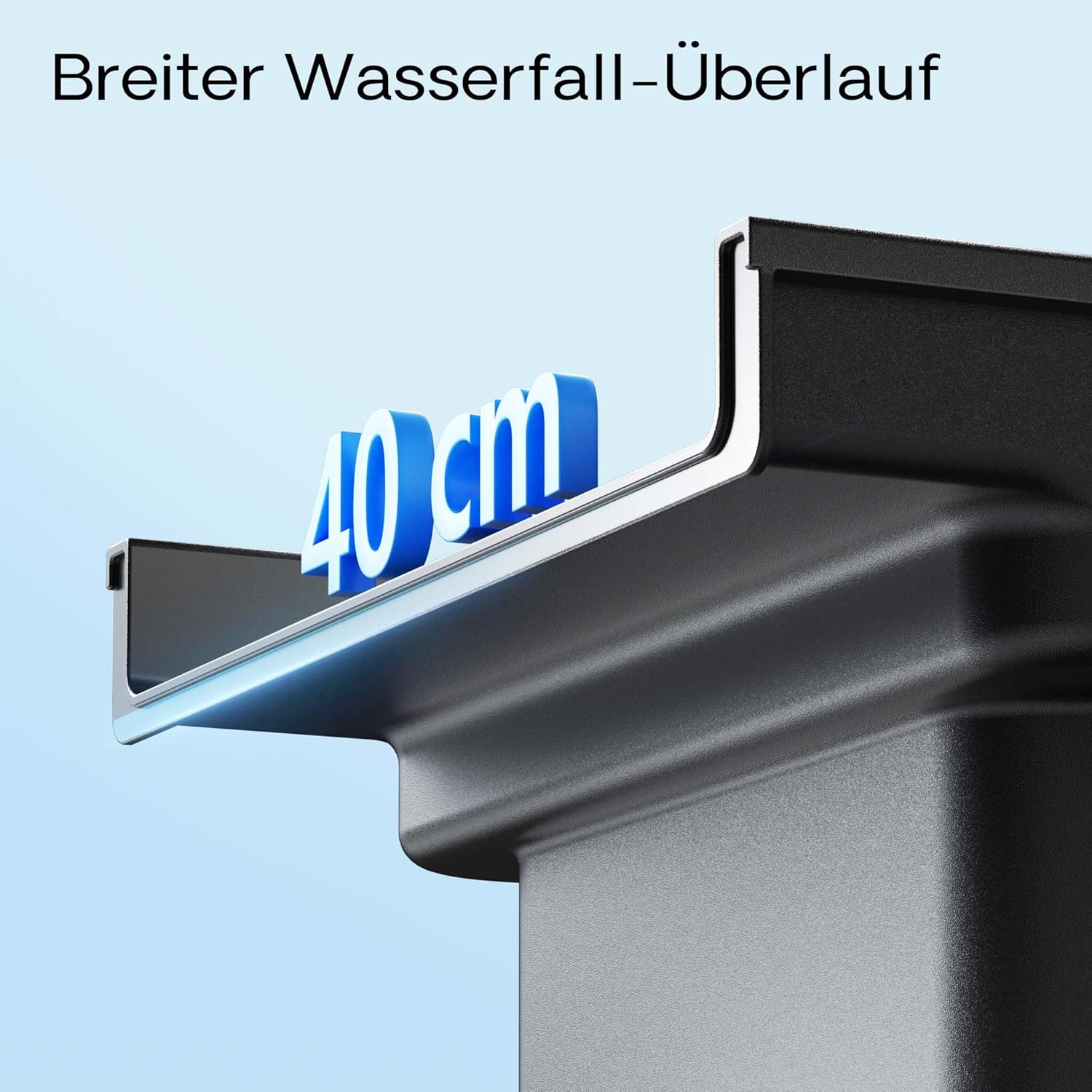

Detaljno view of the 40 cm (400 mm) wide overflow lip, which ensures a broad and even water flow, contributing to the aesthetic appeal and oxygenation of the pond.

Operacija

The SunSun CWF-400 Waterfall Filter operates by continuously circulating pond water through its integrated filter media and then returning it to the pond as a waterfall. This process provides both mechanical and biological filtration, along with oxygen enrichment.

• Filtracija vode: Water is drawn by your pond pump into the filter's inlet. Inside the filter, it passes through various filter media, including filter sponges and Japan mats. These media effectively remove suspended dirt particles and provide a surface for beneficial bacteria to colonize, which break down harmful substances.
• Oxygen Enrichment: As the filtered water cascades over the 400 mm wide overflow, it creates a waterfall effect. This process significantly increases the water's surface area exposed to air, leading to effective oxygen enrichment. Improved oxygen levels are crucial for the health of fish and aquatic plants and help maintain a stable pond ecosystem.
• Continuous Circulation: For optimal performance and water quality, the filter should operate continuously during the pond season. This ensures constant purification and oxygenation, preventing stagnant water and promoting a healthy environment.

Figure 5: Integrated Filtration System
This diagram illustrates the internal filtration process, showing how water flows through different filter media, including Japan mats and 7-in-1 filter media, to cultivate beneficial bacteria and purify the water.

Figure 6: Effective Oxygen Enrichment
The waterfall effect created by the filter significantly enhances the oxygen content of the pond water, vital for aquatic life. Note: The pond pump is not included with the filter. The filter is compatible with pumps having a maximum flow rate of 14,000 liters per hour.

Figure 7: SunSun CWF-400 in a Garden Pond Setting
Bivšiample of the CWF-400 waterfall filter integrated into a natural garden pond environment, demonstrating its aesthetic contribution and functional water flow.

Održavanje

Regular maintenance of your SunSun CWF-400 Waterfall Filter is essential to ensure its long-term efficiency and the health of your pond. The robust plastic casing is designed for durability, but the filter media require periodic cleaning.

1. Filter Media Cleaning: The integrated filter elements, such as the filter sponge and Japan mats, will accumulate dirt particles over time. Periodically, turn off your pond pump, remove the filter media from the container, and rinse them thoroughly with pond water (not tap water, to preserve beneficial bacteria). Replace heavily soiled or degraded media as needed. The filters are designed to be accessible and easy to clean.
2. stambena inspekcija: Inspect the filter housing and connections for any signs of wear, damage, or leaks. Ensure all seals are intact and connections are tight.
3. Zimovanje (ako je primjenjivo): In regions with freezing temperatures, it is recommended to disconnect and clean the filter, then store it in a frost-free location during winter to prevent damage.

Rješavanje problema

This section addresses common issues you might encounter with your waterfall filter.

If you encounter issues not listed here or require further assistance, please contact SunSun customer support.

Specifikacije

Garancija i podrška

For information regarding warranty coverage, terms, and conditions, please refer to the documentation provided at the time of purchase or visit the official SunSun website. If you require technical support, replacement parts, or have any questions about your SunSun CWF-400 Waterfall Filter, please contact SunSun customer service directly. Keep your purchase receipt and model number handy when contacting support.
