Mxmoonant Scent Air Machine (Model rad8) Instruction Manual

Uvod

Thank you for choosing the Mxmoonant Scent Air Machine, Model rad8. This waterless essential oil diffuser is designed to provide consistent and customizable fragrance for spaces up to 1500 sq.ft. Featuring smart app control, motion sensing capabilities, and a large 800ml oil reservoir, this device offers a convenient and efficient way to enhance your environment. Please read this manual thoroughly before operation to ensure proper use and maintenance.

Sigurnosne informacije

• Use only pure essential oils or aroma oils specifically designed for waterless diffusers. Do not use water or other liquids.
• Držite uređaj van domašaja djece i kućnih ljubimaca.
• Postavite difuzor na stabilnu, ravnu površinu.
• Do not block the air outlet or inlet during operation.
• Isključite uređaj iz struje prije čišćenja ili ponovnog punjenja.
• Ne rastavljajte ili pokušavajte sami da popravite uređaj. Obratite se korisničkoj podršci za pomoć.
• Avoid direct contact with essential oils, as they can cause irritation. In case of contact, wash thoroughly with water.

Sadržaj paketa

Provjerite da li su sve stavke prisutne u paketu:

• Mxmoonant Scent Air Machine (Model rad8)
• Adapter za napajanje
• Pribor za montažu (vijci, zidni tiplovi)
• Key for internal access
• Uputstvo za upotrebu

Image: The Mxmoonant Scent Air Machine shown with its power adapter, mounting screws, wall anchors, and a small key, illustrating the complete package contents.

Product Overview

Familiarize yourself with the main components of your scent air machine:

• Glavna jedinica: Houses the diffusion mechanism and control board.
• Rezervoar nafte: 800ml capacity bottle for essential oils.
• Kontrolna tabla: Located on the top, with indicator lights for intensity levels (Min, Low, Med, High, Max) and a manual mode shift button.
• Senzor pokreta: Detects movement for automatic scent adjustment.
• Prekidač: On/Off switch, typically located on the side or back.
• Lock Design: A keyhole for secure internal access to the oil reservoir.
• Bottom Anti-skid Pad: Osigurava stabilnost na površinama.

Image: A close-up showing the internal 800ml oil reservoir, the key lock mechanism, the manual mode shift button, the durable PP material of the casing, and the anti-skid pads on the base.

Setup

1. Početno smještaj

Choose a suitable location for your diffuser. It can be placed on a flat surface or mounted on a wall using the provided hardware. Ensure the area is clear and allows for optimal scent dispersion.

Image: The scent air machine positioned discreetly in a modern living room, blending with the decor.

2. Punjenje rezervoara za ulje

1. Use the provided key to unlock and open the front panel of the diffuser.
2. Carefully remove the empty oil bottle from its compartment.
3. Unscrew the cap from the oil bottle.
4. Fill the bottle with your desired waterless essential oil or aroma oil. Do not overfill.
5. Čvrsto zavrnite čep nazad na bocu.
6. Insert the filled oil bottle back into the diffuser compartment.
7. Close the front panel and lock it with the key.

3. Uključivanje

1. Connect the power adapter to the diffuser's power port.
2. Uključite adapter za napajanje u standardnu ​​električnu utičnicu.
3. Flip the power switch (usually located on the side or back) to the "ON" position. The indicator lights on the top panel will illuminate.

4. Preuzimanje aplikacije i povezivanje

The Mxmoonant Scent Air Machine can be controlled via a smartphone app. Scan the QR code in the manual or search for "Aroma Link" in your app store.

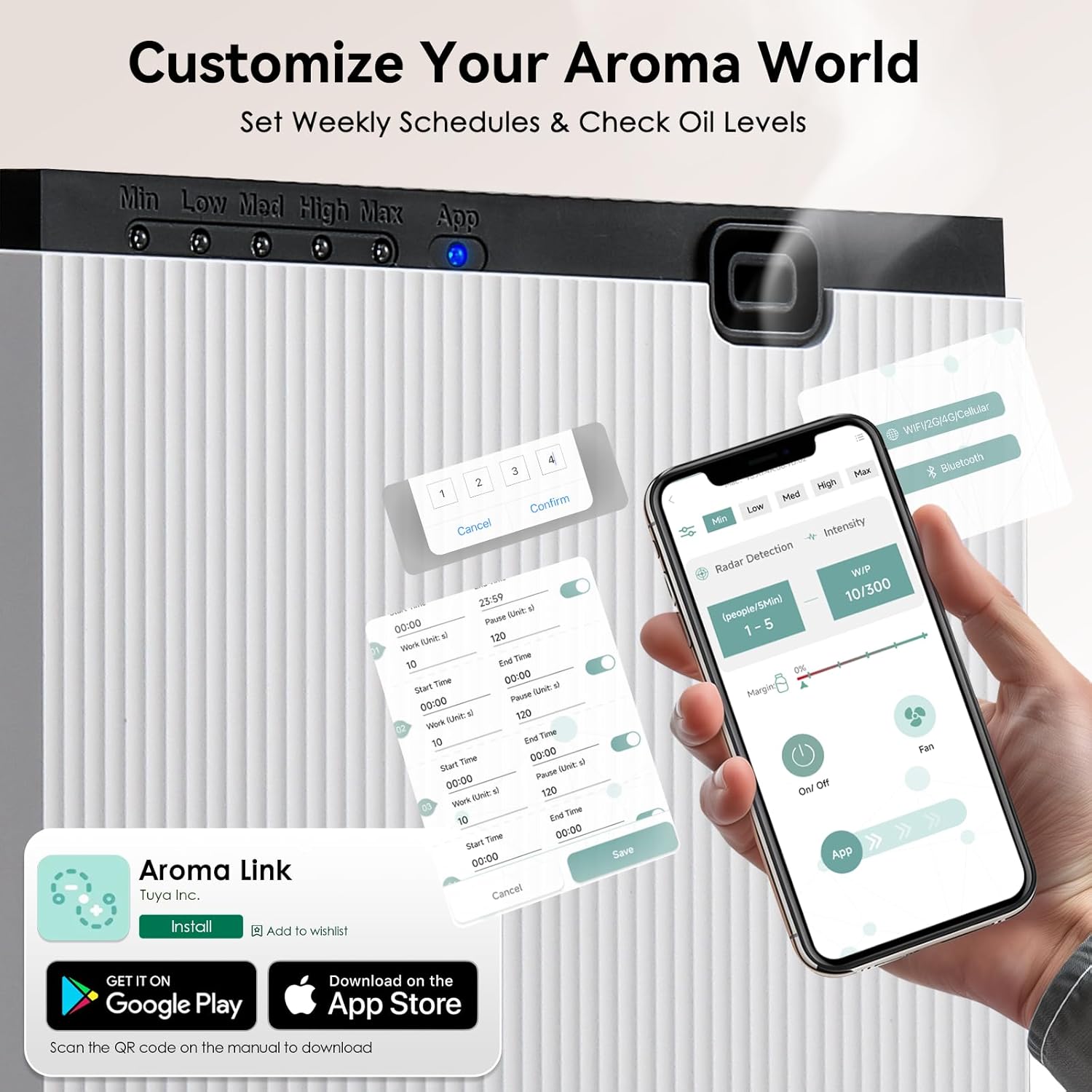

Image: A smartphone displaying the "Aroma Link" app, showing controls for work time, pause time, and radar detection settings.

1. Download and install the "Aroma Link" app from the App Store (iOS) or Google Play Store (Android).
2. Open the app and follow the on-screen instructions to register an account or log in.
3. Add your device by selecting the appropriate model and following the pairing instructions. Ensure your phone's Bluetooth and Wi-Fi are enabled.

Uputstvo za upotrebu

1. Ručna kontrola

The device has a manual mode shift button on the top panel. Pressing this button cycles through different intensity levels (Min, Low, Med, High, Max), indicated by the LED lights. Each press changes the diffusion intensity.

2. Funkcije kontrole aplikacija

The "Aroma Link" app provides comprehensive control over your diffuser:

• On/Off: Remotely turn the diffuser on or off.
• Podešavanje intenziteta: Customize spray frequency (Work Time: 5 to 900 seconds) and pause intervals (Pause Time). This allows for precise control over scent output to match room size and preference.
• Sedmično zakazivanje: Program up to 5 daily time slots from Monday to Sunday for automated operation. Set specific start and end times for diffusion.
• Motion Sensing (Radar Detection): Activate the motion sensor mode. The diffuser will adjust spray frequency based on occupancy within a 3m/10ft range. More people detected may result in longer spray times and shorter pause intervals. If no one is detected for 5 minutes, the system enters standby mode.
• Provjera nivoa ulja: Monitor the remaining essential oil level directly from the app.
• Kontrola ventilatora: Control the built-in fan for faster and more even fragrance dispersion.

Image: A smartphone screen displaying the app's scheduling interface, allowing users to set specific work and pause times for each day of the week.

Image: An illustration demonstrating the motion sensor's 3-meter detection range and a table detailing how working time and pause time adjust based on the number of detected people.

Održavanje

1. Čišćenje uređaja

To maintain optimal performance, clean the diffuser periodically:

• Isključite uređaj iz električne utičnice.
• Obrišite vanjski dio difuzora mekom,amp krpom. Ne koristite abrazivna sredstva za čišćenje niti uranjajte uređaj u vodu.
• If changing essential oil types, it is recommended to clean the oil bottle. Empty any remaining oil, rinse the bottle with a small amount of rubbing alcohol, and let it air dry completely before adding new oil.

2. Refilling the Oil Reservoir

When the oil level is low (indicated by the app or reduced scent output), follow these steps:

• Isključite uređaj.
• Unlock and open the front panel using the key.
• Uklonite bocu za ulje.
• Unscrew the cap and refill with essential oil.
• Securely screw the cap back on and reinsert the bottle.
• Zatvorite i zaključajte prednju ploču.
• Plug the device back in and turn it on.

Rješavanje problema

Specifikacije

Image: A visual representation of the diffuser's dimensions and a table summarizing its key specifications like voltage, power, noise, capacity, weight, scent coverage, and product size.

Garancija i podrška

The Mxmoonant Scent Air Machine comes with a standard manufacturer's warranty. For detailed warranty information, product support, or service inquiries, please refer to the warranty card included in your package or visit the official Mxmoonant website. You can also contact customer service through your purchase platform.
