1. Sigurnosne informacije
Molimo vas da pročitate i razumjete sva sigurnosna uputstva prije sastavljanja i upotrebe. Nepoštivanje ovih uputstava može dovesti do povreda ili oštećenja proizvoda.
- Secure All Parts: Ensure all components are properly and securely fastened before placing items on the cart or moving it.
- Sigurnost djece: Do not allow children to play on, with, or around the cart. Keep small parts and packaging materials away from children.
- Ograničenja težine: Do not exceed the maximum weight capacity for each basket (22 lb / 10 kg) and the top surface (33 lb / 15 kg). The total maximum static load capacity is 121 lb (55 kg). Overloading can cause instability and damage.
- Stabilan plasman: Place the cart on a flat, stable surface. Engage the wheel brakes when the cart is stationary to prevent accidental movement.
- Pravilna upotreba: This cart is designed for storage and transport of household items. Do not use it for purposes other than its intended use.
2. Sadržaj paketa
Prije početka montaže provjerite jesu li svi dijelovi prisutni. Ako bilo koji dijelovi nedostaju ili su oštećeni, obratite se korisničkoj podršci.
- Top Board (Engineered Wood)
- Bočni okviri (metalni)
- Pull-Out Baskets (Mesh Metal) x 4
- ručka (metalna)
- Wheels x 4 (2 with brakes)
- Pribor za montažu (vijci, imbus ključ, itd.)
- Uputstvo za upotrebu
3. Upute za postavljanje i montažu
Assembly is required. Please follow these steps carefully. It is recommended to assemble the cart on a soft, clean surface to prevent scratches.
- Pričvrstite točkove: Secure the four wheels to the bottom of the side frames. Ensure the two wheels with brakes are positioned on the same side for easy access. Tighten securely.
- Sastavite okvir: Connect the side frames using the provided crossbars and screws. Do not fully tighten screws until all parts are loosely assembled.
- Instalirajte korpe: Slide the four pull-out mesh baskets into their designated slots on the frame. Ensure they slide smoothly.
- Pričvrstite gornju ploču: Place the engineered wood top board onto the top of the frame and secure it with the remaining screws.
- Instalirajte ručku: Attach the curved handle to the top of one side of the frame.
- Završno zatezanje: Once all components are in place, go back and securely tighten all screws.

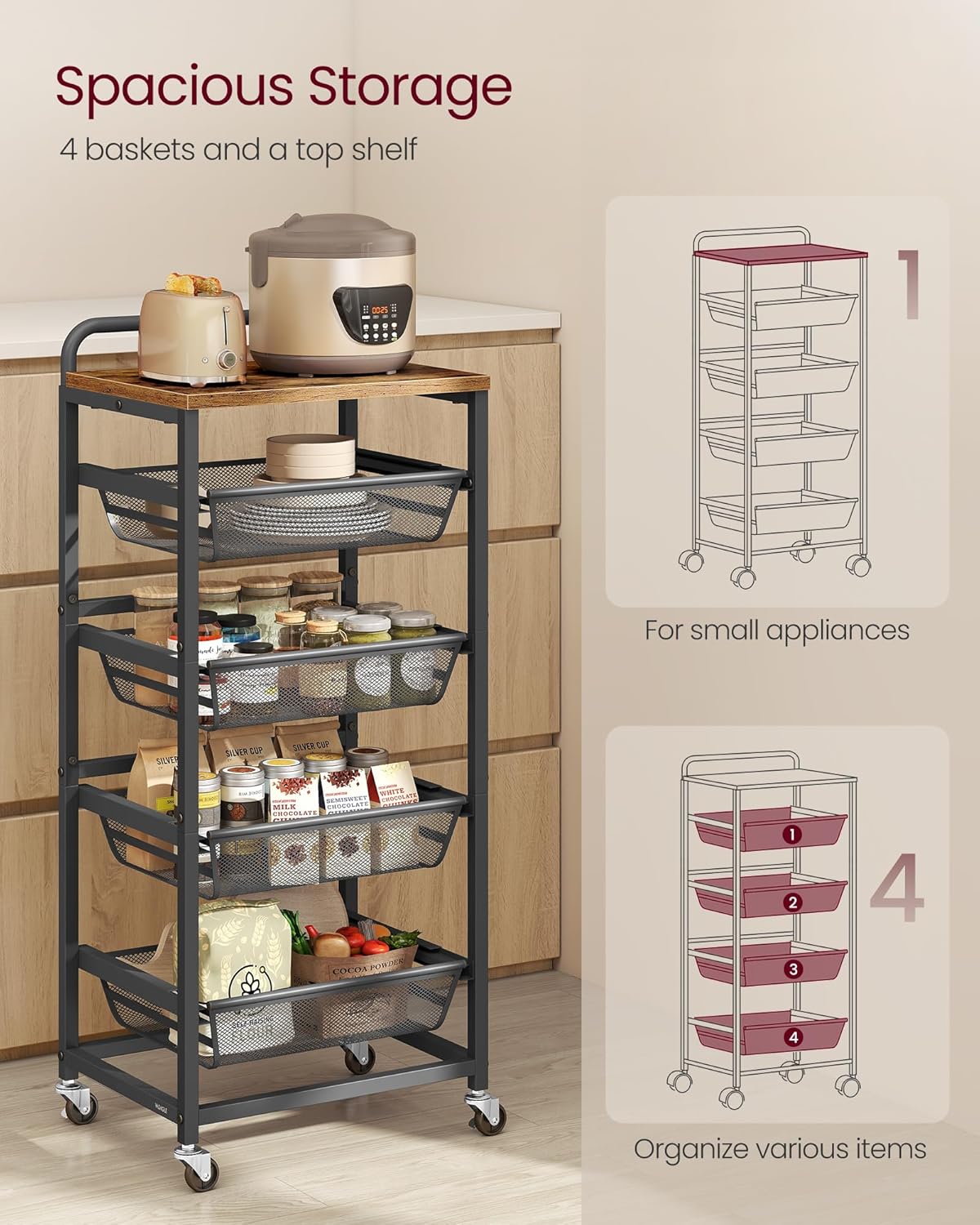

Slika: Prekoview of the cart's structure, indicating the top shelf and four baskets.
Image: Detailed dimensions and individual basket/top shelf weight limits for the cart.
4. Uputstvo za upotrebu
This storage cart is designed for convenient organization and mobility.
- Using Pull-Out Baskets: The four mesh baskets can be easily pulled out for quick access to stored items. Gently pull the basket forward until it reaches its stop. Push it back in until it is fully seated.
Image: A hand demonstrating the smooth sliding action of a pull-out basket.
- Utilizing the Top Shelf: The sturdy top board provides additional space for small appliances, decorative items, or frequently used kitchen tools.
- mobilnost: To move the cart, release the brakes on the two locking wheels. Use the curved handle to push or pull the cart to your desired location. The 360° swivel casters allow for easy maneuverability.
Image: A person easily moving the cart, showcasing its mobility features like the handle and wheels.
- Stacionarna upotreba: When the cart is in its desired position, engage the brakes on the two locking wheels to prevent unintended movement.
5. Održavanje
Proper care will extend the life and appearance of your storage cart.
- čišćenje: Wipe the cart surfaces with a damp krpom. Izbjegavajte upotrebu jakih hemikalija ili abrazivnih sredstava za čišćenje, jer mogu oštetiti završnu obradu.
- Redovne provjere: Povremeno provjeravajte sve vijke i spojeve kako biste bili sigurni da su čvrsto zategnuti. Po potrebi ih ponovo zategnite.
- Basket Care: The dense mesh baskets are designed for secure storage. If any debris accumulates, simply wipe or brush it away.
6. Otkrivanje problema
If you encounter any issues with your storage cart, refer to the following common solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Kolica su nestabilna ili se ljuljaju. | Vijci su labavi; neravna površina poda. | Ensure all screws are tightened. Move the cart to a level surface. |
| Baskets do not slide smoothly. | Debris in tracks; basket misaligned. | Clean the sliding tracks. Ensure baskets are correctly inserted into the frame. |
| Wheels do not roll or lock properly. | Debris in wheels; brake engaged/disengaged incorrectly. | Clear any obstructions from the wheels. Ensure brakes are fully engaged when stationary and fully disengaged when moving. |
| Items fall through basket sides. | Small items placed near open sides. | The mesh baskets have open sides for ventilation. Place smaller items in containers or towards the center of the baskets. |
7. Specifikacije
- Model: ULRC041K01
- Dimenzije (D x Š x V): 31.7 cm D x 40 cm Š x 95 cm V
- Materijal: Alloy Steel (Frame), Engineered Wood (Top Board)
- Boja: Rustic Brown + Ink Black
- Kapacitet težine:
- Each Basket: 22 lb (10 kg)
- Top Surface: 33 lb (15 kg)
- Total Max. Static Load Capacity: 121 lb (55 kg)
- Montaža: Obavezno
- Upute za njegu: Obrišite sa Damp Cloth
Image: Details on the cart's construction, emphasizing its sturdy and stable design.
8. Garancija i podrška
For warranty information or if you require assistance with your VASAGLE storage cart, please refer to the product packaging or contact the retailer where the product was purchased. Our customer support team is available to help with any questions or concerns.
