1. Uvod
This manual provides essential information for the safe assembly, operation, and maintenance of your AECOJOY 16' x 10' Wall-Mounted Hard Top Gazebo. Please read all instructions carefully before beginning installation and retain this manual for future reference.
The AECOJOY gazebo is designed to provide a durable outdoor shelter, featuring a hard top roof capable of withstanding significant snow loads and strong winds when properly installed. Its inclined design ensures effective water drainage, and the roof panels offer protection against UV rays.

Image 1.1: The AECOJOY 16' x 10' Wall-Mounted Hard Top Gazebo providing shade and shelter on a patio.

Image 1.2: Visual representation of the gazebo's UV protection in summer and snow load capacity in winter.
2. Sigurnosne informacije
WARNING: Failure to follow these safety instructions may result in injury or property damage.
- Always follow the provided manual and video tutorials for safe installation.
- Secure the gazebo to a stable foundation to withstand high winds and heavy snow.
- Be cautious when handling the product during assembly, disassembly, or in harsh weather conditions.
- Ensure all connections are tightened securely before and after installation.
- Ne vješajte teške predmete na okvir sjenice.
- Clear snow accumulation from the roof regularly to prevent structural strain, especially in areas with heavy snowfall.
3. Sadržaj paketa
Your AECOJOY gazebo is shipped in multiple parcels, which may arrive at different times. Please ensure all packages have been received before beginning assembly.
Refer to the detailed parts list provided in the separate assembly guide included with your product. Verify all components are present and undamaged before proceeding with installation.
4. Postavljanje i instalacija
The AECOJOY gazebo is designed for straightforward installation. For detailed, step-by-step instructions, please consult the dedicated assembly guide and video tutorials provided by AECOJOY. Our expert technical team is available for remote assistance if needed.
4.1 Ključne stvari koje treba uzeti u obzir prilikom instalacije
- Dizajn na zidu: This gazebo is designed to attach directly to a wall. All necessary accessories for wall attachment are provided.
- Stabilnost: Once securely fixed to the wall and stabilized on the ground, the structure is designed to withstand winds up to approximately 70 mph.
- fondacija: Ensure the ground where the gazebo posts will be anchored is level and stable. The base of each post has pre-drilled holes for secure mounting to your deck or concrete slab.
- Hidroizolacija: The inclined roof design and meticulous detailing ensure water resistance. Proper installation is crucial for optimal performance.

Image 4.1: Illustration of the triangular structure, stable frame leg, multi-frame support, and wall attachment points for enhanced stability.

Image 4.2: The triangular structure with multiple keyholes ensures frame stability.

Image 4.3: Sun panels and aluminum tubes provide strong support and high load ratings for the roof.
5. Uputstvo za upotrebu
Once installed, your AECOJOY gazebo provides a sheltered outdoor space. No specific operational steps are required beyond its initial setup.
- Upotreba: The gazebo is intended for use as a permanent or semi-permanent outdoor shelter for patios, decks, or similar areas.
- Vremenski uslovi: While designed for durability, it is advisable to take precautions during extreme weather. In areas prone to heavy snowfall, regularly clear snow from the roof to prevent excessive accumulation. During severe storms or hurricanes, consider additional temporary bracing if local conditions warrant.
6. Održavanje
Redovno održavanje će produžiti vijek trajanja i sačuvati izgled vaše sjenice.
- čišćenje: Clean the frame and roof panels periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish or materials. Rinse thoroughly with clean water.
- inspekcija: Annually inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose fasteners. Check the roof panels for any signs of damage or wear.
- Uklanjanje snijega: In regions with snow, remove accumulated snow from the roof promptly to prevent structural stress.
- drenaža: Ensure the inclined roof design allows for proper water runoff. Clear any debris that might obstruct drainage channels.
7. Otkrivanje problema
If you encounter issues with your AECOJOY gazebo, consider the following common solutions:
- Zabrinutost za stabilnost: If the gazebo feels unstable, re-check all wall attachments and ground anchors. Ensure all bolts are securely tightened. Verify the foundation is level.
- curenje vode: Inspect roof panel seams and connections for proper alignment and sealing. Ensure no debris is blocking the water drainage path.
- dijelovi koji nedostaju: If parts are missing upon delivery, contact AECOJOY customer support immediately with your product model and a description of the missing components.
- Poteškoće tokom montaže: Refer to the detailed assembly guide and video tutorials. If issues persist, contact AECOJOY technical support for remote assistance.
8. Specifikacije
| Atribut | Detalj |
|---|---|
| Brand | AECOJOY |
| Broj modela | 16411WH |
| Dimenzije proizvoda | 192 cm D x 120 cm Š x 96 cm V (16 m D x 10 m Š x 8 m V) |
| Težina artikla | 176 funti |
| Materijal | Aluminum, Metal, Sun Panels |
| Materijal okvira | Metal & Aluminum |
| Boja | Bijelo |
| Nivo vodootpornosti | Vodootporan |
| Zaštita od ultraljubičastog svjetla | UPF 50++ |
| Obavezna montaža | Da |
| Snow Capacity | Up to 7" of heavy snow (6 lbs/sq.ft) |
| Otpornost na vjetar | Around 70 mph (when securely fixed) |

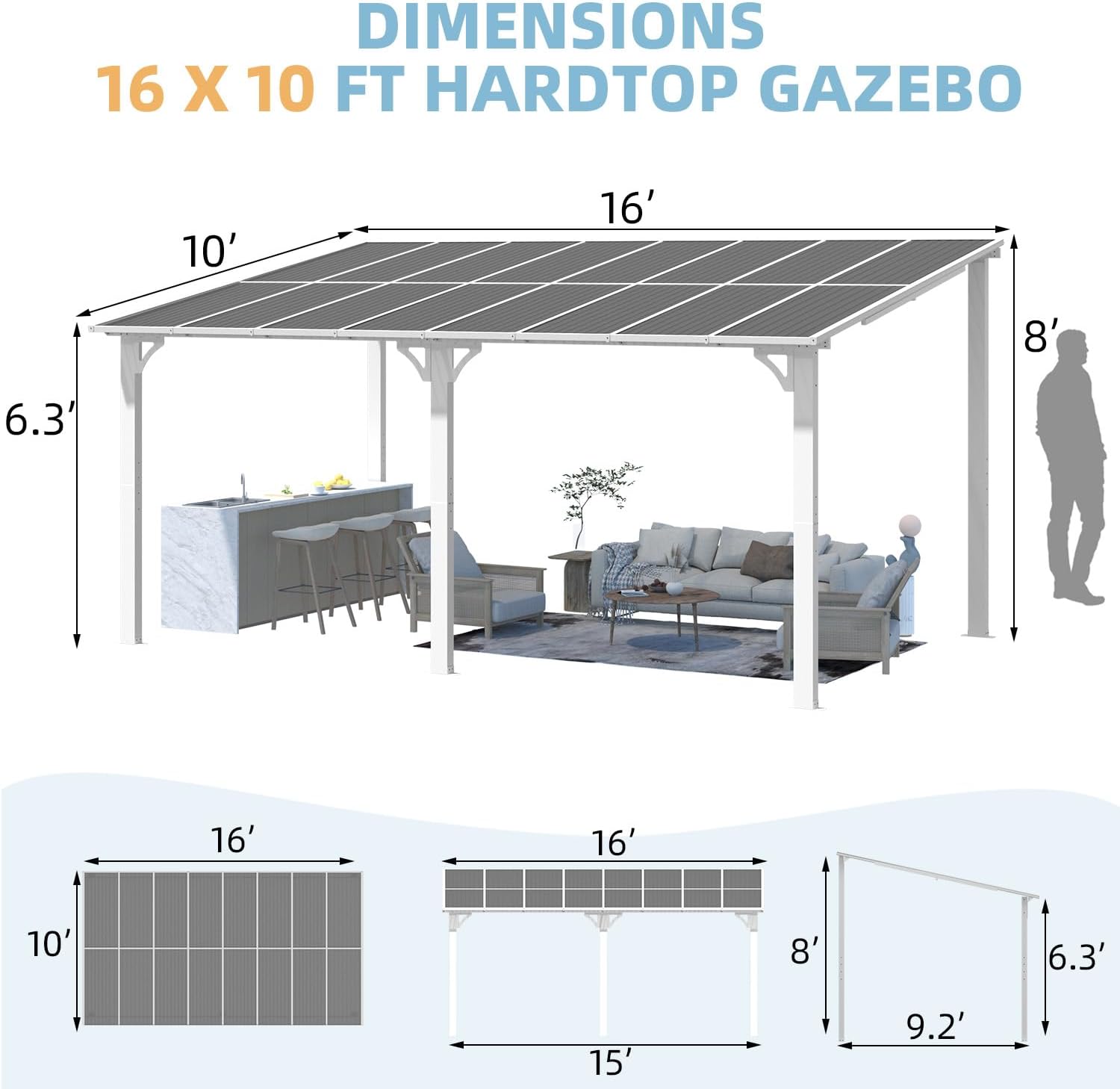

Image 8.1: Detailed dimensions of the AECOJOY 16' x 10' Hardtop Gazebo.
9. Garancija i podrška
AECOJOY stands behind its products, offering a worry-free experience for customers.
- garancija: Your gazebo includes a one-year warranty.
- Doživotna podrška: AECOJOY provides lifetime support for the product.
- Služba za korisnike: A professional team is available 24/7 to address any concerns related to installation, usage, maintenance, and replacements.
- Kontakt: For assistance, please refer to the contact information provided in your product packaging or visit the official AECOJOY website.
