BORUIT EV10 Rechargeable EDC Flashlight Instruction Manual

Uvod

The BORUIT EV10 is a versatile and compact Everyday Carry (EDC) flashlight designed for various outdoor and emergency situations. It features high lumens dual-beam lighting with adjustable spot and flood capabilities, multi-mode RGB side lights, and a rechargeable 1000mAh battery with USB-C charging. Constructed from durable aluminum alloy, it boasts an IP66 water and dust resistant rating, ensuring reliability in harsh conditions.

Image: The BORUIT EV10 Rechargeable EDC Flashlight, showcasing njegov kompaktni dizajn.

Šta je u kutiji

• EV10-1 flat clip on flashlight
• USB-C kabl za punjenje
• Clip
• Privezak za ključeve

Setup

Punjenje lampe

The BORUIT EV10 features a built-in 1000mAh battery and a USB-C charging port. To charge the device:

1. Pronađite USB-C priključak za punjenje na baterijskoj lampi.
2. Connect the provided USB-C charging cable to the flashlight and a compatible USB power source (e.g., wall adapter, computer USB port).
3. The charging indicator light will flash red during charging.
4. Charging typically takes approximately two hours for a full charge.
5. Kada se potpuno napuni, indikatorska lampica će postati zelena.

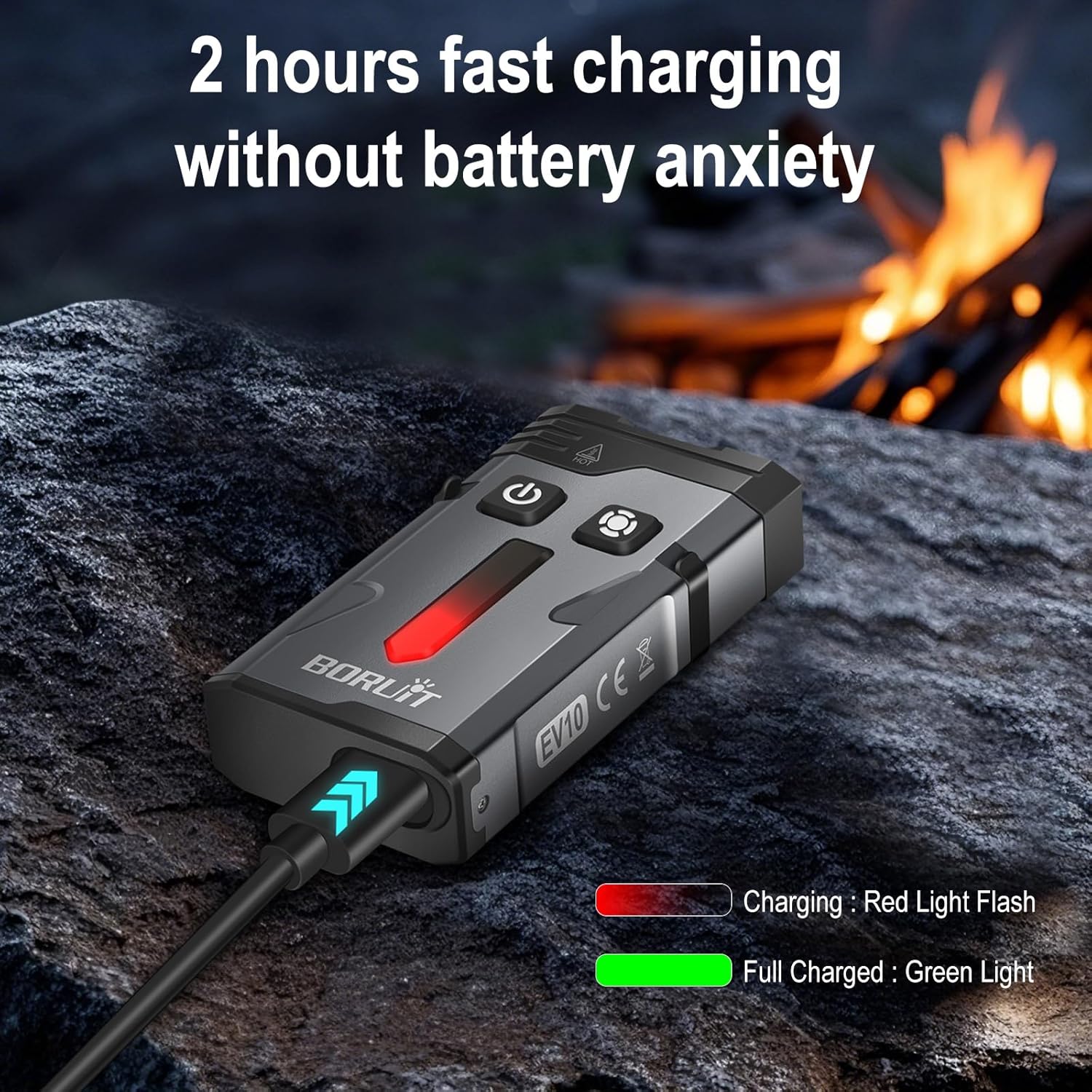

Image: The BORUIT EV10 connected to a USB-C cable, showing the charging indicator light.

Uputstvo za upotrebu

Operacija glavnog svjetla

The main light features both spotlight and floodlight modes with multiple brightness levels, plus Turbo and Strobe functions.

• Uključivanje/isključivanje: Press and hold the main light button.
• Switch Brightness/Mode: Single-click the main light button to cycle through: Spotlight High → Spotlight Med → Spotlight Low → Floodlight High → Floodlight Med → Floodlight Low.
• Turbo način rada: Double-click the main light button to activate the highest combined output.
• Strobe mod: Triple-click the main light button to activate the emergency strobe.

Image: Diagram illustrating the dual switch operations for main light and side light modes.

Side Light (RGB) Operation

The side light offers various static colors and dynamic modes, including a red and blue police flashing light.

• Uključivanje/isključivanje: Press and hold the side light button.
• White Constant Light: Double-click the side light button to activate White Constant Light. Single-click to cycle through High and Low brightness.
• Colored Constant Light: Double-click again to enter Colored Constant Light mode. Single-click to cycle through Red, Green, Blue, Orange, Yellow, Ice Blue, Pink.
• Colored Breathing Light: Double-click again to enter Colored Breathing Light mode. Single-click to cycle through Red, Green, Blue, Orange, Yellow, Ice Blue, Pink.
• Colored Streamline Light: Double-click again to enter Colored Streamline Light mode. Single-click to cycle through Red, Green, Blue, Orange, Yellow, Ice Blue, Pink.
• Colored Dropflow Light: Double-click again to enter Colored Dropflow Light mode. Single-click to cycle through Red, Green, Blue, Orange, Yellow, Ice Blue, Pink.
• Flowing Rainbow Light: Double-click again to enter Flowing Rainbow Light mode. Single-click to adjust speed (slow to fast).
• Red & Blue Flashing Warning Light: Triple-click the side light button to activate this mode.

Image: The BORUIT EV10 displaying its various Dazzle Color Side Light modes.

Video Demonstration: BORUIT EV10 EDC Flashlight

Video: A demonstration of the BORUIT EV10 EDC Flashlight, showcasinnjegove karakteristike i rad.

Karakteristike

• High Lumens Dual Beam Lighting: Illuminates up to 100 meters with adjustable far/near beam technology, allowing easy switching between wide-area close-up lighting and focused long-distance illumination.
• Multi-Mode RGB Flashlight: Features 14 RGB LEDs with 7 static colors and 4 dynamic modes (breathing, flowing, cycling, alarm), plus red and blue police flashing lights for versatile ambient and emergency signaling.
• EDC Flashlight Rechargeable: Equipped with a built-in 1000mAh battery and USB-C port for quick charging (approx. 2 hours). Offers up to 54 hours of runtime in the lowest gear mode.
• Convenient Keychain Flashlight: Designed with a magnetic base, clip, keychain, and lanyard for stable, hands-free illumination in various situations, ideal for emergency repairs or daily use.
• Rugged & Waterproof Flashlight: Made from aluminum alloy, capable of withstanding a 3.3-foot drop. IP66 water and dust resistant rating ensures reliable performance in rain, snow, or dusty environments.

Image: The BORUIT EV10 demonstrating its multi-functional uses, including magnetic attachment, hat clip, and keychain carry.

Image: Visual representation of the BORUIT EV10's rugged aluminum alloy construction and IP66 waterproof rating.

Specifikacije

Održavanje

To ensure the longevity and optimal performance of your BORUIT EV10 flashlight, please follow these maintenance guidelines:

• čišćenje: Obrišite tijelo svjetiljke mekom krpomamp tkanina. Nemojte koristiti jake hemikalije ili abrazivne materijale.
• Punjenje: Recharge the battery regularly, especially if the flashlight will not be used for an extended period, to maintain battery health.
• Skladištenje: Čuvajte baterijsku lampu na hladnom i suvom mestu dalje od direktne sunčeve svetlosti i ekstremnih temperatura.
• Otpornost na vodu: While IP66 rated, avoid prolonged submersion in water. Ensure the USB-C port cover is securely closed to prevent water and dust ingress.

Rješavanje problema

If you encounter any issues with your BORUIT EV10 flashlight, please refer to the following common troubleshooting steps:

• Svjetiljka se ne pali: Ensure the battery is charged. Connect the flashlight to a USB-C power source and check if the charging indicator activates.
• Modes Not Cycling Correctly: Pogledajte na
