RAOO MIN F8000H 4-in-1 Foldable Treadmill User Manual

1. Uvod

Thank you for choosing the RAOO MIN F8000H 4-in-1 Foldable Treadmill. This manual provides essential information for safe operation, assembly, maintenance, and troubleshooting. Please read it thoroughly before using the treadmill to ensure proper function and your safety.

2. Važna sigurnosna uputstva

UPOZORENJE: To reduce the risk of serious injury, read all instructions before using this equipment.

• Traku za trčanje uvijek postavite na ravnu, stabilnu površinu.
• Držite djecu i kućne ljubimce podalje od trake za trčanje tokom rada.
• Osigurajte dovoljno slobodnog prostora oko trake za trčanje (najmanje 2 metra iza i 0.6 metara sa svake strane).
• Ne koristite traku za trčanje ako je kabel ili utikač oštećen ili ako ne radi ispravno.
• Nosite odgovarajuću sportsku obuću i odjeću.
• Nemojte koristiti traku za trčanje u damp ili vlažnim uslovima.
• Always use the safety key. Attach the clip to your clothing before starting your workout.
• Konsultujte se sa lekarom pre nego što započnete bilo koji program vežbanja.
• Ne pokušavajte sami servisirati traku za trčanje. Za pomoć kontaktirajte korisničku podršku.
• Maksimalna težina korisnika: 100 kg.

3. Proizvod je gotovview

3.1 Sadržaj paketa

The following components are included in your package:

• RAOO MIN F8000H Treadmill (Main Unit)
• Daljinski upravljač
• Silicone Oil (for lubrication)
• iPad držač
• Šesterokutni ključ
• Vijci (x2)
• Dugmad (x2)
• Sigurnosni ključ
• Korisnički priručnik (ovaj dokument)
• Garantna dokumentacija

Slika 3.1: Priložena dodatna oprema

3.2 Ključne karakteristike

• 4-u-1 funkcionalnost: Supports Walking Mode (1-3 km/h), Walking Mode (4-6 km/h), Running Mode (6-12 km/h), and Climbing Mode (up to 15% incline).
• Automatic Electric Incline: Adjust incline up to 15% electrically via remote control for varied workout intensity.
• Multi-function LED Display: Shows real-time data including speed, incline, distance, and calories burned.
• tihi rad: Equipped with a high-power brushless motor designed for low noise levels (below 40dB).
• Napredni pojas za trčanje: Features a 5-layer running belt (100 x 40 cm) with anti-slip texture and silicone shock absorption for joint protection.
• Kompaktan i prenosiv dizajn: Foldable structure with transportation wheels for easy movement and storage, fitting under furniture with a height of 15cm.

Figure 3.2: 4-in-1 Treadmill Modes (Walking, Running, Work, Climbing)

Figure 3.3: Electrically Adjustable Incline (5-15%)

Figure 3.4: Powerful and Low Noise Motor

Figure 3.5: Stable and Broad Running Area

Figure 3.6: Easy Movement and Compact Design

4. Podešavanje

1. Raspakivanje: Pažljivo izvadite sve komponente iz ambalaže. Sačuvajte ambalažu za buduće skladištenje ili transport.
2. plasman: Choose a flat, stable surface for the treadmill. Ensure there is at least 2 meters of clear space behind the treadmill and 0.6 meters on each side for safety.
3. Unfolding (if applicable): If the treadmill is in a folded state, gently lift the handlebar until it locks into the upright position. Secure any locking pins or knobs as instructed in the quick start guide.
4. Sklop upravljača: Attach the handlebar to the main unit using the provided screws and hex wrench. Ensure it is securely fastened.
5. Priključak za napajanje: Uključite kabl za napajanje u uzemljenu električnu utičnicu.
6. Sigurnosni ključ: Locate the safety key and its clip. This must be attached to your clothing during operation.

5. Uputstvo za upotrebu

5.1 Početak rada

1. Uključeno: Connect the treadmill to power and turn on the main power switch (if present, usually near the power cord inlet).
2. Priložite sigurnosni ključ: Pričvrstite sigurnosni ključ na odjeću. Traka za trčanje neće raditi bez sigurnosnog ključa.
3. Stand on Side Rails: Step onto the side rails of the treadmill, not directly onto the running belt.
4. Početak: Press the 'Start' button on the console or remote control. The treadmill will typically begin with a countdown and then start at a low speed.

5.2 Korištenje kontrolne ploče i daljinskog upravljača

Figure 5.1: Control Panel and Remote Control

• Podešavanje brzine: Use the '+' and '-' buttons on the console or remote to increase or decrease speed. Speed range is 1-12 km/h.
• Podešavanje nagiba: Use the 'Incline +' and 'Incline -' buttons on the remote control to adjust the electric incline from 0% to 15%.
• Odabir načina rada: The remote control may have a 'Mode' button to switch between different workout programs or display modes.
• zaustaviti: Press the 'Stop' button to gradually slow down and stop the treadmill. Pulling the safety key will also immediately stop the treadmill.

5.3 LED displeja

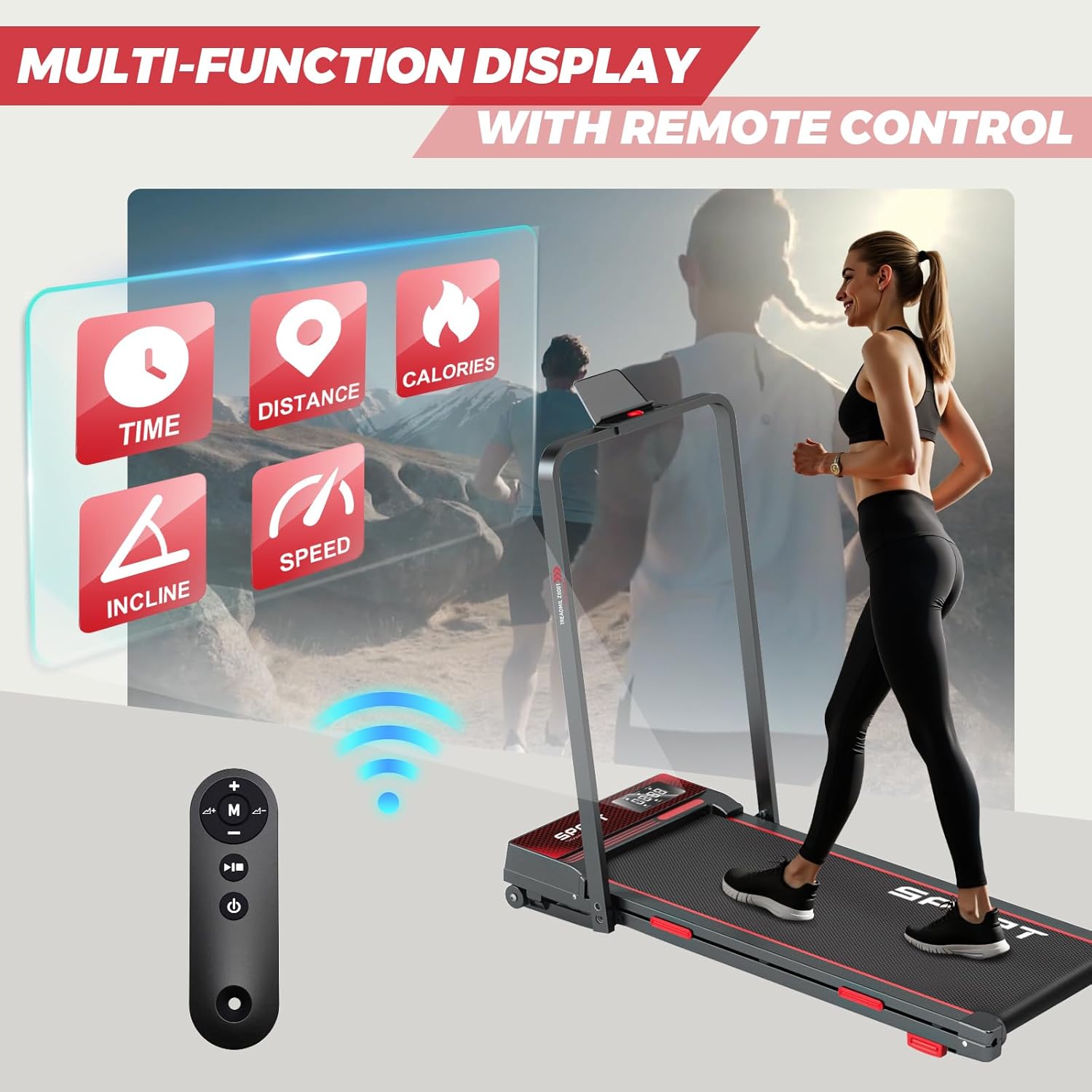

Figure 5.2: Multi-function LED Display

The LED display provides real-time feedback on your workout:

• vrijeme: Trajanje vašeg treninga.
• Udaljenost: Ukupna pređena udaljenost.
• Kalorije: Procijenjene sagorene kalorije.
• brzina: Trenutna brzina u km/h.
• Nagib: Current incline percentage.

5.4 Using the iPad/Phone Holder

Place your iPad or smartphone securely in the designated holder on the console for entertainment or to follow workout programs during your exercise.

5.5 Sklapanje i skladištenje

To fold the treadmill for storage:

1. Provjerite je li traka za trčanje zaustavljena i isključena iz napajanja.
2. Carefully lower the handlebar until it is flat against the running deck. Secure any locking mechanisms.
3. Utilize the transportation wheels to move the folded treadmill to your desired storage location. It can be stored flat under a bed or sofa (minimum 15cm clearance required).

Figure 5.3: Folding Treadmill Dimensions

Figure 5.4: Easy to Move and Space-Saving Design

6. Održavanje

• čišćenje: Redovno brišite traku za trčanje oglasnim materijalomamp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje ili rastvarače.
• Podmazivanje remena: The running belt requires periodic lubrication to ensure smooth operation and prolong its lifespan. Use the provided silicone oil. Refer to the quick start guide for specific lubrication intervals and instructions. Generally, lubricate every 3 months or after 100 hours of use.
• Podešavanje pojasa: If the running belt becomes off-center or slips, it may need adjustment. Use the hex wrench to adjust the tension bolts at the rear of the treadmill. Refer to the quick start guide for detailed instructions.
• inspekcija: Povremeno provjeravajte zategnutost svih vijaka i matica.

7. Otkrivanje problema

8. Specifikacije

9. Garancija i podrška

Your RAOO MIN F8000H Treadmill comes with a warranty as detailed in the included warranty documentation. For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact RAOO MIN customer support. We are committed to providing professional technical support and will respond within 24 hours.

Please refer to your warranty documentation for specific terms and conditions.
