Cooktron Induction Hob with Grill Plate and Cover User Manual

1. Uvod

Thank you for choosing the Cooktron Induction Hob with Grill Plate and Cover. This versatile 2-in-1 appliance is designed for efficient and flexible cooking, whether at home, in the office, or during outdoor activities like camping. It combines a powerful 2000W induction hob with a convenient electric grill, offering precise control and easy cleaning. Please read this manual thoroughly before use to ensure safe and optimal operation.

Figure 1: Cooktron Induction Hob with Grill Plate and Cover

2. Sigurnosne informacije

Uvijek se pridržavajte osnovnih sigurnosnih mjera opreza prilikom korištenja električnih uređaja kako biste smanjili rizik od požara, strujnog udara i ozljeda.

• Pročitajte sve upute prije rukovanja uređajem.
• Ne dodirujte vruće površine. Koristite ručke ili dugmad.
• Da biste se zaštitili od električnog udara, nemojte uranjati kabel, utikače ili uređaj u vodu ili drugu tekućinu.
• Neophodan je strogi nadzor kada bilo koji uređaj koriste djeca ili u blizini djece.
• Isključite iz utičnice kada nije u upotrebi i prije čišćenja. Ostavite da se ohladi prije stavljanja ili skidanja dijelova.
• Nemojte koristiti uređaj s oštećenim kablom ili utikačem ili nakon što uređaj pokvari ili je na bilo koji način oštećen.
• Korištenje dodataka koje nije preporučio proizvođač uređaja može uzrokovati ozljede.
• Ne koristiti na otvorenom.
• Nemojte dozvoliti da kabl visi preko ivice stola ili pulta, niti da dodiruje vruće površine.
• Ne stavljajte na ili blizu vrućeg plinskog ili električnog gorionika, ili u zagrijanu pećnicu.
• Morate biti izuzetno oprezni kada premještate uređaj koji sadrži vruće ulje ili druge vruće tekućine.
• Uvijek prvo priključite utikač na uređaj, a zatim uključite kabel u zidnu utičnicu. Da biste isključili uređaj, isključite bilo koju kontrolu, a zatim izvucite utikač iz zidne utičnice.
• Nemojte koristiti uređaj za drugu upotrebu osim za predviđenu.
• Only use compatible cookware for induction mode.
• Ensure adequate ventilation during use, especially when grilling.

3. Sadržaj paketa

Molimo Vas da provjerite da li su svi artikli prisutni i u dobrom stanju:

• Cooktron Induction Hob Unit
• Non-stick Grill Plate
• Grill Plate Cover
• Uputstvo za upotrebu

4. Proizvod je gotovview i karakteristike

The Cooktron Induction Hob offers a range of features for versatile cooking:

• 2-in-1 Induction Hob and Grill Plate: Can be used as an induction hob with your own compatible pots or as a separate electric grill.
• 2000 W Maximum Power: Omogućava brzo i ravnomjerno zagrijavanje.
• 10 Power Levels (Induction Mode): Precise power control from 200-2000 W.
• 5 Temperature Levels (Grill Mode): Ideal for various grilling needs.
• Intuitivno rukovanje: Combines a rotary knob and touch panel for easy temperature and power adjustment.
• Led displej: Provides clear control over temperature and time.
• 3-satni tajmer: For convenient cooking duration setting.
• Zaključavanje za djecu: Povećava sigurnost tokom rada.
• Overheating Protection and Automatic Shutdown: Built-in safety features.
• Lako čišćenje: Smooth glass surface and dishwasher-safe non-stick grill plate.
• Low Smoke Grilling: Special heating technology reduces smoke formation by 60%.
• Kompaktan i prenosiv dizajn: Lightweight (2 kg) and compact for various uses.

Kontrolna tabla i ekran

Figure 2: Control Panel with Rotary Knob and Touch Controls

Raznovrsna 2-u-1 funkcionalnost

Figure 3: Appliance demonstrating both induction cooking and grilling modes

Compatible Cookware for Induction Mode

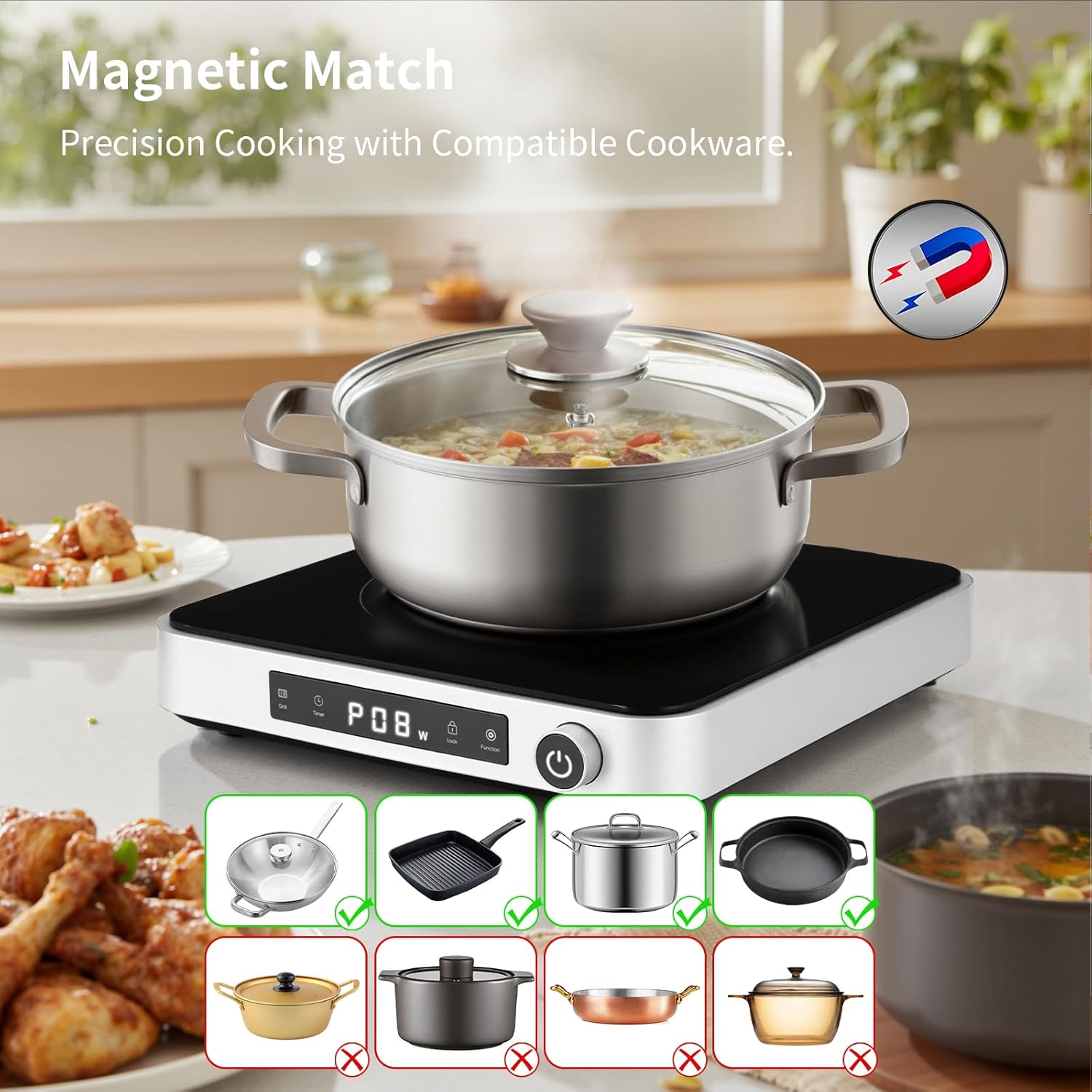

Slika 4: Pramples of compatible and incompatible cookware for induction cooking

5. Podešavanje

1. Raspakirajte: Carefully remove all packaging materials and ensure no parts are missing or damaged.
2. plasman: Place the induction hob unit on a stable, flat, heat-resistant surface. Ensure there is adequate space around the unit for ventilation. Do not place it near heat sources or flammable materials.
3. Priključak za napajanje: Uključite kabel za napajanje u uzemljenu električnu utičnicu. Osigurajte da je jačina zvukatagodgovara zahtjevima uređaja (220 volti).

6. Uputstvo za upotrebu

General Operation

1. Pritisnite dugme za napajanje da biste uključili uređaj. LED ekran će se upaliti.
2. Select your desired cooking mode: Induction or Grill.
3. Adjust power/temperature using the rotary knob or touch controls.
4. To activate the Child Lock, press and hold the lock icon until the indicator appears. Repeat to unlock.
5. To set the Timer, press the Timer button and use the controls to set the desired duration (up to 3 hours).

Induction Cooking Mode

Use this mode with induction-compatible cookware (e.g., cast iron, magnetic stainless steel, enamel iron). The appliance will automatically detect compatible cookware.

1. Place compatible cookware centrally on the induction hob surface.
2. Select Induction mode (P1-P10).
3. Adjust the power level from P1 (200W) to P10 (2000W) using the rotary knob or touch controls.
4. The hob will begin heating the cookware.

Grill Mode

Use this mode with the provided non-stick grill plate. Ensure the grill plate is properly seated on the hob unit.

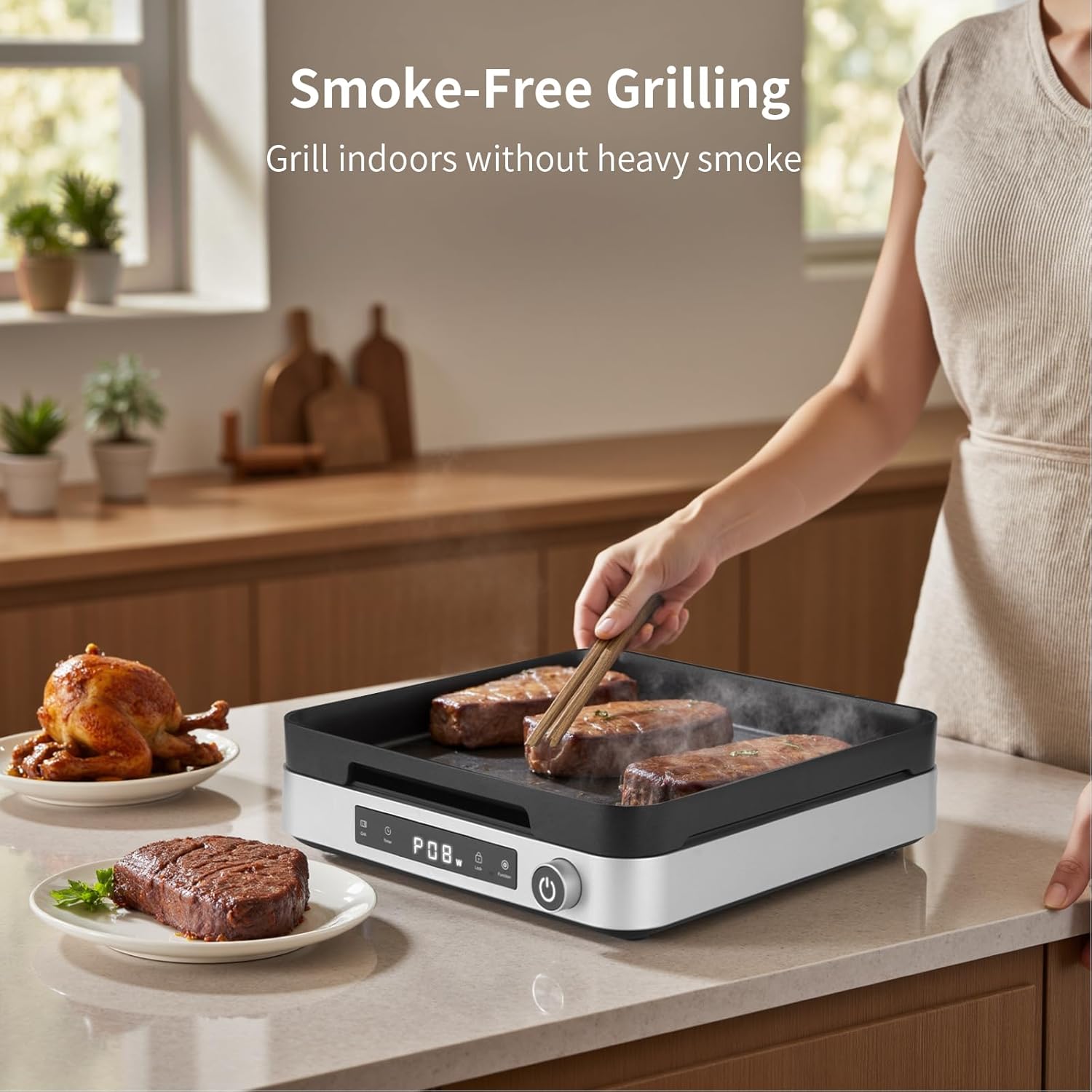

Figure 5: Grilling with the Cooktron Induction Hob

1. Place the grill plate onto the induction hob unit.
2. Select Grill mode (C1-C5).
3. Adjust the temperature level from C1 to C5 using the rotary knob or touch controls.
4. Allow the grill plate to preheat for a few minutes before placing food on it.
5. You may use the grill plate cover to help retain heat and reduce splatter.

7. Čišćenje i održavanje

Redovno čišćenje osigurava dugotrajnost i optimalne performanse vašeg uređaja.

Figure 6: Cleaning the Cooktron Induction Hob and Grill Plate

• Uvijek isključite uređaj iz struje i ostavite da se potpuno ohladi prije čišćenja.
• Induction Hob Unit: The smooth glass surface can be wiped clean with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads. Ensure the surface is dry before storing or reusing.
• Grill Plate and Cover: The non-stick grill plate and cover are dishwasher safe for convenient cleaning. For hand washing, use warm soapy water and a soft sponge.
• Do not immerse the main induction hob unit in water or any other liquid.
• Čuvajte uređaj na suvom mestu kada se ne koristi.

8. Otkrivanje problema

If you encounter any issues, please refer to the table below for common problems and solutions.

9. Specifikacije

Kompaktan dizajn

Figure 7: Dimensions of the Cooktron Induction Hob

10. Garancija i podrška

Za informacije o garanciji i korisničkoj podršci, obratite se službenom servisu proizvođača webweb-mjesto ili kontaktirajte prodavača od kojeg ste kupili proizvod. Sačuvajte dokaz o kupovini za bilo kakve reklamacije u vezi s garancijom.
