Uvod
This manual provides detailed instructions for the installation, operation, and maintenance of your WOODBRIDGE 54-55" W x 76" H Pivot Frameless Single Swing Hinge Shower Door with Brushed Gold Trim. Please read these instructions thoroughly before beginning installation to ensure proper function and safety.
Image: The WOODBRIDGE Pivot Frameless Shower Door, showcasing its clear glass and brushed gold trim in a contemporary bathroom setting.
Sigurnosne informacije
- Uvek nosite zaštitne naočare tokom instalacije.
- Staklenim pločama rukujte s izuzetnim oprezom. Kaljeno staklo, iako čvrsto, može se razbiti ako se udari po rubovima.
- Ensure all mounting surfaces are structurally sound and capable of supporting the weight of the shower door.
- Nemojte previše zatezati vijke, jer to može oštetiti komponente ili staklo.
- Držite djecu podalje od područja instalacije.
Image: A visual representation of the shatter retention glass feature, showing how the safety film prevents glass shards from scattering upon impact.
Image: Detail showing the 3/8 inch (10mm) thickness of the tempered safety glass, certified by ANSI Z97.1 for enhanced durability and safety.
Karakteristike proizvoda
- Podesiva veličina: Width adjustable from 54 to 55 inches, with a height of 76 inches. Features a 36-inch walk-in opening.
- Durable and Safe Materials: Constructed from 3/8" (10mm) SGCC & ANSI-certified tempered glass. Includes a safety film to prevent glass shards from scattering if broken. The frame and handle are rust-resistant aluminum and stainless steel.
- Reverzibilna instalacija: Can be installed for left or right-side opening to suit various bathroom layouts.
- Smooth Access: Dual pivot hinges allow the door to open 90 degrees outward for wide and convenient access.
- Effective Waterproofing: Equipped with a full-length clear vinyl seal and bottom strips to prevent leaks and keep the bathroom floor dry.
Image: An illustrative diagram pointing out the double-sided handles, leak-proof magnetic seal, and the low-profile threshold design for easy access.
Specifikacije
| Brand | WOODBRIDGE |
| Broj modela | HSD36-18-BG |
| Boja | Brushed Gold |
| Materijal | Staklo |
| Dimenzije (Š x V) | 54-55" x 76" |
| Glass Thickness | 3/8" (10 mm) |
| Otvaranje bez najave | 36" |
| Težina artikla | 67 funti |
| Obavezna montaža | Da |

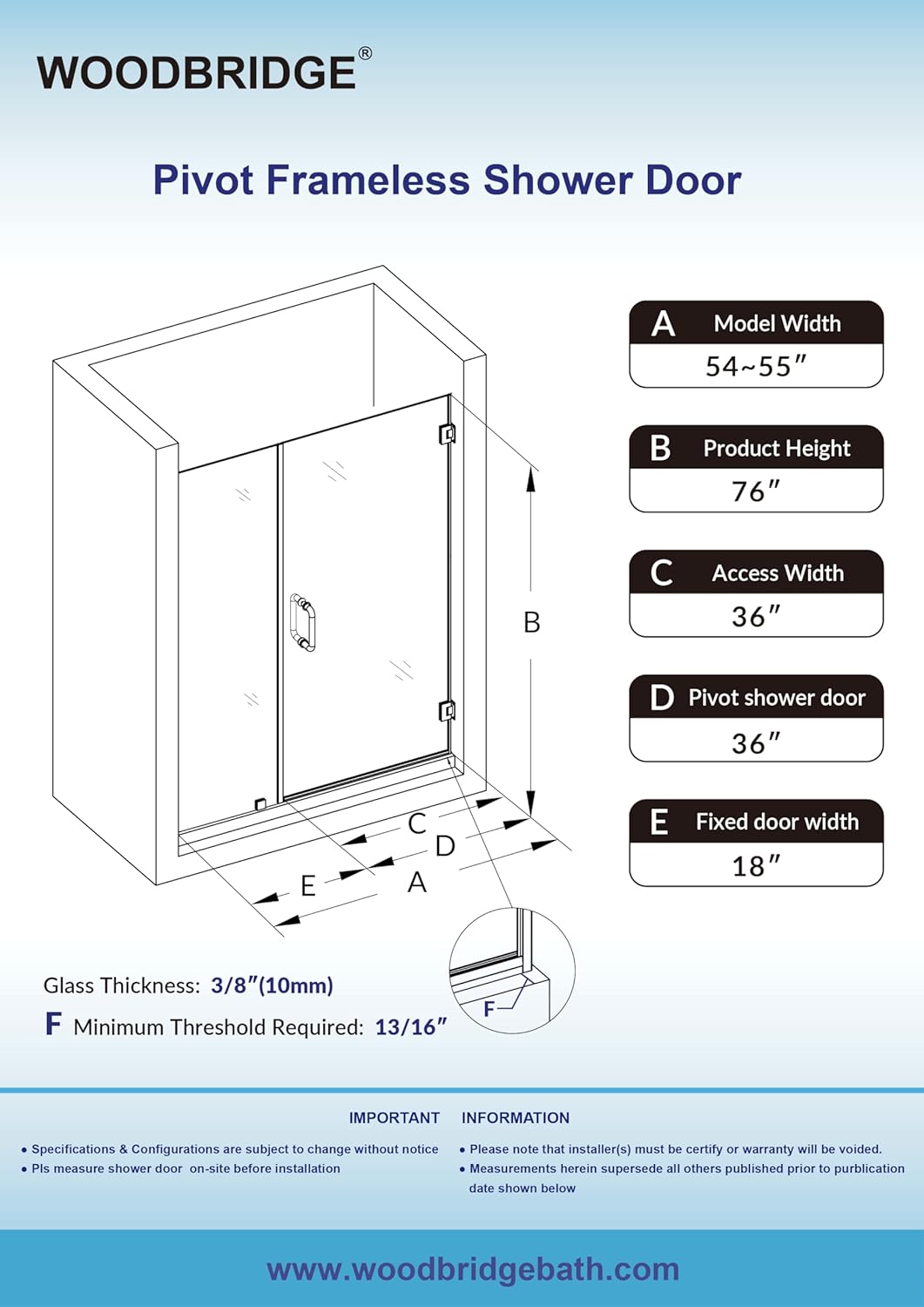

Image: A technical diagram illustrating the model width (A), product height (B), access width (C), pivot shower door width (D), fixed door width (E), and minimum threshold required (F).
Uputstva za instalaciju
Kontrolna lista prije instalacije:
- Provjerite jesu li svi dijelovi prisutni i neoštećeni.
- Važan podsjetnik: Measure your space after wall finishes (such as tiles or backer boards) are fully installed to ensure a perfect fit.
- Osigurajte da je podloga za tuš ili ivica nivelisana i okomita.
Potreban alat (nije isporučen):
- Measuring Tape
- Olovka
- Bušilica
- Nivo
- Pištolj za kit i silikonski zaptivač
- Odvijači (Phillips i Flathead)
- Zaštitne naočale
Korak-po-korak instalacija iznadview:
- Pripremite otvaranje: Ensure the shower opening dimensions are within the adjustable range of 54-55 inches wide and 76 inches high.
- Instalirajte zidni profesionalacfiles: Osigurajte zidni profiles to the finished wall, ensuring they are plumb. The design allows for up to 1 inch of width adjustment.
- Position Fixed Panel: Pažljivo postavite fiksnu staklenu ploču u zidni profilfile i osiguraj ga.
- Pričvrstite šarke: Mount the pivot hinges to the wall and the pivot door glass panel. The door can be installed to open from either the left or right side.
- Install Pivot Door: Attach the pivot door to the hinges, ensuring smooth 90-degree outward swing.
- Ugradnja ručki: Secure the double-sided handles to the pivot door.
- Apply Seals: Install the full-length clear vinyl seals and bottom strips to prevent water leakage. Refer to the "Two Ways to Open the Door" diagram for proper PVC strip placement based on desired opening direction (push or pull).
- Zaptivanje silikonom: Apply a bead of silicone sealant along the exterior joints of the shower door system to ensure a watertight seal.
Image: A visual guide demonstrating how the shower door can be installed to open either to the right or to the left, offering flexibility for bathroom layouts.
Image: An illustration detailing the width adjustable feature, allowing for up to 1 inch of adjustment during installation to accommodate varying opening sizes.
Image: A guide demonstrating four different methods for installing the PVC sealing strips, depending on whether the door is configured to push open or pull open, and whether the strip is on the fixed panel or hinged door.
Operacija
The WOODBRIDGE Pivot Frameless Shower Door is designed for smooth and easy operation. The dual pivot hinges allow the door to swing 90 degrees outward, providing a wide and unobstructed entry and exit from the shower area. The double-sided handles ensure convenient access from both inside and outside the shower.
Image: The shower door shown in its open position, demonstrating the wide access provided by the pivot hinge design.
Održavanje i njega
- Čišćenje stakla: Clean glass panels regularly with a soft cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive pads that can scratch the glass or damage the protective film.
- Čišćenje hardvera: Wipe down brushed gold trim and hardware with a soft, damp cloth. Do not use abrasive cleaners or polishes that could remove the finish.
- Održavanje zaptivki: Periodically check the vinyl seals for wear and tear. Replace them if they become damaged or discolored to maintain waterproofing.
- Podmazivanje šarki: If hinges become stiff, apply a small amount of silicone-based lubricant to the pivot points.
Rješavanje problema
- curenje vode:
- Check if all seals (vinyl and silicone) are properly installed and intact. Reapply silicone sealant if necessary.
- Ensure the bottom strips are correctly positioned to deflect water back into the shower area.
- Vrata se ne zatvaraju pravilno:
- Provjerite da li je zidni profesionalacfiles are plumb and the hinges are aligned. Adjust if needed.
- Provjerite ima li prepreka koje sprječavaju potpuno zatvaranje vrata.
- Stiff Door Movement:
- Lubricate hinges with a silicone-based spray.
- Ensure no debris is caught in the hinge mechanism.
Slika: Detaljna view of the sealing mechanism designed to prevent water from escaping the shower enclosure, crucial for troubleshooting leaks.
Garancija i korisnička podrška
WOODBRIDGE products are designed for quality and durability. For any questions, assistance, or warranty claims, please contact our U.S.-based support team.
Email: help@woodbridgebath.com
Please have your model number (HSD36-18-BG) and purchase information ready when contacting support.
