1. Uvod
Thank you for choosing the VEVOR Commercial Slushy Machine, Model XN240B. This instruction manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before initial use and retain it for future reference.
Figure 1: VEVOR Commercial Slushy Machine (Model XN240B)
2. Važna sigurnosna uputstva
Da biste osigurali siguran rad i spriječili oštećenja, uvijek se pridržavajte sljedećih sigurnosnih uputa:
- Prije upotrebe mašine pročitajte sva uputstva.
- Uvjerite se da napajanje odgovara voltage navedeno na naljepnici s karakteristikama uređaja.
- Ne rukujte mašinom mokrim rukama ili u vlažnim uslovima.
- Držite djecu i neovlašteno osoblje dalje od stroja tokom rada.
- Uvijek isključite mašinu iz struje prije čišćenja ili održavanja.
- Ne uranjajte glavnu jedinicu u vodu ili druge tečnosti.
- Osigurajte odgovarajuću ventilaciju oko mašine kako biste spriječili pregrijavanje.
- Only use liquid ingredients. Solid ingredients can damage the machine.
- Maintain a sugar content of 13-25% for optimal slush consistency. Insufficient sugar can lead to ice block formation.
- For alcoholic beverages, ensure alcohol content is below 13% to prevent freezing issues.
3. Proizvod je gotovview
The VEVOR Commercial Slushy Machine (Model XN240B) is designed for efficient production of various frozen and cold beverages. It features a durable stainless steel body and food-grade PC tanks.
3.1 Komponente

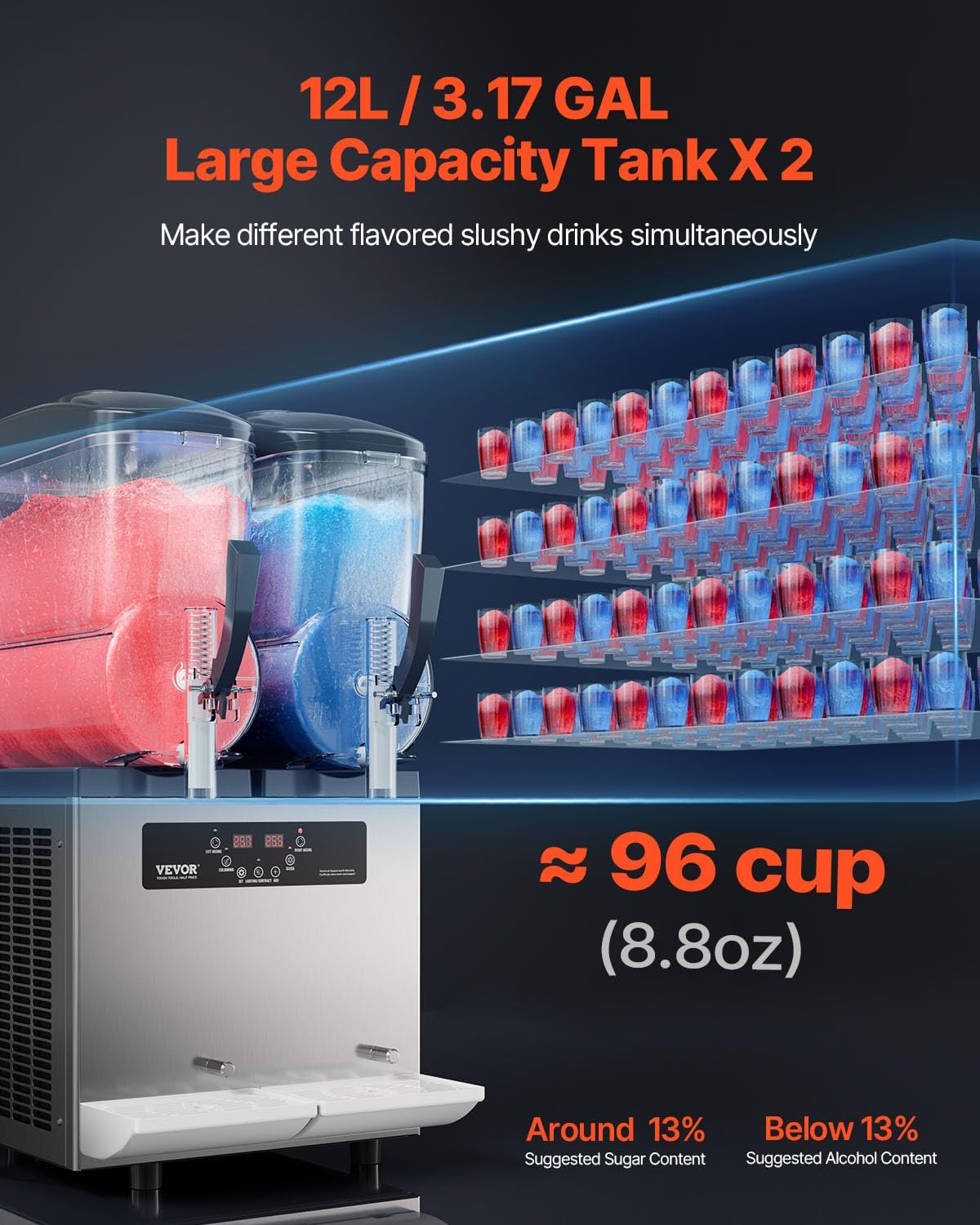

- Dva rezervoara od 12 litara: Transparent tanks for simultaneous preparation of two different beverages.
- Kontrolna tabla: User-friendly interface for mode selection, temperature control, and cleaning.
- Dispensing Faucets: Spring-loaded, anti-drip design for easy serving.
- Augers/Stirrers: Internal components that continuously mix and freeze the liquid.
- Posude za kapanje: Removable trays at the bottom to catch spills and facilitate cleaning.
- Ventilacijske rešetke: Three-sided design for efficient heat dissipation.
- gumene noge: Provide stability and prevent slipping during operation.
Figure 2: Main components of the Slushy Machine
Slika 3: Kontrolna ploča iznadview
4. Podešavanje
4.1 Raspakivanje i postavljanje
- Pažljivo izvadite mašinu iz ambalaže.
- Place the machine on a stable, level surface. Ensure there is sufficient space (at least 20 cm) around the machine for proper ventilation.
- Allow the unit to stand upright for at least 2 hours after unboxing before plugging it in. This allows the refrigerant to settle for optimal performance.
4.2 Početno čišćenje
Before first use, thoroughly clean all parts that will come into contact with beverages:
- Remove the tanks, augers, and dispensing faucets (refer to Section 6.2 for disassembly).
- Wash all removable parts with warm, soapy water. Rinse thoroughly and dry completely.
- Obrišite vanjski dio glavne jedinice oglasnim materijalomamp tkanina.
- Reassemble all parts, ensuring seals are correctly seated.
5. Operacija
5.1 Dodavanje sastojaka
- Ensure the machine is clean and all parts are correctly assembled.
- Otvorite poklopac rezervoara.
- Pour your prepared liquid mixture into the tank. Do not exceed the 'MAX' fill line. For slushy mode, fill only up to 1L to allow for expansion.
- Čvrsto zatvorite poklopac rezervoara.
Figure 4: Adding ingredients to the tank
5.2 Korišćenje kontrolne table
The control panel allows you to select different modes and adjust settings:
- Dugme za napajanje: Press to turn the machine on/off.
- Mixing Button: Activates/deactivates the stirring function in the tanks.
- Režim za hladne napitke: Sets the temperature for cold beverages (e.g., 3-5°C / 37.4-41°F).
- Režim bljuzgavice: Sets the temperature for frozen slush (e.g., -3 to -1°C / 26.6-30.2°F for non-alcoholic, -15 to -6°C / 5-21.2°F for alcoholic).
- Podešavanje temperature (+/-): Use to fine-tune the temperature for desired consistency.
- rasvjeta: Turns internal tank lighting on/off.
Press the desired mode button (Slush or Cold Drink). The machine will begin the cooling and mixing process. Monitor the temperature on the digital display.
5.3 Dispensing Drinks
Once the desired consistency is reached (typically 20-40 minutes for slush, depending on ingredients and ambient temperature):
- Place a cup under the dispensing faucet.
- Pull the dispensing handle down to release the beverage.
- Otpustite ručku da biste zaustavili doziranje.
Figure 5: Dispensing a frozen drink
5.4 Instrukcijski videozapisi
Video: VEVOR Slushie Machine Operation Guide. This video demonstrates the basic operation of the VEVOR Slushie Machine, including adding ingredients and dispensing drinks.
Video: VEVOR Commercial Slushy Machine 12L Frozen Drink Maker. This video provides a detailed overview of the 12L VEVOR Commercial Slushy Machine, including its features and usage.
6. Održavanje
6.1 Automatsko čišćenje
The machine features a one-button automatic cleaning function:
- Empty the tanks of any remaining beverage.
- Fill the tanks with clean water.
- Press the 'Clean' button on the control panel. The augers will rotate to clean the tanks.
- Drain the water through the dispensing faucets. Repeat if necessary.
6.2 Thorough Cleaning and Disassembly
For thorough cleaning, especially after prolonged use, disassemble the tanks and components:
- Isključite i isključite mašinu.
- Remove the dispensing faucets by unscrewing the retaining nut, then pulling out the handle, drain valve, and spring.
- Lift the bottom of the tank slightly and shake it left and right to detach it from the main unit. Carefully pull the tank forward to remove it.
- Take off the outer spiral, auger, sealing ring, and drain pan in turn.
- Wash all disassembled parts with warm, soapy water. Use a soft brush for hard-to-reach areas. Rinse thoroughly and dry completely.
- Clean the main unit's exterior with a damp tkanina.
- Before reassembly, apply food-grade lubricant (e.g., cooking oil or provided lubricant) to the sealing rings to ensure smooth operation and prevent leaks.
- Reassemble all components in reverse order, ensuring each part is securely in place.
Figure 6: Removable drip trays for easy cleaning
Figure 7: Anti-drip faucet design
Video: Operation of FOHERE Commercial Slushie Machine. This video demonstrates the operation and disassembly for cleaning of a similar commercial slushie machine.
Video: Commercial Slushy Machine. This video shows the setup and cleaning process for a commercial slushy machine.
7. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Mašina se ne uključuje | Nema struje, prekidač za napajanje isključen | Check power connection, ensure switch is on. |
| Liquid not freezing / Slush too thin | Insufficient sugar content, too much alcohol, incorrect temperature setting | Ensure sugar content is 13-25%. Reduce alcohol content if above 13%. Adjust temperature to a lower setting. |
| Stirrer making rubbing noise | Liquid too thin | Add 1-2 tablespoons of sugar, syrup, or honey per cup to thicken the mixture. |
| Ice block formation | Insufficient sugar content | Add more sugar or concentrate to the mix. |
| Error Code 'LLL' | Low voltage upozorenje | Provjerite radnu voltage. Ako je voltage is regular, contact customer support. |
| Leakage from faucet | Improperly seated seal, worn seal | Disassemble and reassemble faucet, ensuring seals are correctly seated. Replace worn seals if necessary. |
8. Specifikacije
| Feature | Detalj |
|---|---|
| Broj modela | XN240B |
| Dimenzije proizvoda | 38.98 x 23.7 x 19.69 inča |
| Težina artikla | 99.2 funte |
| Kapacitet rezervoara | 2 x 12L / 3.17 GAL |
| Temperaturni opseg | 5 ~ 50°F / -15 ~ 10°C |
| Glavni materijali | Stainless Steel + Food-grade PC + PP |

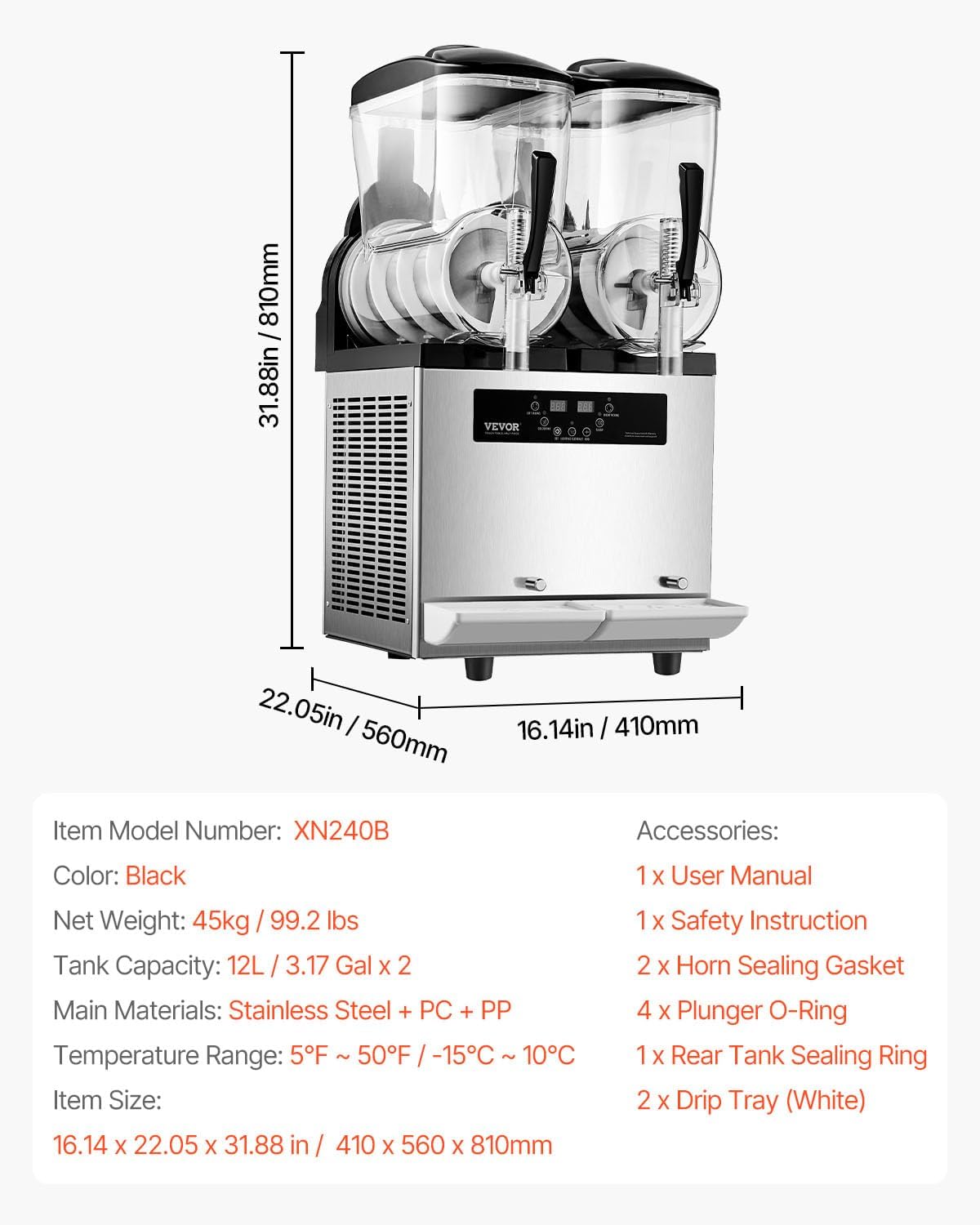

Slika 8: Dimenzije proizvoda i ključne karakteristike
9. Garancija i podrška
VEVOR is committed to providing quality products and excellent customer service. For warranty information, technical support, or any inquiries regarding your VEVOR Commercial Slushy Machine, please refer to the contact information provided in your product packaging or visit the official VEVOR website.
Molimo sačuvajte račun kao dokaz o kupovini za reklamacije u slučaju reklamacije.
