typecase Touch Keyboard Case with Trackpad User Manual

1. Uvod

Thank you for choosing the typecase Touch Keyboard Case with Trackpad. This manual provides detailed instructions for setting up, operating, and maintaining your new keyboard case. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

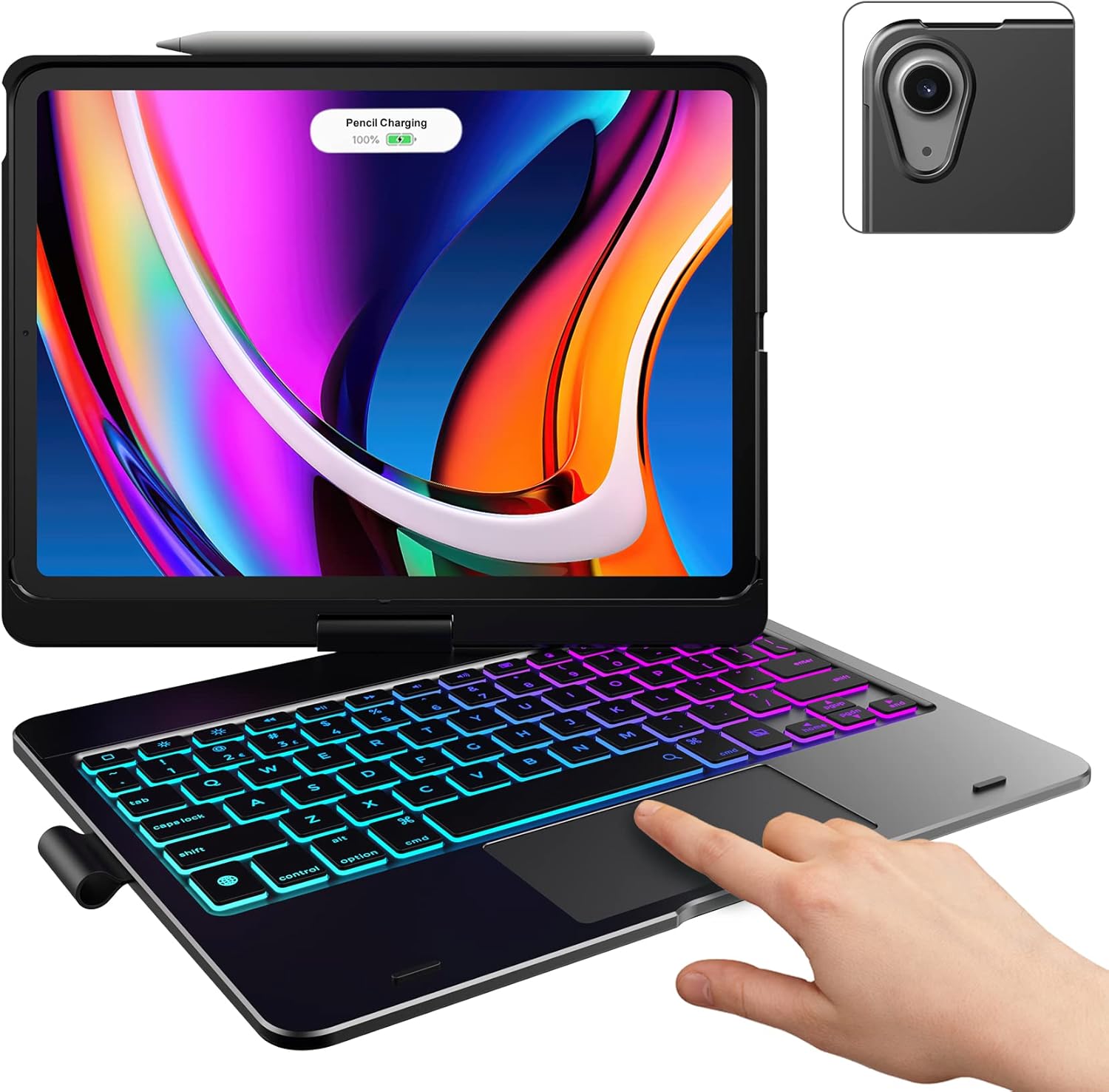

Image: The typecase Touch Keyboard Case with Trackpad, featuring an iPad Air securely placed in the case, demonstrating the illuminated keyboard and trackpad.

2. Podešavanje

2.1. Sadržaj paketa

• 1 x typecase Touch Keyboard Case for iPad Air 5th/4th Gen (10.9 inch) & Air 11 (M3 / 2025) (M2 / 2024)
• 1 x USB kabl za punjenje
• 1 x Korisnički priručnik (ovaj dokument)

2.2. Provjera kompatibilnosti

This keyboard case is specifically designed for the following iPad Air models:

• iPad Air 11-inčni (M3 2025): Modeli A3266, A3267, A3270
• iPad Air 11-inčni (M2 2024): Modeli A2902, A2903, A2904
• iPad Air 5th Gen (2022, 10.9"): Models A2588, A2589, A2591
• iPad Air 4th Gen (2020, 10.9"): Models A2072, A2316, A2324, A2325

To verify your iPad model, please check the model number (starting with "A") printed on the back of your iPad. This keyboard case is not compatible with other iPad models due to variations in size and thickness.

Image: A visual guide illustrating the compatible iPad Air models (M3 2025, M2 2024, 5th Gen, 4th Gen) and highlighting how to check the model number on the back of your iPad.

2.3. Instaliranje vašeg iPada

1. Gently align your iPad with the protective case frame.
2. Press the iPad firmly into the case until it is securely seated. Ensure all edges are properly enclosed by the case for full protection.

2.4. Punjenje tastature

Before first use, fully charge the keyboard. Connect the provided USB charging cable to the keyboard's charging port and to a USB power source (e.g., computer USB port, wall adapter). The charging indicator light will show the charging status.

2.5. Bluetooth uparivanje

1. Turn on the keyboard by sliding the power switch to the 'ON' position. The indicator light will flash.
2. Pritisnite Povežite se button on the keyboard (usually indicated by a Bluetooth symbol). The Bluetooth indicator light will start blinking rapidly, indicating it's in pairing mode.
3. Na vašem iPadu idite na Postavke > Bluetooth.
4. Ensure Bluetooth is turned 'ON'. Your iPad will search for available devices.
5. Select "typecase Keyboard" (or similar name) from the list of 'Other Devices'.
6. Follow any on-screen prompts to complete the pairing process. Once paired, the Bluetooth indicator light on the keyboard will turn solid or turn off, and your iPad will show the keyboard as 'Connected'.

3. Uputstvo za upotrebu

3.1. Funkcije tastature

The keyboard features a standard layout with 78 comfortably spaced keys and a dedicated row of iPadOS shortcut keys for enhanced productivity. These shortcuts allow quick access to common functions like Home, Search, Brightness, Media Controls, and Volume.

Slika: Detaljna view of the backlit keyboard, showing the laser-etched characters that allow the backlight to shine through, and the row of iPadOS shortcut keys.

3.2. Korištenje dodirne pločice

The integrated multi-touch trackpad allows for precise navigation and multi-gesture controls, similar to a laptop. Refer to your iPad's iPadOS settings for specific trackpad gestures and customization options.

Image: A hand interacting with the built-in trackpad of the keyboard case, illustrating its functionality.

3.3. Kontrola pozadinskog osvjetljenja

The keyboard features an adjustable 11-color RGB LED backlight with 3 levels of brightness. Use the dedicated backlight key (often a light bulb icon) to cycle through colors and adjust brightness. This feature enhances typing in dimly lit environments.

Image: A person using the keyboard case in a dimly lit room, demonstrating the vibrant 11-color backlight feature of the keys.

3.4. 7 Use Modes

The 360° rotatable hinge allows for versatile usage across 7 unique modes:

• Režim rada laptopa: Traditional laptop setup for typing and trackpad use.
• Način rada stalka: Fold the keyboard back to prop up the iPad for viewing.
• Način rada šatora: Invert the case to create a stable tent-like stand, ideal for watching videos.
• Način rada tableta: Fold the keyboard completely behind the iPad for a pure tablet experience. Keys are protected in this mode.
• Ugaoni način rada: A specific angle for comfortable viewing or drawing.
• Način dijeljenja: Position the iPad to easily share your screen with others.
• Protect Mode: Close the case to fully protect your iPad's screen and body.

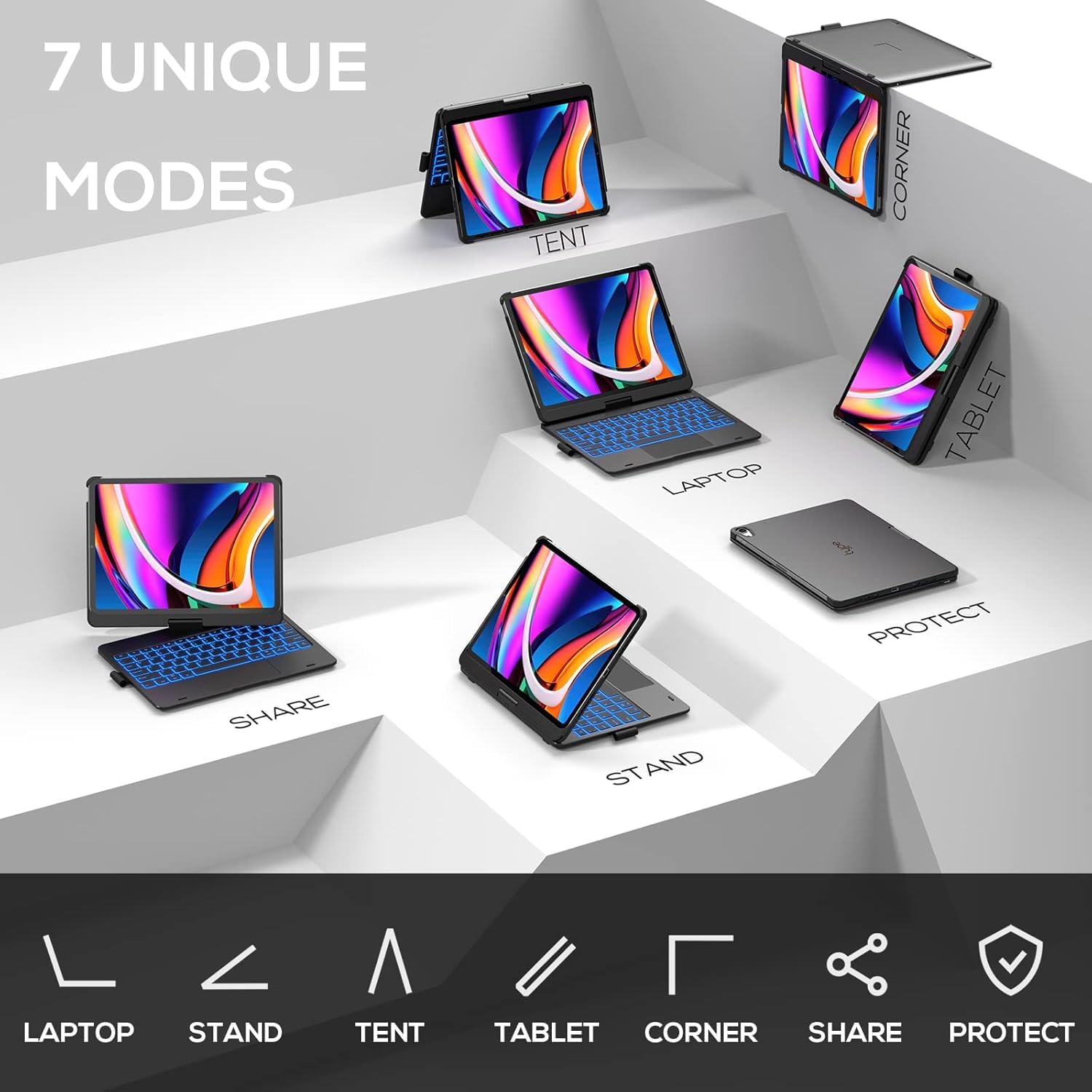

Image: A graphic representation of the seven distinct modes (Laptop, Stand, Tent, Tablet, Corner, Share, Protect) that the keyboard case can be configured into.

3.5. Apple Pencil Holder

The case includes an integrated holder for your Apple Pencil, ensuring it is secure and readily accessible when needed.

Image: An iPad secured in the keyboard case, with an Apple Pencil magnetically attached and charging on the top edge, demonstrating the convenient pencil holder.

3.6. Funkcija automatskog spavanja/buđenja

The keyboard case supports auto sleep/wake functionality. Opening the case will automatically wake your iPad, and closing it will put your iPad to sleep, helping to conserve battery life for both devices.

4. Održavanje

4.1. Čišćenje

• Obrišite vanjski dio kućišta mekom,amp krpom. Izbjegavajte jake hemikalije ili abrazivna sredstva za čišćenje.
• For the keyboard keys, use a soft, lint-free cloth. A can of compressed air can be used to remove debris from between the keys.

4.2. Skladištenje

When not in use for extended periods, store the keyboard case in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the case is closed to protect the iPad and keyboard.

4.3. Održavanje baterije

• Redovno punite tastaturu, čak i ako je ne koristite često, kako biste održali stanje baterije.
• Izbjegavajte često potpuno pražnjenje baterije.
• Ako se tastatura neće koristiti duže vrijeme, napunite je do oko 50% prije skladištenja.

5. Otkrivanje problema

5.1. Tastatura se ne povezuje/uparuje

• Provjerite je li tastatura uključena i potpuno napunjena.
• Provjerite je li Bluetooth omogućen na vašem iPadu.
• Pokušajte isključiti i ponovo uključiti tastaturu.
• Zaboravite uređaj u Bluetooth postavkama vašeg iPada i pokušajte ga ponovo upariti.
• Ponovo pokrenite iPad.

5.2. Tipke ne reagiraju

• Provjerite je li tastatura ispravno povezana putem Bluetootha.
• Provjerite da baterija tastature nije prazna.
• Restart the keyboard and your iPad.

5.3. Trackpad Issues

• Ensure the trackpad is enabled (if there's a dedicated toggle).
• Check iPadOS settings for trackpad sensitivity and gesture configurations.
• Očistite površinu dodirne pločice.

5.4. Pozadinsko osvetljenje ne radi

• Press the backlight key multiple times to cycle through settings.
• Provjerite da li je baterija tastature dovoljno napunjena.

6. Specifikacije

7. Garancija i podrška

7.1. Informacije o garanciji

• Replace Service: Eligible for replacement service within 1 year from the date of purchase.
• Povrat novca: Eligible for a refund within 30 days of purchase.

Molimo sačuvajte svoj dokaz o kupovini za zahtjeve u vezi s garancijom.

7.2. Korisnička podrška

For any questions, issues, or feedback regarding your typecase product, please contact our customer support team. We are committed to providing quick feedback and resolving any problems you may encounter.

For support, please visit the official typecase store on Amazon or refer to the contact information provided with your product packaging.
