1. Uvod
This manual provides detailed instructions for the installation, operation, and maintenance of your Puig 21960H New Generation Sport Windscreen. Designed specifically for the Honda CB650R Neo Sports Cafe 2024 and CB650R Neo Sports Cafe eClutch 2024, this windscreen enhances both the aesthetics and aerodynamic performance of your motorcycle. Please read these instructions carefully before proceeding with installation or use.
2. Sigurnosne informacije
- Uvijek nosite odgovarajuću zaštitnu opremu, uključujući zaštitu za oči, tokom instalacije.
- Prije početka bilo kakvog rada provjerite je li motocikl stabilan i sigurno poduprt.
- Do not overtighten fasteners, as this may damage components. Refer to your motorcycle's service manual for torque specifications if available.
- After installation, verify that all components are securely fastened and do not interfere with the motorcycle's controls or operation.
- This product is approved for public road use and includes a TÜV homologation certificate.
3. Sadržaj paketa
Prije početka instalacije provjerite da li su sve komponente prisutne:
- Puig New Generation Sport Windscreen (Model 21960H)
- Mounting Kit (specific to Honda CB650R Neo Sports Cafe 2024 models)
- Detailed Installation Instructions (this manual)
- TÜV Homologation Certificate
4. Postavljanje i instalacija
Installation is designed to be straightforward and typically takes less than 20 minutes. No specialized mechanical skills are required, but basic tools will be needed.
- Pripremite motocikl: Park your Honda CB650R on a level surface and ensure it is stable. Turn off the engine and remove the ignition key.
- Identifikujte tačke montaže: Locate the designated mounting points on your motorcycle, typically around the headlight or dashboard area. Refer to the specific diagrams provided in your physical mounting kit instructions for precise locations.
- Pričvrstite nosače za montažu: Secure the provided mounting brackets to the motorcycle using the hardware included in the kit. Ensure they are finger-tight initially.
- Position the Windscreen: Carefully align the Puig New Generation Sport Windscreen with the attached mounting brackets.
- Secure the Windscreen: Attach the windscreen to the brackets using the remaining hardware. Once aligned, gradually tighten all fasteners, ensuring even pressure. Do not overtighten.
- Konačna provjera: After installation, gently shake the windscreen to ensure it is firmly attached. Verify that it does not obstruct your view, steering, or any other controls.

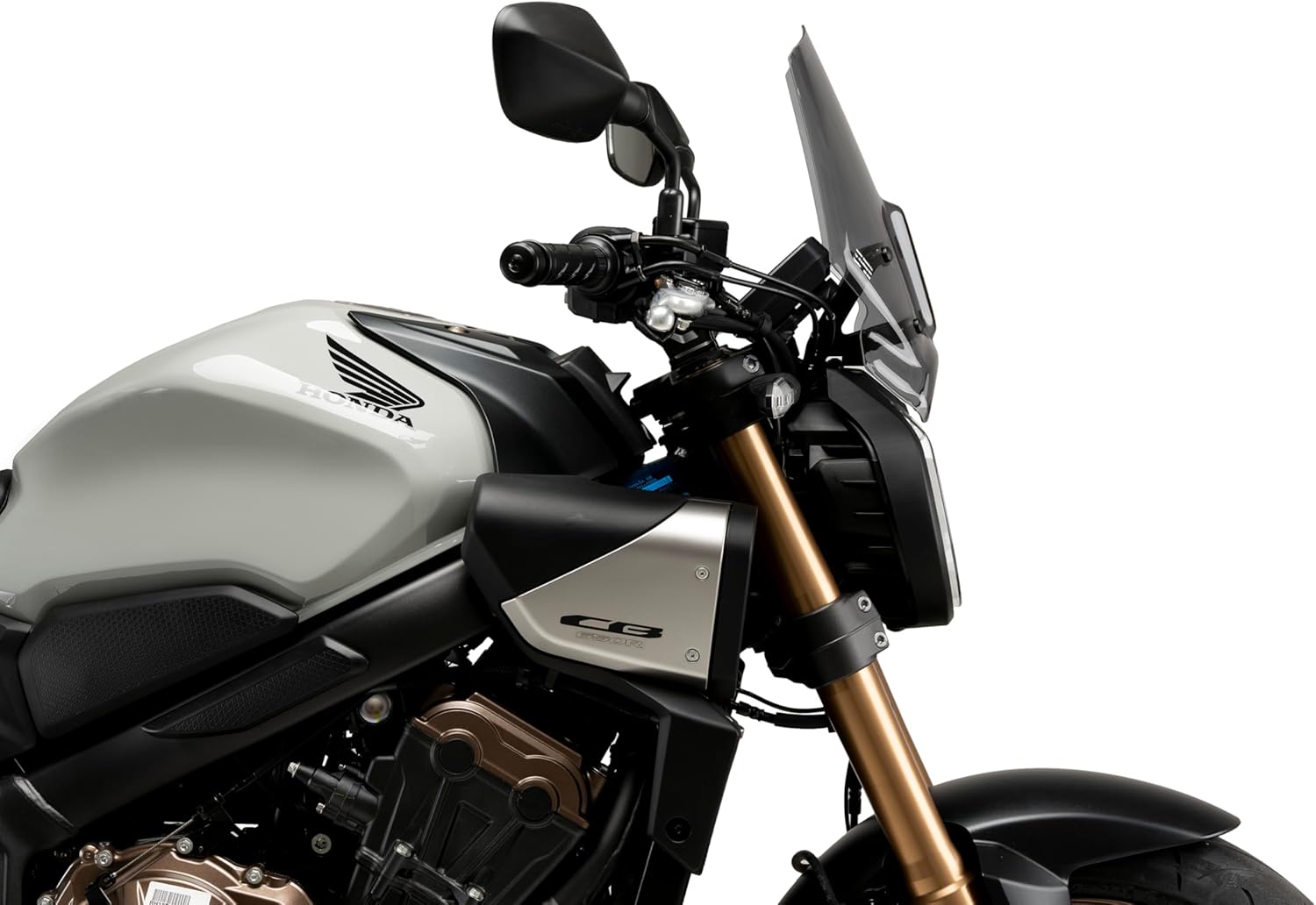

Slika 1: Bočna strana view of the Puig 21960H windscreen installed on a Honda CB650R Neo Sports Cafe 2024 motorcycle, showcasing its integration with the bike's design.
Image 2: Front-quarter view of the Puig 21960H windscreen on a Honda CB650R Neo Sports Cafe 2024 motorcycle, showing how it surrounds the upper part of the headlight.
5. Rad (Upotreba)
The Puig New Generation Sport Windscreen is designed to improve your riding experience by enhancing aerodynamics and providing protection.
- Aerodynamic Protection: The windscreen reduces wind pressure on the rider, contributing to a more comfortable and less fatiguing ride, especially during longer journeys or at higher speeds.
- Impact and Splash Protection: The high-quality 3mm methacrylate material offers protection against small impacts, debris, and splashes from the road.
- Vidljivost: The light smoke finish provides a stylish look while maintaining clear visibility through the windscreen.

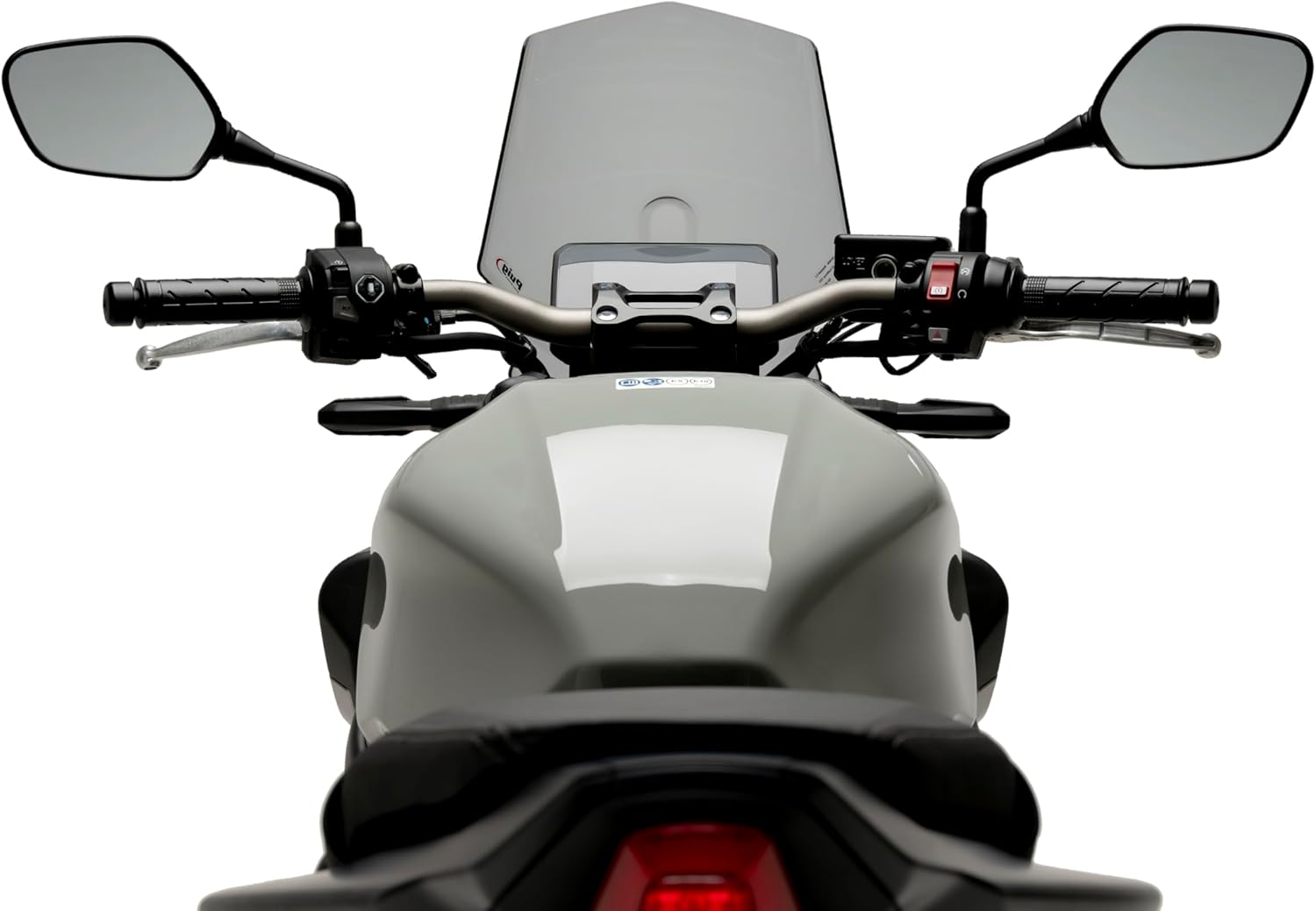

Slika 3: View from the rider's perspective, showing the Puig 21960H windscreen's position relative to the handlebars and dashboard.
6. Održavanje
To ensure the longevity and clarity of your Puig windscreen, follow these maintenance guidelines:
- čišćenje: Clean the windscreen regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the methacrylate.
- Sušenje: Dry the windscreen with a clean, soft microfiber cloth to prevent water spots and streaks.
- inspekcija: Periodically inspect the windscreen and its mounting hardware for any signs of damage, cracks, or loose fasteners. Tighten any loose bolts as necessary.
- Skladištenje: If storing the motorcycle for an extended period, consider covering the windscreen to protect it from dust and UV exposure.
7. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Windscreen feels loose after installation. | Pričvršćivači nisu dovoljno zategnuti. | Check and tighten all mounting bolts. Do not overtighten. |
| Prekomjerna buka ili udaranje vjetra. | Incorrect installation or rider height/position. | Ensure windscreen is installed correctly and securely. While the windscreen reduces pressure, some wind noise is normal. Adjust riding posture if possible. |
| Scratches or haziness on the windscreen. | Improper cleaning methods or abrasive materials used. | Clean only with mild soap and water and a soft cloth. Avoid harsh chemicals. Minor scratches may be polished with specialized plastic polish. |
8. Specifikacije
- Model: Puig New Generation Sport Windscreen (21960H)
- Kompatibilnost: Honda CB650R Neo Sports Cafe 2024, Honda CB650R Neo Sports Cafe eClutch 2024
- Materijal: High-quality 3mm Methacrylate
- Dimenzije (Š x V): 348 x 290 mm (approximately 13.7 x 11.4 inches)
- Height above dashboard: 175 mm (otprilike 6.9 inča)
- Boja: Light Smoke (Ahumado)
- Težina artikla: 890 g (približno 1.96 funti)
- Vrijeme instalacije: Manje od 20 minuta
- Homologacija: TÜV certified, approved for public road use
- Proizvođač: Motoplastic, SA
- Porijeklo: Designed and manufactured in Barcelona, Spain
Image 4: Key features of Puig products, including OEM compatibility, product testing, 60 years of experience, and design/manufacturing in Barcelona.
9. Garancija i podrška
Puig products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your product or visit the official Puig website. For technical support or inquiries regarding your Puig 21960H windscreen, please contact Puig customer service through their official channels.
Službeno Webstranica: www.puig.tv
Prodavnica robne marke: Puig Amazon Store
