Thank you for choosing the Fame SP-5 Stage Piano. This manual provides essential information for the safe and efficient use of your instrument. Please read it thoroughly before operating the device and keep it for future reference.
The Fame SP-5 is a versatile stage piano featuring a hammer-action keyboard, designed for musicians requiring quality sound and performance in various settings. It offers a wide range of sounds, accompaniment styles, and recording capabilities.
Sigurnosna uputstva
- Napajanje: Koristite samo navedeni adapter za napajanje. Osigurajte jačinu zvukatage odgovara vašem lokalnom izvoru napajanja.
- Voda i vlaga: Do not expose the instrument to rain, moisture, or excessive humidity. Avoid placing liquid containers on the piano.
- ventilacija: Osigurajte adekvatnu ventilaciju oko instrumenta. Ne blokirajte ventilacijske otvore.
- plasman: Place the instrument on a stable, level surface. Avoid direct sunlight, heat sources, or extreme temperatures.
- čišćenje: Isključite napajanje prije čišćenja. Koristite meku, suhu krpu. Ne koristite tekuća sredstva za čišćenje ili rastvarače.
- servisiranje: Ne pokušavajte sami servisirati instrument. Za sve servisne radove obratite se kvalifikovanom osoblju.
Setup
1. Raspakivanje
Carefully remove the Fame SP-5 from its packaging. Retain all packaging materials for potential future transport or storage. Verify that all accessories, including the power adapter and music rest, are present.
2. Connecting the Music Rest
Insert the included music rest into the designated slots on the top panel of the piano. Ensure it is securely seated.
Slika 1: Fame SP-5 Stage Piano with the music rest installed. This image shows the full keyboard, control panel, and the metal music rest in position.
3. Priključci na stražnjoj ploči
The rear panel of the Fame SP-5 provides various input and output options. Refer to the image below for connection points.
Figure 2: Rear panel of the Fame SP-5, showing various ports including USB, MIDI In/Out, Pedal inputs, Line Out (L/R), Aux In, and the 12V DC power input.
- Snaga (12V DC): Connect the supplied power adapter to the 12V DC input jack and then to a suitable power outlet.
- Priključci za pedale:
- UNIT PEDAL: For connecting a multi-pedal unit (if applicable).
- PEDAL 1 (Sustain): For connecting a sustain pedal.
- PEDAL 2 (Expression): For connecting an expression pedal.
- Audio Output (LINE OUT L/R): Connect these jacks to an amppojačavač, mikser ili aktivne zvučnike koristeći standardne 1/4-inčne TS kablove.
- Audio ulaz (AUX IN): Connect an external audio player (e.g., smartphone, MP3 player) to this jack using a stereo 1/8-inch (3.5mm) cable to play along with your favorite music.
- MIDI (IN/OUT): Use standard MIDI cables to connect to other MIDI devices.
- USB (TO DEVICE/TO HOST):
- TO DEVICE: Za povezivanje USB fleš diska za spremanje/učitavanje podataka.
- TO HOST: For connecting the piano to a computer for MIDI communication.
Uputstvo za upotrebu
1. Uključivanje/isključivanje
Pritisnite POWER button (usually located near the volume knob) to turn the instrument on or off. The display will illuminate upon power-up.
2. Kontrola jačine zvuka
Podesite ukupnu jačinu zvuka pomoću VOLUME knob. Start with a low volume and gradually increase it to a comfortable listening level.
Figure 3: Left-center control panel showing the Volume knob, Power button, and various Style/Sound selection buttons.
3. Odabir zvuka
The Fame SP-5 offers a variety of instrument sounds. Use the ZVUK button and navigation controls to browse and select different tones such as Piano, Organ, Guitar, Strings, Brass, etc.
Figure 4: Right-center control panel, highlighting buttons for sound categories (Piano, Organ, Guitar, Strings, Brass, Alto Sax, Lead) and function buttons (Function, Mixer, Touch, Lesson).
4. Style Selection (Accompaniment)
To use the automatic accompaniment feature, press the STIL button. Use the navigation buttons to select from various styles like Sun.Beat, Rock 1, Ballad 1, Waltz, etc. The display will show the currently selected style.
5. Navigacija ekrana
The central display provides visual feedback on selected sounds, styles, settings, and song information. Use the MENU, ENTER, IZLAZ, and arrow buttons to navigate through menus and adjust parameters.

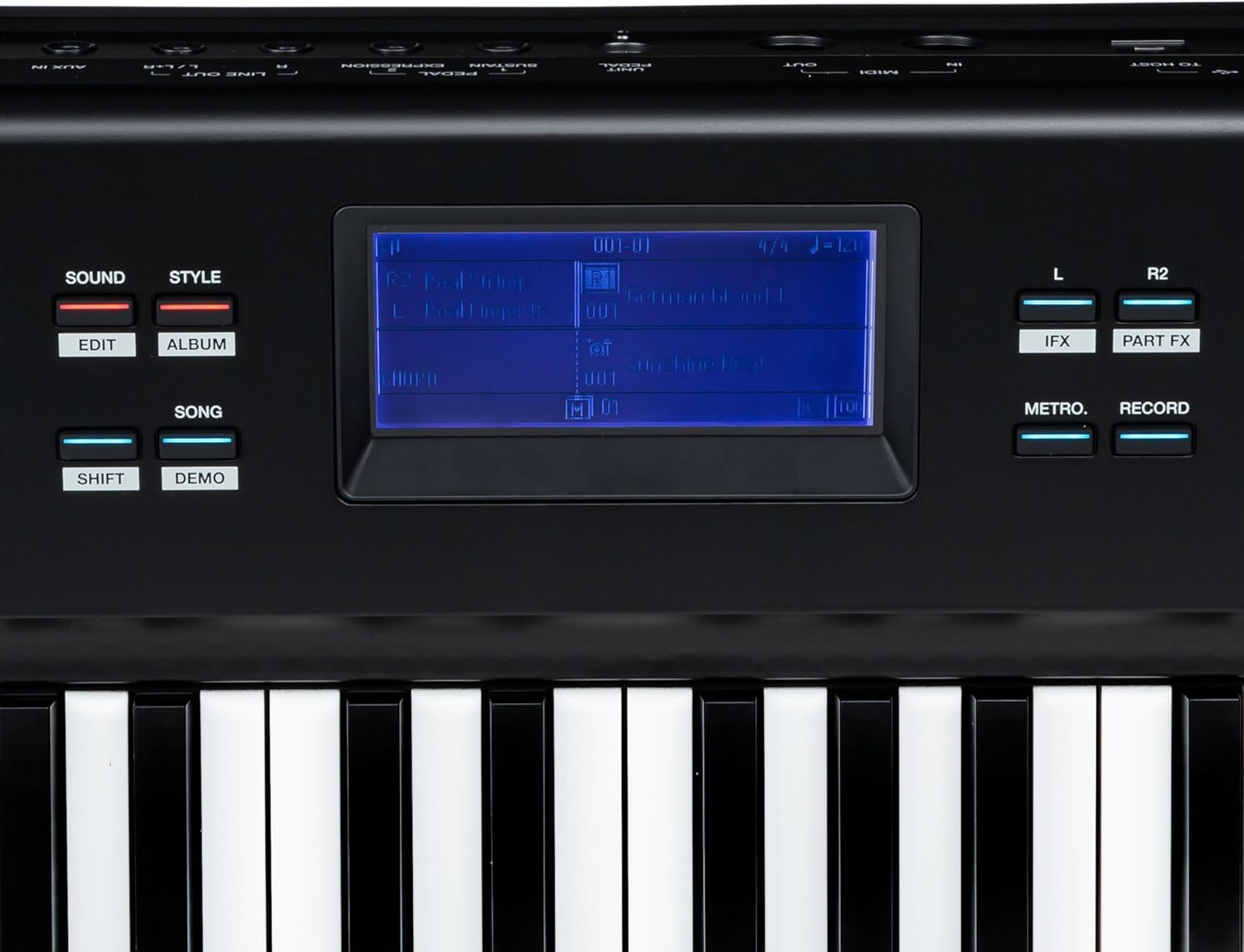

Figure 5: Central display area showing the screen with current settings, along with Metro, Record, IFX, and Part FX buttons.
6. Ključne funkcije
- FUNKCIJA: Accesses advanced settings and parameters.
- MIKSER: Adjusts the volume balance between different parts (e.g., main sound, accompaniment).
- DODIR: Adjusts the touch sensitivity of the keyboard.
- LESSON: Accesses built-in lesson functions.
- PRENOSITI: Changes the pitch of the entire keyboard in semitone steps.
- OKTAVA: Shifts the keyboard's pitch in octave steps.
- METRO (Metronome): Activates the built-in metronome for practice.
- SNIMAJTE: Pokreće snimanje vašeg nastupa.
- M1-M6 (Memory): Store and recall your favorite settings (sounds, styles, tempos). Use STORE to save and the respective M button to recall.
- ODRŽI: Toggles the sustain effect on/off (if no pedal is connected or for continuous sustain).
Održavanje
1. Čišćenje
Regularly wipe the instrument with a soft, dry, lint-free cloth. For stubborn dirt, slightly dampNamočite krpu vodom i blagim deterdžentom, a zatim odmah obrišite suhom krpom. Izbjegavajte abrazivna sredstva za čišćenje, voskove ili rastvarače.
2. Skladištenje
When not in use for extended periods, store the Fame SP-5 in a dry, dust-free environment, away from extreme temperatures and direct sunlight. If possible, use a dust cover to protect the keys and control panel.
3. Transport
When transporting the instrument, use appropriate protective cases or the original packaging to prevent damage. Disconnect all cables and remove the music rest before moving.
Rješavanje problema
- Nema napajanja:
- Ensure the power adapter is securely connected to the instrument and a working power outlet.
- Provjerite da li je utičnica funkcionalna tako što ćete priključiti drugi uređaj.
- Nema zvuka:
- Provjerite VOLUME dugme i uvjerite se da je okrenuto prema gore.
- If using external speakers or headphones, ensure they are properly connected and their volume is adjusted.
- Verify that the correct sound is selected and not set to a silent patch.
- Tipke ne reagiraju:
- Ponovo pokrenite instrument.
- Check if any specific mode (e.g., Lesson mode) is active that might restrict normal play.
- izobličeni zvuk:
- Smanjite VOLUME level on the piano and any connected audio equipment.
- Check all audio cables for proper connection and damage.
If you encounter issues not covered here, please consult the support section or contact customer service.
Specifikacije
| Feature | Specifikacija |
|---|---|
| Model | Slava SP-5 |
| Tip tastature | Hammer Action |
| Dimenzije (D x Š x V) | 146 x 38 x 21.6 cm (57.5 x 15 x 8.5 inča) |
| Težina | 16.72 kg (36.86 lbs) |
| Napajanje | 12V DC (preko priloženog adaptera) |
| Povezivanje | USB (To Device, To Host), MIDI In/Out, Pedal (Sustain, Expression), Line Out (L/R), Aux In |
Informacije o garanciji
The Fame SP-5 Stage Piano comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
Podrška
For technical assistance, spare parts, or further inquiries, please contact your authorized Fame dealer or visit the official Fame website. When contacting support, please have your product model (SP-5) and serial number ready.
Službeno Webstranica: www.fame-music.com (Nprample link, please verify actual support contact information)
