1. Važna sigurnosna uputstva
Please read this manual thoroughly before installation, operation, or maintenance of the Mxmoonant 11KW Pool Heater. Failure to follow these instructions may result in electric shock, fire, property damage, or serious injury.
- električna sigurnost: This unit operates on 220V. Installation requires self-wiring by a qualified electrician. If used with 110V, it requires one ground wire and two live wires. Ensure all electrical connections comply with local codes and regulations.
- Isključite napajanje: Always disconnect all power to the unit before performing any maintenance, inspection, or service.
- Circulation Pump Requirement: The pool heater requires connection to a circulation pump with a minimum power of 1HP (0.735KW) for proper operation and water flow. Do not use submersible or booster pumps.
- Instalaciono okruženje: Suitable for both indoor and outdoor installation. Ensure adequate ventilation and clearance around the unit.
- Opstrukcija: Do not obstruct the access panel or any vents on the unit.
- Kvalitet vode: Ensure proper water chemistry is maintained in the pool or spa to prevent damage to the heating element and other components.
2. Proizvod je gotovview
The Mxmoonant 11KW Pool Heater is designed to efficiently heat your swimming pool or spa, providing comfortable water temperatures. It features an automatic circulation heating system, a precise touchscreen display for temperature control, and a durable 316 stainless steel heating element.
Slika 2.1: Prednja strana view of the Mxmoonant 11KW Pool Heater, showing the digital display, power switch, and a label detailing key specifications such as power, voltage, current, and pipe size.
3. Specifikacije
| Feature | Specifikacija |
|---|---|
| Snaga | 11KW |
| Voltage | 220V |
| Current | 50A |
| Electrical Wire | 3x10mm²/5x4mm² |
| Priključak na cijev | 1.5 inch / DN40 |
| Circulation Pump Requirement | ≥ 1HP (0.735KW) |
| Faza | 1 |
| Breaker | 63A |
| Dimenzije (D x Š x V) | 48 x 10 x 35 cm |
| Težina | 8.96 kg |
4. Instalacija
4.1 Električni priključak
Electrical installation must be performed by a qualified electrician in accordance with all national and local electrical codes. The unit is designed for 220V operation. For 110V systems, specific wiring is required (one ground wire and two live wires).
- Ensure the main power supply is disconnected before starting any wiring.
- Connect the electrical wires to the terminal block inside the heater's access panel as shown in the diagram.
- Ensure secure connections for GND (Ground), L1 (Live 1), and L2 (Live 2).
- Install a 63A circuit breaker for the heater.
Figure 4.1: Detailed diagram showing the internal electrical circuit connections for the pool heater, indicating terminals for GND, L1, and L2. It also highlights the requirement for self-wiring and specific wiring for 110V systems.
4.2 Vodovodni priključak
The heater must be connected in-line with your pool's filtration system, after the filter and before any chemical feeders. A circulation pump is essential for water flow through the heater.
- Ensure your circulation pump has a power rating of at least 1HP (0.735KW). Submersible or booster pumps are not suitable.
- Connect the inlet and outlet pipes of the heater to your pool's plumbing system using 1.5-inch (DN40) piping.
- Ensure all plumbing connections are watertight to prevent leaks.

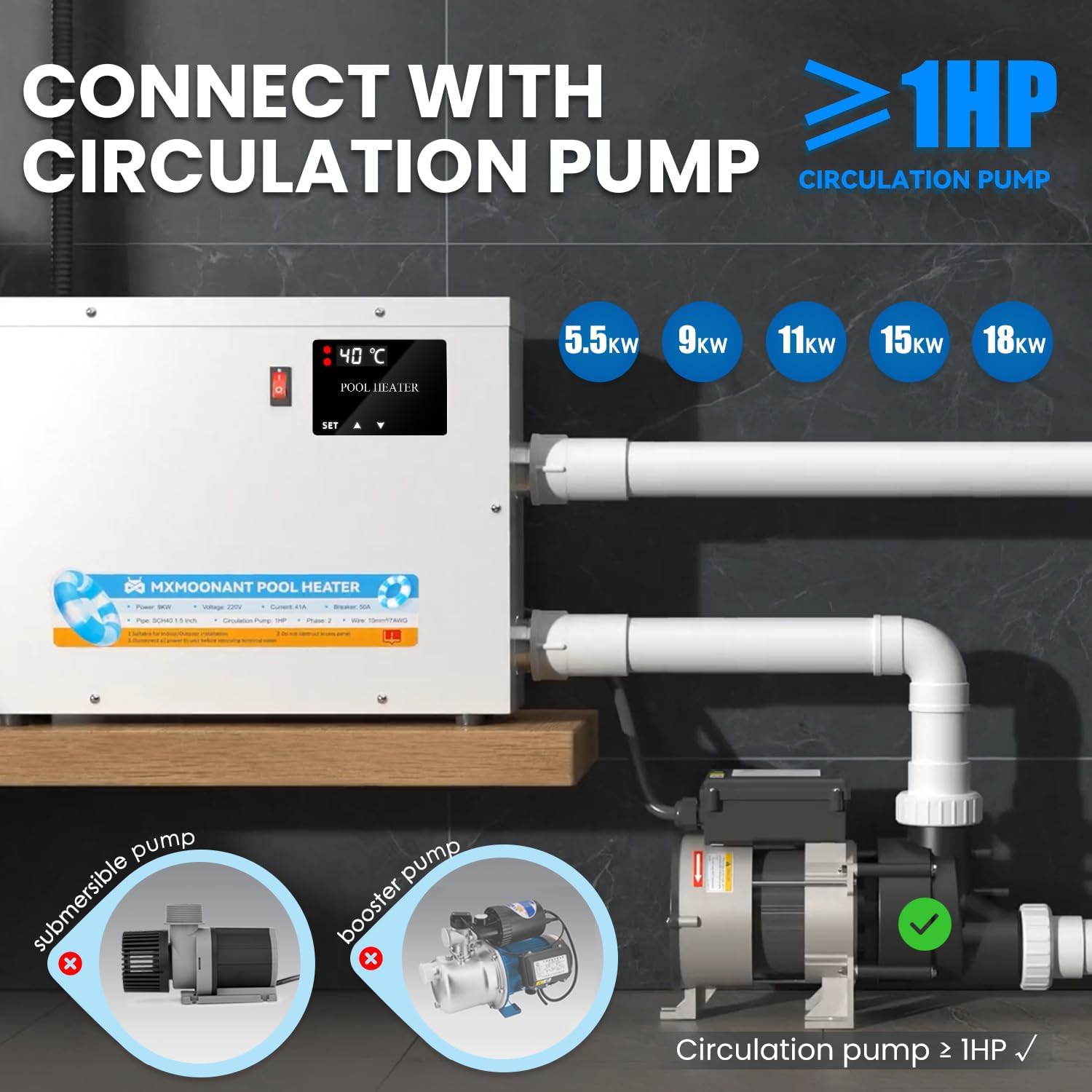

Figure 4.2: Illustration demonstrating the correct connection of the pool heater to a circulation pump. It specifies that the pump must be at least 1HP and differentiates suitable circulation pumps from unsuitable submersible or booster pumps.
5. Operacija
5.1 Power On and Display
Once installation is complete and verified, turn on the main power supply to the heater. The digital touchscreen display will illuminate, showing the current water temperature.
Figure 5.1: Close-up of the pool heater's touchscreen display, illustrating how to set the desired temperature using 'SET' and arrow buttons. It also shows the real-time temperature display and the option to switch between Celsius and Fahrenheit.
5.2 Postavljanje temperature
- Pritisnite SET button to enter temperature setting mode.
- Koristite ▲ (gore) i ▼ (Down) arrow buttons to adjust the desired water temperature. The adjustable range is typically 25°C to 50°C (77°F to 122°F).
- Pritisnite SET again to confirm your selection, or wait a few seconds for the setting to automatically save.
- The unit can switch between Celsius (°C) and Fahrenheit (°F) display modes. Refer to the display for the current unit.
Preporučene temperature:
- For Pools: 25-30°C (78-86°F)
- For Hot Tubs/Spas: 40°C (104°F)
5.3 Automatic Circulation Heating
The Mxmoonant Pool Heater features an intelligent automatic circulation heating system. Once the desired temperature is set, the heater will activate when the water temperature falls below the set point and deactivate when it reaches or exceeds the set point. This ensures consistent water temperature with optimal energy usage.

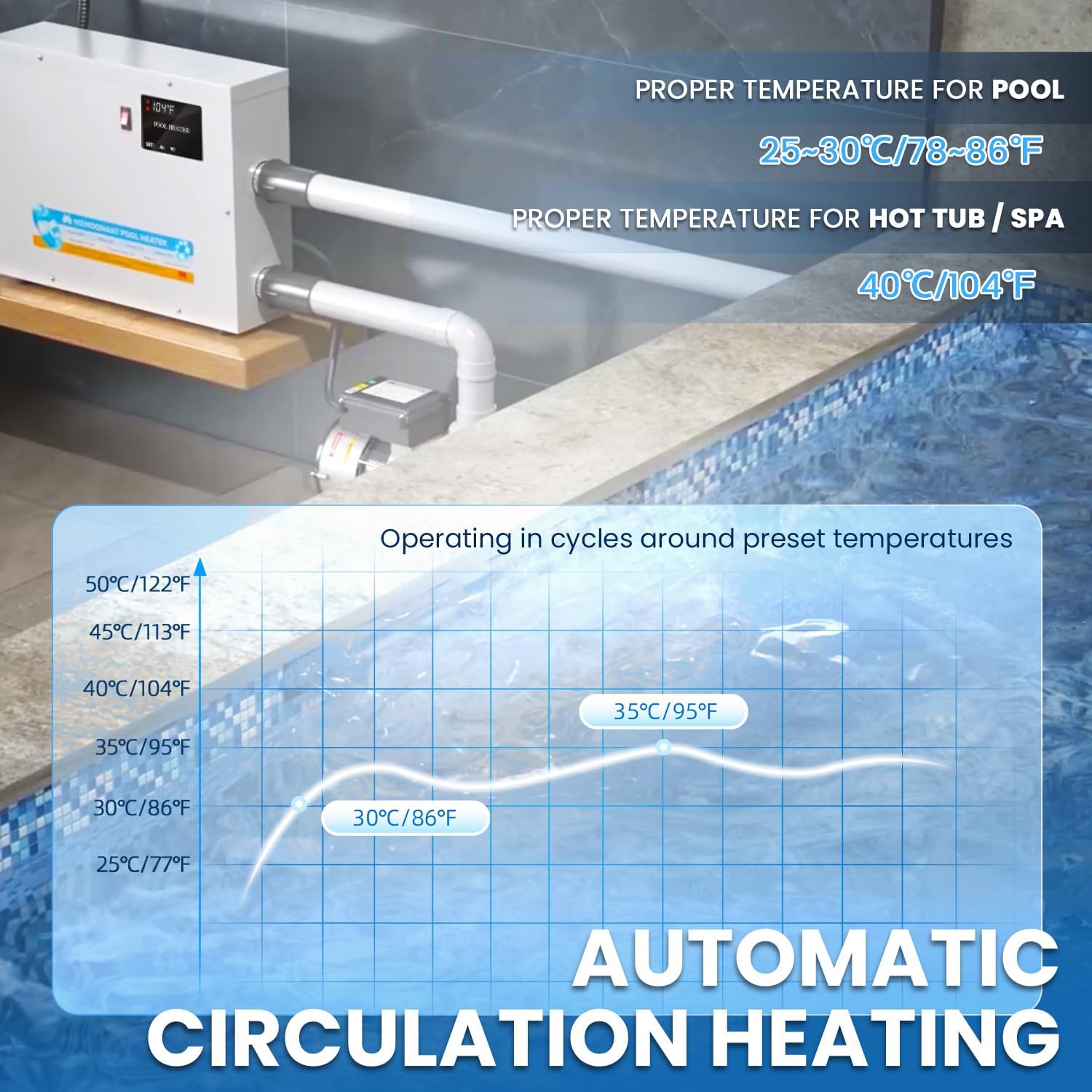

Figure 5.2: A graph demonstrating the automatic circulation heating process, showing how the water temperature fluctuates around the preset temperature (e.g., 30°C/86°F or 35°C/95°F) as the heater cycles on and off to maintain the desired warmth.
Slika 5.3: Interni view of the heater, highlighting the upgraded 316 stainless steel heating element. This image illustrates the water flow path around the heating element, showing how water is heated as it passes through the unit.
6. Održavanje
Regular maintenance ensures the longevity and efficient operation of your pool heater.
- Isključivanje struje: Always turn off and disconnect the power supply to the heater before performing any maintenance or cleaning.
- Pregledajte veze: Periodically check all electrical and plumbing connections for tightness and signs of wear or corrosion.
- Čista spoljašnjost: Obrišite vanjski dio grijača mekom,amp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje ili rastvarače.
- Hemija vode: Maintain proper pool/spa water chemistry as recommended by your pool professional to prevent scale buildup and corrosion inside the heater.
- Zimljenje: If the heater will be exposed to freezing temperatures, ensure it is properly drained and winterized according to local guidelines to prevent freeze damage.
7. Otkrivanje problema
If you encounter issues with your Mxmoonant Pool Heater, refer to the following common troubleshooting steps. For problems not listed here, or if issues persist, contact customer support.
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Grijač se ne uključuje. | No power supply; tripped breaker; faulty wiring. | Check main power, reset circuit breaker, verify electrical connections. |
| Voda se ne zagrijava do željene temperature. | Incorrect temperature setting; insufficient circulation; low water flow; heating element issue. | Verify temperature setting, ensure circulation pump is operating correctly (>=1HP), check for blockages in plumbing. |
| Šifra greške na ekranu. | Sensor malfunction; internal fault. | Note the error code and consult the manufacturer for specific guidance. Power cycle the unit. |
| Curenje vode. | Loose plumbing connections; damaged seals or pipes. | Inspect all plumbing connections and tighten as necessary. Check for visible damage to pipes or seals. |
8. Garancija i podrška
For warranty information, technical support, or service inquiries, please contact Mxmoonant customer service. Keep your purchase receipt and product model number (11KW) handy when contacting support.
Note: Specific warranty terms and conditions may vary. Refer to your purchase documentation or the official Mxmoonant webstranicu za najnovije detalje o garanciji.
