iJoy Squishmallows Bluetooth slušalice SQ60005 Korisnički priručnik

1. Uvod

This manual provides instructions for the iJoy Squishmallows Bluetooth Earbuds, Model SQ60005. These wireless earbuds feature a built-in microphone, a charging case, and offer up to 30 hours of playtime. Please read this manual thoroughly before use to ensure proper operation and to maximize your listening experience.

Image 1.1: The iJoy Squishmallows Bluetooth Earbuds and their charging case.

2. Šta se nalazi u kutiji

Provjerite da li su sve stavke prisutne u paketu:

• iJoy Squishmallows Bluetooth Earbuds (Left and Right)
• Futrola za bežično punjenje
• USB kabel za punjenje (tip-C)
• Dodatni gelovi za uši (različite veličine)
• Korisnički priručnik (ovaj dokument)

3. Podešavanje

3.1. Punjenje slušalica i kutijice

Before first use, fully charge the earbuds and the charging case. The charging case provides additional battery life for the earbuds.

• Connect the provided USB Type-C cable to the charging port on the case and to a compatible USB power source (e.g., computer, wall adapter).
• Ensure the earbuds are placed correctly inside the charging case.
• The LED indicator on the case will show charging status. Refer to the LED indicator section for details.
• Važno: Use only standard chargers. Avoid fast chargers, as they may damage the device.

The charging case is also compatible with wireless charging pads.

Image 3.1: Earbuds in their charging case, indicating up to 30 hours of total playtime.

Image 3.2: The charging case is compatible with wireless charging pads.

3.2. Pairing and Syncing

Slijedite ove korake da povežete slušalice sa Bluetooth uređajem:

• Open the charging case and remove both earbuds. The LED lights on both earbuds will flash red and blue, indicating they are in pairing mode.
• On your device (smartphone, tablet, etc.), navigate to the Bluetooth settings and ensure Bluetooth is enabled.
• Traži available devices. Select "Squishmallows Earbuds" from the list.
• Once connected, the earbuds will indicate a successful pairing (e.g., LED lights will stop flashing or turn solid blue).

Image 3.3: Visual guide for pairing and syncing the earbuds with your device.

Image 3.4: The earbuds utilize Bluetooth 5.0 for easy and stable connection.

4. Uputstvo za upotrebu

4.1. Dodirnite Kontrole

Slušalice imaju kontrole osjetljive na dodir za različite funkcije:

• Lijeva slušalica:
  • Pojedinačna štampa: Reprodukuj / Pauziraj audio
  • Dvostruki pritisak: Prethodna pjesma
  • Zadržite: Utišavanje zvuka
• Desna slušalica:
  • Pojedinačna štampa: Reprodukuj / Pauziraj audio
  • Dvostruki pritisak: Sljedeća pjesma
  • Zadržite: Volume Up
• Odgovaranje / završavanje poziva:
  • Single Press (either earbud): Odgovori / Prekini poziv
  • Hold (either earbud): Odbiti poziv

Image 4.1: Detailed diagram of touch control functions for each earbud.

4.2. Nošenje slušalica

For optimal sound quality and comfort, select the ear gels that best fit your ears. The package includes multiple sizes.

• Pažljivo umetnite svaku slušalicu u ušni kanal.
• Lagano rotirajte slušalicu dok ne budete sigurni i udobni.
• Ensure a snug fit to achieve the best sound isolation and bass response.

Image 4.2: The earbuds come with three ear tip sizes for a perfect fit.

Image 4.3: Proper placement of the earbud for comfort and sound quality.

5. Održavanje

5.1. Čišćenje

Redovno čišćenje pomaže u održavanju performansi i higijene:

• Nježno obrišite slušalice i kućište za punjenje mekom, suhom krpom koja ne ostavlja dlačice.
• Uklonite gelove za uši i operite ih blagim sapunom i vodom, a zatim ih dobro osušite prije ponovnog pričvršćivanja.
• Ne koristite abrazivna sredstva za čišćenje, alkohol ili hemijske rastvarače.

5.2. Skladištenje

Kada se ne koriste, slušalice čuvajte u njihovoj kutijici za punjenje kako biste ih zaštitili i održali napunjenima.

5.3. Otpornost na vodu

The earbuds are rated IPX4 water resistant, meaning they are protected against splashing water from any direction. They are not designed for submersion in water.

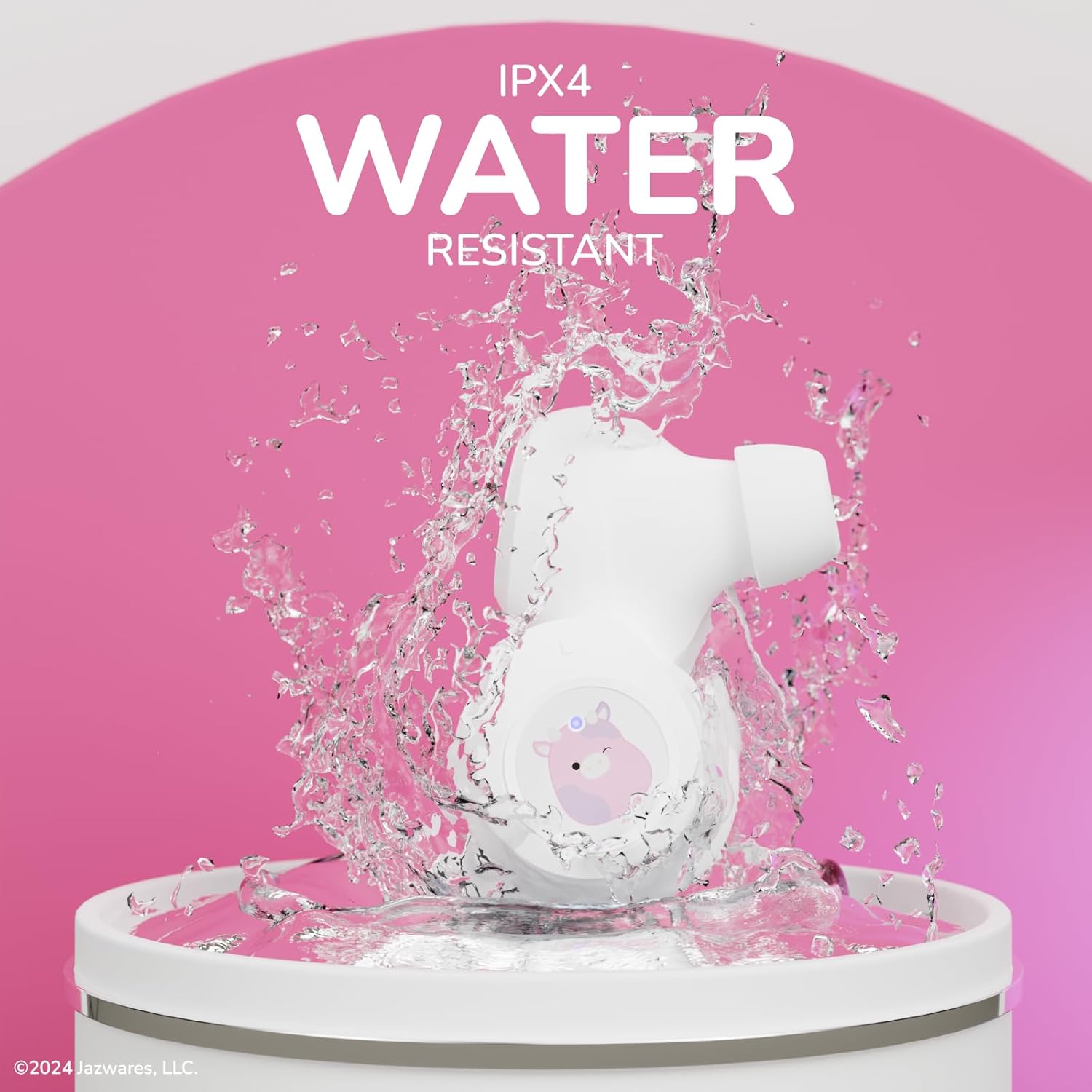

Image 5.1: The earbuds feature IPX4 water resistance, protecting them from splashes.

6. Otkrivanje problema

Ako imate problema sa slušalicama, pogledajte sljedeća uobičajena rješenja:

• Slušalice se ne uparuju: Ensure both earbuds are out of the case and flashing red/blue. Turn off and on your device's Bluetooth. Forget the device in your Bluetooth settings and try pairing again.
• Samo jedna slušalica radi: Place both earbuds back in the charging case, close the lid, wait a few seconds, then remove them simultaneously. This often re-syncs them.
• Nema zvuka: Provjerite nivo jačine zvuka i na uređaju i na slušalicama. Uvjerite se da su slušalice pravilno povezane s uređajem.
• Problemi s punjenjem: Verify the USB cable is securely connected and the power source is active. Ensure earbuds are correctly seated in the charging case. Avoid using fast chargers.
• Loš kvalitet zvuka: Ensure ear gels provide a snug fit. Clean any debris from the earbud nozzles. Move closer to your connected device to avoid interference.

7. Specifikacije

Image 7.1: The earbuds offer long-range connectivity up to 33 feet.

8. Sigurnosne informacije

• Zaštita sluha: Izbjegavajte slušanje na visokim nivoima glasnoće tokom dužeg perioda kako biste spriječili oštećenje sluha.
• Sigurnost u vožnji: Ne koristite slušalice tokom vožnje automobila ili bicikla, gdje nemogućnost slušanja ambijentalnih zvukova može predstavljati opasnost.
• Opasnost od gušenja: This product contains small parts and is not suitable for young children.
• Punjenje: Use only the provided USB cable and a standard 5V charger. Do not use fast chargers.
• Održavanje baterije: Do not disassemble, crush, or expose the product to extreme temperatures or fire.

9. Garancija i podrška

For warranty information and customer support, please refer to the documentation included with your product or contact the manufacturer, Quest USA Corp. Keep your proof of purchase for warranty claims.
