Uvod
Thank you for choosing the OMOTON Wireless Bluetooth Keyboard. This ultra-slim keyboard is designed for seamless compatibility with various Mac devices, offering a stable and efficient typing experience. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your device.
OMOTON Wireless Keyboard compatible with various Mac devices including iMac, Mac mini, and MacBook Pro/Air. System requirement: Mac OS X 10.10 or above.
Setup
1. Instalacija baterije
The OMOTON Wireless Bluetooth Keyboard requires two AAA batteries (not included). Follow these steps to install them:
- Pronađite odjeljak za baterije na stražnjoj strani tastature.
- Otvorite poklopac baterije.
- Umetnite dvije AAA baterije, pazeći na ispravan polaritet (+/-).
- Čvrsto zatvorite poklopac baterije.

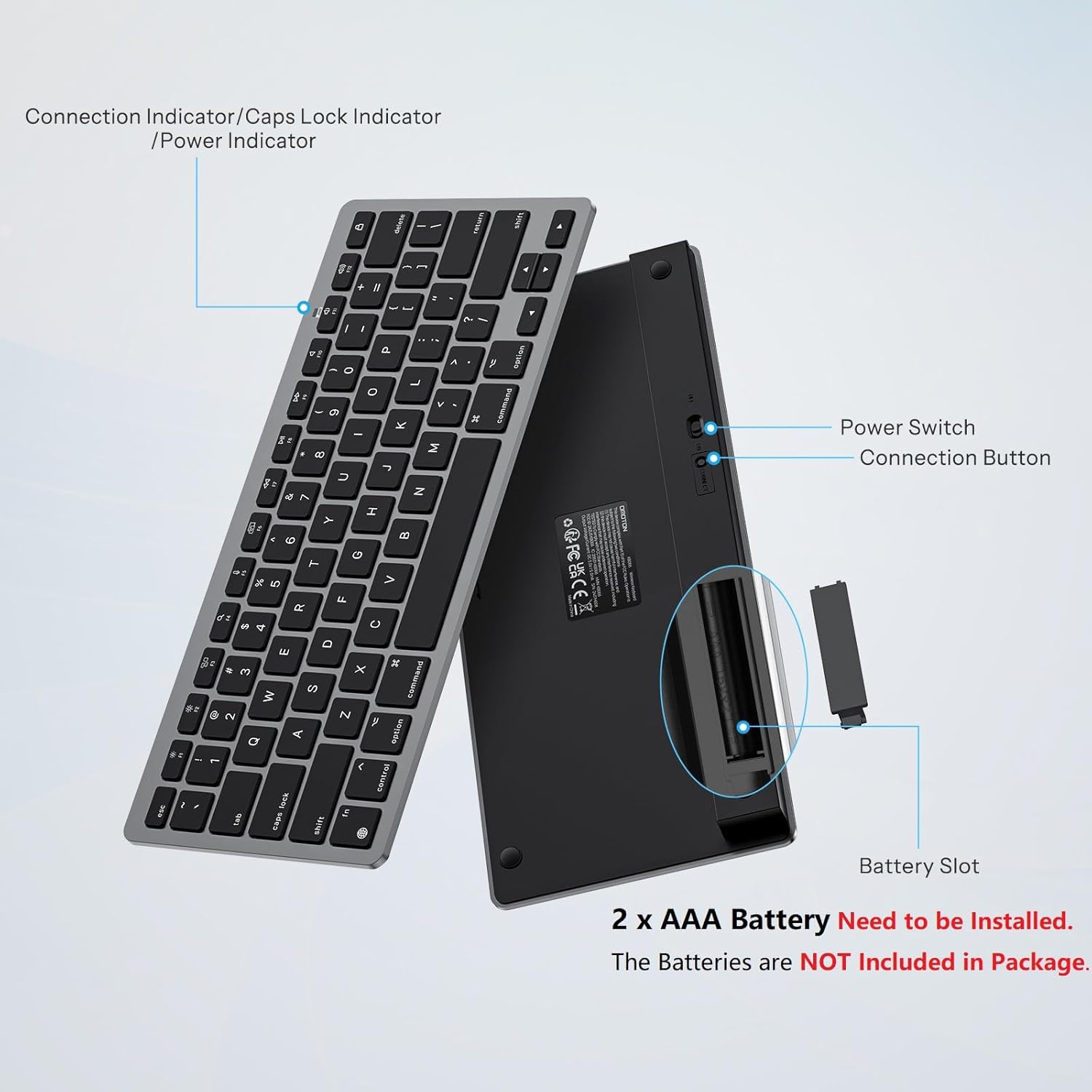

Pozadi view of the OMOTON Wireless Keyboard showing the power switch, connection button, and battery slot for two AAA batteries.
2. Bluetooth uparivanje
To connect your keyboard to your Mac device, follow these steps:
- Ensure the keyboard has fresh batteries installed.
- Locate the power switch on the back of the keyboard and slide it to the "ON" position.
- Press the "Connect" button on the back of the keyboard. The Bluetooth indicator light on the keyboard will begin to flash, indicating it is in pairing mode.
- On your Mac device, go to System Settings (ili Sistemske postavke) > Bluetooth.
- Provjerite je li Bluetooth uključen.
- Look for "KB066 Mac Keyboard" (or similar) in the list of available devices and click "Connect" or "Pair".
- Once connected, the Bluetooth indicator light on the keyboard will stop flashing.
Step-by-step visual guide for connecting the OMOTON Wireless Keyboard via Bluetooth to a Mac device.
The keyboard maintains a stable Bluetooth connection range of up to 33 feet (10 meters).
Uputstvo za upotrebu
Osnovno kucanje
The keyboard features a standard QWERTY layout. The keys are designed for a quick and responsive typing experience.
Close-up of a key on the OMOTON Wireless Keyboard, illustrating the scissor-switch mechanism for quick and quiet typing.
Multimedijalni tasteri
The top row of keys (F1-F12) provides dedicated multimedia and function controls for Mac devices. These include:
- F1/F2: Podešavanje svjetline
- F3: Kontrola misije
- F4: PRETRAGA
- F5: Diktat
- F6: Screenshot
- F7/F8/F9: Prethodna pjesma, Reprodukcija/pauza, Sljedeća pjesma
- F10/F11/F12: Isključivanje zvuka, smanjenje jačine zvuka, pojačavanje zvuka
- Ključ za izbacivanje: Zaključavanje ekrana
Layout of the OMOTON Wireless Keyboard highlighting the dedicated multimedia function keys for Mac.
Ergonomski dizajn
The keyboard features an 8-degree tilt angle, designed to promote a comfortable typing posture and reduce strain during extended use. Four rubber feet on the bottom provide slip resistance for stability.
Side view of the OMOTON Wireless Keyboard demonstrating its 8-degree ergonomic tilt for comfortable typing.
Održavanje
Čišćenje
Da biste održali izgled i funkcionalnost tastature:
- Use a soft, lint-free cloth to wipe the surface.
- Za tvrdokornu prljavštinu, lagano dampOperite krpu vodom ili blagim rastvorom za čišćenje. Izbjegavajte prekomjernu vlagu.
- Do not use abrasive cleaners, solvents, or aerosol sprays directly on the keyboard.
Zamjena baterije
When the keyboard's performance degrades or it fails to connect, it may be time to replace the batteries. Refer to the "Battery Installation" section for instructions on replacing the two AAA batteries. The energy-saving design and auto-sleep mode allow for a battery replacement interval of up to 6 months under typical usage.
Rješavanje problema
- Tastatura se ne povezuje ili se često isključuje:
- Ensure the keyboard is powered on and has fresh batteries.
- Verify that Bluetooth is enabled on your Mac device.
- Move the keyboard closer to your Mac to ensure it's within the 33-foot (10-meter) range.
- Try unpairing and re-pairing the keyboard through your Mac's Bluetooth settings. - Tipke ne reagiraju:
- Provjerite nivo napunjenosti baterije i po potrebi je zamijenite.
- Ensure the keyboard is properly connected via Bluetooth.
- If the keyboard has been idle, it may be in auto-sleep mode. Press any key and wait 2-3 seconds for it to wake up. - Kašnjenje ili odloženi unos:
- This could be due to interference. Try moving other wireless devices away from your keyboard and Mac.
- Ensure your Mac's operating system is up to date.
Specifikacije
| Feature | Detalj |
|---|---|
| Brand | OMOTON |
| Model | B0DLMXVTHM |
| Kompatibilni uređaji | Mac/iMac/Macbook/Laptop etc. (macOS 10.10 and later) |
| Tehnologija povezivanja | Bluetooth |
| Opis tastature | Multimedia, Wireless |
| Preporučena upotreba | Ured |
| Posebna karakteristika | Ergonomski, prenosiv |
| Boja | Black Grey |
| Materijal | Plastika |
| Izvor napajanja | Napajanje baterijama (2 x AAA, nisu uključene) |
| Raspored tipkovnice | QWERTY |
| Težina artikla | 11.7 unce |
| Dimenzije paketa | 11.38 x 5 x 0.94 inča |
Dimensions of the OMOTON Wireless Keyboard (11.22 x 4.72 inches) shown in comparison to a MacBook and a smartphone.
Garancija i podrška
OMOTON products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your product packaging or visit the official OMOTON website. For technical support or further assistance, please contact OMOTON customer service through their official channels.
