Wiltec Punch Set Instruction Manual

1. Proizvod je gotovview

The Wiltec Punch Set (Model 65395) is a versatile tool designed for creating clean, precise holes in a variety of materials. This set includes 13 interchangeable hollow punches and an ergonomic handle, all conveniently stored in a durable carrying case. It is ideal for crafting, DIY projects, and professional applications requiring accurate material perforation.

Constructed from high-quality 45 carbon steel, the punches offer excellent wear resistance and a long service life, ensuring consistent, sharp cuts even after extensive use. The ergonomic handle provides comfortable and precise control, making punching tasks efficient and less strenuous.

1.1 Svestrane primjene

This punch set is suitable for a wide range of materials, making it a valuable tool for various projects. Its interchangeable heads allow for quick adaptation to different material types and hole sizes.

Uobičajene aplikacije uključuju:

• Crafting leather goods and accessories.
• Cutting rubber gaskets or seals.
• Perforating plastic sheets for various purposes.
• Creating holes in paper or cardboard for crafts or organizational needs.

2. Sigurnosna uputstva

To ensure safe operation and prevent injury, please read and follow these safety guidelines:

• Nosite zaštitu za oči: Uvijek nosite zaštitne naočale ili zaštitne naočale kako biste zaštitili oči od letećih krhotina.
• Koristite na stabilnoj površini: Always place the material on a stable, flat, and sacrificial cutting surface (e.g., a cutting mat, thick wood block) to prevent damage to your work surface and ensure clean cuts.
• Držite prste čistim: Ensure your fingers and other body parts are clear of the punch head and the striking area when using a hammer.
• Use Appropriate Force: Apply sufficient but not excessive force when striking the punch. Excessive force can damage the tool or the material.
• Pregledajte alat prije upotrebe: Before each use, check the punches and handle for any signs of damage or wear. Do not use damaged tools.
• Čuvajte sigurno: Store the punch set in its carrying case, out of reach of children and away from moisture.
• ventilacija: If working with materials that produce dust or fumes, ensure adequate ventilation.

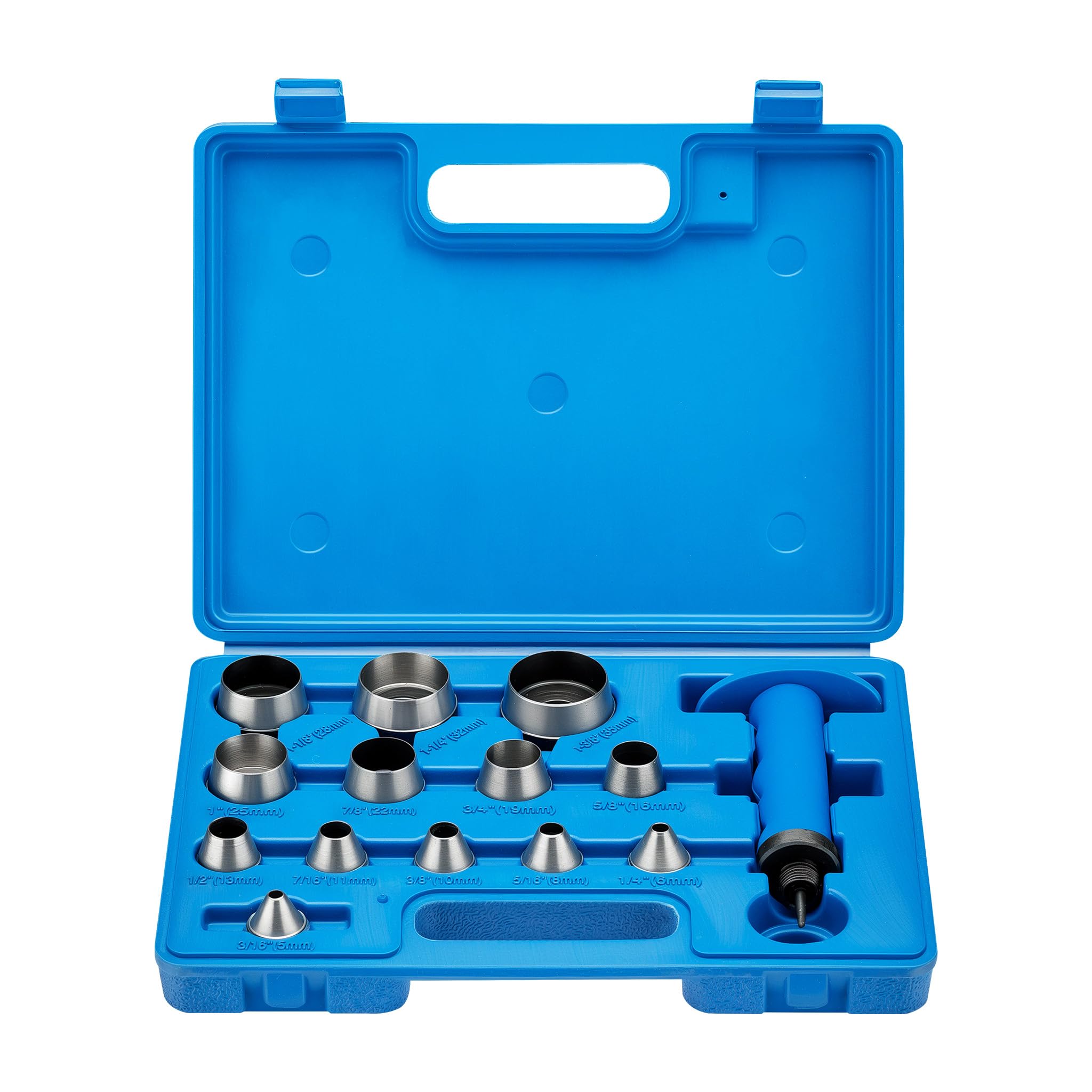

3. Sadržaj paketa

The Wiltec Punch Set (Model 65395) includes the following components:

• 1x Ergonomic Punch Handle
• 13x Interchangeable Hollow Punches (various sizes)
• 1x Durable Storage Case

3.1 Punch Sizes and Dimensions

The set includes punches in the following sizes, designed to meet diverse project requirements:

• 5 mm
• 6 mm
• 8 mm
• 10 mm
• 11 mm
• 13 mm
• 16 mm
• 19 mm
• 22 mm
• 1" (25 mm)
• 28 mm
• 32 mm
• 35 mm

4. Podešavanje

Before operating the punch set, follow these steps to prepare the tool:

1. Raspakujte komponente: Carefully remove all components from the storage case.
2. Select Punch Size: Choose the appropriate hollow punch head for your desired hole size.
3. Attach Punch to Handle: Screw the selected punch head securely onto the threaded end of the ergonomic handle. Ensure it is tightened firmly to prevent wobbling during use.
4. Pripremite radnu površinu: Place the material to be punched on a suitable, stable, and sacrificial cutting surface. This protects your workbench and helps achieve a clean cut.

The handle features a retractable center mandrel for precise positioning and an ergonomic grip for comfortable handling.

5. Uputstvo za upotrebu

Once the punch set is assembled and your work surface is prepared, follow these steps to punch holes:

1. Position the Punch: Hold the handle firmly and position the punch head precisely where you want to create the hole. The retractable center mandrel can assist with accurate placement.
2. Strike with a Hammer: Using a mallet or hammer, strike the top of the punch handle with a firm, controlled blow. The force required will vary depending on the material thickness and density. For thicker or tougher materials, multiple strikes may be necessary.
3. Uklonite izrezani materijal: After punching, carefully lift the tool. The cut material slug should either remain inside the punch head or fall out. If it remains inside, gently tap the punch head to dislodge it.
4. Create Rings (Optional): To create a ring, first punch a larger outer circle. Then, realign the punch tool to create a smaller inner circle, ensuring the center mandrel is positioned accurately.

6. Održavanje

Proper maintenance ensures the longevity and optimal performance of your Wiltec Punch Set:

• čišćenje: After each use, clean any material residue from the punch heads and the handle. A brush or cloth can be used. Ensure no debris remains in the cutting edges.
• podmazivanje: Occasionally apply a light coat of rust-preventative oil to the metal punch heads, especially if storing for extended periods or in humid environments.
• Skladištenje: Always store the punch set in its dedicated carrying case. This protects the punches from damage, keeps them organized, and prevents loss. The case is designed for convenient transport and secure storage.
• inspekcija: Periodically inspect the punch heads for any signs of dullness or damage. While made from durable carbon steel, prolonged use on hard materials may eventually require sharpening or replacement of individual punches.

7. Otkrivanje problema

If you encounter issues while using your Wiltec Punch Set, consider the following:

• Punch Not Cutting Cleanly:
  • Ensure the punch head is securely attached to the handle.
  • Verify that the material is placed on a firm, sacrificial cutting surface.
  • Increase the force of your hammer strike, if appropriate for the material.
  • Check the punch's cutting edge for dullness or damage.
• Punch Stuck in Material:
  • Gently twist the handle while pulling upwards.
  • If necessary, carefully tap the side of the punch head with a soft mallet to loosen it.
• Material Slipping During Punching:
  • Ensure the material is held firmly in place or clamped if possible.
  • Use the retractable center mandrel for initial precise positioning before striking.
