1. Uvod
Thank you for choosing the Cecotec Proclean 3030 Flatbed Microwave Oven. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before operation and retain it for future reference.
This microwave oven features a 20-liter capacity, 700W cooking power, a compact design with a flatbed cavity, ceramic interior, defrost mode, and 3DWave technology for uniform heating.
2. Važna sigurnosna uputstva
Uvijek se pridržavajte osnovnih sigurnosnih mjera opreza prilikom korištenja električnih uređaja kako biste smanjili rizik od požara, strujnog udara, ozljeda ili izloženosti prekomjernoj mikrovalnoj energiji.
- Ne pokušavajte koristiti ovu pećnicu s otvorenim vratima, jer to može dovesti do štetnog izlaganja mikrovalnoj energiji.
- Ne stavljajte nikakve predmete između prednje strane pećnice i vrata, niti dozvolite da se prljavština ili ostaci sredstva za čišćenje nakupljaju na zaptivnim površinama.
- Nemojte uključivati pećnicu ako je oštećena. Posebno je važno da se vrata pećnice pravilno zatvaraju i da nema oštećenja: (1) vrata (savijena), (2) šarke i zasune (polomljene ili olabavljene), (3) brtve vrata i zaptivne površine.
- Rernu ne bi trebalo podešavati ili popravljati niko osim odgovarajuće kvalifikovanog servisera.
- Uvjerite se da je uređaj pravilno uzemljen.
- Nemojte koristiti korozivne hemikalije ili pare u ovom uređaju.
- Tekućine ili druga hrana ne smiju se zagrijavati u zatvorenim posudama jer mogu eksplodirati.
- Koristite samo pribor koji je prikladan za mikrotalasne pećnice.
- Always supervise children when the microwave is in use.
3. Proizvod je gotovview
Familiarize yourself with the components of your Cecotec Proclean 3030 Flatbed Microwave Oven.
Slika 1: Prednja strana view of the Cecotec Proclean 3030 Flatbed Microwave Oven, highlighting its 20-liter capacity and control panel.

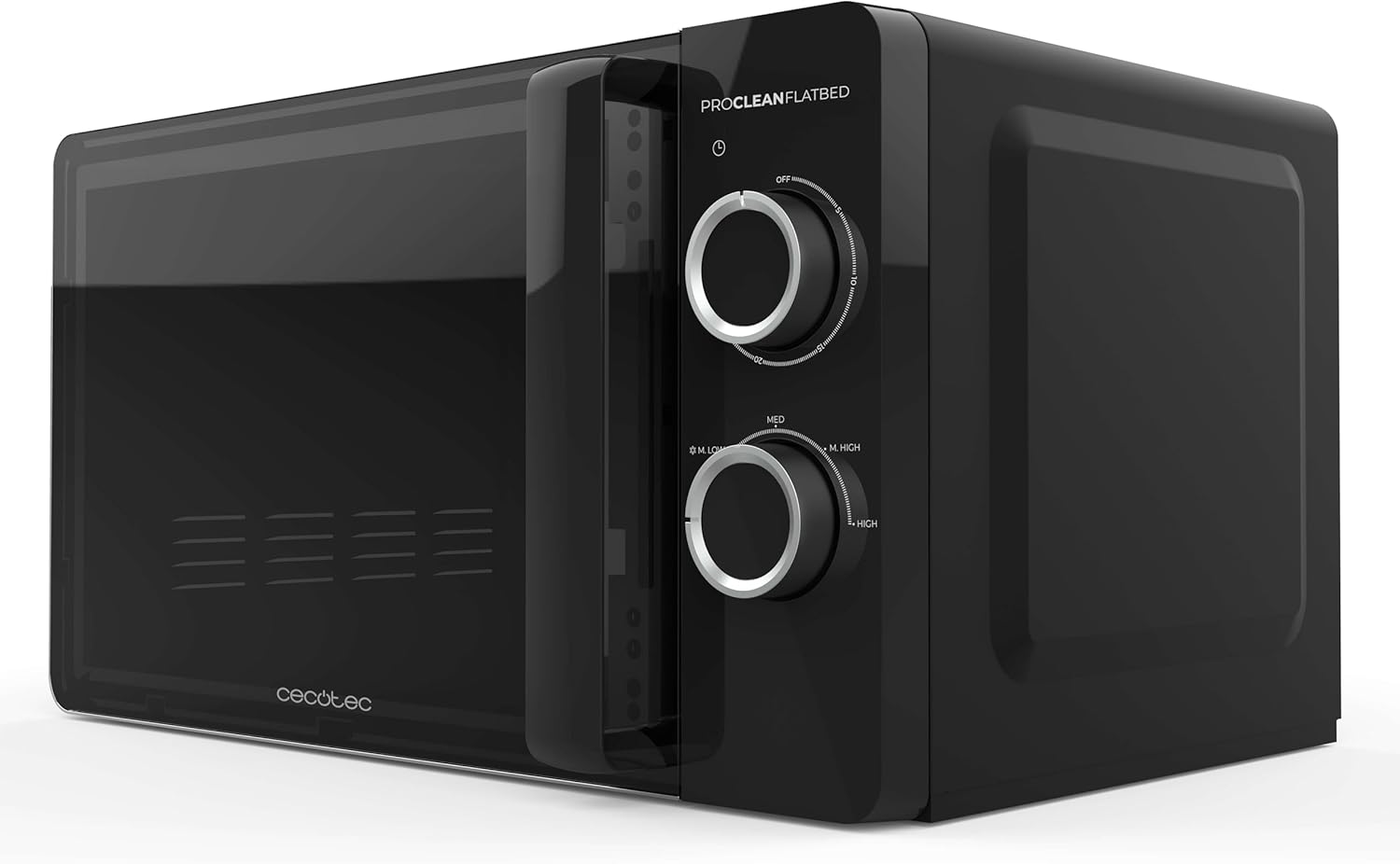

Slika 2: Pod uglom view of the microwave, showcasing its sleek design and manual control dials.
Komponente:
- Unutrašnjost pećnice: The interior cooking space with a flatbed design.
- vrata: Features a FullCrystal design.
- Kvaka: Za otvaranje i zatvaranje vrata pećnice.
- Kontrolna tabla: Consists of two rotary dials for time and power settings.
- Kabl za napajanje: Za spajanje na električnu utičnicu.
4. Postavljanje i instalacija
Raspakivanje:
Carefully remove the microwave oven and all packing materials from the carton. Check the oven for any damage, such as dents or a broken door. Do not operate the oven if it is damaged. Contact customer service.
plasman:
Place the microwave oven on a stable, level surface that can support its weight. Ensure there is adequate ventilation around the appliance. Maintain a minimum clearance of 20 cm (8 inches) above the oven, 10 cm (4 inches) at the rear, and 5 cm (2 inches) on both sides for proper airflow. Do not block any ventilation openings.
Figure 3: Microwave oven correctly positioned on a kitchen counter, showing recommended clearance.
Priključak za napajanje:
Plug the power cord into a standard 230V, 50Hz grounded electrical outlet. Ensure the outlet is easily accessible.
5. Uputstvo za upotrebu
The Cecotec Proclean 3030 Flatbed Microwave Oven features intuitive manual controls for ease of use.

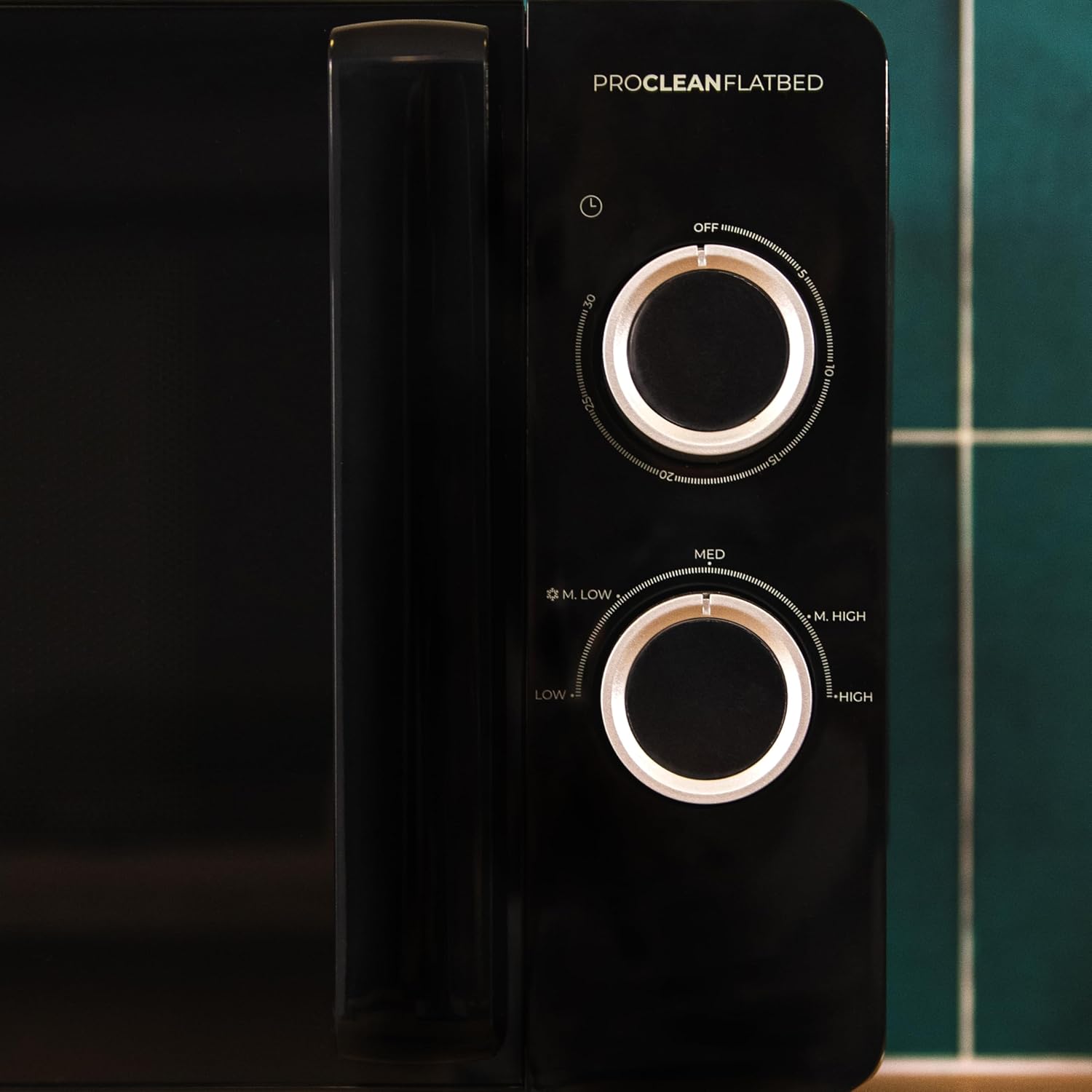

Slika 4: Detaljno view of the manual control panel, showing the timer and power level dials.
Kontrolna tabla:
- Upper Dial (Timer): Used to set the cooking time, up to 30 minutes.
- Lower Dial (Power Level): Used to select the desired microwave power level.
Nivoi snage:
The microwave offers 6 adjustable power levels, with a maximum output of 700W:
- LOW
- M. LOW
- MED
- M. HIGH
- HIGH
- ODMRZIVANJE
Osnovno kuhanje u mikrovalnoj pećnici:
- Place the food in a microwave-safe container inside the oven cavity.
- Čvrsto zatvorite vrata pećnice.
- Okrenite Lower Dial (Power Level) to your desired power setting (e.g., HIGH for full power).
- Okrenite Upper Dial (Timer) na željeno vrijeme kuhanja (do 30 minuta). Pećnica će se automatski pokrenuti.
- When the set time expires, the oven will automatically turn off and an audible signal will sound.
- Carefully remove the food from the oven. Use oven mitts as the container and food may be hot.
Slika 5: Prample of cooking a large dish, such as a whole chicken, utilizing the flatbed design for maximum space.
Figure 6: A dish of lasagna being heated, demonstrating the even heat distribution provided by 3DWave technology.
Način odmrzavanja:
The defrost mode is designed to thaw frozen foods quickly and efficiently, preserving their texture and flavor.
- Place the frozen food in a microwave-safe container inside the oven.
- Okrenite Lower Dial (Power Level) to the DEFROST setting.
- Okrenite Upper Dial (Timer) to the desired defrosting time. Refer to food packaging for recommended defrosting times.
- Monitor the food during defrosting, turning or separating items as needed to ensure even thawing.
Figure 7: Illustration of the defrost function, showing how frozen items like salmon can be thawed effectively.
6. Održavanje i čišćenje
Redovno čišćenje i održavanje osigurat će dugotrajnost i optimalne performanse vaše mikrovalne pećnice.
Čišćenje unutrašnjosti:
The ceramic interior and flatbed design make cleaning easy. After each use, wipe the interior with a damp cloth and mild detergent. For stubborn stains, place a bowl of water with lemon juice inside and heat for a few minutes to create steam, then wipe clean. Avoid abrasive cleaners or scouring pads.
Figure 8: Cleaning the flatbed interior of the microwave, highlighting the ease of maintenance due to the absence of a turntable.
Čišćenje eksterijera:
Obrišite vanjske površine mekom krpom, damp cloth. Do not use harsh detergents or solvents. Keep the control panel clean and dry.
Door and Seal Maintenance:
Redovno čistite zaptivke vrata i susjedne dijelove sredstvom za čišćenjeamp cloth to remove any spills or splashes. This helps ensure a proper seal and safe operation.
7. Otkrivanje problema
Ako imate problema s mikrovalnom pećnicom, pogledajte sljedeću tabelu za uobičajene probleme i rješenja.
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Pećnica se ne uključuje | Kabl za napajanje nije uključen; Vrata nisu pravilno zatvorena; Osigurač je pregorio ili je isključen prekidač. | Provjerite je li kabel za napajanje sigurno priključen; Čvrsto zatvorite vrata; Provjerite osigurač kućnog aparata ili resetirajte prekidač. |
| Hrana se ne grije | Power level set too low; Cooking time too short; Incorrect utensil used. | Increase power level or cooking time; Use microwave-safe cookware. |
| Neobična buka tokom rada | Posuda za hranu dodiruje zidove pećnice; labavi dijelovi. | Adjust food container position; If noise persists and seems abnormal, contact service. |
| Svjetlo ne radi | Potrebno je zamijeniti sijalicu. | Za zamjenu sijalice obratite se kvalifikovanom servisnom osoblju. |
Ako problem i dalje postoji nakon isprobavanja ovih rješenja, obratite se korisničkoj podršci Cecoteca.
8. Specifikacije
| Feature | Specifikacija |
|---|---|
| Brand | Cecotec |
| Broj modela | A01_EU01_100513 |
| Boja | Crna |
| Kapacitet | 20 litara |
| Izlazna snaga mikrovalne pećnice | 700 Watts |
| Input Power | 1150 Watts |
| Voltage | 230 Volts |
| Dimenzije proizvoda (D x Š x V) | 45 x 36 x 26 cm |
| Težina proizvoda | 11.8 kg |
| Materijal | Staklo i metal |
| Posebna karakteristika | Defrost Mode, 3DWave Technology, Flatbed Cavity |
| Vrsta instalacije | Countertop |
| Uključene komponente | Mikrovalna pećnica, Uputstvo za upotrebu |
9. Garancija i podrška
Your Cecotec Proclean 3030 Flatbed Microwave Oven comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical assistance, spare parts, or any inquiries regarding your product, please visit the official Cecotec website or contact their customer support directly. You can also find more information on the Cecotec prodavnica robne marke na Amazonu.
