1. Uvod
This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your Mobiclinic Verona Foldable Electric Wheelchair. Please read this manual thoroughly before operating the wheelchair and retain it for future reference.
The Mobiclinic Verona is a lightweight, foldable electric wheelchair designed to enhance mobility. It features a robust aluminum frame, dual manual and electric driving modes, and an electromagnetic braking system for safety.
Image 1.1: The Mobiclinic Verona Electric Wheelchair in use, showcasing njegov dizajn i prenosivost.
2. Sigurnosne smjernice
Vaša sigurnost je najvažnija. Uvijek se pridržavajte sljedećih smjernica:
- Always wear the safety belt provided when operating the wheelchair.
- Ensure anti-tip wheels are properly engaged, especially when ascending or descending inclines.
- The electromagnetic brake system provides reliable stopping power. Familiarize yourself with its operation.
- Nemojte prekoračiti maksimalnu težinu od 100 kg.
- Avoid operating the wheelchair on excessively steep slopes (maximum recommended incline is 9 degrees).
- Regularly inspect tires, brakes, and battery connections for wear or damage.
- Držite ruke i odeću dalje od pokretnih delova.
Slika 2.1: Gotovoview of safety, strength, and durability features, including the safety belt and anti-tip wheels.
3. Components Overview
Familiarize yourself with the main components of your Mobiclinic Verona wheelchair:
- Pametni kontroler: Joystick for direction and speed control, power button, horn, and LED light control.
- Aluminijski okvir: Lightweight yet durable structure.
- Fixed Armrests: Provide stability and support.
- Foldable Leg Rest: For comfortable entry and exit.
- Tapacirano sjedište i naslon: For user comfort, with removable padding.
- Točkovi sa zaštitom od prevrtanja: Located at the rear for enhanced stability on inclines.
- Pneumatic Rear Wheels: For a smooth ride.
- Solid Front Wheels: Durable and maintenance-free.
- Baterija: Lithium-ion battery with quick-release holder and USB charging port.
- Document Pocket: Convenient storage on the backrest.
Image 3.1: The Mobiclinic Verona Electric Wheelchair, illustrating its overall structure and key dimensions.
4. Podešavanje
4.1 Rasklapanje invalidskih kolica
- Sklopljena invalidska kolica postavite na ravnu, stabilnu površinu.
- Gently pull the retractable handle upwards until the frame begins to expand.
- Push the seat down firmly until it locks into place.
- Unfold the leg rest to its operational position.
- Prije upotrebe provjerite jesu li svi mehanizmi za zaključavanje sigurno zaključani.
4.2 Ugradnja i punjenje baterije
- Locate the battery compartment, typically under the seat or at the rear.
- Insert the lithium-ion battery pack into its holder, ensuring it clicks securely into place.
- Connect the charger to the charging port on the battery pack or controller.
- Uključite punjač u standardnu električnu utičnicu. Indikator punjenja će svijetliti.
- Charge the battery fully before first use (approximately 6-8 hours). Do not overcharge.
- The integrated USB charging light can be used to charge small electronic devices.
5. Uputstvo za upotrebu
5.1 Smart Controller Functions
Slika 5.1: Detaljno view of the smart controller, highlighting its various controls.
- Dugme za napajanje: Press to turn the wheelchair ON/OFF.
- džojstik: Push forward, backward, left, or right to control direction. Release to engage the electromagnetic brake.
- Podešavanje brzine: Use the '+' and '-' buttons to increase or decrease speed. The maximum speed is 6 km/h.
- Dugme za sirenu: Pritisnite da zatrubite.
- Dugme sa LED svetlom: Activates the integrated LED light for visibility.
- Tihi način rada: (If applicable) Activates a quieter operation mode.
5.2 Dual Driving Mode
The Verona wheelchair offers both electric and manual modes. To switch between modes, locate the clutch levers on the rear motors. Engage the levers for electric mode and disengage them for manual pushing. Always ensure the correct mode is selected before use.
Image 5.2: Illustration of the dual control mechanism for switching between electric and manual driving.
6. Sklapanje i transport
The Mobiclinic Verona is designed for ultra-compact folding, making it easy to store and transport.
- Ensure the wheelchair is powered off.
- Fold up the footrest.
- Pull the retractable handle (often located at the back of the seat) upwards.
- Gently push the seat cushion inwards towards the footrest area.
- Continue folding until the wheelchair is in its compact, locked position.

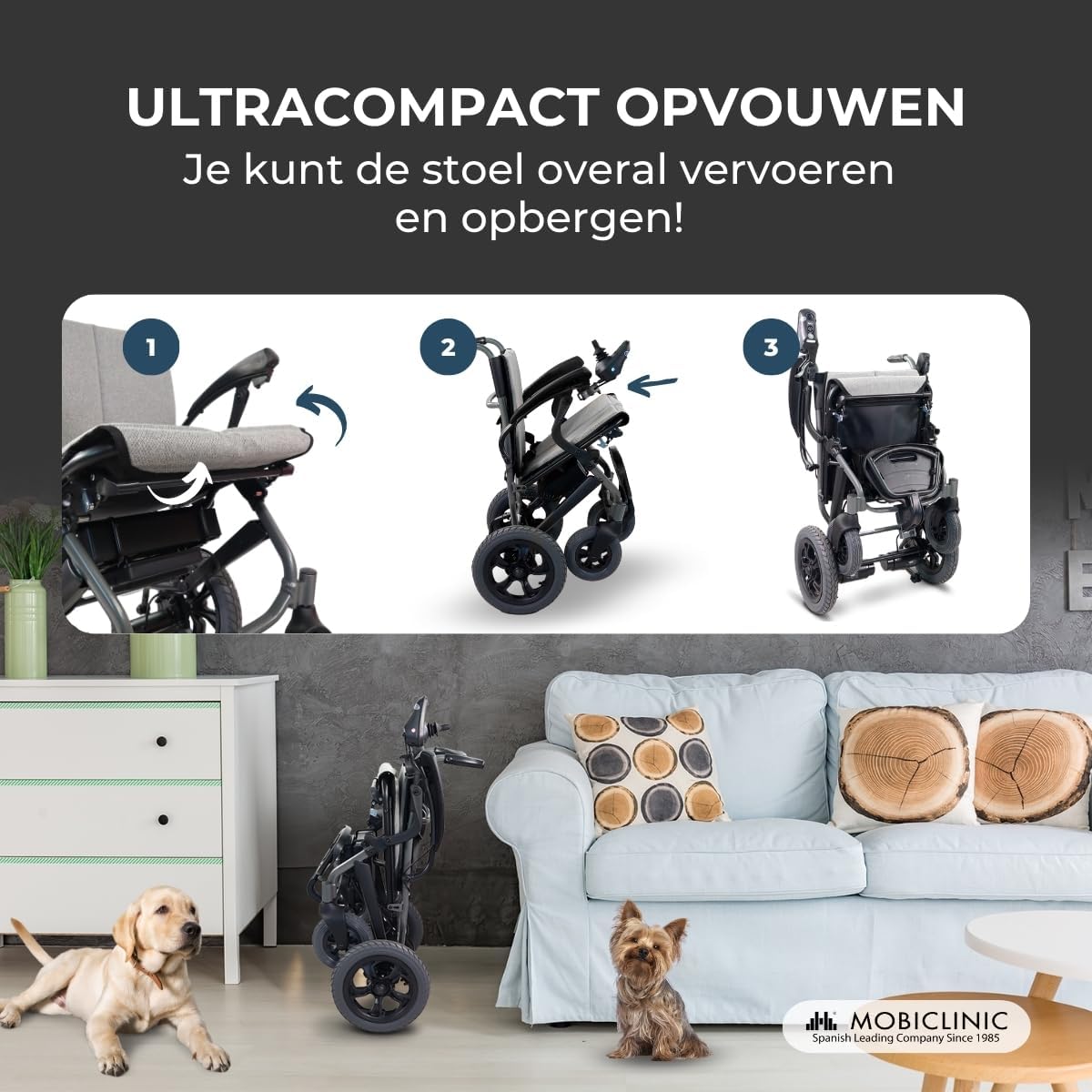

Image 6.1: Step-by-step guide on how to fold the Mobiclinic Verona wheelchair.
Image 6.2: Visual representation of the quick folding process.
7. Održavanje
- čišćenje: Obrišite okvir i sjedište oglasomamp tkanina. Izbjegavajte jake hemikalije.
- Održavanje baterije: Charge the battery regularly, even if not in frequent use, to prolong its lifespan. Store the battery in a cool, dry place.
- Pritisak u gumama: For pneumatic tires, check and maintain recommended tire pressure.
- inspekcije: Periodically check all bolts, nuts, and connections for tightness. Inspect wiring for any signs of wear or damage.
- Profesionalna usluga: For any complex repairs or motor issues, consult a qualified technician.
Image 7.1: Details of the powerful 130W motors and 24V 12Ah lithium-ion battery, crucial for maintenance considerations.
8. Otkrivanje problema
- Wheelchair does not power on: Check if the battery is properly installed and charged. Ensure the power button on the controller is pressed.
- Wheelchair does not move: Verify that the wheelchair is in electric mode (clutch levers engaged). Check for any obstructions around the wheels. Ensure the joystick is functioning correctly.
- Smanjeni domet ili brzina: The battery may require charging or its capacity might be diminishing over time. Ensure tires are properly inflated.
- Neobični zvukovi: Stop using the wheelchair immediately and inspect for loose parts, damaged wheels, or motor issues. Contact support if the issue persists.
- Kočnica se ne aktivira: Ensure the joystick is fully released. If the issue persists, contact support.
9. Specifikacije
| Feature | Specifikacija |
|---|---|
| Naziv modela | Verona |
| Broj modela | QA-00480/12 |
| Materijal | Aluminijum |
| Težina proizvoda | 21 kg |
| Max. Supported Weight | 100 kg |
| Snaga motora | 130W per side |
| Max. Brzina | 6 km/h |
| Battery Life (Range) | Pribl. 20 km |
| Brake Type | Elektromagnetski |
| Radijus okretanja | 60 cm |
| Max. Incline Performance | 9 stepeni |
| Dimenzije rasklopljenog stanja (D x Š x V) | 98 x 58 x 90 cm |
| Sklopljene dimenzije (D x Š x V) | 47 x 58 x 80 cm |
| Dimenzije sjedišta (Š x D) | 42 x 43 cm |
| Wheel Type | Front: Solid, Rear: Pneumatic |
Image 9.1: Visual summary of the Mobiclinic Verona's technical characteristics.
10. Garancija i podrška
Mobiclinic S.L. offers quality and reliability. For specific warranty details, please refer to the warranty card included with your product or visit the official Mobiclinic website. For technical support, spare parts, or service inquiries, please contact Mobiclinic customer service through their official channels.
