1. Uvod
This manual provides essential instructions for the installation, operation, and maintenance of your APPECK Permanent Outdoor Lights (Model C5109-C). These smart RGBW lights are designed for outdoor use, offering a variety of scene modes and control options via app, remote, and voice assistants. Please read this manual thoroughly before use to ensure proper functionality and safety.
2. Sadržaj paketa
Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke:
- 16.4ft String Light x 6
- Adapter za napajanje x 1
- Kontrolni okvir x 1
- Remote Controller x 1 (AAA batteries not included)
- Screw Clips Pack x 1
- Tail Plug x 1
- Korisnički priručnik x 1
Image: Illustration of all components included in the APPECK Permanent Outdoor Lights package.
3. Sigurnosne informacije
- električna sigurnost: Ensure the power adapter is connected to a suitable outdoor-rated power outlet. The power plug is not waterproof; use an outlet cover for outdoor installations.
- Instalacija: Do not cut the string lights. The total length of the string lights should not exceed 100ft.
- Raspon temperature: The lights are designed for outdoor use within a temperature range of -20℃ to 60℃ (-4℉ to 140℉).
- Otpornost na vodu: The string lights and control box are IP65 waterproof.
- Djeca i kućni ljubimci: Držite materijale za pakovanje i male komponente dalje od djece i kućnih ljubimaca.
4. Postavljanje i instalacija
4.1 Fizička instalacija
- Test prije instalacije: Before mounting, connect all light segments and the power adapter. Power on the lights to ensure they function correctly.
- Priprema površine: Clean the installation surface with a cloth to ensure proper adhesion.
- Pozicioniranje: It is recommended to install the lights 2-4 inches away from the wall surface to achieve optimal wall washing effects.
- ljepljiva traka: For temporary or initial placement, peel off the backing film from the adhesive tape on the back of each light. Firmly press each light against the surface for more than 8 seconds.
- Osigurajte vijcima: For long-term and stable installation, use the provided screws and clips to secure each light. This is especially recommended for wooden surfaces.
- Connecting Segments: Connect the 16.4ft string light segments using the waterproof connectors. Firmly screw on the waterproof cap of the last light string section.
Image: Step-by-step guide for physically installing the lights, including surface preparation and securing methods.
Slika: pramples of compatible installation surfaces such as fiber cement, wood, vinyl, and metal, with a note to use screws for wood.
4.2 Povezivanje aplikacije
The APPECK Permanent Outdoor Lights utilize the Smart Life App for advanced control. Ensure your Wi-Fi network is 2.4GHz, as 5GHz Wi-Fi is not supported.
- Preuzmi aplikaciju: Download the "Smart Life" app from Google Play Store or Apple App Store.
- Registracija/Prijava: Prijavite se sa postojećim nalogom ili kreirajte novi.
- Omogući bežičnu mrežu: Turn on Wi-Fi and Bluetooth on your mobile device.
- Način uparivanja: Ensure the lights are powered on. Press and hold the on/off button on the control box for 3-5 seconds until the lights blink red, indicating pairing mode.
- Dodaj uređaj: In the Smart Life App, tap the "+" icon in the top right corner and search for "C5109".
- Wi-Fi Selection: Odaberite svoju Wi-Fi mrežu od 2.4 GHz i unesite lozinku.
- Završetak: Follow the on-screen prompts to complete the pairing process. The device will be added successfully.
Image: Visual guide for connecting the lights to the Smart Life App, detailing steps from app download to device pairing.
5. Uputstvo za upotrebu
5.1 Kontrola aplikacija
The Smart Life App provides comprehensive control over your APPECK lights:
- Individual Light Control: Adjust the color of each light bead individually from 16 million available colors.
- Prilagođavanje scene: Access 111 built-in scene modes. Program, save, collect, and loop custom scenes.
- Timing & Length Setting: Set schedules for lights to turn on/off and adjust the duration of specific effects.
- Grupna kontrola: Control multiple sets of lights simultaneously by creating groups within the app.
- Podešavanje svjetline: Dim or brighten the lights. Warm white light brightness up to 40lm each, RGB brightness up to 25lm each.
- Sinhronizacija muzike: Synchronize light effects with music for dynamic displays.
Image: The Smart Life App displaying options for individual light color control.
Image: The Smart Life App interface demonstrating scene customization, collection, looping, and timing features.
5.2 Daljinski upravljač
Use the included remote controller for convenient operation. (Requires 2 AAA batteries, not included).
- Uključivanje/isključivanje: Uključite ili isključite svjetla.
- Odabir načina rada: Cycle through various preset scene modes.
- Podešavanje svjetline: Povećajte ili smanjite intenzitet svjetla.
5.3 Upravljanje glasom
The lights are compatible with Amazon Alexa and Google Assistant for hands-free control.
- integracija: Link your Smart Life account with Amazon Alexa or Google Assistant through their respective apps.
- naredbe: Use voice commands such as "Alexa, turn on the outdoor lights" or "Hey Google, set outdoor lights to red."

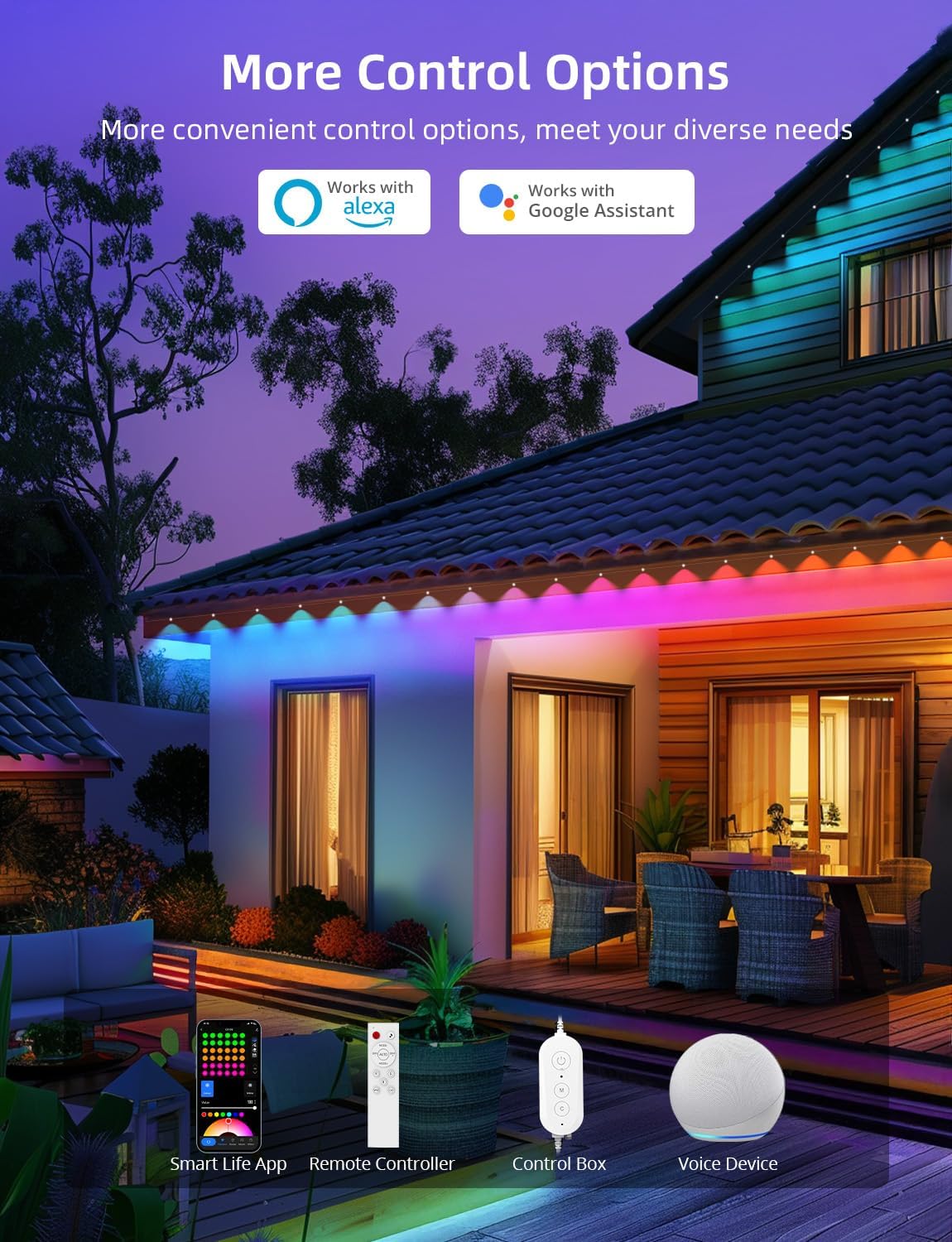

Slika: Prekoview of the multiple control methods available for the lights, including app, remote, control box, and voice assistants.
6. Održavanje
To ensure the longevity and optimal performance of your APPECK Permanent Outdoor Lights, follow these maintenance guidelines:
- čišćenje: Periodically clean the light beads and housing with a soft, damp krpom za uklanjanje prljavštine i ostataka. Nemojte koristiti jake hemikalije ili abrazivna sredstva za čišćenje.
- inspekcija: Regularly inspect the wiring, connectors, and mounting points for any signs of wear, damage, or loose connections.
- Zaštita od vremenskih prilika: While the lights are IP65 waterproof and UV resistant, ensure the power plug is protected from direct exposure to water. An outdoor outlet cover is recommended.
- Skladištenje: If storing the lights for an extended period, disconnect them from power, clean them, and store them in a cool, dry place.
Image: Visual representation of the lights' durability and reliability in different outdoor conditions.
7. Otkrivanje problema
If you encounter issues with your APPECK Permanent Outdoor Lights, refer to the following common solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Svjetla se ne pale. | Nema napajanja, labava veza, neispravan adapter. | Check power outlet, ensure all connections are secure, test with another power source if possible. |
| Cannot connect to Smart Life App. | Incorrect Wi-Fi frequency, incorrect password, lights not in pairing mode. | Ensure your Wi-Fi is 2.4GHz. Re-enter Wi-Fi password. Put lights into pairing mode (hold control box button for 3-5 seconds). |
| Daljinski upravljač ne radi. | Prazne baterije, daljinski upravljač van dometa, prepreka. | Replace AAA batteries. Ensure remote is pointed at the control box and within range. Remove any obstructions. |
| Lights are not displaying correct colors/modes. | App settings incorrect, interference. | Check settings in the Smart Life App. Restart the app and lights. |
8. Specifikacije
| Feature | Detalj |
|---|---|
| Broj modela | C5109-C |
| Vrsta izvora svjetlosti | LED (RGBW) |
| Broj izvora svjetlosti | 72 LED diode |
| Ukupna dužina | 100ft (6 x 16.4ft string light segments) |
| Wire Length (Adapter to 1st Light) | 9.19ft / 2.8m |
| Wire Length (Between 2 Lights) | 1.31ft / 0.4m (1.97ft / 0.6m with connector) |
| Warm White Brightness | 40lm per light |
| RGB svjetlina | 25lm per light |
| Color Temperature (Warm White) | 2700 Kelvina |

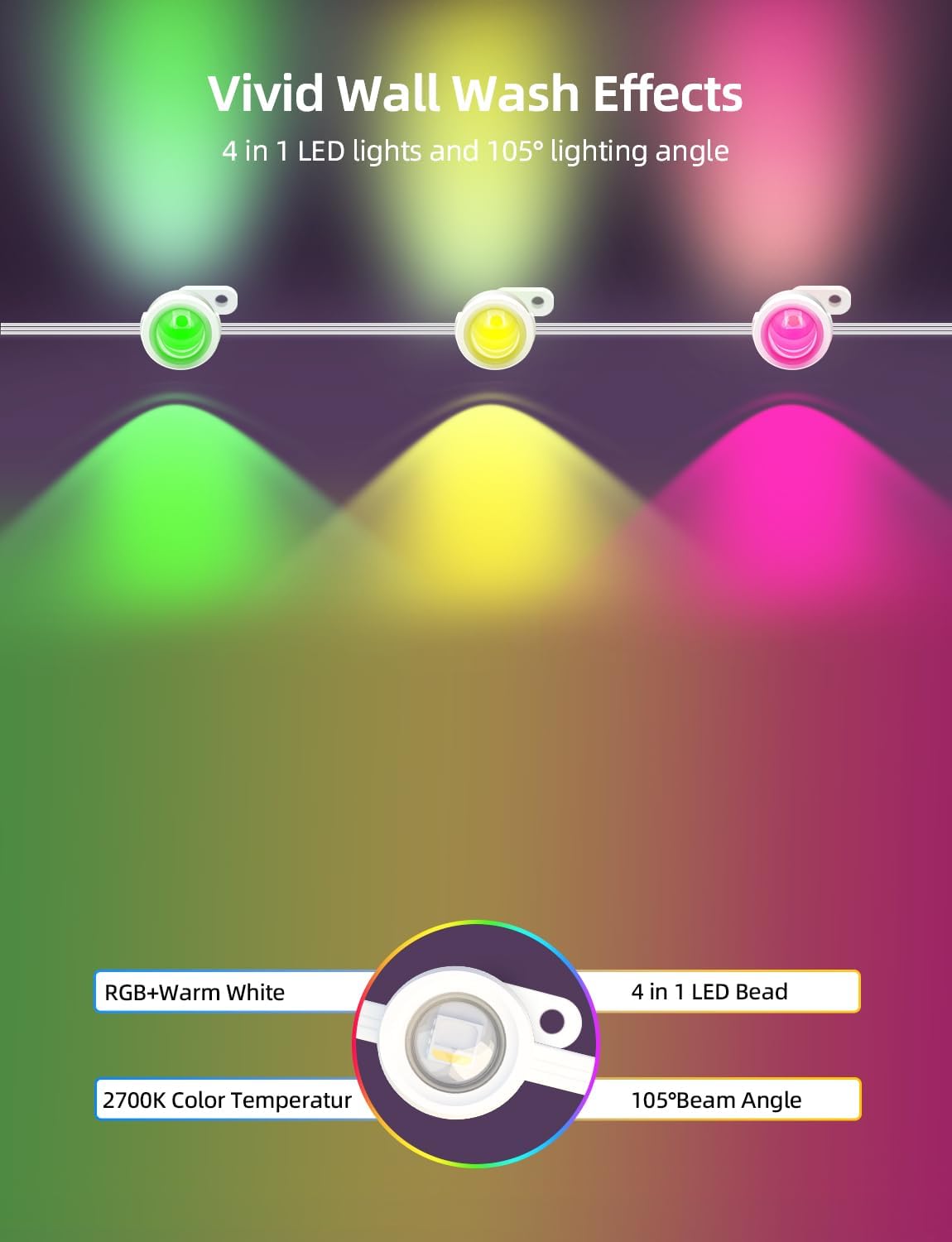

| Ugao snopa | Do 105° |
| Dubina pranja zidova | Do 16 inča |
| Nivo vodootpornosti | IP65 (lights and control box) |
| Radna temperatura | -20 ℃ do 60 ℃ (-4 ℉ do 140 ℉) |
| Životni vijek | Do 50,000 sati |
| Kontrolne metode | Smart Life App, Remote Control, Control Box, Amazon Alexa, Google Assistant |
| Wi-Fi kompatibilnost | Samo 2.4 GHz |
| Voltage | 24 Volts |
| Wattage | 54 vati |
| Materijal | Plastika |
9. Garancija i podrška
APPECK products are designed for durability and performance. For warranty information, technical support, or any questions regarding your product, please contact APPECK customer service through the retailer's platform or the official APPECK website.
Molimo sačuvajte račun za kupovinu radi reklamacije u slučaju kvara.
