1. Uvod
This manual provides essential information for the safe and effective use of your TODO T3840-NEW Foldable Treadmill. Please read it thoroughly before assembly, operation, or maintenance. Keep this manual for future reference.
The TODO T3840-NEW is a versatile 2-in-1 foldable treadmill designed for home use, offering speeds from 1 to 12 km/h. It features an adjustable incline, an LCD screen, and supports control via remote or a dedicated fitness application.

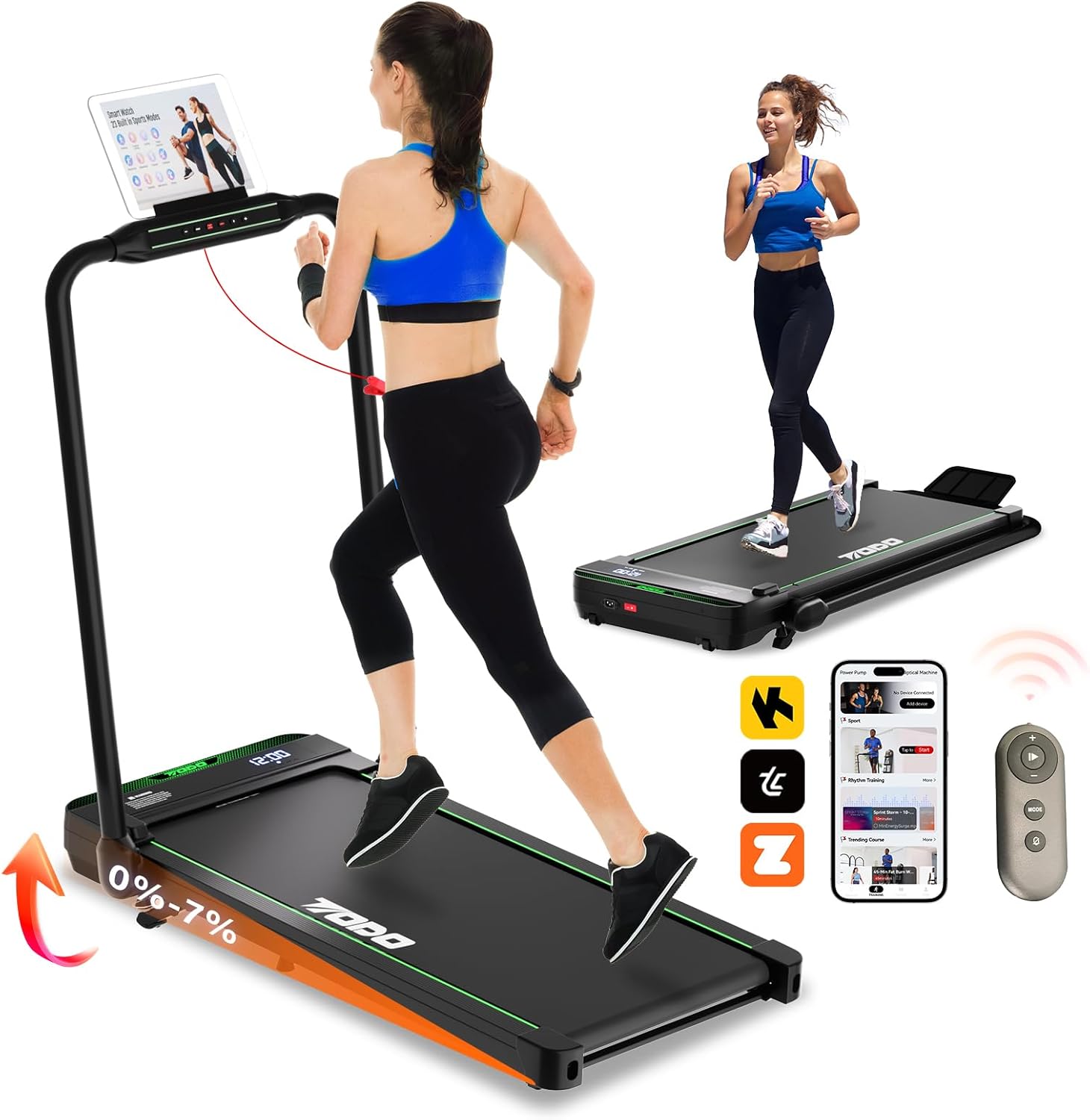

Image 1.1: The TODO T3840-NEW Foldable Treadmill in both upright running mode and folded walking pad mode. It highlights the 0-7% incline capability, app support, and remote control.
2. Sigurnosne informacije
UPOZORENJE: Da biste smanjili rizik od ozbiljnih povreda, pročitajte sve važne mjere opreza i upute u ovom priručniku prije upotrebe trake za trčanje.
- Konsultujte se sa lekarom pre početka bilo kakvog programa vežbanja.
- Držite djecu i kućne ljubimce podalje od trake za trčanje tokom rada.
- Postavite traku za trčanje na ravnu površinu s najmanje 2 metra (6.5 stopa) čistog prostora iza nje i 0.6 metara (2 stope) sa svake strane.
- Ensure the safety key is properly attached before starting the treadmill.
- Nosite odgovarajuću odjeću za vježbanje i sportske cipele.
- Ne koristite traku za trčanje ako je oštećena ili neispravna.
- Isključite traku za trčanje iz utičnice kada je ne koristite ili prije čišćenja/održavanja.
3. Proizvod je gotovview
Ključne karakteristike:
- Podesivi nagib: Features a 7% adjustable incline to enhance calorie burning and workout intensity.
- 2-u-1 dizajn: Functions as a walking pad (1-6 km/h) and a running treadmill (6-12 km/h).
- Quiet and Powerful Motor: Equipped with a 2.5 HP motor, operating at approximately 45 dB, supporting users up to 120 kg.
- Kompaktan i sklopiv: No assembly required, easily foldable for storage under furniture. Transport wheels for mobility.
- Povezivanje aplikacija: Supports popular fitness apps like Zwift, Kinomap, and the proprietary TOUSAINS app for real-time data tracking and control.
- Knee Strain Reduction: Features a 5-layer running belt and 6 anti-slip pads for improved cushioning.
Komponente:
The package includes the TODO T3840-NEW Treadmill and a remote control. Other accessories may vary.

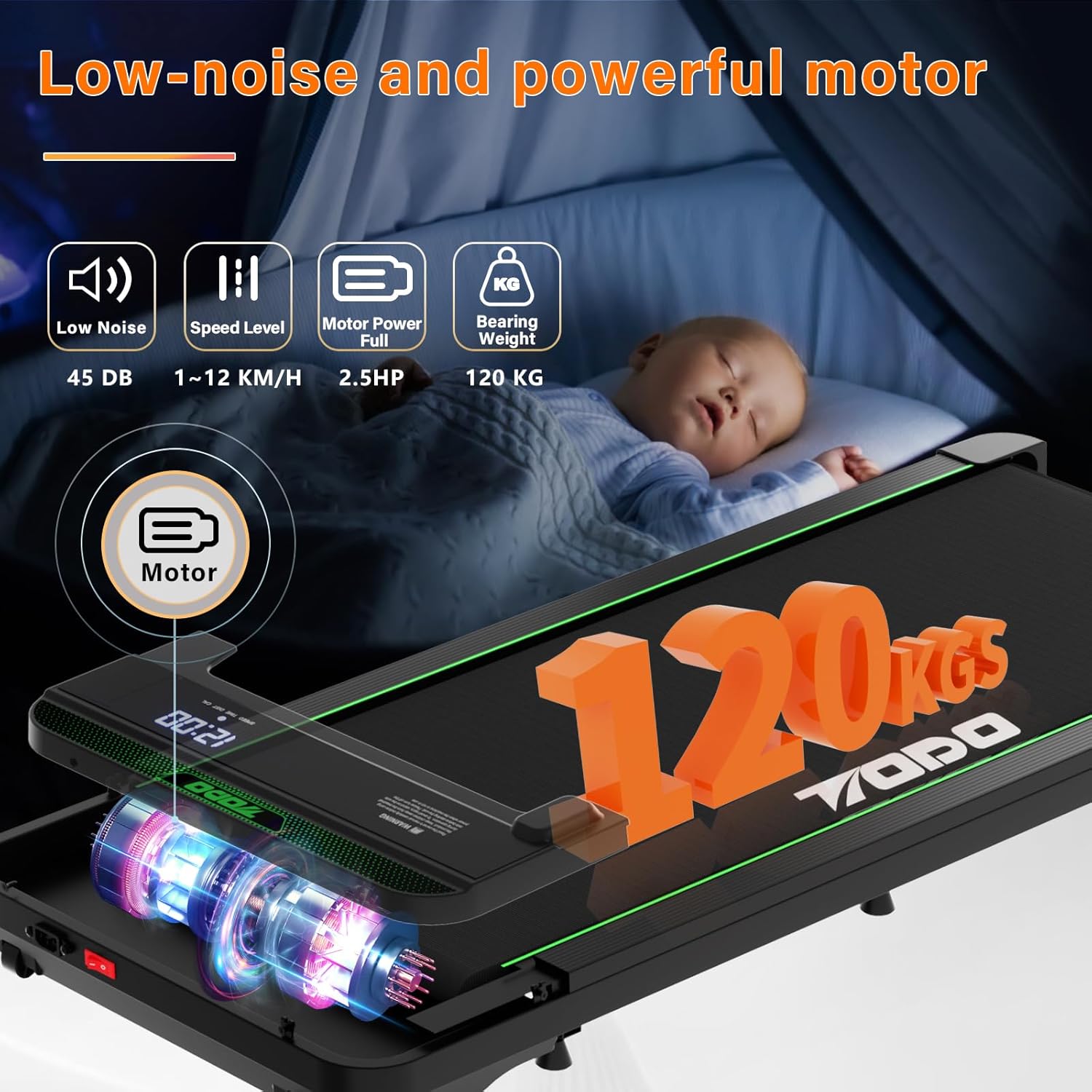

Image 3.1: Illustration of the treadmill's low-noise 2.5 HP motor and its 120 kg weight capacity.
4. Podešavanje
Raspakivanje i postavljanje:
- Remove the treadmill from its packaging. No assembly is required.
- Place the treadmill on a firm, level surface. Ensure adequate clearance around the unit as described in the safety section.
- Spojite kabel za napajanje u uzemljenu električnu utičnicu.
Unfolding the Handrail (for Running Mode):
To transition from walking pad mode to running mode, raise the handrail. The handrail is designed for easy and stable deployment.

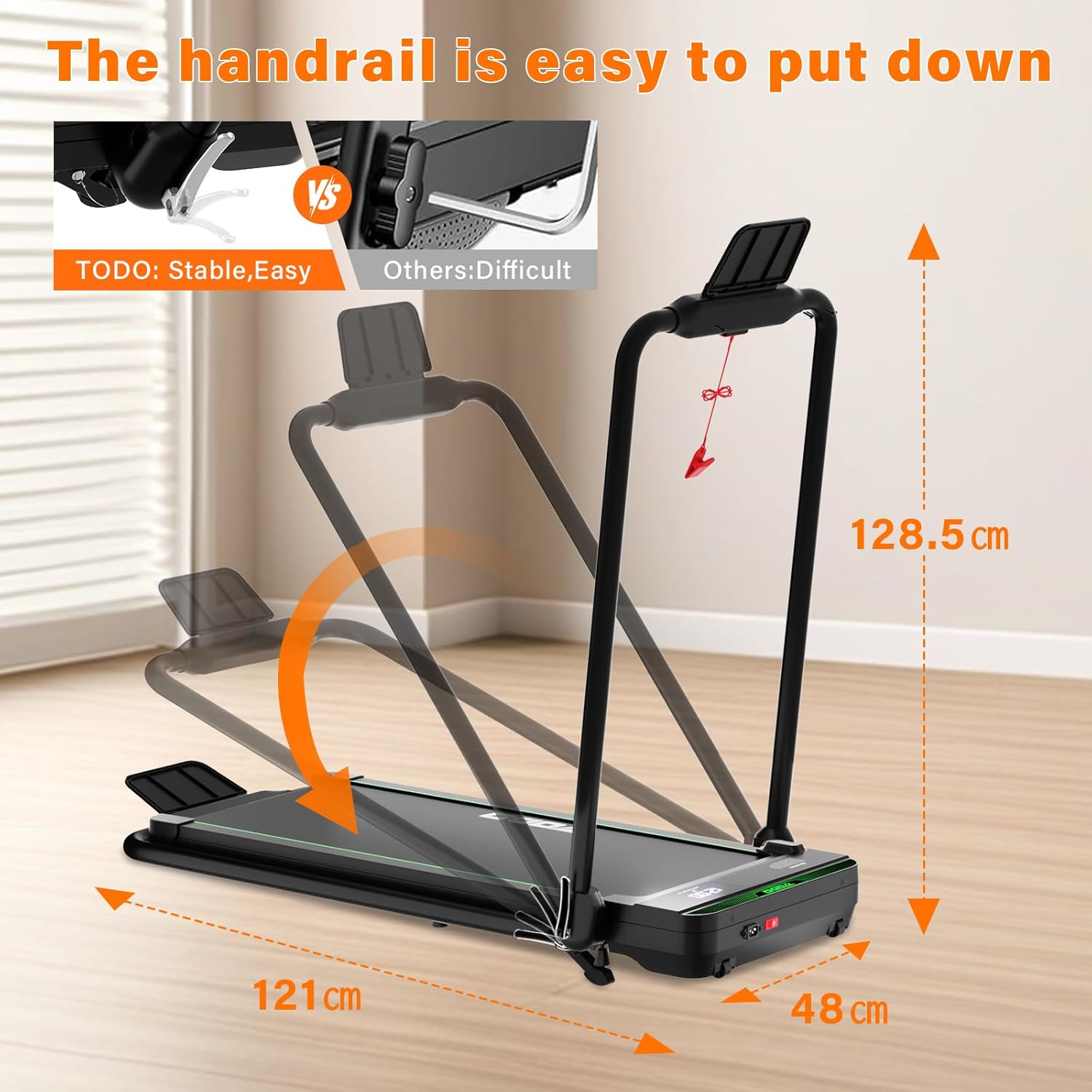

Image 4.1: The handrail can be easily raised for running mode or lowered for walking pad mode and compact storage.
5. Uputstvo za upotrebu
Metode kontrole:
The treadmill can be controlled via the console, remote control, or a compatible fitness application.
Image 5.1: The treadmill offers multiple control options: console buttons, remote control, and smartphone/tablet app.
Načini rada:
- Način hodanja: 1-6 km/h. Ideal for light exercise or walking while working.
- Način rada: 6-12 km/h. Suitable for jogging and running workouts.

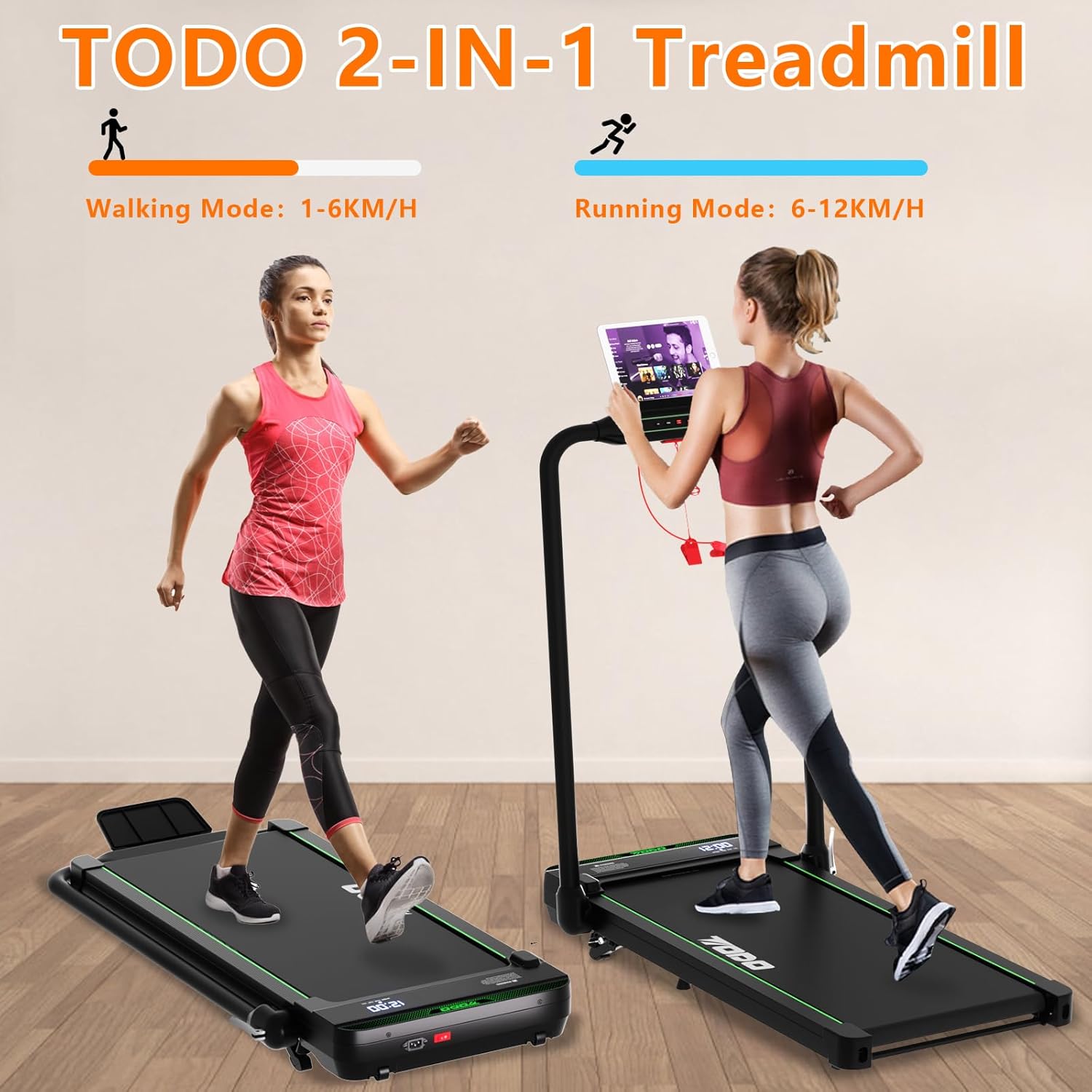

Image 5.2: The treadmill supports both walking (1-6 km/h) and running (6-12 km/h) modes.
Podešavanje nagiba:
The treadmill features a 7% adjustable incline. Adjusting the incline increases the intensity of your workout, leading to higher calorie expenditure.
Image 5.3: The incline can be adjusted up to 7% to vary workout intensity.
Using Fitness Applications:
The treadmill is compatible with various fitness applications, including Zwift, Kinomap, and the TOUSAINS app. These apps allow you to view real-time training data, control the treadmill, and access a variety of workout courses.
- Download the desired app from your device's app store (e.g., App Store, Google Play).
- Follow the app's instructions to connect it to your treadmill via Bluetooth.
- Utilize the app for enhanced workout tracking and control.
Image 5.4: The treadmill supports various fitness applications for interactive workouts and data tracking.
Image 5.5: The TOUSAINS app provides diverse exercise courses and detailed data recording.
Snimanje podataka:
The treadmill accurately records workout data. If you temporarily step off the treadmill without stopping it, data recording will pause and resume from the original base when you return, ensuring data accuracy.
6. Održavanje
Generalno čišćenje:
- Uvijek isključite traku za trčanje iz struje prije čišćenja.
- Obrišite konzolu i vanjske površine oglasnim materijalomamp tkanina. Izbjegavajte abrazivna sredstva za čišćenje.
- Regularly vacuum underneath the treadmill to prevent dust buildup.
Running Belt Maintenance:
The treadmill features a 5-layer running belt and 6 anti-slip pads designed to reduce strain on your knees. Regular inspection of the belt is recommended.
Image 6.1: The 5-layer running belt and 6 anti-slip pads provide cushioning and reduce impact on joints.
Slika 6.2: Detaljno view of the treadmill's multi-layer running belt.
- podmazivanje: Refer to the separate lubrication instructions (if provided with the product) for proper running belt lubrication frequency and method.
- Poravnanje pojasa: If the running belt shifts to one side, adjust it according to the instructions in the troubleshooting section or a separate guide.
7. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Traka za trčanje se ne pokreće. | Power cord not connected; safety key not in place; power switch off. | Ensure power cord is securely plugged in. Insert the safety key. Turn on the power switch. |
| Traka za trčanje proklizava ili se zaustavlja. | Belt too loose; belt requires lubrication. | Adjust belt tension (refer to specific instructions). Lubricate the running belt. |
| Loud rattling or grinding noise. | Labave komponente; neusklađenost remena; problem s motorom. | Provjerite ima li labavih vijaka. Podesite poravnanje remena. Ako buka i dalje postoji, obratite se korisničkoj podršci. |
| Displej ne radi. | Labava kablovska veza; problem sa napajanjem. | Check all cable connections. Ensure power supply is stable. |
8. Specifikacije
| Feature | Detalj |
|---|---|
| Broj modela | T3840-NOVO |
| Brand | TODO |
| Snaga motora | 2.5 HP |
| Raspon brzine | 1 - 12 km/h |
| Nagib | do 7% |
| Maksimalna težina korisnika | 120 kg |
| Nivo buke | Približno 45 dB |
| Dimenzije rasklopljenog stanja (D x Š x V) | 133 x 50 x 94 cm |
| Sklopljene dimenzije (D x Š x V) | 66.5 x 51 x 94 cm |
| Težina proizvoda | 24 kilograma |
| Display Type | LCD |
| Glavni materijal | Metal |
| Posebne karakteristike | Foldable, App Support |
9. Garancija i podrška
For warranty information and customer support, please refer to the documentation included with your product or contact the manufacturer directly. The manufacturer is ZHE JIANG TODO HARDWARE MANUFACTURE CO.,LTD.
For further assistance, you may also visit the official TODO webstranice ili kontaktirajte njihov odjel za korisničku podršku.
