PISEN 4-in-1 Mag-Safe Wireless Charger Instruction Manual

1. Uvod

The PISEN 4-in-1 Mag-Safe Wireless Charger is a versatile 45W GaN charging station designed to efficiently power multiple devices simultaneously. This Qi-certified magnetic wireless charger stand offers fast charging capabilities for a range of devices, including iPhone 16/15/14/13/12 series, Samsung smartphones, and AirPods. Its compact design helps declutter your space while providing a stable and adjustable charging solution.

Figure 1: PISEN 4-in-1 Mag-Safe Wireless Charger with power cable and USB-C cable.

2. Šta je uključeno

Upon unboxing your PISEN 4-in-1 Mag-Safe Wireless Charger, please verify that all the following components are present:

• 1 x PISEN 4-in-1 45W GaN Wireless Charger Stand
• 1 x 4FT 60W USB-C to USB-C Cable
• 1 x Magnetic Metal Ring (for non-Mag-Safe compatible phone cases)
• 1 x Uputstvo za upotrebu

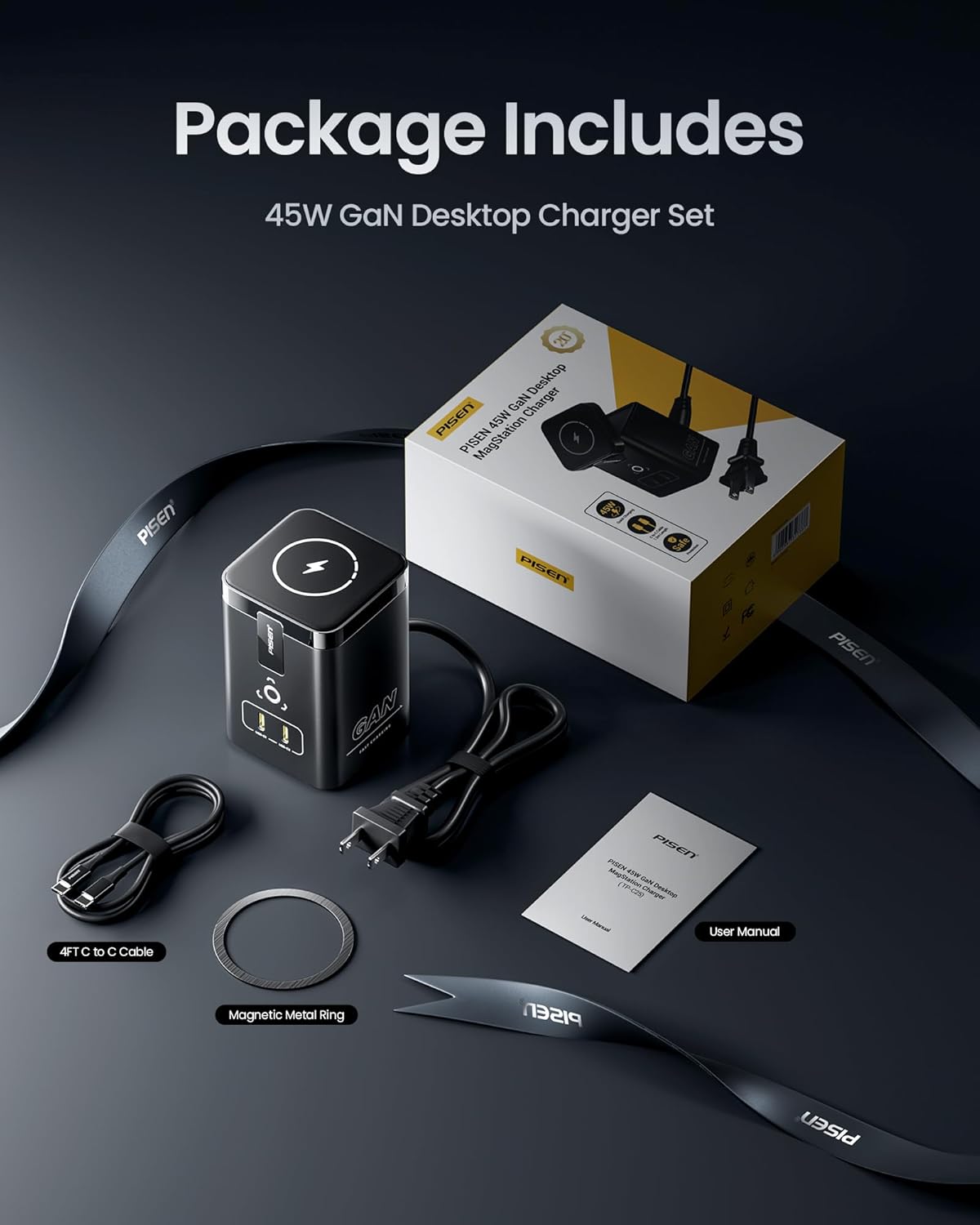

Figure 2: All components included in the PISEN 4-in-1 Mag-Safe Wireless Charger package.

3. Podešavanje

Slijedite ove korake da biste postavili svoju stanicu za punjenje:

1. Priključite napajanje: Plug the AC power cable into the charging station's power input port, then connect the other end to a wall outlet.
2. Pozicioniranje: Place the charging station on a stable, flat surface. Ensure adequate ventilation around the device.
3. Optional Magnetic Ring: If your phone case is not magnetic or is thicker than 2.5 mm, attach the included magnetic metal ring to the back of your phone case to ensure optimal magnetic connection and charging efficiency.

4. Uputstvo za upotrebu

The PISEN 4-in-1 Mag-Safe Wireless Charger offers multiple charging options:

4.1. Wireless Charging (Mag-Safe)

• For iPhone (12-16 series): Align your iPhone with the magnetic charging pad on top of the station. The magnets will snap it into place, initiating wireless charging.
• For AirPods (with wireless charging case): Place your AirPods case on the designated wireless charging area on the base of the station.

Notice: For the best wireless charging experience, we recommend using without phone cases or using magnetic phone cases. Avoid cases thicker than 2.5 mm and non-magnetic cases, as they may affect charging efficiency. It is normal to feel slight heating during wireless charging.

Figure 3: Recommended phone case types for optimal wireless charging.

4.2. Wired Charging (USB-C Ports)

• Connect your device (e.g., laptop, iPad, Samsung phone) to one of the two USB-C ports on the front of the charging station using the provided 4ft 60W USB-C to USB-C cable or your device's compatible cable.
• The USB-C1 port supports up to 45W max output for efficient charging of power-hungry devices.

4.3. Adjustable Viewing

The magnetic phone charging plate is foldable up to 65°, allowing you to conveniently switch between landscape or portrait mode for a comfortable viewing experience while charging.

Figure 4: The magnetic charging pad offers 360° rotation and 65° adjustable viewing angles.

5. Kompatibilnost

The PISEN 4-in-1 Mag-Safe Wireless Charger is compatible with a wide range of devices:

• Bežično punjenje:
• iPhone 16/15/14/13/12 series (7.5W)
• Samsung Series (10W)
• LG and Google Pixel 8-3XL Series (15W Max)
• AirPods/Pro/3 (5W)
• Žičano punjenje (USB-C):
• Laptops (e.g., MacBook Pro)
• iPad (e.g., New iPad Pro)
• Other USB-C compatible devices

Figure 5: Detailed compatibility and wattage for various devices.

6. Sigurnost i zaštita

The PISEN Mag-Safe Wireless Charger is equipped with advanced GaN technology and a built-in multi-protection system to ensure safe and reliable charging. GaN technology provides higher energy efficiency and upgraded heat dissipation, making the charger safer without compromising power output.

6.1. 8-Point Safety System

This charging station incorporates comprehensive safety features, including:

• Zaštita od prekomjerne struje
• Over-Voltage Zaštita
• Zaštita od kratkog spoja
• Zaštita od preopterećenja
• Temperaturna zaštita
• Zaštita od groma
• Zaštita od plamena
• Overpower Protection

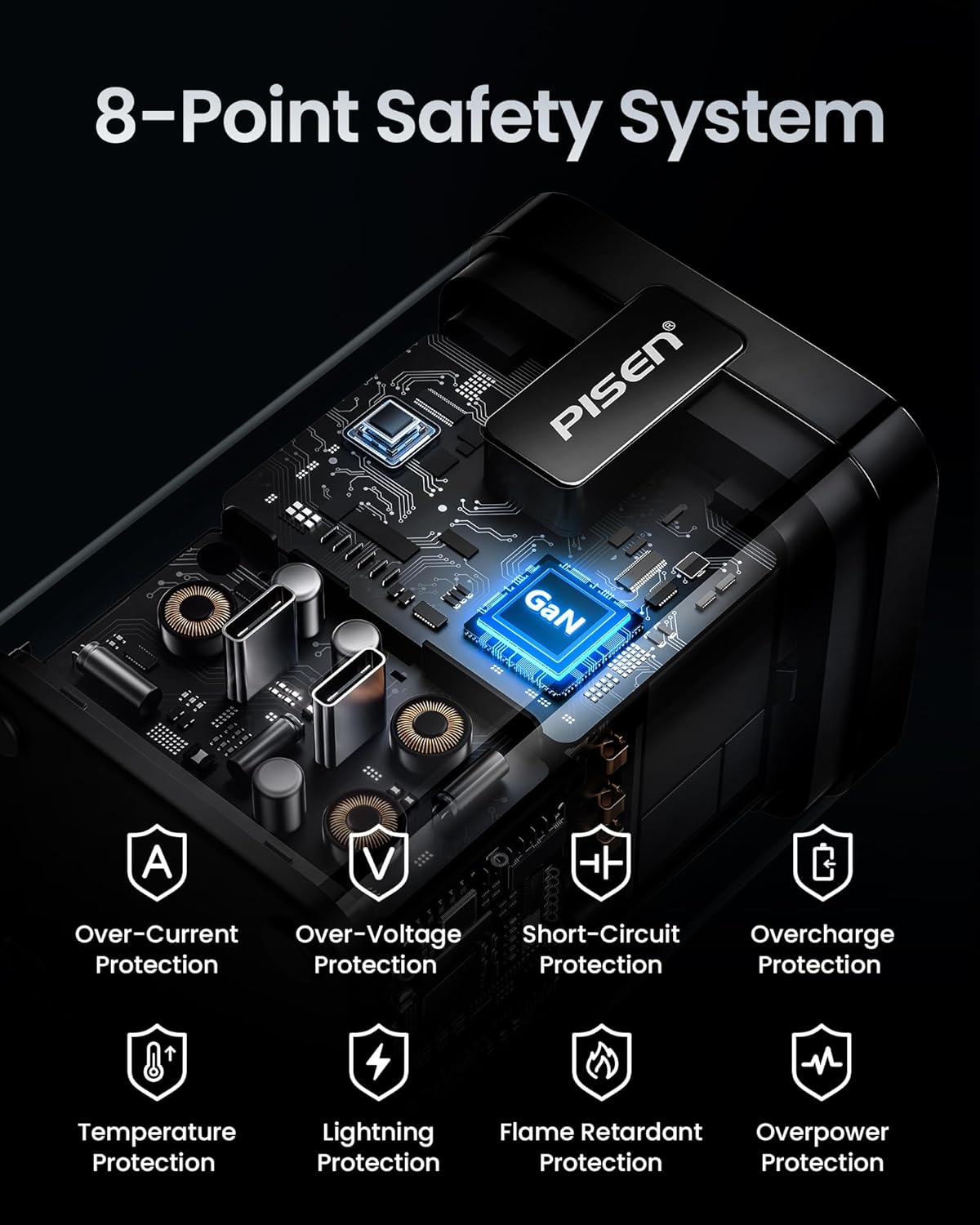

Figure 6: The 8-point safety system ensures secure charging for all your devices.

7. Održavanje

To ensure the longevity and optimal performance of your PISEN 4-in-1 Mag-Safe Wireless Charger, follow these maintenance guidelines:

• čišćenje: Disconnect the charger from the power source before cleaning. Use a soft, dry cloth to wipe down the surface. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture.
• Skladištenje: Kada se punjač ne koristi duži period, čuvajte ga na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura.
• Održavanje kablova: Avoid bending or kinking the charging cables excessively, as this can damage the internal wires. Store cables neatly to prevent tangles.
• Izbjegavajte prepreke: Ensure no foreign objects are placed between your device and the wireless charging pad, as this can hinder charging and potentially cause overheating.

8. Otkrivanje problema

If you encounter issues with your PISEN 4-in-1 Mag-Safe Wireless Charger, refer to the following common solutions:

9. Specifikacije

10. Garancija i podrška

PISEN is committed to providing quality products and excellent customer service. Your PISEN 4-in-1 Mag-Safe Wireless Charger comes with the following support:

• 30-Day Refund: If you are dissatisfied with your purchase, a 30-day refund option is available.
• Zamjena nakon 12 mjeseci: The product is eligible for a 12-month replacement in case of defects.
• 7/24 podrška na mreži: For any concerns or assistance, PISEN offers 24/7 online support.

For further details or to contact support, please refer to the contact information provided in your product packaging or visit the official PISEN website.
