1. Uvod
Thank you for choosing the FITFIU Fitness MC-140 Treadmill. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before using the treadmill to ensure proper function and to prevent injury.
2. Sigurnosne informacije
Vaša sigurnost je najvažnija. Molimo vas da se pridržavate sljedećih mjera opreza:
- Uvijek se konsultujte sa ljekarom prije početka bilo kojeg novog programa vježbanja.
- Osigurajte da je traka za trčanje postavljena na ravnu, stabilnu površinu s dovoljnim prostorom oko nje.
- Držite djecu i kućne ljubimce podalje od trake za trčanje tokom rada.
- Use the magnetic safety key at all times. Attach the clip to your clothing. In case of an emergency, the treadmill will stop immediately if the safety key is dislodged.
- Nemojte prekoračiti maksimalnu težinu korisnika od 120 kg.
- Nosite odgovarajuću sportsku obuću i odjeću.
- Ne koristite traku za trčanje ako je oštećena ili neispravna.
- Isključite traku za trčanje iz utičnice kada je ne koristite ili prije čišćenja i održavanja.
3. Sadržaj paketa
Prilikom raspakivanja, molimo Vas da provjerite da li su sve komponente prisutne:
- FITFIU Fitness MC-140 Treadmill unit
- Korisnički priručnik (ovaj dokument)
- Komplet alata za montažu
- Magnetic Safety Key
4. Proizvod je gotovview
The FITFIU Fitness MC-140 is a versatile 2-in-1 foldable treadmill designed for both walking and running. It features a powerful motor, adjustable incline, and smart connectivity options.
Image 4.1: The FITFIU Fitness MC-140 Treadmill, shown in both its unfolded operational state and its compact folded storage position.
Ključne karakteristike:
- motor: 1500W quiet motor for smooth operation.
- Raspon brzine: Adjustable from 1 km/h up to 12 km/h.
- Nagib: 2 manual incline levels (approximately 1.6° and 5°).
- Radna površina: Spacious 42 x 100 cm non-slip belt.
- Programi: 12 pre-defined training programs.
- Povezivanje: Bluetooth for app integration (Zwift, Kinomap, ASP) and music playback through integrated speakers.
- Pogodnost: Foldable design for compact storage, transport wheels, and a built-in PC/tablet holder.
- sigurnost: Magnetic emergency stop system.
Slika 4.2: Krupni plan view of the treadmill's non-slip running surface, highlighting its dimensions of 42 cm width and 100 cm length.
Image 4.3: Diagram illustrating the 7-layer shock absorption system (VCS - Variable Cushioning System) of the treadmill, designed for comfort and safety during exercise.
Image 4.4: The treadmill's console area featuring a built-in support designed to hold a laptop or tablet, allowing users to work or enjoy entertainment while exercising.
5. Upute za postavljanje
The FITFIU Fitness MC-140 Treadmill is designed for easy assembly. Follow these steps to set up your treadmill:
- Raspakirajte: Pažljivo izvadite sve komponente iz pakovanja.
- pozicija: Place the main treadmill unit on a flat, stable surface in your desired exercise area. Ensure there is sufficient space around the unit for safe operation and access.
- Rasklopiti: Gently lift the console and handlebars into the upright position. Secure them according to the specific locking mechanism (refer to the included quick-start guide for visual instructions if available).
- Povežite se: Uključite kabl za napajanje u uzemljenu električnu utičnicu.
- Sigurnosni ključ: Attach the magnetic safety key to the designated spot on the console. The treadmill will not operate without it.
- Početna provjera: Before first use, ensure all bolts and connections are secure.
6. Uputstvo za upotrebu
6.1 Osnovni rad
- Uključeno: Ensure the safety key is in place and the treadmill is plugged in. Press the 'Start' button on the console.
- Podesite brzinu: Use the '+' and '-' buttons to increase or decrease the running speed. The speed can be adjusted up to 12 km/h.
- zaustaviti: Press the 'Stop' button to gradually slow down and stop the treadmill. In an emergency, pull the magnetic safety key to stop the treadmill immediately.
Image 6.1: Illustration of the treadmill's speed capabilities, indicating a range of 1-5 km/h for walking and 5-12 km/h for running.
6.2 Programi obuke
The MC-140 includes 12 pre-defined training programs (P01-P12) to vary your workout intensity.
- Odaberite program: While the treadmill is stopped or in standby mode, press the 'Program' button to cycle through the available programs.
- Pokreni program: Once your desired program is displayed, press 'Start' to begin the workout. The treadmill will automatically adjust speed according to the program's profile.

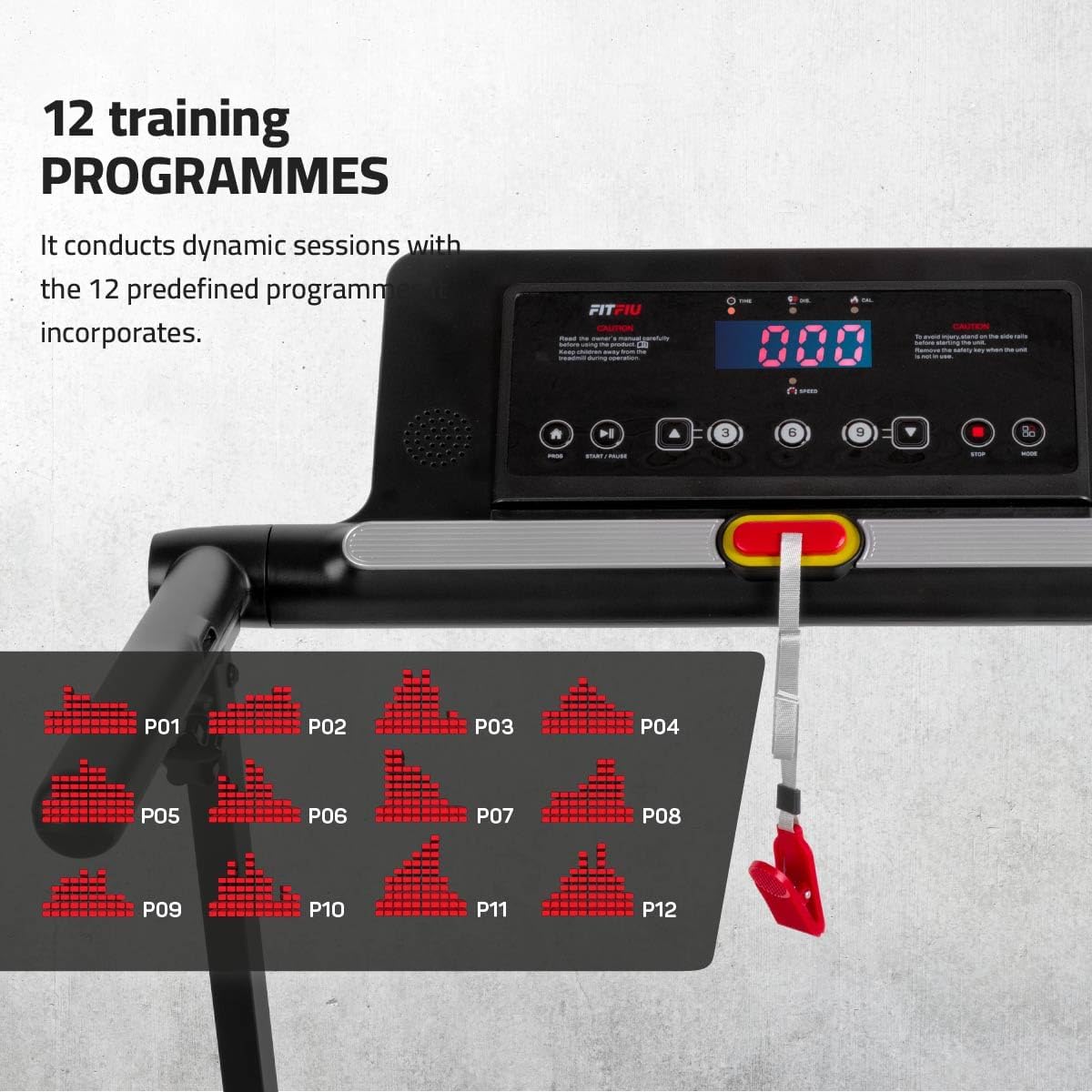

Image 6.2: The treadmill's control panel, showing the digital display and buttons, with an overlay illustrating the 12 predefined training programs (P01-P12) available for varied workouts.
6.3 Podešavanje nagiba
The MC-140 features 2 manual incline levels to increase workout intensity.
- Podešavanje nagiba: To change the incline, you must manually adjust the support feet at the rear of the treadmill. Ensure the treadmill is stopped and unplugged before making adjustments.
- Nivoi: The two levels provide approximately 1.6° and 5° of incline.
Image 6.3: A visual representation of the treadmill's manual incline feature, showing how the running surface can be set to two different angles (1.6° and 5°) to increase workout difficulty.
6.4 Povezivanje aplikacija (Bluetooth)
Enhance your training experience by connecting your treadmill to compatible fitness applications via Bluetooth.
- Omogući Bluetooth: Provjerite je li Bluetooth omogućen na vašem pametnom telefonu ili tabletu.
- Preuzmi aplikaciju: Download and install a compatible app such as Zwift, Kinomap, or ASP from your device's app store.
- Uparite uređaj: Follow the instructions within the chosen app to pair it with your MC-140 treadmill.
- Reprodukcija muzike: You can also connect your device via Bluetooth to play music through the treadmill's integrated speakers.

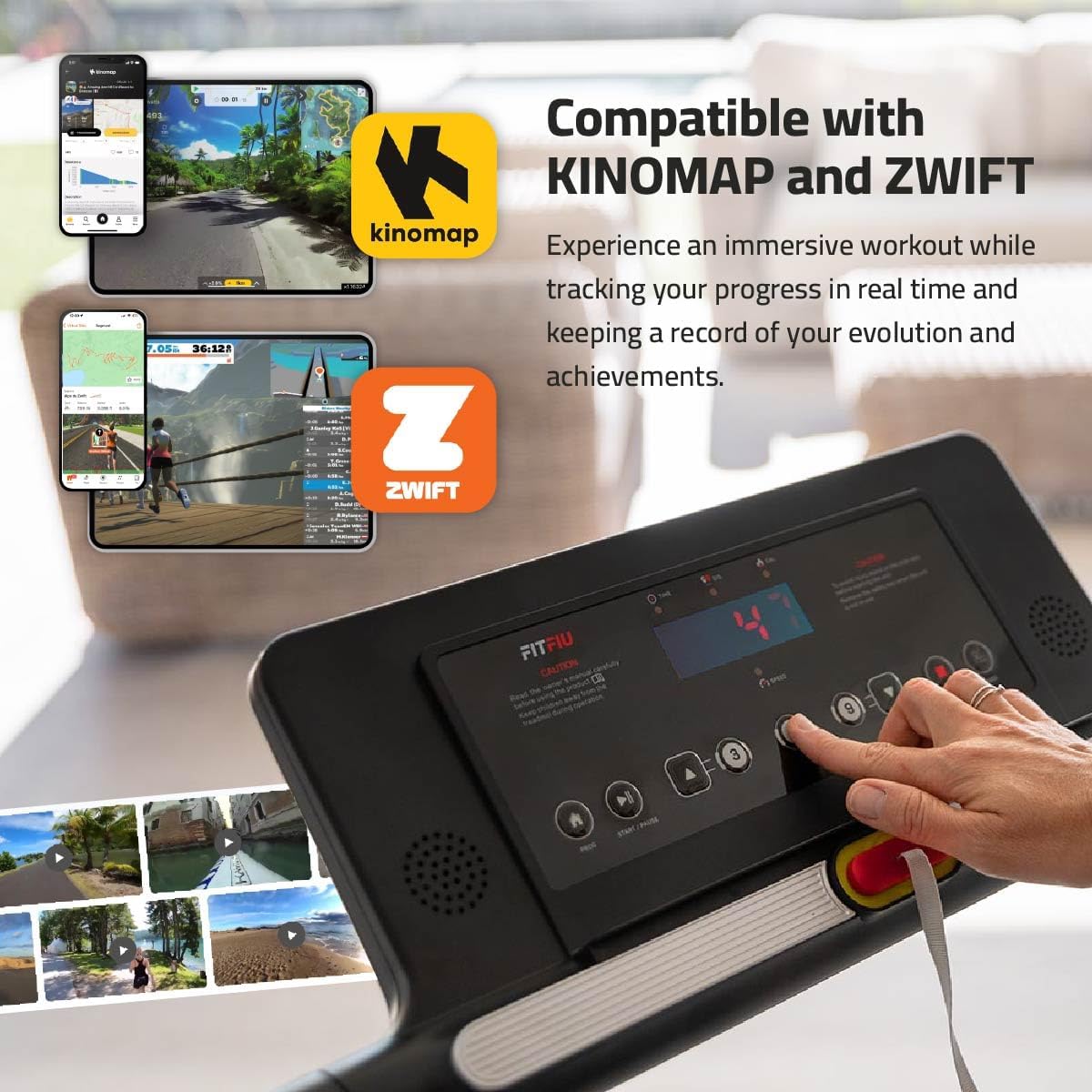

Image 6.4: The treadmill's control panel alongside graphics indicating compatibility with popular fitness applications like Kinomap and Zwift, allowing for interactive and immersive workouts.
7. Održavanje
Redovno održavanje osigurava dugotrajnost i optimalne performanse vaše trake za trčanje.
- čišćenje: Obrišite traku za trčanje nakon svake upotrebe sredstvom za čišćenjeamp krpom za uklanjanje znoja i prašine. Ne koristite abrazivna sredstva za čišćenje.
- podmazivanje: Periodically check the running belt for proper lubrication. If the belt feels dry or sticky, apply silicone lubricant as per the instructions in the quick-start guide (usually every 3-6 months depending on usage).
- Zategnutost pojasa: Check the running belt tension and alignment regularly. Adjust if necessary using the provided tools, following the instructions in the quick-start guide.
- Skladištenje: When not in use, the treadmill can be folded for compact storage. Use the transport wheels to move it easily.
Image 7.1: The treadmill in its folded, compact state, demonstrating its space-saving design and ease of storage, with dimensions of 108 x 59 x 11 cm.
8. Otkrivanje problema
If you encounter issues with your MC-140 treadmill, refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Traka za trčanje se ne pokreće | Safety key not in place; Power cord unplugged; Power switch off | Ensure safety key is correctly placed; Check power cord connection; Turn on power switch |
| Traka za trčanje klizi ili oklijeva | Belt tension too loose; Lack of lubrication | Adjust belt tension (refer to manual); Apply silicone lubricant |
| Neobična buka tokom rada | Loose components; Belt misalignment; Motor issue | Check and tighten all bolts; Adjust belt alignment; If noise persists, contact customer support |
| Console display not working | Loose cable connection; Power issue | Check console cable connections; Verify power supply |
If the problem persists after attempting these solutions, please contact FITFIU Fitness customer support.
9. Specifikacije
Detailed technical specifications for the FITFIU Fitness MC-140 Treadmill:

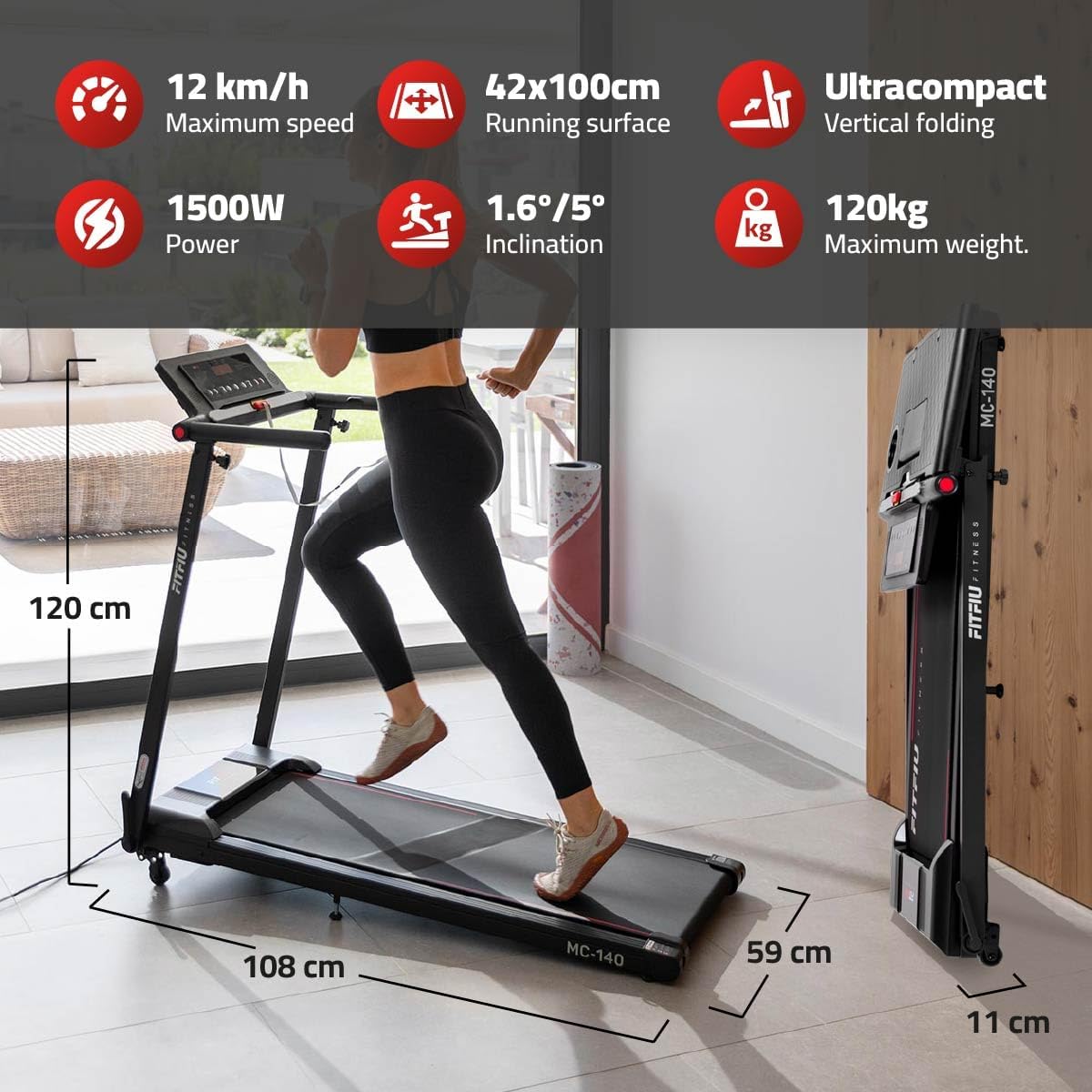

Image 9.1: A summary graphic detailing the key specifications of the FITFIU Fitness MC-140 Treadmill, including maximum speed, running surface, power, incline, and maximum user weight.
- Brand: Fitfiu Fitness
- Broj modela: 1100058
- Dimenzije proizvoda (rasklopljeno): 108 cm (dužina) x 59 cm (širina) x 120 cm (visina)
- Dimenzije proizvoda (sklopljeno): 108 cm (dužina) x 59 cm (širina) x 11 cm (visina)
- Težina proizvoda: 22 kg
- Materijal: nerđajući čelik
- maksimalna brzina: 12 kilometara na sat
- Snaga motora: 1500W
- Radna površina: 42 x 100 cm
- Nivoi nagiba: 2 manual levels (approx. 1.6° and 5°)
- Maksimalna težina korisnika: 120 kg
- Posebne karakteristike: Foldable, Manual Incline, Transport Wheels, Bluetooth Connectivity, App Compatibility (Zwift, Kinomap, ASP), PC/Tablet Holder
- Preporučena upotreba: Running, Walking, Home and Office Exercise, Fitness, Rehabilitation, Daily Exercise, Weight Loss, Training, Cardiovascular Exercise, Indoor Use
- Ciljna publika: Odrasli
- Zemlja porijekla: Kina
10. Garancija i podrška
For warranty information, product support, or to purchase replacement parts, please refer to the warranty card included with your product or visit the official FITFIU Fitness webSačuvajte račun kao dokaz o kupovini za reklamacije u slučaju reklamacije.
