Rollei 4K WiFi Trail Camera User Manual

1. Uvod

Welcome to your Rollei 4K WiFi Trail Camera. This device is designed for capturing high-resolution photos and 4K videos of wildlife and for property surveillance. It features a 48 MP camera, 4K video recording, precise motion detection, night vision, and WiFi/Bluetooth connectivity for smartphone control. The camera is built to be durable and weather-resistant with an IP65 rating, ensuring reliable operation in various outdoor conditions.

2. Proizvod je gotovview

2.1 Sadržaj paketa

Molimo Vas da provjerite paket za sljedeće stavke:

• Rollei 4K WiFi Trail Camera
• Montažni remen
• Nosač za montiranje na zid
• Vijci i zidni čepovi
• 8 AA baterije
• USB kabel
• Uputstvo za upotrebu

Image 2.1: Rollei 4K WiFi Trail Camera and included accessories, such as the mounting strap, wall bracket, and batteries.

2.2 Komponente kamere

Familiarize yourself with the main parts of your camera.

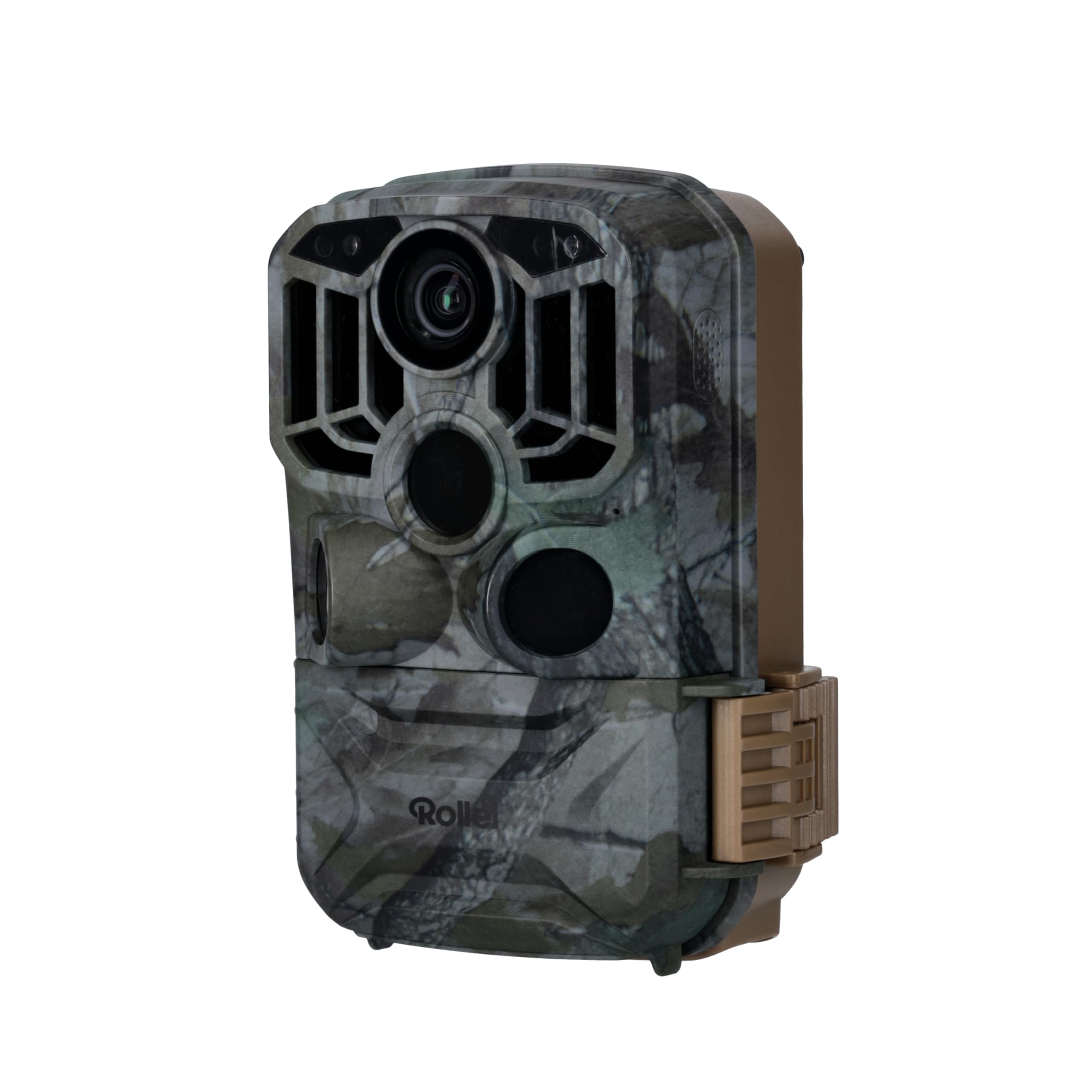

Slika 2.2: Prednja strana view of the Rollei 4K WiFi Trail Camera, showing the main lens, three PIR sensors, and infrared LEDs for night vision.

Slika 2.3: Unutrašnje view of the camera, displaying the 2-inch TFT-LCD screen, control buttons (MODE, ON, SET, OFF, UP, OK, DOWN), and the Micro SD card slot.

• Glavni objektiv: Snima fotografije i video zapise.
• PIR senzori: Passive Infrared sensors for motion detection with a wide detection angle.
• Infracrvene LED diode: Provide illumination for night vision without disturbing wildlife.
• 2-inch TFT-LCD Screen: For menu navigation, previewing images/videos, and settings adjustment.
• Kontrolna dugmad: MODE, ON, SET, OFF, Up, OK, Down for camera operation and menu navigation.
• Utor za SD karticu: Za umetanje Micro SD kartice (do 32 GB, nije uključena).
• Pretinac za baterije: Drži 8 AA baterija.
• USB port: For connecting to a computer for data transfer or external power.

3. Podešavanje

3.1 Instaliranje baterija

1. Open the camera's latch and swing open the front cover to access the interior.
2. Locate the battery compartment, typically at the bottom or back of the internal housing.
3. Umetnite 8 AA alkalne baterije, pazeći na ispravan polaritet (+/-) kao što je naznačeno unutar odjeljka.
4. Čvrsto zatvorite poklopac odjeljka za baterije kako biste održali vodootpornost.

Note: The camera requires 8 AA batteries. Lithium batteries are recommended for extended cold weather performance and longer battery life.

3.2 Umetanje Micro SD kartice

1. With the camera powered off, locate the Micro SD card slot, usually next to the control buttons.
2. Umetnite Micro SD karticu (klase 10 ili više, preporučuje se do 32 GB) u utor dok ne klikne na svoje mjesto.
3. To remove the card, gently push it in again until it springs out, then pull it free.

Important: Format the Micro SD card in the camera's menu before first use to ensure compatibility and optimal performance.

3.3 Početno uključivanje i osnovne postavke

1. Switch the camera to the "SET" position using the mode switch. The internal screen will turn on.
2. Use the "Up" and "Down" buttons to navigate through the menu options.
3. Press "OK" to select an option or enter a submenu.
4. Press "MODE" to return to the previous menu or exit the current menu.
5. Set the correct date, time, and preferred language for the camera.
6. Format the Micro SD card through the menu system.

3.4 Montiranje kamere

The camera offers flexible mounting options to suit various environments:

Slika 3.1: Primjeramples of mounting the camera using the included strap on a tree trunk and the wall mount bracket on a brick wall.

• Montiranje remena: Thread the provided strap through the slots on the back of the camera and secure it tightly around a tree or pole.
• Montaža na zid: Use the wall mount bracket and screws to attach the camera to a wall, fence, or other flat surface. Ensure the mounting surface is stable and secure.

Tip: Position the camera to avoid direct sunlight, which can cause overexposure, and ensure a clear, unobstructed view of the desired area for optimal motion detection.

4. Uputstvo za upotrebu

4.1 režima kamere

The camera has three main operating modes, selected via the mode switch:

• ISKLJUČENO: The camera is powered off. Use this mode when installing batteries or the SD card.
• SET: Configuration mode. Use this mode to adjust settings, view captured photos/videos, and connect to the smartphone application.
• ON: Active mode. The camera will automatically detect motion and record photos or videos according to your configured settings.

4.2 Snimanje fotografija i videa

In "SET" mode, you can configure various recording parameters:

• Rezolucija fotografije: Select from various resolutions, up to 48 MP, for detailed still images.
• Video rezolucija: Choose video quality, up to 4K, with audio recording capabilities.
• Rafal fotografija: Set the number of photos (1-5) to be taken per trigger event.
• PIR interval: Define the time delay between consecutive motion detections to prevent excessive recordings.
• Osetljivost na PIR: Adjust the sensitivity of the PIR sensors (Low, Medium, High) based on the environment and desired detection range.
• Time Lapse: Configure the camera to take photos or videos at set intervals, useful for monitoring long-term events.

Image 4.1: The camera captures high-resolution images (48 MP) and 4K videos, suitable for detailed wildlife observation and surveillance.

Image 4.2: The camera features advanced night vision for clear black and white images in low light conditions, alongside vibrant daytime color captures.

4.3 Povezivanje putem WiFi-ja i aplikacija

The Rollei 4K WiFi Trail Camera can be controlled remotely via a smartphone application, allowing for convenient monitoring and management.

1. Download the "Camera Trap Wireless" app from your smartphone's app store (available for iOS and Android).
2. In "SET" mode on the camera, navigate to the WiFi/Bluetooth settings and activate the function.
3. Open the app on your smartphone and follow the on-screen instructions to connect to the camera's WiFi network.
4. Kada se povežete, možete view live footage, adjust camera settings, and download recordings directly to your phone without physically accessing the camera.

Image 4.3: Remote monitoring and control of the camera via the dedicated smartphone application, showing a live view of the camera's field.

The remote control range for WiFi/Bluetooth connectivity is up to 20 meters.

5. Održavanje

5.1 Čišćenje

• Gently wipe the camera lens and PIR sensors with a soft, dry, lint-free cloth to remove dust, dirt, or moisture.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the camera's surfaces or coatings.
• Ensure the camera housing and all seals are free from debris to maintain its IP65 waterproof rating.

5.2 Zamjena baterije

Replace all 8 AA batteries when the low battery indicator appears on the screen or within the smartphone app. Always replace with a fresh set of high-quality alkaline or lithium batteries to ensure consistent performance and prevent power issues.

5.3 Upravljanje SD karticom

• Regularly check the available storage space on your Micro SD card to prevent recording interruptions.
• Back up important recordings to a computer or other external storage device to avoid data loss.
• Format the Micro SD card periodically (e.g., monthly or after significant data transfer) through the camera's menu to ensure optimal performance and prevent potential data corruption.

6. Otkrivanje problema

7. Specifikacije

8. Garancija i podrška

Rollei products are designed for reliability and performance. We are committed to providing excellent customer service.

• garancija: This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official Rollei webstranicu za detaljne uslove i odredbe u vezi sa pokrićem i trajanjem.
• Dostupnost rezervnih dijelova: Spare parts for this model are available for approximately 2 years from the date of purchase. Please contact customer support for inquiries about spare parts.
• Korisnička podrška: For technical assistance, troubleshooting, or warranty claims, please contact Rollei customer support. Contact information can be found on the official Rollei webstranica (www.rollei.com) or in your product documentation.
