ŠIRENJE 155Amp Uputstvo za upotrebu MIG aparata za zavarivanje

1. Uvod

This manual provides comprehensive instructions for the safe and effective operation, setup, maintenance, and troubleshooting of your FLARING 155Amp MIG Welder. This versatile 3-in-1 machine supports Gasless MIG, Stick, and Lift TIG welding, designed for various applications from home projects to professional use.

2. Sigurnosne informacije

Uvijek dajte prioritet sigurnosti prilikom rukovanja opremom za zavarivanje. Nepoštivanje sigurnosnih smjernica može dovesti do ozbiljnih povreda ili smrti.

• Nosite odgovarajuću ličnu zaštitnu opremu (OZO), uključujući masku za zavarivanje, rukavice i zaštitnu odjeću.
• Osigurajte odgovarajuću ventilaciju kako biste izbjegli udisanje isparenja nastalih pri zavarivanju.
• Držite zapaljive materijale dalje od područja zavarivanja.
• Uvijek isključite napajanje prije izvođenja održavanja ili zamjene dodatne opreme.
• Do not operate the welder in wet conditions.
• Consult local safety regulations and standards.

3. Proizvod je gotovview

The FLARING 155Amp MIG Welder (Model FM155-42CA) is a compact and powerful 3-in-1 welding machine. It features a large LED digital display for clear control and easy operation.

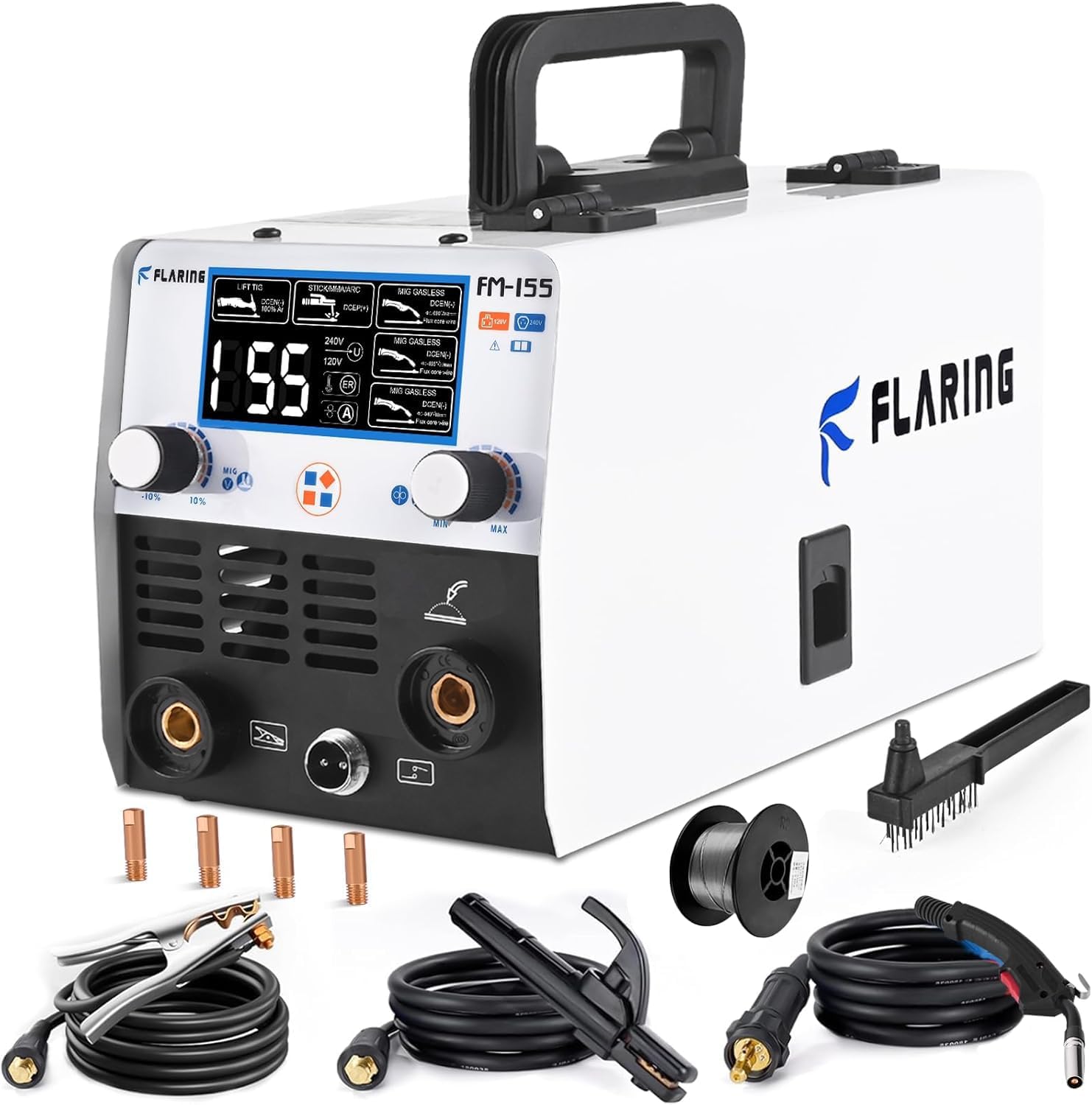

Figure 3.1: FLARING 155Amp MIG Welder and included accessories.

3.1 Ključne karakteristike:

• 3-in-1 Multi-function: Capable of Gasless MIG, Stick (MMA), and Lift TIG welding. (Note: Lift TIG torch sold separately).
• Visoke performanse: Maximum output of 155A, suitable for mild steel up to 4mm (3/20"). Supports 0.8mm, 0.9mm, and 1.0mm flux-cored wire.
• Large LED Digital Display: Provides clear readings for welding mode, current, and voltage, enhancing operational efficiency.
• Prijenosni dizajn: Weighs only 12 pounds (5.67 kg) with a convenient handle for easy transport.
• napredna tehnologija: Incorporates IGBT inverter technology for stable and smooth arc performance, along with overheat/overload protection and efficient cooling.

Figure 3.2: Illustration of the 3-in-1 multi-function capabilities of the FM-155 welder.

Slika 3.3: Krupni plan view of the large LED digital display, showing welding parameters.

4. Podešavanje

4.1 Raspakivanje i pregled:

Carefully unpack all components and inspect for any shipping damage. Retain original packaging for future transport or storage.

• 1 x MIG155A Welder
• 1 x MIG Welding Torch (3M)
• 1 x 0.8 Flux Cored Wire (0.5kg)
• 1 x Electronic Holder
• 1 x Brush & Hammer
• 1 x Ground Clamp (2M)
• 4 x Contact tips
• 2 x Gaiser
• 1 x Korisnički priručnik (ovaj dokument)

Figure 4.1: All standard accessories included with the FLARING FM155 welder.

4.2 Connecting the Welder:

1. Connect the MIG Welding Torch to the appropriate port on the front panel.
2. Attach the Ground Clamp na radni komad ili sto za zavarivanje, osiguravajući dobar električni kontakt.
3. For Stick welding, connect the Electronic Holder to the positive terminal and the Ground Clamp na negativni terminal.
4. For Lift TIG welding, connect the TIG torch (sold separately) to the appropriate terminal and the Ground Clamp na negativni terminal.

4.3 Installing Flux-Cored Wire (for MIG Gasless):

The welder features a stable and smooth wire feed structure.

1. Otvorite odjeljak za dovod žice.
2. Place the 0.5kg flux-cored wire spool onto the spindle.
3. Provucite žicu kroz kotač za pritiskanje žice i u mehanizam za automatsko dovođenje žice.
4. Ensure the wire feeding wheel is correctly sized for the 0.8mm flux-cored wire. The welder supports 0.030" (0.8mm), 0.035" (0.9mm), and 0.040" (1.0mm) flux core wire sizes.
5. Zatvorite pretinac.

Slika 4.2: Interni view of the wire feed structure, showing the spool and feeding mechanism.

5. Uputstvo za upotrebu

The FLARING FM155 offers three welding modes: Gasless MIG, Stick (MMA), and Lift TIG. Select the appropriate mode using the controls on the large LED digital panel.

Figure 5.1: Visual representation of the three welding modes: MMA/Stick, Flux Cored Wire (MIG), and Lift TIG.

5.1 Gasless MIG Welding:

This mode is ideal for welding stainless steel, carbon steel, and thicker steel without the need for external shielding gas, using flux-cored wire.

1. Ensure flux-cored wire is correctly installed (refer to Section 4.3).
2. Select "MIG Gasless" mode on the control panel.
3. Adjust current and voltage settings as required for your material thickness. The machine provides clear digital readouts.
4. Begin welding, maintaining a consistent travel speed and arc length.

5.2 Stick (MMA) Welding:

For stick welding, ensure the electronic holder and ground clamp are connected as described in Section 4.2.

1. Insert the appropriate electrode into the electronic holder.
2. Select "Stick/MMA/ARC" mode on the control panel.
3. Adjust the current (amperage) according to the electrode type and material thickness.
4. Strike an arc and maintain a consistent arc length and travel speed for optimal results.

5.3 Lift TIG Welding:

For Lift TIG welding, an additional Lift TIG torch is required (sold separately). This mode provides precise control for delicate welding tasks.

1. Connect the Lift TIG torch and ensure proper tungsten electrode installation.
2. Select "Lift TIG" mode on the control panel.
3. Adjust current settings.
4. Initiate the arc by gently touching the tungsten to the workpiece and lifting slightly.

5.4 Welding Samples:

The FLARING FM155 is capable of welding various materials and shapes, including iron blocks, galvanized pipes, round tubes, chairs, stainless steel, and steel frames.

Slika 5.2: Pramples of welds performed on different materials and structures, showcasing the versatility of the welder.

6. Održavanje

Redovno održavanje osigurava dugotrajnost i optimalne performanse vašeg aparata za zavarivanje.

• čišćenje: Periodically clean the welder's exterior and ventilation openings to prevent dust and debris buildup. Use a dry, soft cloth.
• Contact Tips: Inspect and replace contact tips regularly, especially for MIG welding, to ensure consistent wire feeding and arc stability.
• Prizemlje Clamp & Cables: Provjerite uzemljenjeamp and all cables for damage or loose connections before each use.
• Skladištenje: Aparat za zavarivanje čuvajte na suhom i čistom mjestu kada se ne koristi.

Figure 6.1: The welder features internal cooling and protection systems to ensure durability and safe operation.

7. Otkrivanje problema

This section addresses common issues you might encounter with your FLARING 155Amp MIG Welder.

8. Specifikacije

Detailed technical specifications for the FLARING 155Amp MIG Welder (Model FM155-42CA).

Figure 8.1: Detailed specification label for the FLARING FM-155 welder.

9. Garancija i podrška

For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase documentation or visit the official FLARING webSačuvajte račun kao dokaz o kupovini.
