AECOJOY 14' x 12' Wall-Mounted Hardtop Gazebo Instruction Manual

1. Proizvod je gotovview

This manual provides detailed instructions for the assembly, operation, and maintenance of your AECOJOY 14' x 12' Wall-Mounted Hardtop Gazebo. This gazebo is designed to provide a sheltered outdoor space, featuring a durable metal and aluminum frame with sun panels for protection.

Image: The AECOJOY 14' x 12' Wall-Mounted Hardtop Gazebo providing shade over a patio seating area.

2. Sigurnosne informacije

• Sidrenje: Always properly anchor the gazebo to the ground and securely attach it to a wall as instructed. This is crucial for stability, especially in windy conditions.
• Opterećenje snijegom: Regularly clear snow off the roof to prevent excessive weight accumulation, which can cause structural damage. The roof is designed to withstand approximately 7 inches of heavy snow.
• Otpornost na vjetar: Once securely fixed and stabilized, the gazebo can withstand winds of approximately 70 mph. However, in extreme weather conditions, additional precautions may be necessary.
• UV zaštita: The sun panels provide UPF 50++ protection against harmful UV rays.
• Montaža: Preporučuje se da za montažu budu uključene najmanje dvije osobe kako bi se osigurala sigurnost i jednostavnost instalacije.

3. Sadržaj paketa

Your AECOJOY Gazebo is shipped in multiple packages. Please ensure all packages have arrived before beginning assembly. A detailed list of all components and hardware is included in the packaging. Verify all parts against the provided list before starting installation.

4. Postavljanje i instalacija

The assembly process is designed to be straightforward with detailed instructions and video tutorials available. Please read all instructions thoroughly before beginning.

4.1 Priprema

1. Raspakujte i organizujte: Carefully unpack all components and lay them out. Keep parts organized to streamline the assembly process.
2. Pregledajte dijelove: Check all parts for any manufacturing defects, such as paint in threaded holes or missing threads on nuts. Clean out any paint from threaded holes if necessary.
3. Alati: Gather necessary tools. Hand tools are recommended for tightening nuts and bolts to avoid damaging the finished paint surface.
4. Lokacija: Choose a suitable location for your gazebo, ensuring it can be securely attached to a wall and anchored to the ground.

4.2 Koraci montaže

Follow the step-by-step guide provided in your package. Key structural elements include:

• Konstrukcija okvira: Assemble the main frame components. It is advisable to leave bolts for arm and beam connectors finger-tight initially to allow for adjustments when installing the roof panels.
• Sun Panel Installation: When installing the sun panels, remove the protective film from each panel before insertion. Using a solution of soap and water in a spray bottle can help panels slide into connector slots more easily. Ensure the 'leak' holes on the panels are facing upwards.
• Montaža na zid: The gazebo is designed to attach to a wall. All necessary accessories for wall attachment are provided.
• Sidrenje na tlu: The base of each post has pre-drilled holes for attachment to your deck or ground surface. Securely anchor the gazebo to prevent movement.

Image: Detail of sun panels and aluminum tubes providing structural support.

Image: Illustration of multiple keyholes and the triangular structure enhancing gazebo stability.

Image: Close-up of a stable frame leg with pre-drilled holes for ground attachment and additional holes for wall studs.

For visual guidance, refer to the step-by-step video tutorials available on the product page or by contacting customer support.

5. Operacija

Your AECOJOY Gazebo is designed for year-round use, offering protection from various weather conditions.

• zaštita od sunca: The heavily tinted roof panels block 99% of UV rays and provide UPF 50++ protection, making it suitable for use in sunny conditions.
• Vodootporne performanse: The inclined roof design and meticulous detailing ensure complete water resistance, effectively shedding rain.
• Snow Capacity: The hardtop roof is engineered to withstand up to 7 inches of heavy snow, providing confidence in winter conditions.
• Otpornost na vjetar: When properly installed and anchored, the gazebo can withstand winds up to 70 mph.

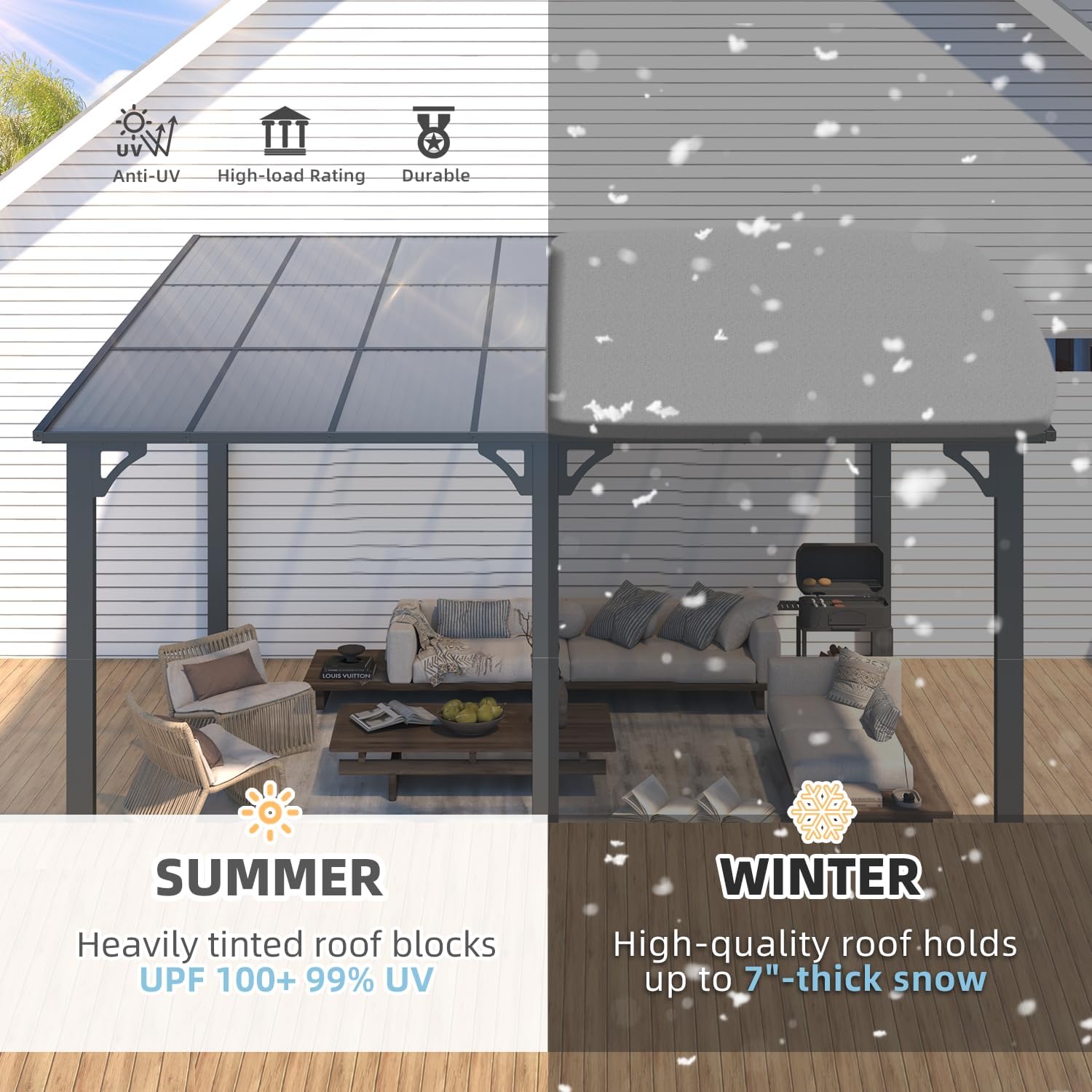

Image: Visual representation of the gazebo's performance in summer (UV protection) and winter (snow load capacity).

6. Održavanje

Redovno održavanje će produžiti vijek trajanja i izgled vaše sjenice.

• čišćenje: Clean the frame and roof panels periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish or panels.
• Uklanjanje snijega: During winter, promptly remove accumulated snow from the roof to prevent structural strain.
• inspekcija: Periodically check all bolts, nuts, and anchoring points to ensure they remain tight and secure. Re-tighten if necessary.
• Panel Condition: Inspect roof panels for any cracks or damage. Contact support for replacements if needed.

7. Otkrivanje problema

Ako naiđete na probleme tokom sastavljanja ili upotrebe, razmotrite sljedeće:

• klimava struktura: Ensure all posts are securely anchored to the ground and the gazebo is firmly attached to the wall. Check that all frame bolts are tightened.
• Difficulty with Bolts/Nuts: If bolts strip easily or nuts are missing threads, ensure you are using appropriate hand tools and not over-tightening. Contact customer support for replacement hardware if needed.
• Panels Not Sliding: If roof panels are difficult to insert, ensure the protective film has been removed and try applying a soap and water solution to the edges.
• curenje vode: Verify that all roof panels are correctly installed with 'leak' holes facing upwards and that all connections are sealed as per instructions.

If problems persist, please contact our professional support team for assistance.

8. Specifikacije

Image: Detailed dimensions diagram for the 14' x 12' Hardtop Gazebo.

9. Garancija i podrška

AECOJOY stands behind its products, offering a worry-free experience.

• garancija: Proizvod dolazi sa jednogodišnjom garancijom.
• Doživotna podrška: We offer lifetime support for your gazebo.
• Služba za korisnike: A professional team is available 24/7 to address any concerns related to installation, usage, maintenance, and more. Expert technical team members are available for remote assistance.
• Zamjene: We provide maintenance and replacements for the product itself.

For assistance, please refer to the contact information provided in your product packaging or visit the AECOJOY official website.
