Maxima Juicer Model 09366100 Instruction Manual

1. Uvod

This manual provides essential information for the safe and effective use of your Maxima Juicer Model 09366100. Please read all instructions carefully before operating the appliance and retain this manual for future reference.

The Maxima Juicer is designed for extracting juice from various fruits and vegetables, featuring two speed settings for optimal performance.

2. Sigurnosna uputstva

Uvijek se pridržavajte osnovnih sigurnosnih mjera opreza prilikom korištenja električnih uređaja kako biste smanjili rizik od požara, strujnog udara i tjelesnih ozljeda.

• Ensure the appliance is placed on a stable, level, and dry surface.
• Ne uranjajte bazu motora u vodu ili bilo koju drugu tečnost.
• Držite ruke i pribor dalje od otvora za punjenje tokom rada kako biste spriječili povrede. Uvijek koristite priloženi potiskivač hrane.
• Isključite sokovnik iz električne utičnice prije sastavljanja, rastavljanja ili čišćenja.
• Ne koristite uređaj s oštećenim kabelom ili utikačem, ili ako uređaj ne radi ispravno ili je na bilo koji način oštećen.
• Ovaj uređaj nije namijenjen za upotrebu osobama sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima ili osobama bez iskustva i znanja, osim ako nisu pod nadzorom ili im nije data uputstva o korištenju uređaja od strane osobe odgovorne za njihovu sigurnost.
• Djeca trebaju biti pod nadzorom kako bi se osiguralo da se ne igraju s uređajem.

3. Podešavanje

Before first use, wash all removable parts (filter, pulp container, juice spout, food pusher) in warm soapy water, rinse thoroughly, and dry.

1. Place the motor base on a flat, stable, and dry surface.
2. Assemble the juicer components according to the diagram. Ensure the stainless steel filter is securely in place.
3. Attach the pulp container to the side of the juicer.
4. Ensure the juice spout is correctly positioned to allow juice to flow into a collection glass.
5. Secure the locking arm to ensure all parts are firmly in place before plugging in the appliance.

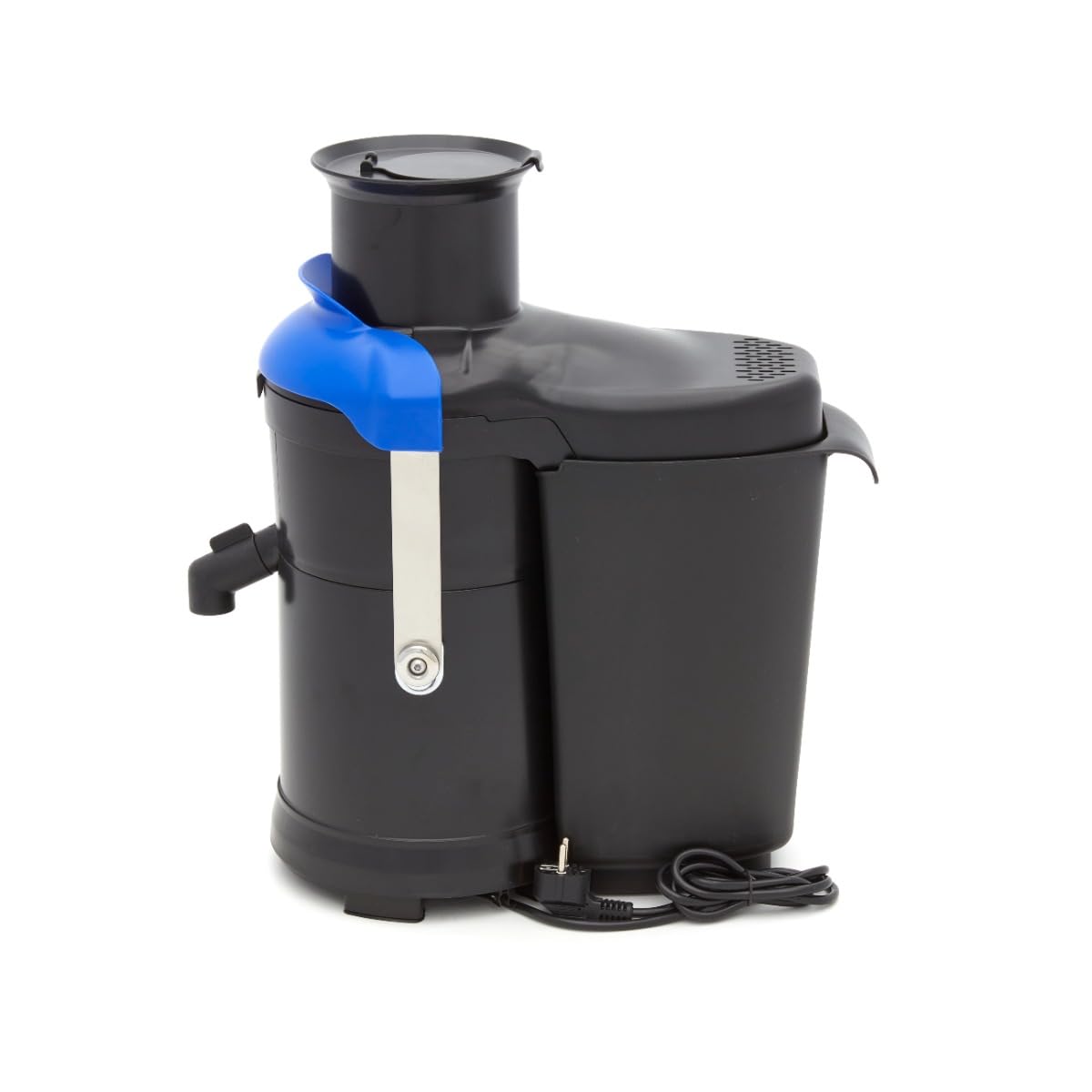

Image: Maxima Juicer fully assembled, showing the main unit, pulp container, and juice spout.

Slika: Krupni plan view of the locking arm, which secures the top cover and ensures safe operation.

4. Uputstvo za upotrebu

Follow these steps for efficient juicing:

1. Wash fruits and vegetables thoroughly. For larger items, cut them into smaller pieces that fit comfortably into the feed chute. Remove any hard seeds or pits.
2. Place an empty glass or container under the juice spout to collect the extracted juice.
3. Uključite sokovnik u odgovarajuću utičnicu.
4. Turn on the machine using the power switch. Select the desired speed: Speed 1 (3000 RPM) for softer fruits and vegetables, or Speed 2 (7200 RPM) for harder produce.
5. Gradually feed the prepared fruits and vegetables into the feed chute. Use the food pusher to gently guide them down. Do not force food into the chute.
6. The juicer will separate the juice from the pulp. Juice will flow into your glass, and pulp will collect in the pulp container.
7. Once juicing is complete, turn off the machine and unplug it from the power outlet.
8. For maximum juice yield, you may re-process the collected pulp once.

Slika: Vrh view of the Maxima Juicer showing the open feed chute, where fruits and vegetables are inserted.

Image: Close-up of the control panel with power switch and speed settings, alongside the juice dispensing spout.

5. Održavanje i čišćenje

Redovno čišćenje osigurava optimalne performanse i produžava vijek trajanja vašeg sokovnika. Uvijek isključite uređaj iz struje prije čišćenja.

1. Turn off and unplug the juicer from the power outlet.
2. Disassemble the removable parts: food pusher, top cover, stainless steel filter, pulp container, and juice spout.
3. Ispraznite posudu za pulpu.
4. Rinse the stainless steel filter under running water. Use the included cleaning brush to remove any stubborn pulp residue from the mesh. Ensure all pulp is removed from the filter for efficient juicing.
5. Wash the top cover, pulp container, juice spout, and food pusher in warm, soapy water. Rinse thoroughly and dry.
6. Obrišite bazu motora oglasomamp tkanina. Nikada ne uranjajte bazu motora u vodu.
7. Reassemble all dry parts. Store the juicer in a clean, dry place.

Slika: Sa strane view of the Maxima Juicer, highlighting the detachable pulp container for easy cleaning.

6. Otkrivanje problema

If you encounter issues with your Maxima Juicer, refer to the following common problems and solutions:

• Sokovnik se ne uključuje: Ensure the power cord is securely plugged into a working outlet. Check that the locking arm is fully engaged and the appliance is correctly assembled.
• Low juice yield or excessive pulp: The stainless steel filter may be clogged. Clean the filter thoroughly. Ensure fruits and vegetables are fresh and cut to appropriate sizes. Try re-processing the pulp.
• Uređaj se zaustavlja tokom rada: The juicer may have overheated. Turn off and unplug the appliance, allow it to cool down for at least 30 minutes before restarting. Ensure you are not overloading the machine.
• Glasna buka ili vibracije: Ensure all parts are correctly assembled and the locking arm is secured. Check for any foreign objects in the feed chute or filter.

If the problem persists, contact Maxima customer support.

7. Specifikacije

8. Garancija i podrška

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Maxima customer service directly. Ensure you have your model number (09366100) and proof of purchase available when contacting support.
