1. Uvod
Thank you for choosing the AECOJOY 28' x 10' Wall-Mounted Hard Top Lean-to Gazebo Pergola. This manual provides essential information for the safe assembly, operation, and maintenance of your new gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
2. Sigurnosne informacije
UPOZORENJE: Nepoštivanje ovih sigurnosnih uputa može dovesti do ozbiljnih povreda ili materijalne štete.
- Ensure all parts are present and undamaged before assembly. Do not attempt to assemble with missing or damaged parts.
- Assembly requires at least two adults.
- Uvijek nosite odgovarajuću zaštitnu opremu, kao što su rukavice, tokom montaže.
- Securely fasten the gazebo to a sturdy wall and the ground using the provided hardware. This is crucial for stability, especially in windy conditions.
- Ne vješajte teške predmete na okvir sjenice.
- Regularly inspect the gazebo for any signs of wear, damage, or loose connections.
- In extreme weather conditions (e.g., heavy snow, strong winds exceeding 70 mph), it is recommended to take additional precautions or temporarily disassemble the roof panels if possible, to prevent damage.
- Držite djecu i kućne ljubimce podalje od mjesta za montažu.
3. Lista dijelova
A detailed list of all components and hardware can be found in the packaging. Please verify all parts against the provided list before starting assembly.
4. Upute za sastavljanje
This gazebo is designed to create a spacious 28'x10' coverage area by integrating two 14'x10' gazebo units with necessary accessories. Follow the step-by-step instructions provided in your packaging for detailed assembly. Key steps include:
- Raspakujte sve komponente i položite ih na čistu, ravnu površinu.
- Sastavite glavnu konstrukciju okvira prema dijagramima.
- Attach the flexible roof panels. These panels are designed to disperse impact from severe weather.
- Mount the gazebo securely against a wall using the provided nails and anchoring hardware.
- Ensure all connections are tightened and the structure is stable before use.
Figure 4.1: Illustration of the combined gazebo structure, showing how two units integrate to form the 28'x10' size.

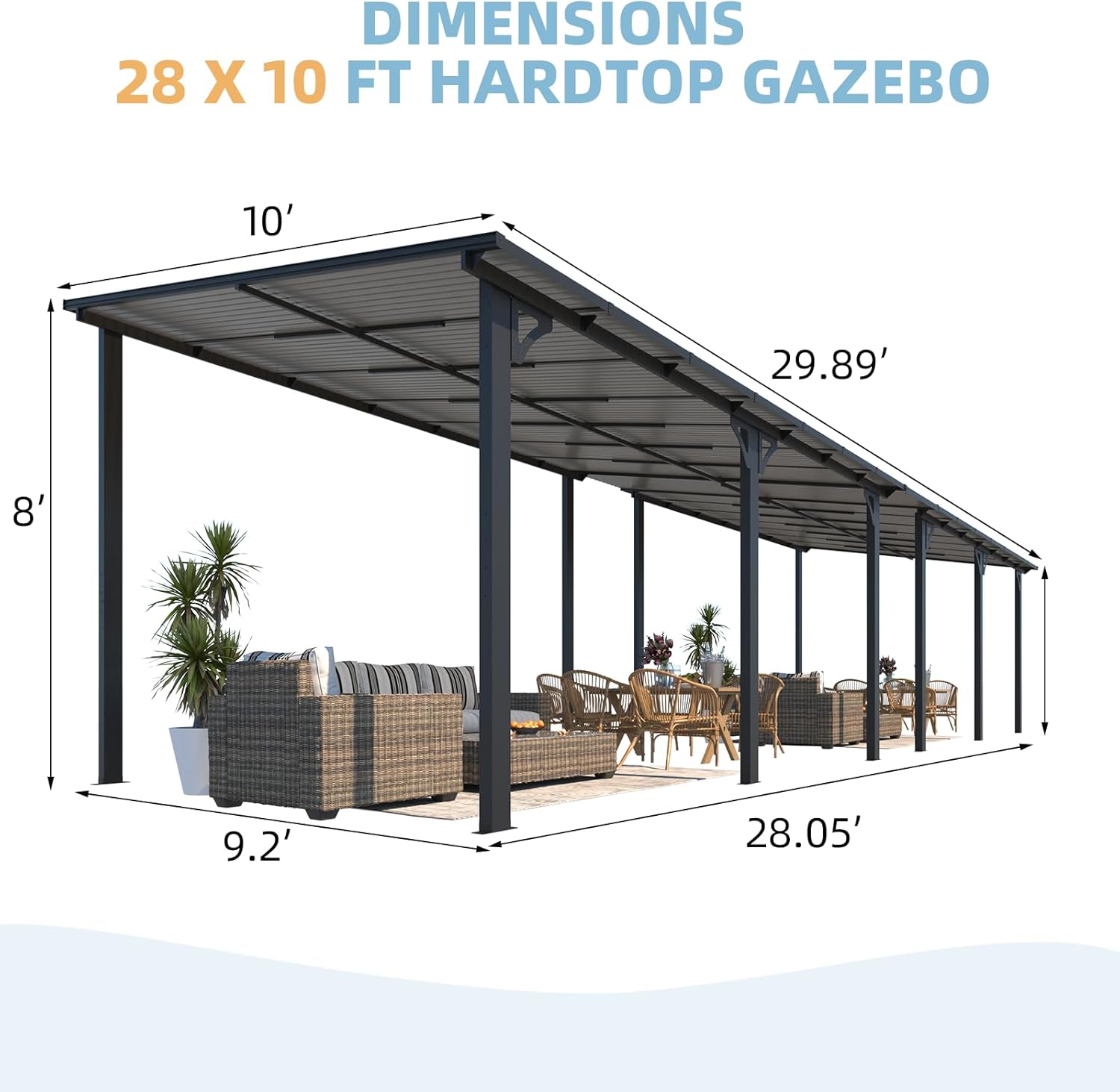

Figure 4.2: Detailed dimensions of the AECOJOY 28' x 10' Hardtop Gazebo.
Slika 4.3: View of the pre-configured roof structure, designed for easy assembly and expansion.
5. Uputstvo za upotrebu
Your AECOJOY gazebo is designed for year-round use, offering protection and comfort in various conditions.
- Otpornost na vremenske uvjete: The gazebo is waterproof and features flexible panels that effectively disperse impact from severe weather events like hailstorms. When securely fastened, it can withstand wind speeds of 40-70 mph and snow accumulation of up to 2.4 inches (static pressure test rating of 66 lbs/sq. ft.).
- UV zaštita: The awning roof provides comprehensive protection against harmful UV rays, blocking UPF 50+ and 99% UV.
- Scenariji upotrebe: This gazebo is suitable for various outdoor settings, including patios, decks, backyards, near pools, hot tubs, or as an outdoor dining and entertainment area.
Slika 5.1: Gotovoview of the gazebo's robust features, including flexible panels and weather resistance.
Figure 5.2: Demonstrating the gazebo's performance in both summer (UV protection) and winter (snow load).
Slika 5.3: Pramples of the gazebo's versatile applications in different environments.
Product Overview Video
Video 5.1: An official video demonstrating the AECOJOY Gazebo Pergola in various settings and highlighting its features.
6. Održavanje
Proper maintenance will extend the life and appearance of your gazebo.
- čišćenje: Clean the frame and roof panels regularly with mild soap and water. Rinse thoroughly with clean water and allow to air dry. Avoid abrasive cleaners or harsh chemicals.
- inspekcija: Povremeno provjeravajte sve vijke, šrafove i spojeve kako biste bili sigurni da su čvrsto zategnuti. Po potrebi ih ponovo zategnite.
- Zimska njega: While designed for snow load, it is advisable to clear excessive snow accumulation from the roof to prevent potential damage, especially during heavy snowfall.
7. Otkrivanje problema
Ako naiđete na probleme sa svojom sjenom, pogledajte sljedeće uobičajene probleme i rješenja:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Sjenica se čini nestabilnom ili klimavom. | Loose connections or improper anchoring. | Ensure all bolts and screws are securely tightened. Verify the gazebo is properly anchored to the wall and ground. |
| Nakupljanje vode na krovu. | Improper panel installation or debris blocking drainage. | Check roof panel alignment and ensure proper slope for drainage. Clear any debris from the roof and gutters. |
| Poteškoće tokom montaže. | Nepravilna orijentacija dijela ili nedostajući koraci. | Review the assembly instructions and diagrams carefully. Ensure parts are oriented correctly before tightening. Contact customer support if parts are missing. |
If you cannot resolve the issue using the information above, please contact AECOJOY customer support.
8. Specifikacije
| Feature | Detalj |
|---|---|
| Brand | AECOJOY |
| Broj modela | 163044 |
| Dimenzije proizvoda | 358.68 cm D x 120 cm Š x 97.2 cm V (28 m D x 10 m Š x 8.1 m V) |
| Težina artikla | 330 funti |
| Materijal | Aluminum, Metal, Sun Panels |
| Materijal okvira | Aluminijum, Metal |
| Stil | Wall-Mounted Hard Top Lean-to Gazebo Pergola |
| Nivo vodootpornosti | Vodootporan |
| Zaštita od ultraljubičastog svjetla | Yes (UPF 50+, 99% UV block) |
| Oblik | Pravougaona sjenica |
| Obavezna montaža | Da |
| Otpornost na vjetar | 40-70 mph (when securely fastened) |
| Nosivost snijega | Up to 2.4 inches / 66 lbs/sq. ft. (static pressure test) |
9. Garancija i korisnička podrška
AECOJOY offers a 1 godine garancije for this product. For any questions, concerns, or assistance with assembly, parts, or operation, please contact our customer support team. We provide lifetime, 24/7 customer-friendly support.
Contact information can typically be found on the product packaging or the AECOJOY official website.
