Product Overview
The Knog Blinder Mini Bike Light is a compact and powerful front bike light designed to enhance cyclist visibility. Featuring Chip On Board (COB) LED technology, it delivers 50 lumens of bright light and offers 8 distinct flash patterns. Its ultralight and waterproof design, combined with convenient USB-rechargeable functionality, makes it an ideal accessory for urban and road cycling.
This manual provides instructions for setting up, operating, maintaining, and troubleshooting your Blinder Mini Bike Light.
Figure 1: Knog Blinder Mini Bike Light, showcasing its compact design and bright LED panel.
Setup
- Početna naplata: Before first use, fully charge the Blinder Mini. Locate the integrated USB-A connector on the light. Plug it directly into any standard USB-A port (e.g., computer, wall adapter). The charge indicator light will show charging status and turn off when fully charged.
- Montaža: The Blinder Mini features a flexible silicone strap for easy attachment.
- Identify a suitable position on your bicycle's handlebar.
- Wrap the silicone strap around the handlebar.
- Hook the strap onto the clasp on the light body, ensuring a secure and snug fit. The light should be positioned to face forward, providing optimal visibility.

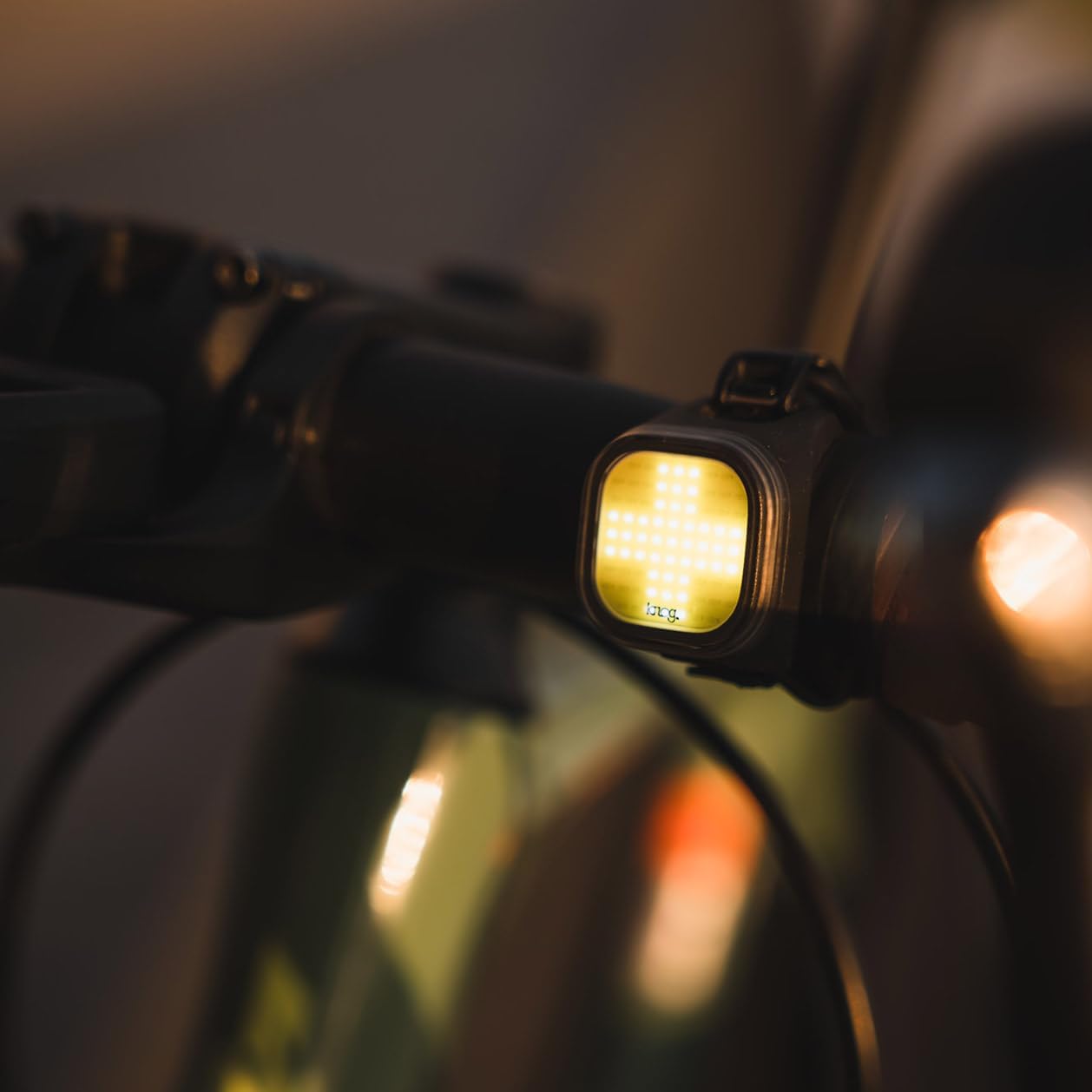

Figure 2: The Blinder Mini Bike Light securely mounted on a bicycle handlebar, ready for use.
Uputstvo za upotrebu
- Uključivanje/isključivanje: Press and hold the power button (located on the side/rear of the light) for approximately 1 second to turn the light on or off.
- Promjena načina rada: Briefly press the power button to cycle through the 8 available flash patterns and steady modes. The light will remember the last mode used when turned off and on again.
- Indikator baterije: A small LED indicator near the power button will show the battery status. Refer to the product specifications for detailed indicator behavior (e.g., green for full, red for low).
- Punjenje: When the battery is low, recharge the light using its integrated USB-A connector. A full charge typically takes a few hours and provides up to 30 hours of runtime depending on the mode selected.
Figure 3: Close-up of the Blinder Mini's LED panel, illustrating its bright output and distinct pattern.
Održavanje
- čišćenje: Obrišite tijelo svjetla i sočivo mekom krpomamp cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish or LED lens.
- Otpornost na vodu: The Blinder Mini is IP67 waterproof. While it can withstand rain and splashes, avoid prolonged submersion. Ensure the USB connector is dry before charging.
- Skladištenje: Store the light in a cool, dry place when not in use. For long-term storage, ensure the battery is partially charged (around 50%) to preserve battery health.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Svjetlo se ne pali. | Baterija je prazna. | Charge the light fully using the integrated USB-A connector. |
| Svjetlo se ne puni. | USB port issue or connector not fully inserted. | Try a different USB port or power source. Ensure the USB-A connector is fully inserted and dry. |
| Light is dim or runtime is short. | Battery is low or aging. | Recharge the light. If the issue persists after a full charge, the battery may be nearing the end of its lifespan. |
| Svetlo treperi. | Slaba baterija ili labav spoj. | Charge the light. Ensure the light is securely mounted and the internal components are not damaged. |
Specifikacije
- Model: Knog Blinder Mini (Model No. 12982)
- Svjetlina: 50 lumena
- LED tip: COB (Chip On Board) LED
- Načini rada: 8 Flash Patterns
- Vidljivost: Do 300 metara
- Izvor napajanja: Integrated USB Rechargeable Battery
- vrijeme izvođenja: Up to 30 hours (mode dependent)
- Težina: Otprilike 17 grama
- Dimenzije: 5.91"L x 3.15"W x 5.91"H (Note: These dimensions may refer to packaging)
- Otpornost na vodu: IP67 (vodootporni)
- Materijal: Aluminum body with silicone strap
- Montaža: Handlebar Mount (integrated silicone strap)
Informacije o garanciji
The Knog Blinder Mini Bike Light comes with a 2 godine garancije od datuma kupovine. Ova garancija pokriva nedostatke u materijalu i izradi pri normalnoj upotrebi.
To make a warranty claim, please retain your proof of purchase and contact Knog customer support through their official website. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Korisnička podrška
Za daljnju pomoć, tehničku podršku ili view additional product information, please visit the official KNOG webstranica:
Visit the KNOG Store on Amazon
You may also find FAQs and contact information on their dedicated support pages.
