Uvod
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bosch PVQ711H26E Series 6 Induction Hob with Integrated Extractor. Please read these instructions carefully before first use and keep them for future reference.
Sigurnosne informacije
Uvijek se pridržavajte sljedećih sigurnosnih mjera opreza kako biste spriječili tjelesne ozljede ili oštećenje uređaja.
- električna sigurnost: Ensure the appliance is correctly installed by a qualified professional and connected to a properly grounded power supply as specified in the technical data.
- Opasnost od opekotina: The hob surface remains hot after use. The residual heat indicator will illuminate until the surface is safe to touch. Do not touch hot surfaces.
- Sigurnost djece: This appliance is equipped with a child safety lock to prevent accidental activation or changes to settings. Activate this function when children are present.
- pregrijavanje: The PerfectFry Plus sensor helps prevent overcooking and overheating by automatically regulating temperature.
- Zapaljivi materijali: Ne skladištite zapaljive materijale na ili u blizini ploče za kuhanje.
- Integrated Extractor: Ensure proper ventilation for the integrated extractor. Regularly clean grease filters to maintain efficiency and prevent fire hazards.
Postavljanje i instalacija
This induction hob with an integrated extractor requires careful installation. It is recommended that installation be performed by a qualified technician.
Dimenzije i prostorni zahtjevi
The Bosch PVQ711H26E is a wider model, requiring sufficient counter space. Refer to the diagram below for precise dimensions.
Slika 1: Appliance Dimensions. Note the overall width of 710mm and depth of 522mm. Each of the four cooking zones measures 190mm x 210mm.
Električna veza
The appliance operates on a supply voltage of 220-240V or 380-415V with a connected load of 7.4 kW. Ensure your electrical installation meets these requirements.
Extractor System Installation
The integrated extractor can operate in either ducted (circuit ouvert) or recirculating (circuit fermé) mode. Ensure the appropriate ducting or recirculation kit is installed correctly. The system includes a large liquid and condensate drainage system.
Uputstvo za upotrebu
Your Bosch induction hob offers intuitive controls and advanced features for efficient cooking.
Kontrolna tabla i ekran
Slika 2: Control Panel. The clear digital display provides real-time information on selected power levels and active functions.
The hob features DirectSelect controls and a clear digital display. You can also control the appliance remotely via the Home Connect app on your smartphone.
Zone za kuvanje i nivoi snage
The hob has 4 induction cooking zones, each with 17 power levels for precise temperature control. The CombiZone function allows you to combine two cooking zones for larger cookware.
- Booster funkcija: Activate the Booster function for a specific zone to rapidly increase power and accelerate cooking.
- Funkcija brzog pokretanja: Automatically detects where you have placed cookware and displays the corresponding cooking zone.
- Funkcija ponovnog pokretanja: If the hob is accidentally switched off, this function allows you to restore the last settings within a short period.
- PerfectFry Plus Sensor: This sensor automatically regulates the temperature of the cooking zone to prevent food from overcooking or burning.
Integrated Extractor Operation
Slika 3: Integrated Extractor. The central vent efficiently removes cooking fumes and odors.
The integrated extractor features DirectSelect controls. The AutoOn function automatically activates ventilation when a cooking zone is in use. It offers an intensive mode for strong odors and steam, with a maximum extraction rate of 622 m³/h.
Funkcije tajmera
The countdown timer allows you to set precise cooking durations. An audible signal will sound when the set time expires, and the cooking zone will automatically switch off.
Održavanje i čišćenje
Redovno čišćenje i održavanje osiguravaju dugotrajnost i optimalne performanse vašeg uređaja.
Hob Surface Cleaning

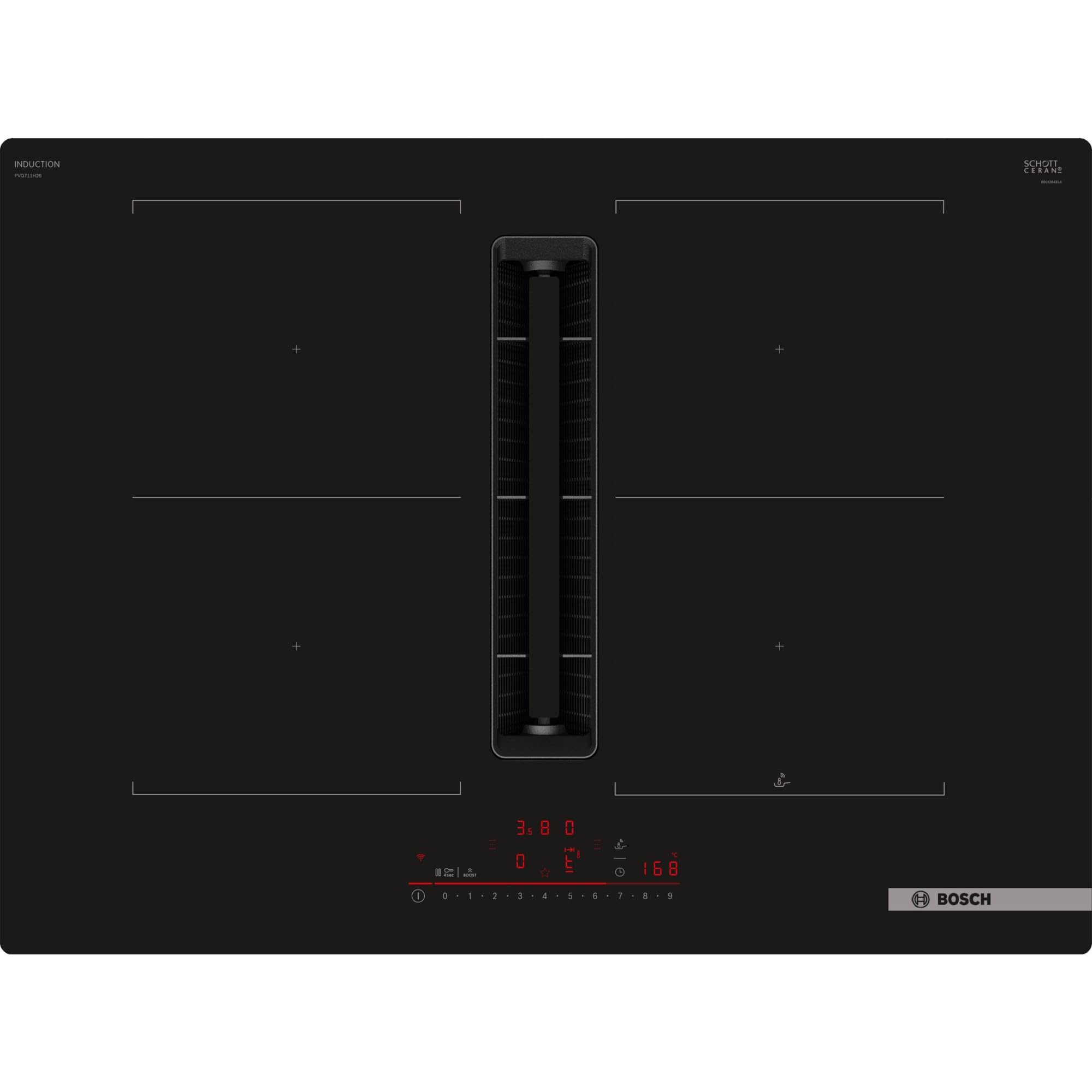

Slika 4: Ceramic Glass Surface. The smooth, scratch-resistant surface is easy to clean.
The ceramic glass surface is smooth and easy to clean. Wait for the residual heat indicator to turn off before cleaning to avoid burns. Use a soft cloth and a non-abrasive cleaner specifically designed for ceramic hobs. For stubborn stains, a hob scraper can be used carefully.
Extractor Filter Cleaning
The integrated extractor uses grease filters. These filters should be cleaned regularly according to the instructions in the full product manual to maintain optimal grease filtering efficiency (Class B) and airflow (Class A). A clean filter is crucial for effective odor and steam removal.
Rješavanje problema
Ovaj odjeljak pruža rješenja za uobičajene probleme s kojima se možete susresti.
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Ploča za kuvanje se ne uključuje. | Child safety lock is active, or no power supply. | Deactivate the child safety lock. Check power connection and circuit breaker. |
| Zona za kuhanje se ne zagrijava. | Incorrect cookware, or PowerManagement function active. | Use induction-compatible cookware. Adjust power settings if PowerManagement is limiting power. |
| Extractor performance is low. | Grease filters are dirty, or obstruction in ducting. | Clean or replace grease filters. Check for obstructions in the ventilation system. |
| Prikazan je kod greške. | Specifična unutrašnja greška. | Za značenje specifičnih kodova grešaka pogledajte kompletan korisnički priručnik ili kontaktirajte korisničku podršku. |
For more detailed troubleshooting, please consult the comprehensive user manual or contact Bosch customer service.
Tehničke specifikacije
| Generale | |
|---|---|
| Brand | Bosch |
| Broj modela | PVQ711H26E |
| Serije | Serija 6 |
| Boja | Crna |
| Hob Finish | Ceramic Glass |
| Dimenzije (V x Š x D) | 223 mm x 710 mm x 522 mm |
| Težina | 23.6 kg |
| Karakteristike ploče za kuhanje | |
| Broj zona grijanja | 4 |
| Broj nivoa snage | 17 |
| Povezano opterećenje | 7.4 kW |
| Snabdijevanje voltage | 220-240 V, 380-415 V |
| Heating Zone Power (each) | 3700 W |
| Zone Dimensions (each) | 190 mm x 210 mm |
| Posebne funkcije | Booster, QuickStart, ReStart, PerfectFry Plus Sensor, CombiZone (2 combined zones) |
| Tip kontrole | DirectSelect, Remote (Home Connect) |
| Sigurnosne karakteristike | Child Safety Lock, Safety Timer, Main Switch, PowerManagement, Setting Lock, Residual Heat Indicator, Automatic Shut-off |
| Integrated Extractor Features | |
| Način rada | Ducted (Circuit ouvert), Recirculating (Circuit fermé) |
| Dynamic Fluid Efficiency Class | A |
| Klasa efikasnosti filtriranja masti | B |
| Godišnja potrošnja energije | 61.8 kWh/god |
| Nivo buke (min./maks.) | 42 dB / 74 dB |
| Maximum Extraction Rate | 622 m³/h |
| Filter Type | Filter za masnoću |
| Posebne funkcije | Intensive Mode, AutoOn (automatic ventilation) |
Garancija i podrška
Informacije o garanciji
This Bosch appliance comes with a 24-mjesečna garancija from the date of purchase. Please retain your proof of purchase for warranty claims. The availability of spare parts is guaranteed for 15 years.
Korisnička podrška
For technical assistance, service requests, or to order spare parts, please contact Bosch customer service. You can find contact details on the official Bosch website or in the full product documentation provided with your appliance.
For remote monitoring and control, download the Home Connect app and register your appliance.
