SJOYBRING bežični dvostruki Din Carplay i Android Auto auto stereo uređaj. Uputstvo za upotrebu.

1. Proizvod je gotovview

The SJOYBRING Wireless Double Din Carplay & Android Auto Car Stereo is a 7-inch full HD capacitive touchscreen unit designed to enhance your in-car entertainment and connectivity. It features wireless Apple CarPlay and Android Auto, Bluetooth, 4-channel RCA output, high power output, subwoofer support, and includes a backup camera.

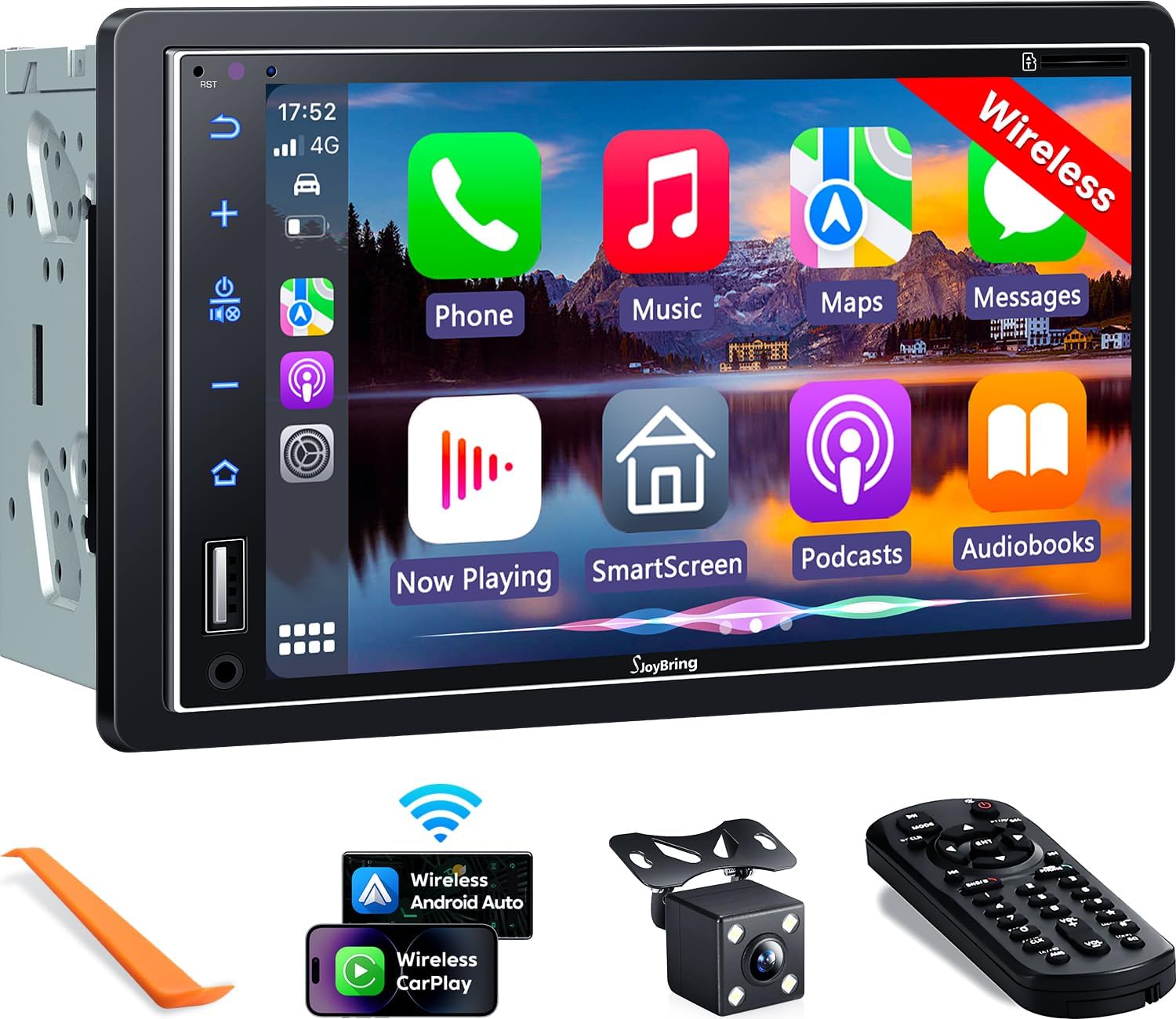

Slika 1.1: Prednja strana view of the SJOYBRING car stereo displaying the CarPlay interface.

2. Sadržaj paketa

Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke:

• Glavna jedinica (automobilski stereo)
• Okvir
• Pozadi View Kamera
• Kabel za rezervnu kameru
• kabelskog svežnja
• Daljinski upravljač
• Korisnički priručnik (ovaj dokument)
• Montažni nosači
• Alat za rastavljanje
• Vijci (različite veličine)

Image 2.1: Visual representation of the SJOYBRING car stereo package contents.

3. Postavljanje i instalacija

3.1 Important Installation Tips

• The standard size of this unit is 170mm x 97mm. Ensure your vehicle's dashboard opening matches this size.
• If the stereo size does not fit your dash, an additional suitable dash kit may be required (not included).
• Read this instruction manual thoroughly before beginning installation.
• Some vehicles may require additional accessories for installation, such as a wire harness adapter and a radio antenna adapter specific to your car model (not included).

3.2 Dijagram ožičenja

Refer to the following diagram for proper wiring connections. Incorrect wiring can damage the unit or your vehicle's electrical system.

Image 3.1: ISO Standard Double DIN wiring and dimension diagram.

3.3 Pozadi View Povezivanje kamere

Uključeni HD noćni vid na zadnjem dijelu vozila view camera provides a 170° ultra-wide viewing angle and is waterproof. Connect the camera as shown in the diagram below. The display will automatically switch to the rear view when the vehicle is in reverse gear.

Image 3.2: One-step wiring connection for the rear camera.

4. Uputstvo za upotrebu

4.1 Bežični Apple CarPlay i Android Auto

Connect your smartphone to the car stereo via Bluetooth and Wi-Fi for wireless Apple CarPlay or Android Auto functionality. This allows access to navigation, music, messages, and other phone features directly on the stereo's screen. Voice control via Siri or Google Assistant is supported for safer operation.

Image 4.1: Wireless Apple CarPlay and Android Auto in operation.

4.2 Wired Mirror Link

The unit supports wired mirror link for both iOS and Android phones (no version limit). Use a USB connection to mirror your smartphone's screen, displaying apps like Google Maps, Spotify, or YouTube on the 7-inch HD touchscreen.

Image 4.2: Wired Mirror Link functionality.

4.3 Audio karakteristike

• 4.2-kanalni audio izlaz: Features 4 channels of pre-amplifier (RCA) for front right, front left, rear right, and rear left speakers, allowing for precise sound adjustment.
• Izlaz subwoofera: Includes two high RMS power subwoofer outputs for enhanced bass effects.
• 10-pojasni ekvilajzer: An integrated 10-band audio equalizer allows customization of the music effect.

Image 4.3: 4.2 Channel Audio Output diagram.

Image 4.4: 10-Band Equalizer interface.

4.4 Bluetooth povezivost

Utilizes the latest Bluetooth technology with an independent Bluetooth module and antenna for a strong and stable connection, ensuring clear calls and uninterrupted music playback.

Image 4.5: Latest Bluetooth technology for stable connection.

4.5 Upravljanje volanom (SWC)

The unit supports steering wheel controls, allowing you to manage audio functions without taking your hands off the wheel. Refer to the wiring diagram for SWC connections and the unit's settings for programming.

Image 4.6: Steering Wheel Control setup interface.

4.6 FM & AM Radio

Access FM radio frequencies from 87.5 to 107.9 MHz and AM radio frequencies from 530 to 1710 KHz. The unit allows for station presets and scanning.

Image 4.7: FM & AM Radio interface.

5. Održavanje

Da biste osigurali dugotrajnost i optimalne performanse vašeg SJOYBRING auto stereo uređaja, slijedite ove smjernice za održavanje:

• Čišćenje ekrana: Koristite meku krpu koja ne ostavlja dlačice da nježno obrišete ekran osjetljiv na dodir. Za tvrdokorne mrlje, lagano obrišiteampOperite krpu vodom ili sredstvom za čišćenje ekrana. Izbjegavajte jake hemikalije ili abrazivne materijale.
• Uklanjanje prašine: Regularly clean dust from the unit's vents and buttons using a soft brush or compressed air.
• Kontrola temperature: Avoid exposing the unit to extreme temperatures for extended periods.
• Inspekcija ožičenja: Periodically check all wiring connections to ensure they are secure and free from damage.

6. Otkrivanje problema

Ako naiđete na probleme sa SJOYBRING auto stereo uređajem, pogledajte sljedeće uobičajene korake za rješavanje problema:

• Nema napajanja: Check all power connections, including the ACC (accessory) and 12V constant power wires. Ensure the vehicle's fuse for the stereo is not blown.
• Nema zvuka: Verify speaker connections are correct. Check the volume level and ensure the mute function is not activated. Confirm the audio source is properly selected.
• Problemi sa Bluetooth vezom: Ensure Bluetooth is enabled on both the stereo and your smartphone. Delete previous pairings and attempt to re-pair. Move closer to the unit if interference is suspected.
• CarPlay/Android Auto se ne povezuje: For wireless connection, ensure both Bluetooth and Wi-Fi are active on your phone and the stereo. For wired mirror link, try a different USB cable or port.
• Kamera za vožnju unazad se ne prikazuje: Check the camera's power and video signal connections. Ensure the reverse gear trigger wire is correctly connected to the vehicle's reversing light circuit.
• Ekran na dodir ne reaguje: Pokušajte ponovo pokrenuti uređaj. Ako problem i dalje postoji, obratite se korisničkoj podršci.

If these steps do not resolve the issue, please contact SJOYBRING customer support for further assistance.

7. Specifikacije

8. Garancija i podrška

8.1 Informacije o garanciji

For specific warranty details regarding your SJOYBRING car stereo, please refer to the warranty card included in your product packaging or contact SJOYBRING customer support directly. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.

8.2 Korisnička podrška

If you have any questions, require technical assistance, or need to report an issue, please contact SJOYBRING customer support. Contact information can usually be found on the manufacturer's official webweb-mjestu ili na ambalaži proizvoda.

Manufacturer: SJOYBRING

For the most up-to-date support information, visit the official SJOYBRING store on Amazon: SJOYBRING Store
