Fujifilm Fujinon XF16-50mmF2.8-4.8 R LM WR Lens Instruction Manual

1. Uvod i krajview

This manual provides essential information for the proper use and care of your Fujifilm Fujinon XF16-50mmF2.8-4.8 R LM WR lens. Designed for Fujifilm X Series cameras, this versatile zoom lens offers a focal range equivalent to 24-76mm in 35mm format, making it suitable for a wide array of photographic subjects.

Ključne karakteristike uključuju:

• Versatile 24-76mm equivalent focal length, ideal for various scenes and subjects.
• Optimized for the latest 40-megapixel high-resolution Fujifilm sensors.
• Minimum focus distance of 0.24m (9.44in) for excellent close-up capabilities.
• Compact and lightweight design, measuring 7.14cm (2.8in) long and weighing 240g (0.53lb).
• Internal zoom mechanism maintains consistent lens length during operation.
• Weather-resistant construction for reliable performance in challenging conditions.

2. Komponente proizvoda

The Fujifilm Fujinon XF16-50mmF2.8-4.8 R LM WR lens package typically includes:

• Fujifilm Fujinon XF16-50mmF2.8-4.8 R LM WR Lens
• Prednji poklopac objektiva
• Poklopac stražnjeg sočiva
• Sjenilo
• Lens Pouch/Wrap (may vary by region/package)

Slika 1: Prednja strana view of the Fujifilm Fujinon XF16-50mmF2.8-4.8 R LM WR lens with lens cap attached.

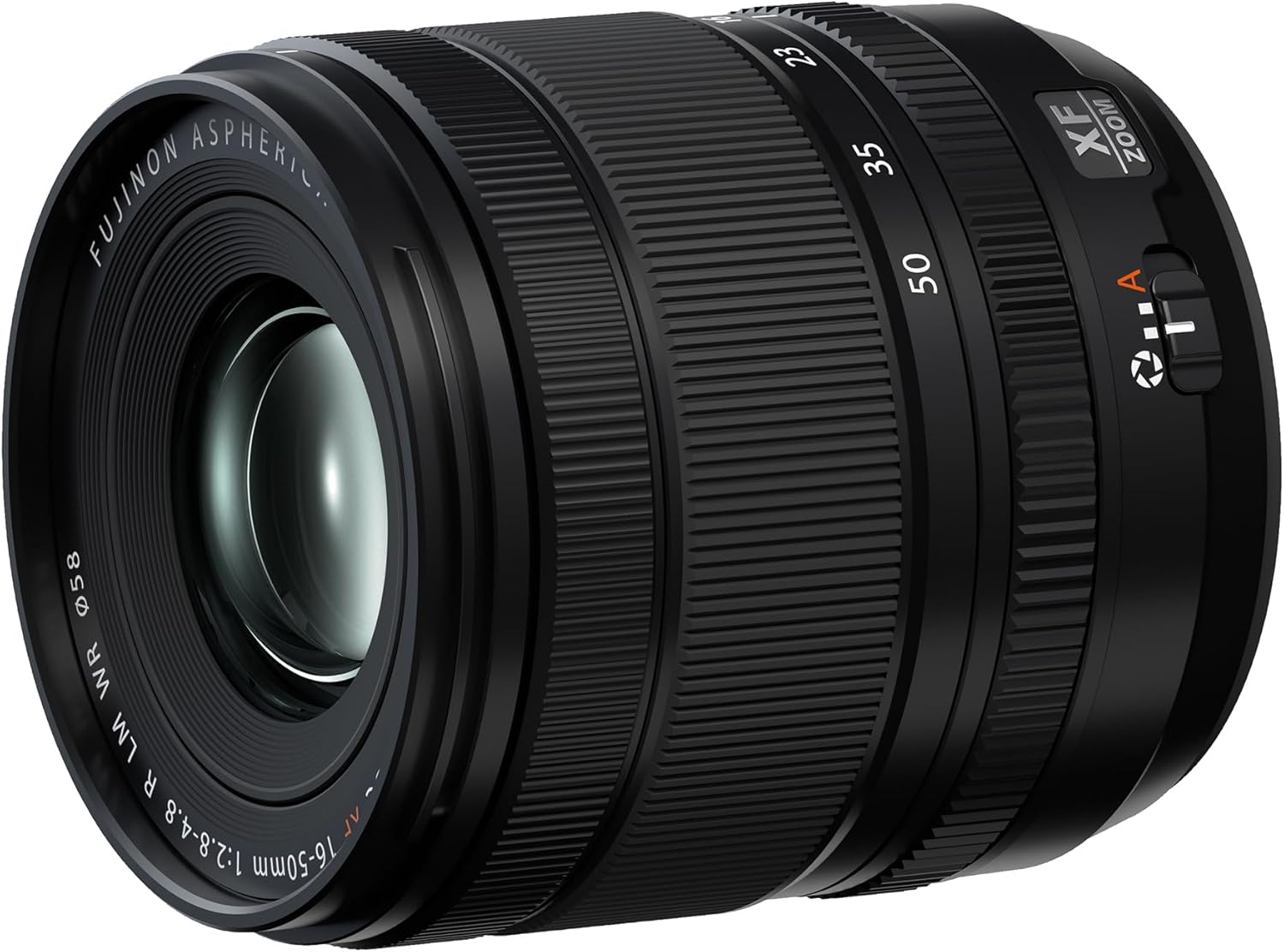

Slika 2: Bočna strana view of the Fujifilm Fujinon XF16-50mmF2.8-4.8 R LM WR lens, showing the zoom and aperture rings.

3. Podešavanje

3.1 Pričvršćivanje objektiva

1. Provjerite da li su i kamera i objektiv čisti i bez prašine.
2. Align the mounting marks (usually a white dot or line) on the lens with the corresponding mark on the camera body.
3. Gently insert the lens into the camera's lens mount.
4. Rotate the lens clockwise (or counter-clockwise, depending on the camera model) until it clicks into place, indicating it is securely locked.
5. Skinite prednji poklopac sočiva.

3.2 Odvajanje objektiva

1. Isključite kameru.
2. Attach the front lens cap to protect the front element.
3. While pressing the lens release button on the camera body, rotate the lens counter-clockwise (or clockwise) until it detaches from the camera.
4. Immediately attach the rear lens cap to the detached lens and the body cap to the camera to prevent dust from entering.

4. Upravljanje objektivom

4.1 Zumiranje

To adjust the focal length, rotate the zoom ring on the lens. The XF16-50mmF2.8-4.8 R LM WR features an internal zoom mechanism, meaning the physical length of the lens does not change as you zoom, which is beneficial for balancing on gimbals or using filters.

4.2 Kontrola otvora blende

The lens features an aperture ring for direct control over the aperture setting. Rotate the aperture ring to select your desired f-stop. The lens offers a variable maximum aperture of F2.8 at 16mm and F4.8 at 50mm.

4.3 Fokusiranje

This lens is equipped with a rapid linear autofocus motor, providing fast and accurate focusing. You can switch between autofocus (AF) and manual focus (MF) modes using the switch on the lens barrel or via your camera's settings. In manual focus mode, rotate the focus ring to achieve sharp focus.

Figure 3: The Fujifilm Fujinon XF16-50mmF2.8-4.8 R LM WR lens with its included lens hood, ready for use.

5. Održavanje i njega

• Čišćenje sočiva: Use a soft, lint-free cloth specifically designed for optical surfaces. For stubborn smudges, use a lens cleaning solution applied to the cloth, not directly to the lens.
• Protecting from Dust and Moisture: Always keep lens caps on when the lens is not in use. The lens is weather-resistant, but it is recommended to avoid prolonged exposure to heavy rain or extreme dust.
• Skladištenje: Store the lens in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided lens pouch for added protection during transport.
• Rukovanje: Avoid dropping or subjecting the lens to strong impacts. Handle the zoom and focus rings gently.

6. Otkrivanje problema

• Lens not attaching securely: Ensure the mounting marks are correctly aligned and the lens is rotated until it clicks. Check for any obstructions on the mount.
• Autofokus ne radi: Verify that the lens is set to AF mode and not MF. Check camera settings to ensure autofocus is enabled. Ensure there is sufficient light and contrast for the autofocus system to operate effectively.
• Dust on images: If dust spots appear in your photos, first check the front and rear elements of the lens for dust and clean them carefully. If the problem persists, dust may be on the camera sensor, which requires professional cleaning or careful cleaning according to your camera's manual.
• Image quality issues (softness, aberrations): Ensure the lens is clean and properly attached. Check your camera's settings (e.g., ISO, shutter speed, aperture) to ensure they are appropriate for your shooting conditions.

7. Specifikacije

8. Garancija i podrška

This Fujifilm product is covered by the manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official Fujifilm webSačuvajte dokaz o kupovini za slučaj reklamacije.

For technical support, service, or additional inquiries, please contact Fujifilm customer service through their official channels. Information regarding product registration and support resources can often be found in the owner's manual or on the Fujifilm website.

Optional protection plans may be available for purchase separately to extend coverage beyond the standard manufacturer's warranty. Please check with your retailer for details.

9. Proizvod je gotovview Video
