SKYSHL SS103PVC12 Optical Fiber Power Meter User Manual

1. Uvod

The SKYSHL SS103PVC12 Optical Fiber Power Meter (OPM) is a compact and user-friendly instrument designed for comprehensive testing of fiber optic networks. It facilitates both absolute optical power measurement and relative optical loss measurement. This device is characterized by its robust design, wide power measurement range, high precision, and user self-calibration capabilities, making it a cost-effective solution for fiber optic professionals.

This manual provides detailed instructions for the safe and effective use of your SKYSHL SS103PVC12. Please read it thoroughly before operation and retain it for future reference.

2. Sigurnosne informacije

Pridržavajte se sljedećih sigurnosnih mjera opreza kako biste spriječili ozljede i oštećenje uređaja:

• Laserska sigurnost: The Visual Fault Locator (VFL) emits a visible red laser. Ne gledajte direktno u laserski snop ili view it with optical instruments. Direct exposure can cause severe eye injury.
• Sigurnost baterije: Use only the specified battery type (3.7V 700mAh lithium battery). Do not disassemble, puncture, or expose the battery to extreme temperatures or fire. Dispose of batteries according to local regulations.
• Uslovi okoline: Operate the device within specified temperature and humidity ranges. Avoid exposure to water, dust, and corrosive substances.
• čišćenje: Use a soft, dry cloth for cleaning the device. For optical connectors, use specialized fiber optic cleaning tools.
• Održavanje: Ne pokušavajte sami otvarati ili popravljati uređaj. Za sve servisne radove obratite se kvalifikovanom osoblju.

3. Sadržaj paketa

Provjerite da li su sve stavke prisutne u paketu:

• 1 x SKYSHL SS103PVC12 Optical Fiber Power Meter
• 1 x USB-A to Micro USB Charging Cable
• 1 x FC-LC Adapter
• 1 x Korisnički priručnik (ovaj dokument)

4. Proizvod je gotovview

The SKYSHL SS103PVC12 is an all-in-one tool for fiber optic network testing. It combines an Optical Power Meter (OPM), a Visual Fault Locator (VFL), an RJ45 cable tester, and an LED flashlight.

4.1 Ključne karakteristike

• Multi-Wavelength Calibration: Supports 10 calibrated wavelengths: 850nm, 980nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm, and 1650nm, suitable for both single-mode and multi-mode fiber testing.
• Široki raspon mjerenja: Measures optical power from -50dBm to +26dBm.
• Integrated VFL: 650nm red laser with a 30km range for identifying fiber breaks and continuity.
• RJ45 Cable Tester: For quick localization and testing of 8P/6P/4P network cables.
• Universal Connector Compatibility: Features a 2.5mm universal connector (compatible with FC/SC/ST) and includes an FC-LC adapter for LC connectors.
• Dug vijek trajanja baterije: Powered by a 3.7V 700mAh lithium battery, providing over 120 hours of typical operation.
• Kompaktan i izdržljiv dizajn: Ergonomic, portable, and built with high-strength plastic casing for resilience.
• LCD ekran od 2 inča: Jasan i lako čitljiv interfejs.

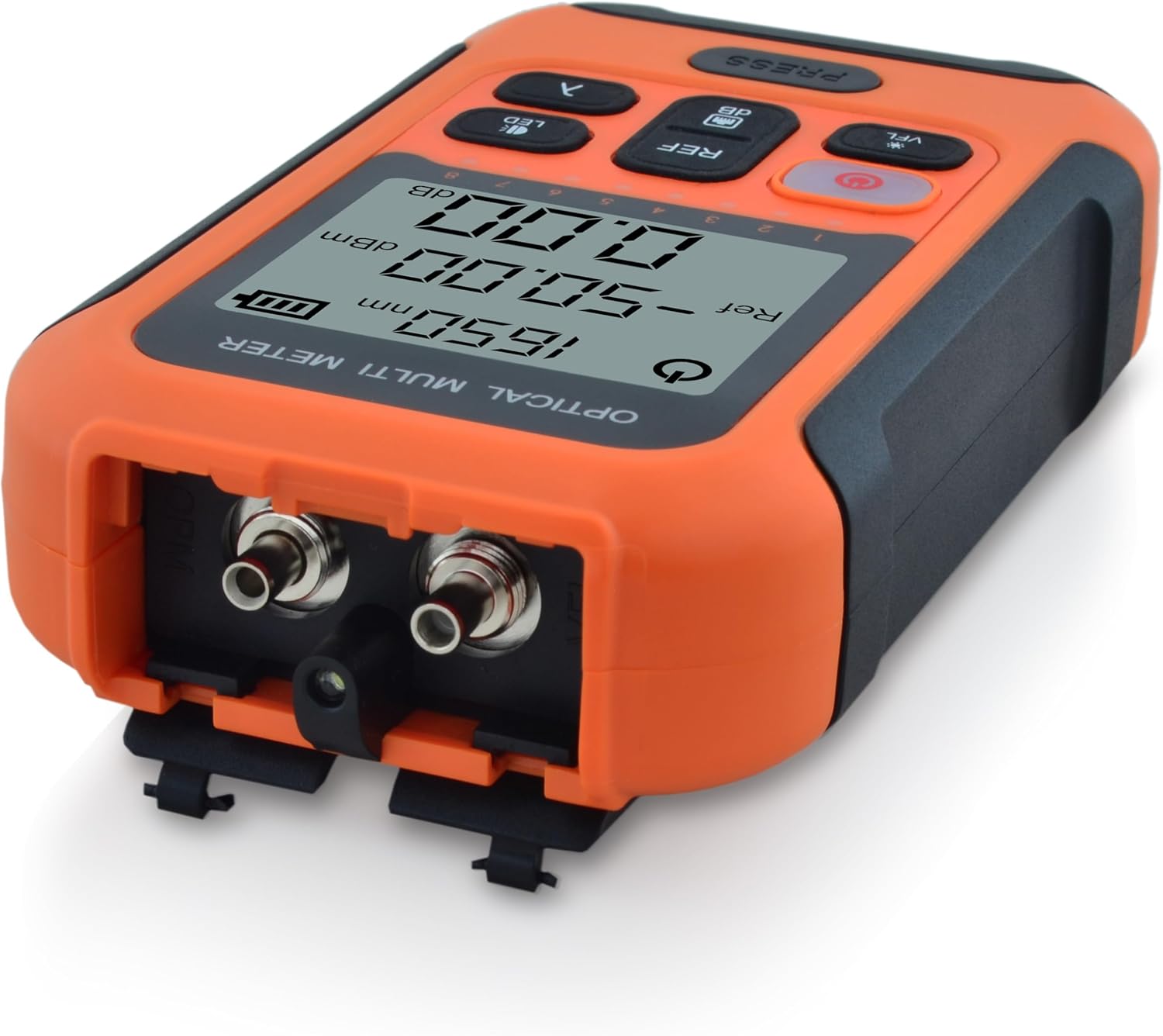

4.2 Izgled uređaja

5. Podešavanje

5.1 Punjenje baterije

The device is powered by a built-in 3.7V 700mAh lithium battery. Before first use, or when the battery indicator on the display shows low charge, connect the device to a USB power source using the provided Micro USB cable. The power button will illuminate red during charging.

5.2 Povezivanje optičkih kablova

1. Provjerite je li optički konektor čist. Po potrebi koristite alat za čišćenje optičkih vlakana.
2. For FC, SC, or ST connectors, directly insert them into the 2.5mm universal port on the top of the device.
3. For LC connectors, attach the provided FC-LC adapter to the universal port, then insert the LC connector into the adapter.
4. Osigurajte sigurnu vezu kako biste spriječili netačna očitavanja.

5.3 Connecting RJ45 Cables

1. Detach the small RJ45 module from the side of the main unit.
2. Connect one end of the RJ45 cable to the port on the main unit.
3. Connect the other end of the RJ45 cable to the detached module.
4. Proceed to the operating instructions for RJ45 cable testing.

6. Uputstvo za upotrebu

6.1 Uključivanje/isključivanje napajanja

• Za uključivanje pritisnite i držite Dugme za napajanje (red button with power symbol) for approximately 2 seconds.
• Za isključivanje pritisnite i držite Dugme za napajanje again for approximately 2 seconds.
• The device features an automatic power-off function after 10 minutes of inactivity to conserve battery.

6.2 Optical Power Measurement (OPM)

1. Odaberite talasnu dužinu: Pritisnite λ (Wavelength) Button to cycle through the available calibrated wavelengths (850nm, 980nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm, 1650nm). Select the wavelength corresponding to your fiber optic system.
2. Povežite optička vlakna: Connect the fiber optic cable to the appropriate port as described in Section 5.2.
3. Read Absolute Power: The display will show the measured optical power in dBm.
4. Set Reference (Relative Measurement):
   • With a known good signal connected, press the REF/dB Button to set the current power reading as the reference value (0.00dB).
   • When measuring other points in the fiber link, the display will show the relative loss or gain in dB compared to the set reference.
   • Pritisnite REF/dB Button again to toggle between absolute (dBm) and relative (dB) measurements.

6.3 Vizualni lokator kvarova (VFL)

• Activate VFL: Pritisnite VFL Button. The 650nm red laser will emit from the VFL port (located near the fiber optic input ports).
• Identify Faults: Connect the fiber to be tested to the VFL port. Observe the fiber for any visible red light leakage, which indicates breaks, sharp bends, or faulty connectors.
• Deactivate VFL: Pritisnite VFL Button again to turn off the laser.
• Oprez: Always follow laser safety guidelines (Section 2).

6.4 RJ45 Cable Tester

• Ensure the RJ45 cable is connected to both the main unit and the detached module as described in Section 5.3.
• The device will automatically begin testing the cable continuity. The display will show the status of each wire pair (1-8 for 8P, 1-6 for 6P, 1-4 for 4P).
• A successful test will show all corresponding numbers lighting up sequentially or indicating continuity. Any missing or incorrect sequence indicates a fault (e.g., open, short, cross).

6.5 LED lampica

• Pritisnite LED dugme to turn the integrated LED flashlight on or off. This is useful for working in dimly lit environments.

7. Održavanje

• Čišćenje optičkih konektora: Regularly clean the fiber optic input ports and any adapters using specialized fiber optic cleaning swabs or pens. Dust and debris are the primary causes of inaccurate measurements.
• Čišćenje uređaja: Wipe the exterior of the device with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents.
• Održavanje baterije: For optimal battery life, avoid fully discharging the battery frequently. If storing the device for an extended period, charge it to approximately 50% and recharge every few months.
• Skladištenje: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Use the protective caps for all ports when not in use.

8. Otkrivanje problema

If the problem persists after attempting these solutions, please contact SKYSHL customer support for assistance.

9. Specifikacije

10. Garancija i podrška

SKYSHL provides the following warranty for the SS103PVC12 Optical Fiber Power Meter:

• 3 Years Free Replacement
• 5 Years Free Maintenance
• Doživotna garancija

For technical support, warranty claims, or any inquiries regarding your device, please contact SKYSHL customer service through the retailer where you purchased the product or visit the official SKYSHL webstranica za kontakt informacije.
