Uputstvo za upotrebu FLARING plazma rezača

1. Sigurnosne informacije

Always prioritize safety when operating the FLARING Plasma Cutter. Failure to follow safety guidelines can result in serious injury or property damage.

• Lična zaštitna oprema (PPE): Always wear appropriate PPE, including a welding helmet with a suitable shade, flame-resistant clothing, heavy-duty gloves, and safety shoes.
• ventilacija: Ensure adequate ventilation in the work area to disperse fumes and gases produced during cutting. Avoid working in confined spaces.
• Opasnosti od požara: Držite zapaljive materijale dalje od područja rezanja. Imajte aparat za gašenje požara pri ruci. Iskre i rastopljeni metal mogu se širiti na značajne udaljenosti.
• električna sigurnost: Connect the machine to a properly grounded power supply. Do not operate in wet conditions. Inspect cables and connections for damage before each use.
• Komprimirani zrak: Use clean, dry, oil-free compressed air. Ensure air pressure is within the recommended range.
• Vruće površine: The torch and workpiece will become extremely hot during operation. Allow them to cool before handling.

2. Proizvod je gotovview

The FLARING FC650D is a versatile and portable 65 Amp plasma cutter designed for efficient and clean cutting of various metal types. It features advanced IGBT inverter technology and dual voltage capability for flexible power options.

The FLARING FC650D Plasma Cutter and its included accessories.

Illustration of key features including large capacitance, dual voltage, strong heat dissipation, fast cutting, and ease of use.

Ključne karakteristike:

• High Efficiency Cutting: Max severance cut up to 4/5" (20 mm), ideal clean cut 1/2" (12.7mm) with 60% duty cycle.
• Dual Voltage: Operates on both 120V and 240V (50/60 Hz) power sources without manual relinking.
• Široka primjena: Suitable for cutting aluminum, magnesium alloys, brass, stainless steel, cast iron, steel, copper, titanium, and other metal materials.
• Prijenosni i lagani: Weighs only 8.4 pounds, making it easy to transport.
• Stabilan i izdržljiv: Features automatic arc control for consistent cutting, reducing user fatigue.

The plasma cutter utilizes an Original IGBT chip for reliable performance.

An efficient cooling fan ensures strong heat dissipation during operation.

3. Components and Panel Introduction

Your FLARING FC650D Plasma Cutter comes with the following components:

• FC650D Plasma Cutter Unit
• PT31 Torch (9.9ft)
• Heavy-duty ground clamp sa kablom
• Air regulator and hose
• 7 Elektrode
• 7 savjeta
• Gas Hose
• Conversion line 120V to 240V

A visual representation of the upgraded FC650D accessories included with your plasma cutter.

Uvod u panel:

Detaljno view of the plasma cutter's control panel and connections.

1. LED digitalni displej
2. Current Adjustable Knob
3. Torch Connector
4. Prekidač baklje
5. Zemlja Clamp Konektor
6. Prekidač za napajanje
7. Power Cable
8. Dugme za kontrolu pritiska
9. Ventilator za hlađenje
10. Manometar

4. Podešavanje

1. Priključak za napajanje: Connect the power cable to a suitable 120V or 240V (50/60 Hz) power outlet. The machine automatically detects the voltage. Use the provided conversion line if necessary.
2. Priključak za dovod zraka: Connect your compressed air source to the air regulator. Attach the air hose from the regulator to the plasma cutter's air inlet. Ensure the air supply is clean, dry, and oil-free. Set the air pressure using the Pressure Control Knob and monitor with the Pressure Gauge.
3. Priključak plamenika: Connect the PT31 Torch to the Torch Connector on the front panel. Ensure it is securely fastened.
4. Prizemlje Clamp veza: Attach the heavy-duty ground clamp to the Earth Clamp Connector. Securely clamp tlo clamp to the workpiece or a clean, bare metal part of the work table, ensuring good electrical contact.
5. Consumables Check: Verify that the torch tip and electrode are correctly installed and in good condition. Replace if worn.

5. Uputstvo za upotrebu

Follow these steps for effective and safe plasma cutting:

1. Uključeno: Flip the Power Switch to the 'ON' position. The LED Digital Display will illuminate.
2. Podesite struju: Use the Current Adjustable Knob to set the desired cutting current (Amps) based on the material type and thickness. Refer to the specifications table for recommended settings.
3. Podesite pritisak zraka: Ensure the air pressure is set correctly for optimal cutting performance. The recommended range is typically indicated on the machine or in the specifications.
4. Pripremite radni komad: Provjerite da li je radni komad čist i bez hrđe, boje ili drugih nečistoća koje bi mogle ometati električni luk.
5. Inicijacija luka: Position the torch nozzle close to the edge of the workpiece. Press the Torch Switch to initiate the pilot arc.
6. Započnite rezanje: Once the pilot arc is established, move the torch steadily across the material. Maintain a consistent travel speed and standoff distance for a clean cut. The machine's automatic arc control helps maintain the arc, even over expanded metal.
7. Rezanje različitih materijala: The FC650D is capable of cutting a wide range of metals, including steel, stainless steel, aluminum, copper, brass, and cast iron. Adjust current and speed accordingly.

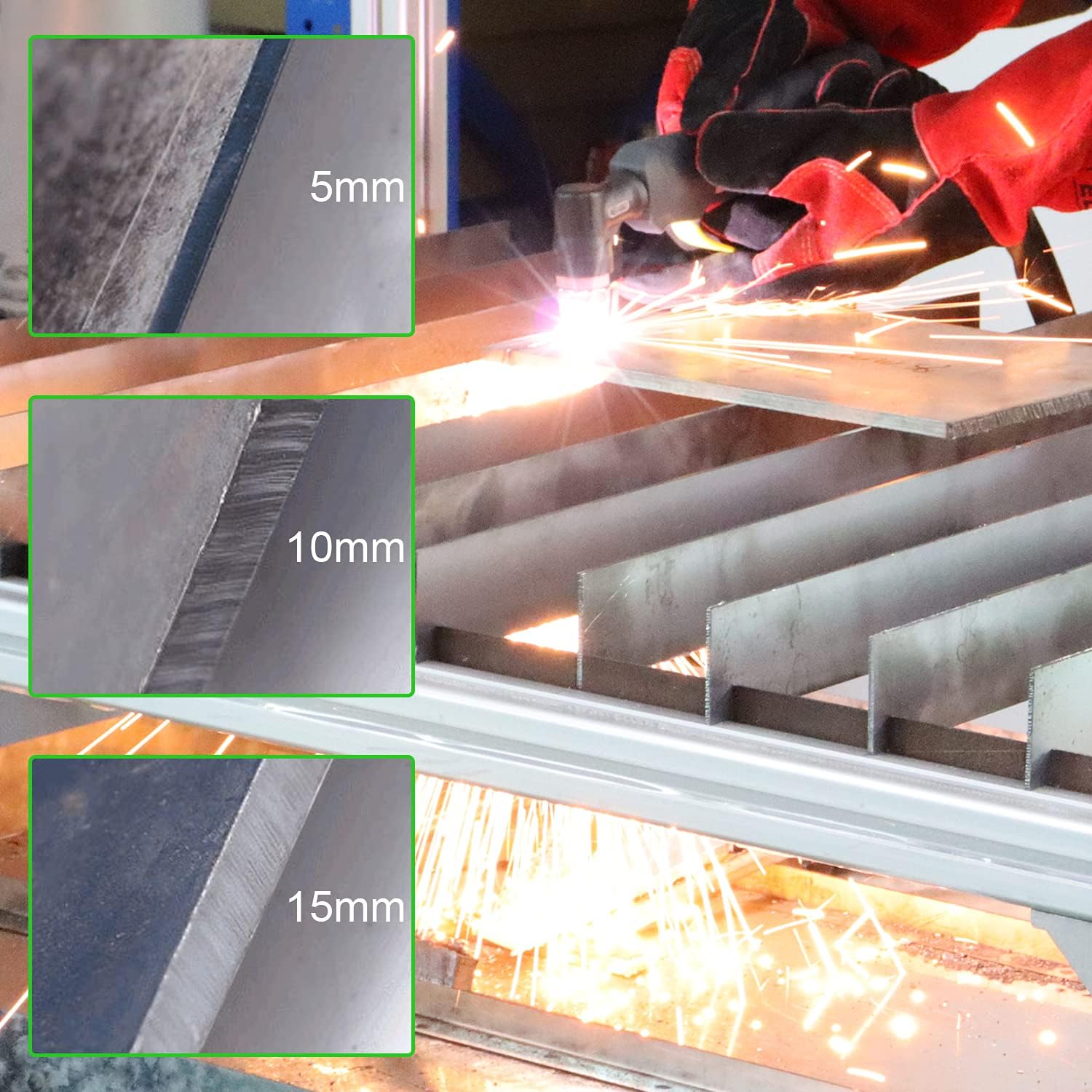

Examples of plasma cutting on different metal thicknesses (5mm, 10mm, 15mm).

The plasma cutter is suitable for a wide range of applications, including various metals and alloys.

Demonstracijski video:

6. Održavanje

Redovno održavanje osigurava dugotrajnost i optimalne performanse vašeg plazma rezača.

• Zamjena potrošnog materijala: Regularly inspect and replace worn torch tips and electrodes. Worn consumables can lead to poor cut quality and damage to the torch.
• Zračni filter/regulator: Periodically check and drain any moisture from the air filter/regulator. Ensure the filter element is clean to prevent contaminants from entering the torch.
• čišćenje: Keep the machine clean and free of dust and metal particles. Use compressed air to blow out internal components if necessary, ensuring the machine is unplugged.
• Inspekcija kablova: Inspect all cables (power, torch, ground) for cuts, abrasions, or loose connections. Repair or replace damaged cables immediately.

7. Otkrivanje problema

If you encounter issues with your plasma cutter, refer to the following common problems and solutions:

If problems persist after attempting these solutions, please contact FLARING customer support.

8. Specifikacije

Detailed technical specifications for the FLARING FC650D Plasma Cutter:

Official specification chart for the FC650D model.

9. Garancija i podrška

For information regarding product warranty, technical support, or service, please refer to the documentation provided with your purchase or contact FLARING customer service directly. You can often find contact details on the manufacturer's official webweb-mjestu ili putem vašeg prodajnog mjesta.
