1. Uvod
Thank you for choosing the EazeID D210S Label Maker. This portable device is designed for efficient and versatile labeling, suitable for various environments including home, office, and school. Featuring a user-friendly QWERTY keyboard and dual power options, it produces durable, laminated labels resistant to water, abrasion, fading, and temperature changes.
This manual provides detailed instructions on how to set up, operate, and maintain your label maker to ensure optimal performance and longevity.
2. Podešavanje
2.1. Sadržaj paketa
Prije nego što počnete, molimo vas da provjerite da li se u vašem paketu nalaze svi artikli:
- EazeID D210S Gray label maker (1 unit)
- Sample label tape waterproof (12mm 0.47 laminated White, 4M) (1 unit)
- Type-C Cable (1 unit)
- Uputstvo za upotrebu (1 jedinica)
Image: Contents of the EazeID D210S Label Maker package, including the device, sample tape, Type-C cable, and manual.
2.2. Napajanje uređaja
The EazeID D210S label maker offers two power options:
- USB Type-C kabel: Connect the included Type-C cable to the label maker and a compatible power adapter (not included). The device does not support charging via Type-C; it operates directly from the power source.
- AAA baterije: For portable use, insert 6 AAA batteries (not included) into the battery compartment located on the underside of the device. Ensure correct polarity.
Napomena:
- It is recommended to use a charger block with an output voltage of ±5V when using the Type-C cable.
- Do not leave batteries in the printer when it is powered by the USB Type-C cable.
Image: Illustration of the label maker's dual power options: USB Type-C for continuous power and AAA batteries for portability.
2.3. Installing Label Tape
To install the label tape:
- Open the tape compartment cover on the back of the label maker.
- Insert the label tape cassette with the tape facing the print head. Ensure the tape is properly aligned and clicks into place.
- Čvrsto zatvorite poklopac pretinca za traku.
Image: The label maker with its tape compartment open, illustrating the tape installation area and the integrated cutter.
3. Uputstvo za upotrebu
3.1. Osnovno kreiranje etiketa
Follow these steps to create a basic label:
- Uključeno: Pritisnite dugme za napajanje da uključite proizvođač etiketa.
- Unos tipkovnice: Koristite QWERTY tastaturu za unos željenog teksta. Tekst će se pojaviti na LCD ekranu.
- Štampa: Pritisnite Print dugme za štampanje etikete.
Image: A visual guide demonstrating the simple three-step process to operate the label maker.
3.2. Text Formatting and Special Functions
The D210S label maker includes a variety of built-in functions to customize your labels:
- Stilovi fontova: Access 16 font styles using the dedicated Font ključ.
- Simboli: Choose from over 640 symbols using the Simbol ključ.
- Okviri: Apply over 100 frames to your labels using the Okvir ključ.
- Ostale funkcije: Utilize keys for Size, Width, Barcode, History, Mirror, and more for advanced customization.

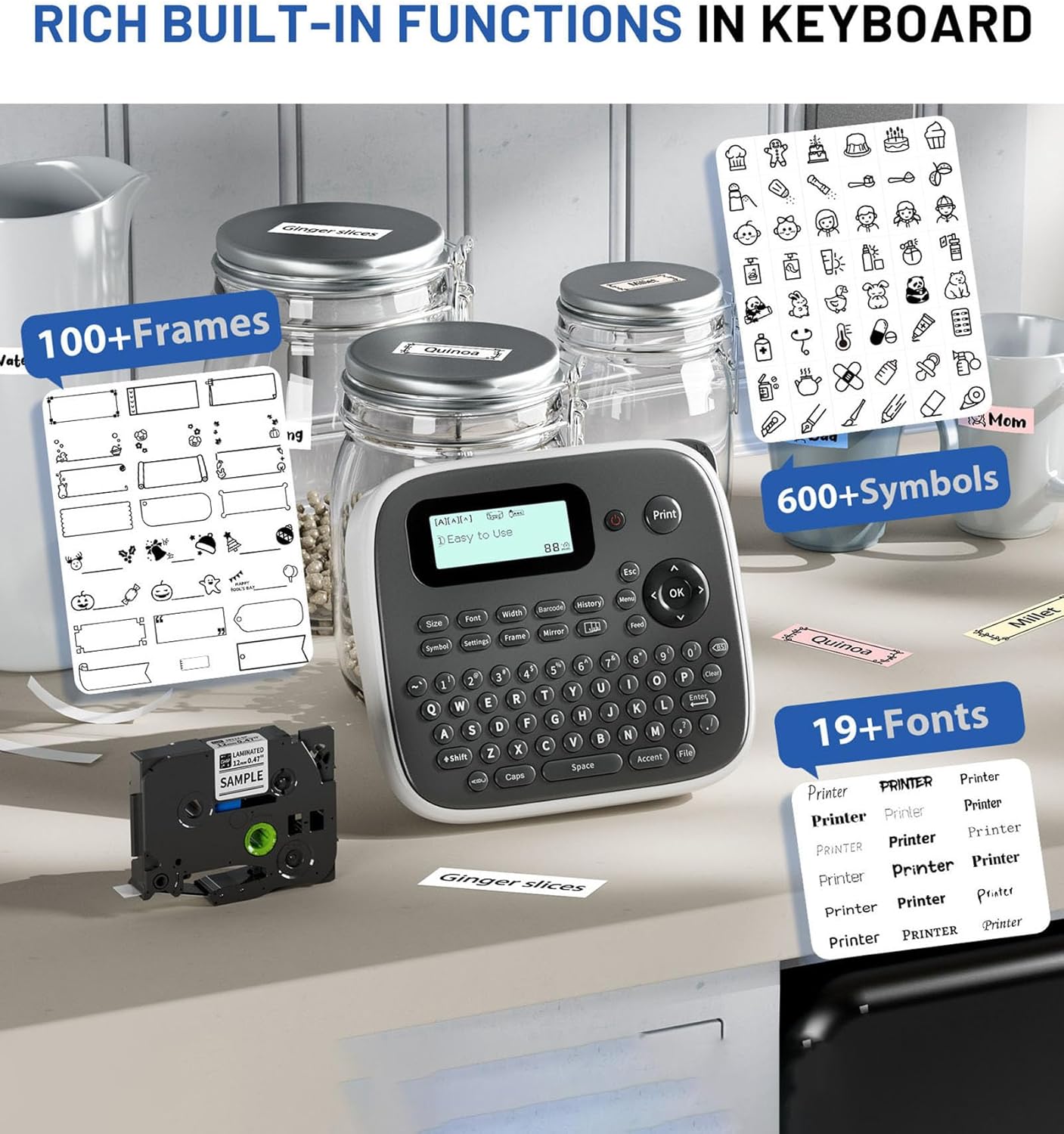

Image: The label maker showcasing its extensive library of frames, symbols, and font options for creative labeling.
3.3. Printing Multiple Labels
The D210S offers efficient options for printing multiple labels:
- Multi-Copy Editing: Use the multi-copy editing one-touch key to continuously edit and print up to 55 different labels. This is ideal for creating a series of unique labels without re-entering the menu.
- Printing Identical Labels: To print multiple copies of the same label, it is advisable to print them all at once and then cut them individually. You can specify the number of copies (1-9) by pressing Shift + Print, then using the navigation keys or a number key, and finally pressing OK or Print.
Image: A flowchart demonstrating how to use the multi-copy function for sequential label printing.
Image: A guide on how to efficiently print multiple identical labels using the Shift + Print key combination.
3.4. Clearing Text
To clear text or formatting:
- Delete Letters One by One: Pritisnite BS (Backspace) ključ.
- Delete All Text and Format: Pritisnite Jasno → OK → [Tekst i format] → OK.
- Delete Text Only: Pritisnite Jasno → [Samo tekst] → OK.
Image: A step-by-step guide on using the Clear function to remove text or formatting from the label maker's display.
3.5. Using the Built-in Cutter
After printing, use the integrated cutter to cleanly separate your label from the tape roll. The cutter is located on the side of the device. Press the cutter lever firmly to cut the label.
3.6. Optimizing Label Tape Usage
To reduce label tape costs, it is recommended to set the label margin to "Narrow" in the device settings. Navigate to Postavke → Margina → Usko.
Image: A visual comparison highlighting the tape-saving benefit of using the 'Narrow' margin setting on the D210S.
4. Održavanje
4.1. Čišćenje
To ensure optimal performance and print quality, regularly clean your label maker:
- Obrišite vanjski dio uređaja mekom, suhom krpom.
- If the print head becomes dirty, gently wipe it with a cotton swab dampened with isopropyl alcohol. Ensure the device is turned off and disconnected from power before cleaning.
- Remove any dust or debris from the tape compartment.
4.2. Tape Replacement
When the label tape runs out or you wish to change tape types, follow the tape installation instructions in Section 2.3. Ensure you use compatible EazeID D210S label tapes for best results.
4.3. Skladištenje
Store the label maker in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, remove the AAA batteries to prevent leakage.
5. Otkrivanje problema
If you encounter issues with your EazeID D210S Label Maker, refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Uređaj se ne uključuje | Low or dead batteries; USB cable not connected properly; incorrect power adapter. | Replace AAA batteries; ensure USB Type-C cable is securely connected; use a compatible 5V power adapter. |
| Poor print quality (faint, blurry, or missing lines) | Dirty print head; incorrect tape installation; low tape quality. | Clean the print head (see Section 4.1); re-install label tape correctly; ensure you are using genuine EazeID D210S compatible tape. |
| Tape jams frequently | Improper tape installation; foreign objects in tape path; tape not feeding smoothly. | Re-install tape, ensuring it is seated correctly; check for and remove any obstructions; ensure tape is not creased or damaged. |
| Label not cutting properly | Oštrica rezača je tupa ili začepljena. | Ensure no tape residue is blocking the cutter; if issues persist, contact customer support. |
| Poruka o grešci na ekranu | Specifičan uslov greške. | Refer to the on-screen message for guidance. Common errors relate to tape issues (e.g., "Tape End"). Follow instructions or re-install tape. |
6. Specifikacije
| Naziv modela | D210S Gray Label Maker Machine |
| Brand | EazeID |
| Tehnologija štampe | Thermal |
| Tehnologija povezivanja | Tastatura |
| Maksimalna veličina medija | 12mm |
| Maksimalna rezolucija ispisa u boji | 180 DPI |
| Maksimalna rezolucija crno-belog štampe | 203 DPI |
| Napajanje | Type-C Cable or 6 AAA Batteries |
| Dimenzije proizvoda | 5 x 5 x 2 inča |
| Težina artikla | 1.26 funte |
| Uključene komponente | Label maker, Sample label tape, Type-C Cable, User Manual |
| Maksimalan broj kopija po pokretanju | 55 (different labels) |
7. Garancija i podrška
7.1. Informacije o garanciji
The EazeID D210S Label Maker comes with a limited warranty. Please refer to the warranty card included in your package or visit the official EazeID webstranicu za detaljne uslove i odredbe u vezi sa garancijskim pokrićem i trajanjem.
7.2. Korisnička podrška
For technical assistance, troubleshooting not covered in this manual, or inquiries about replacement parts and accessories, please contact EazeID customer support. Contact information can typically be found on the EazeID official webweb-mjestu ili na ambalaži proizvoda.
8. Videozapisi proizvoda
U dostavljenim podacima za ugradnju u ovaj priručnik nisu pronađeni službeni videozapisi proizvoda od prodavca.
